Key Specifications

Product Model

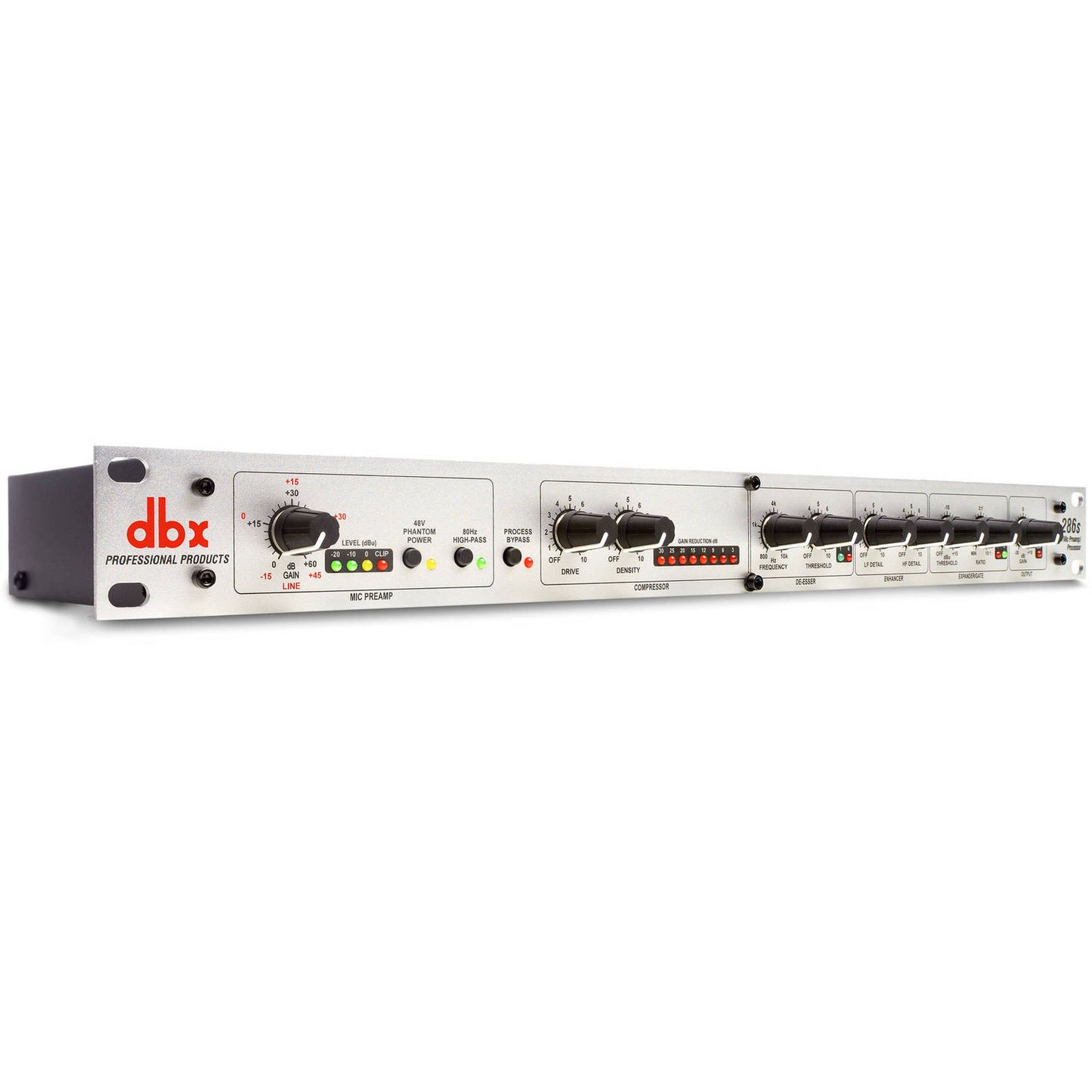

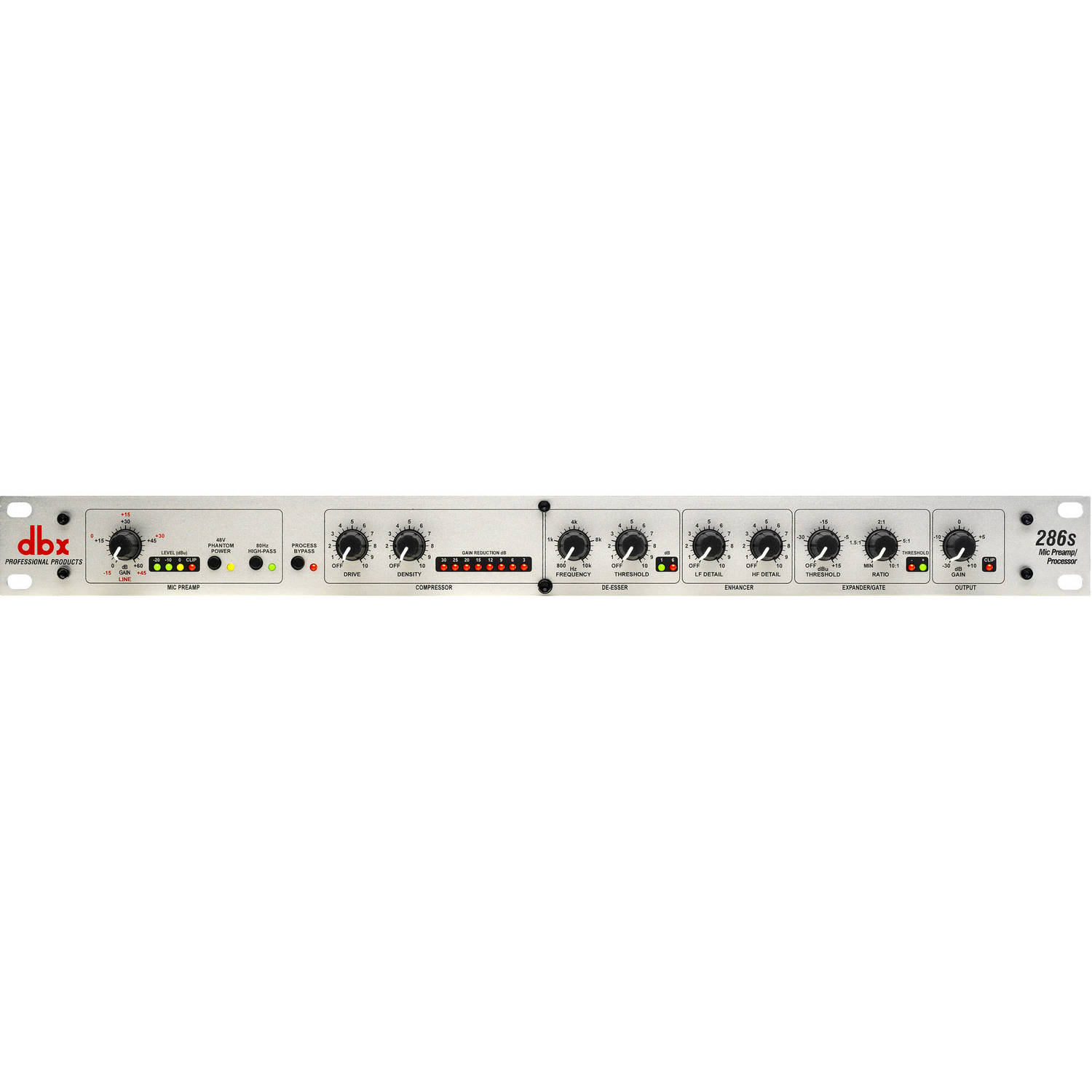

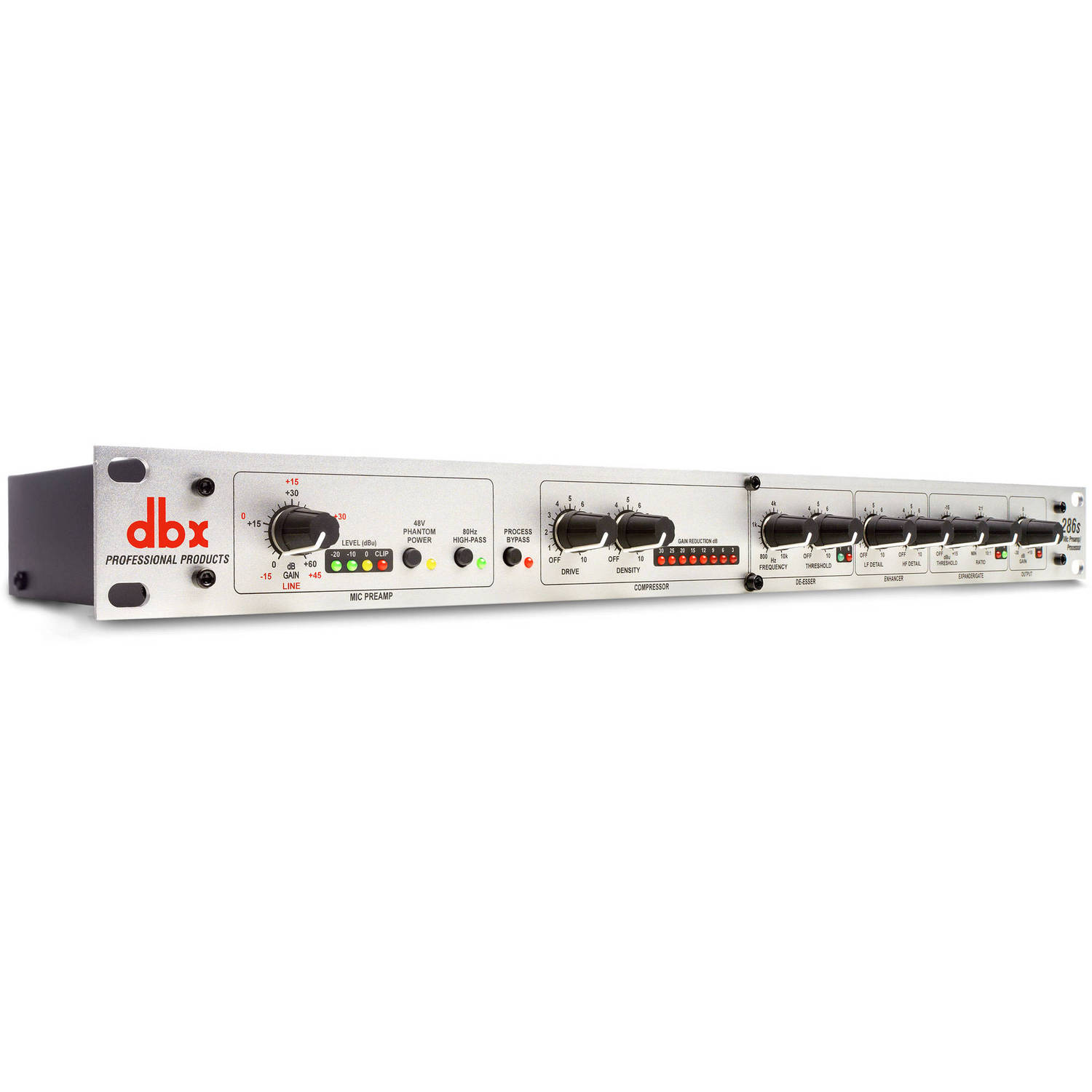

dbx 286s / 286sv

Product Type

Channel Strip Processor / Microphone Preamp

Number of Channels

Single Channel (Mono)

Processing Modules

Preamp, Compressor, De-Esser, Enhancer, Expander/Gate

Microphone Preamp Performance

Gain Range

0 dB to +60 dB

Phantom Power

+48V DC (Switchable)

EIN

-125 dBu (22 Hz - 22 kHz, 150 Ω source)

Frequency Response

20 Hz to 20 kHz (+0.5/-0.5 dB)

Signal Processing Detail

Compressor

Classic dbx OverEasy® Slope

De-Esser

Variable Frequency (800 Hz to 10 kHz)

Enhancer

HF Detail (Shelving) & LF Detail (80 Hz Boost / 250 Hz Cut)

Expander/Gate

Adjustable Threshold & Expansion Ratio (up to 10:1)

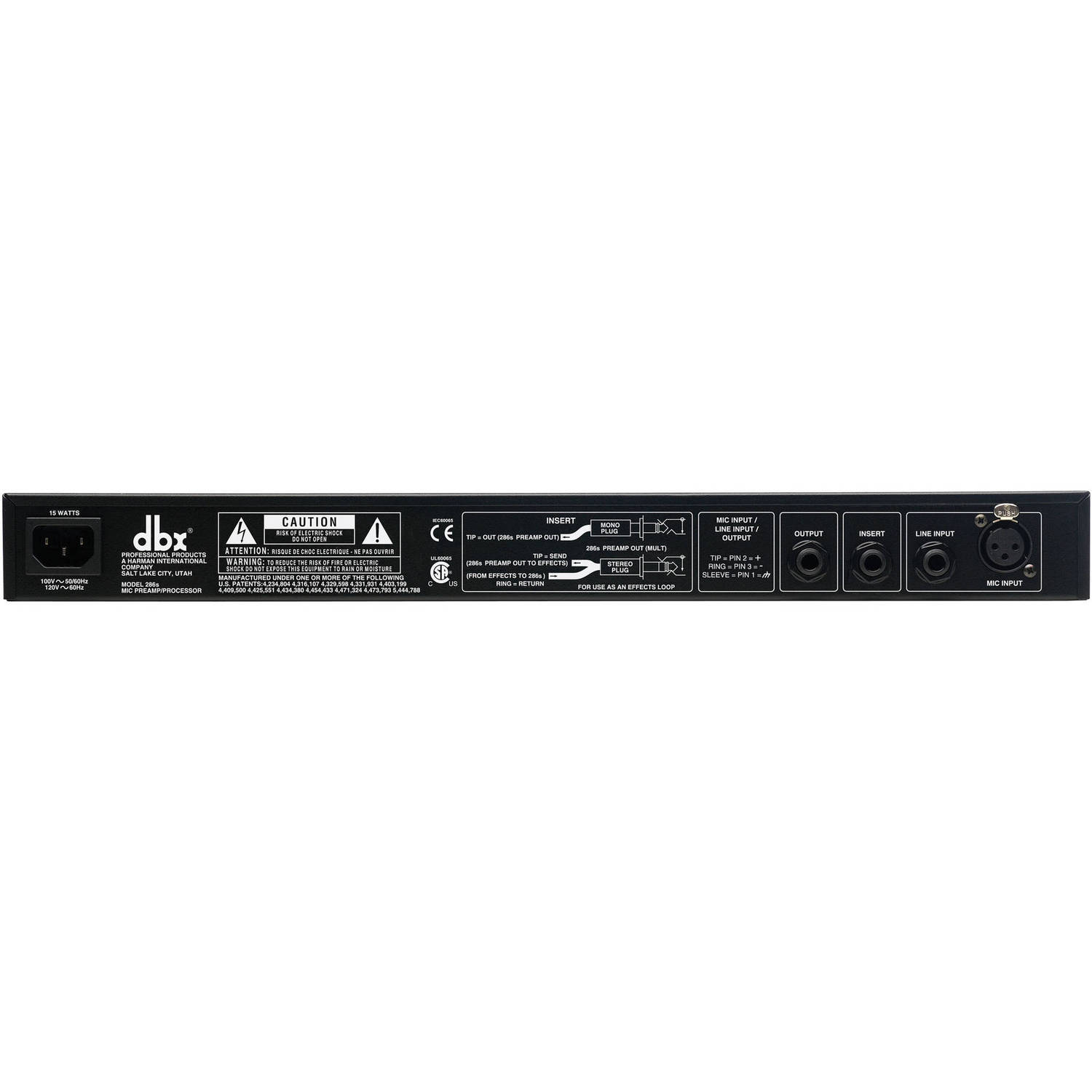

Physical & Connectivity

Inputs

XLR Mic, 1/4" TRS Line, 1/4" TRS Insert

Output

1/4" TRS Balanced/Unbalanced Line Output

Rack Space

1U Rack Mountable

Net Weight

2.04 kg (4.5 lbs)
