Key Specifications

Product Model

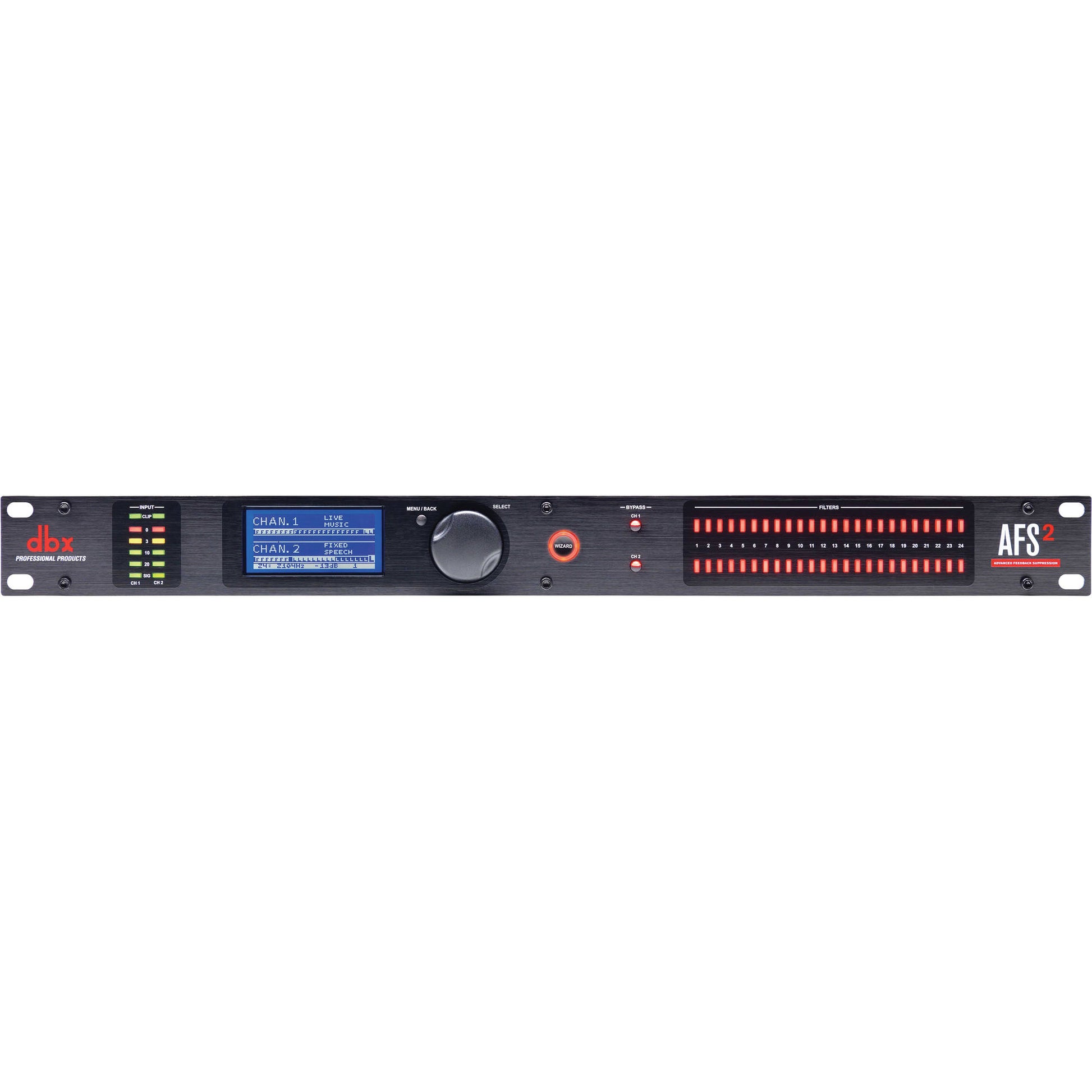

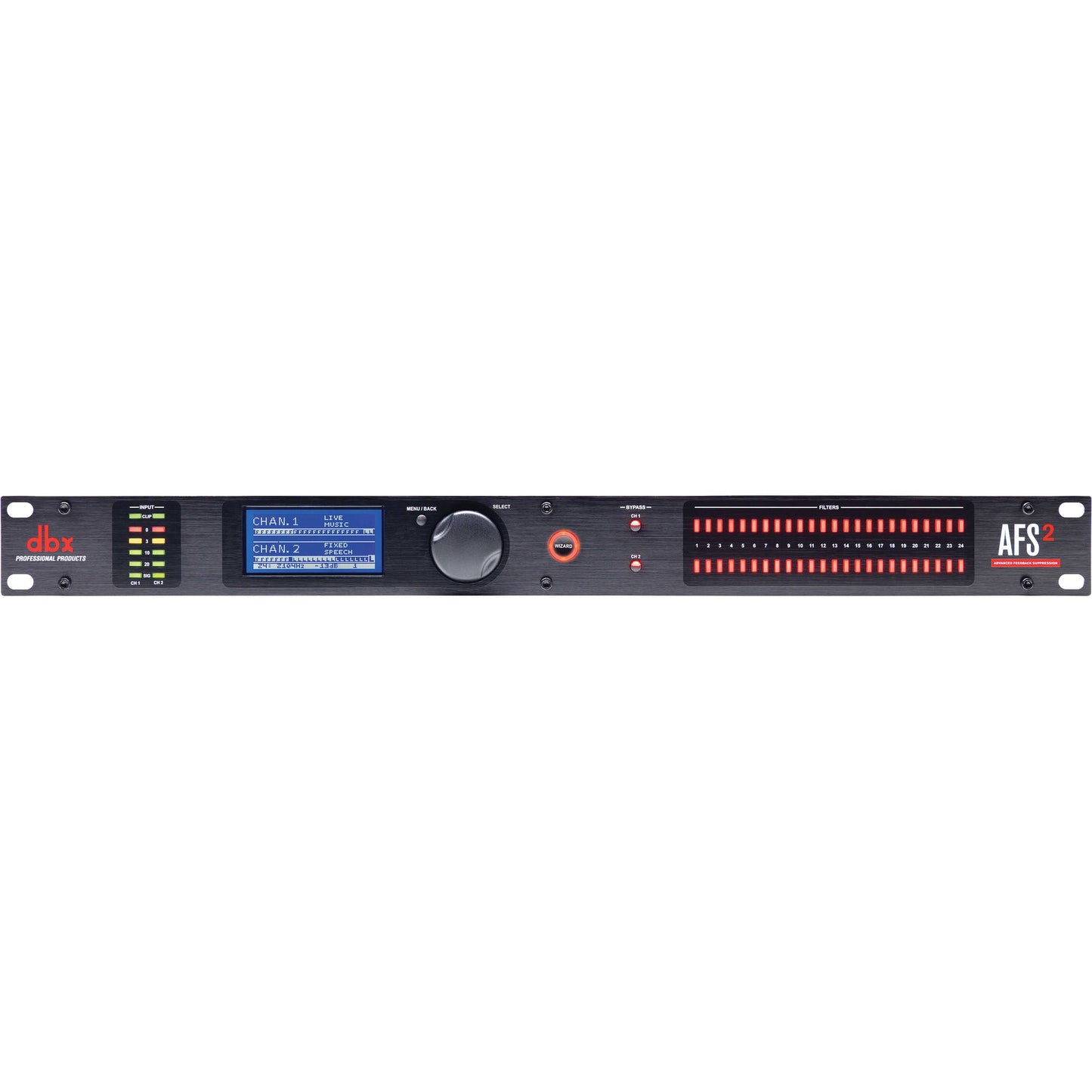

dbx AFS2

Product Type

Advanced Feedback Suppression Processor

Number of Channels

2 (Stereo or Dual Mono)

Filter Count

24 Programmable Filters per Channel

Acoustic & Digital Performance

Frequency Response

20 Hz to 20 kHz (±0.5 dB)

THD + Noise

0.003% Typical (@ +4 dBu, 1 kHz)

Dynamic Range

109 dB A-weighted

Digital Resolution

24-bit A/D/A | 48 kHz Sample Rate

Inputs / Outputs

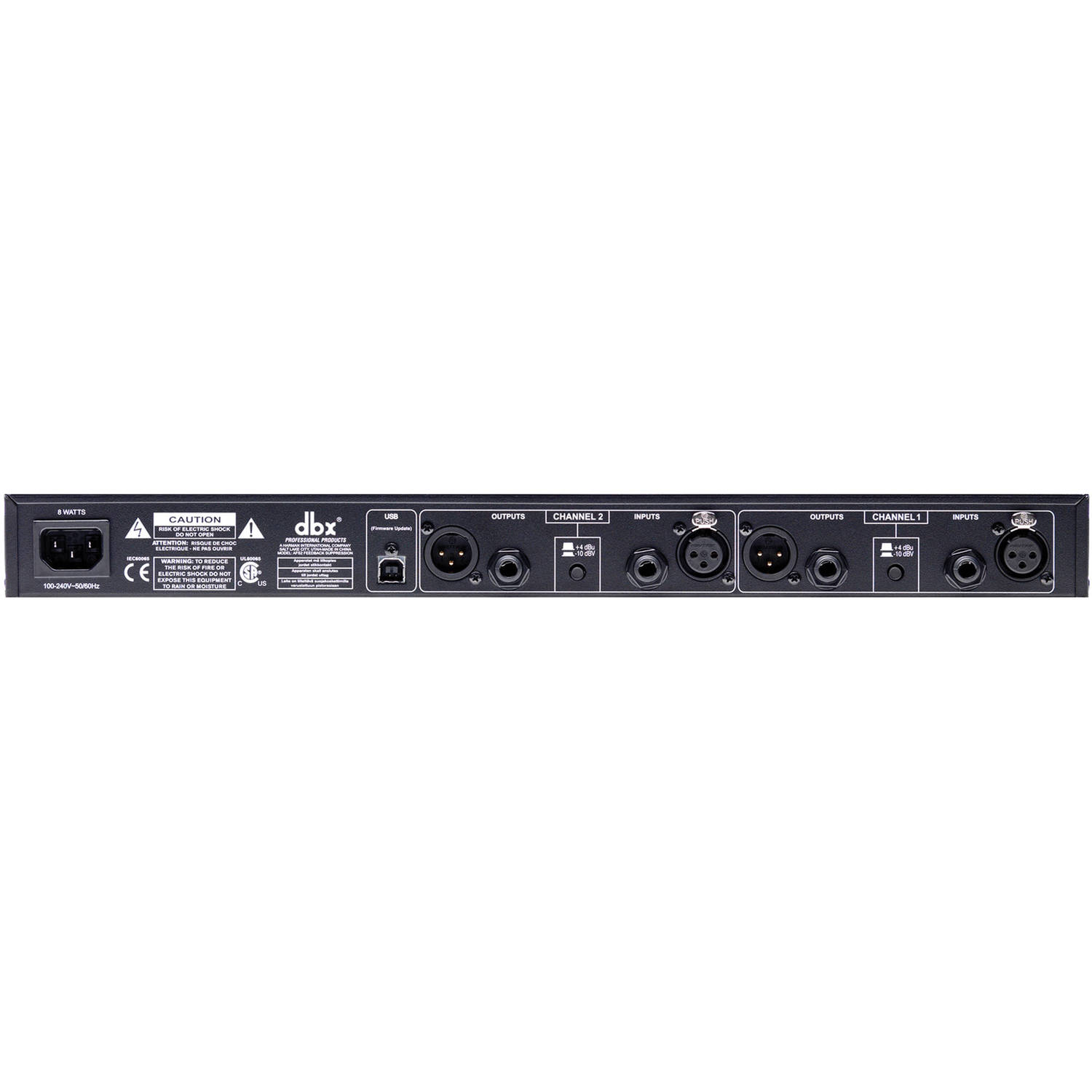

Connectors

Female XLR and 1/4" TRS (Balanced/Unbalanced)

Max Input Level

+20 dBu

Input Impedance

Balanced 50 kΩ / Unbalanced 25 kΩ

Physical & Power

Dimensions (WxDxH)

48.3 x 14.6 x 4.4 cm (19" x 5.8" x 1.8")

Net Weight

2.0 kg (4.5 lbs)

Power Consumption

9 W
