Key Specifications

Product Model

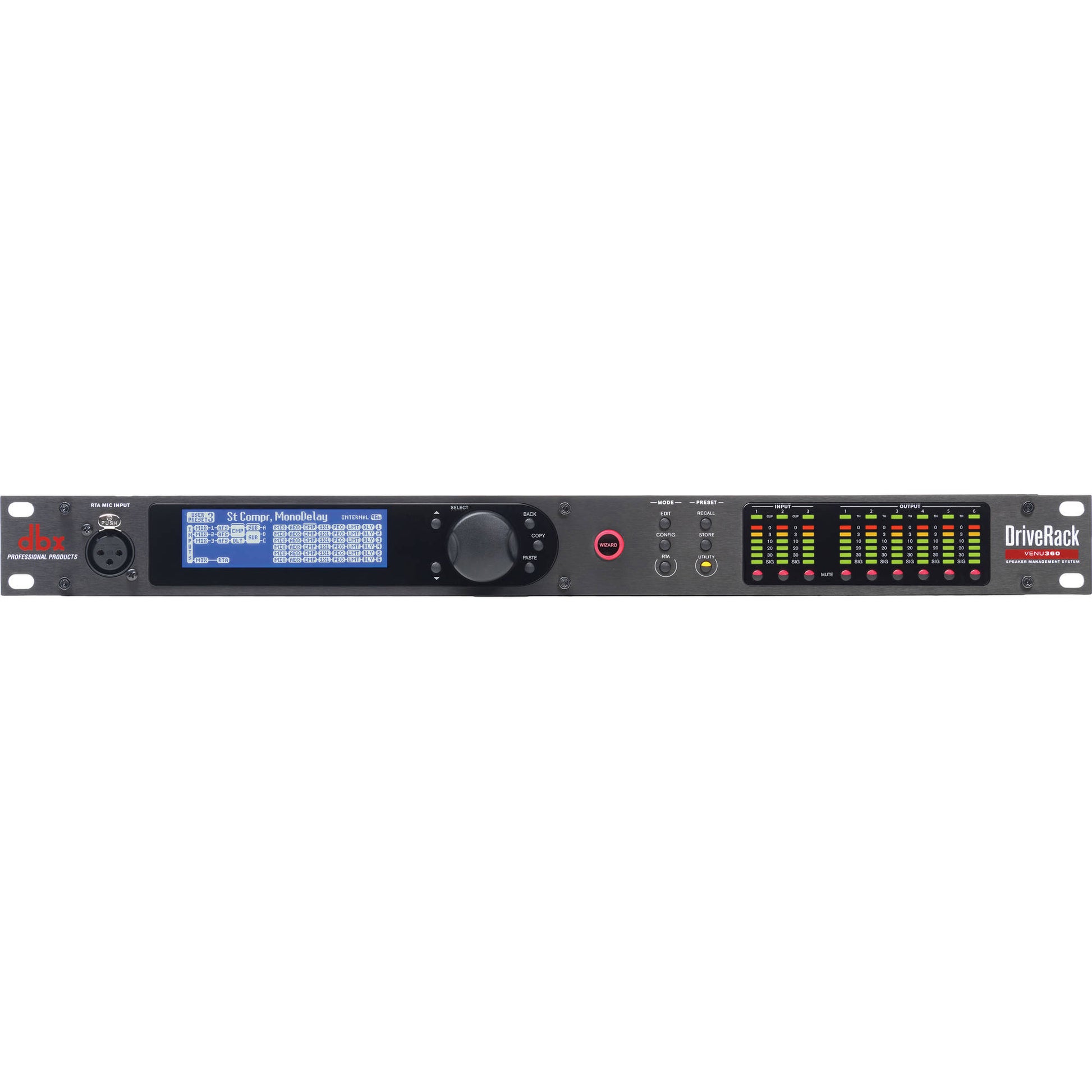

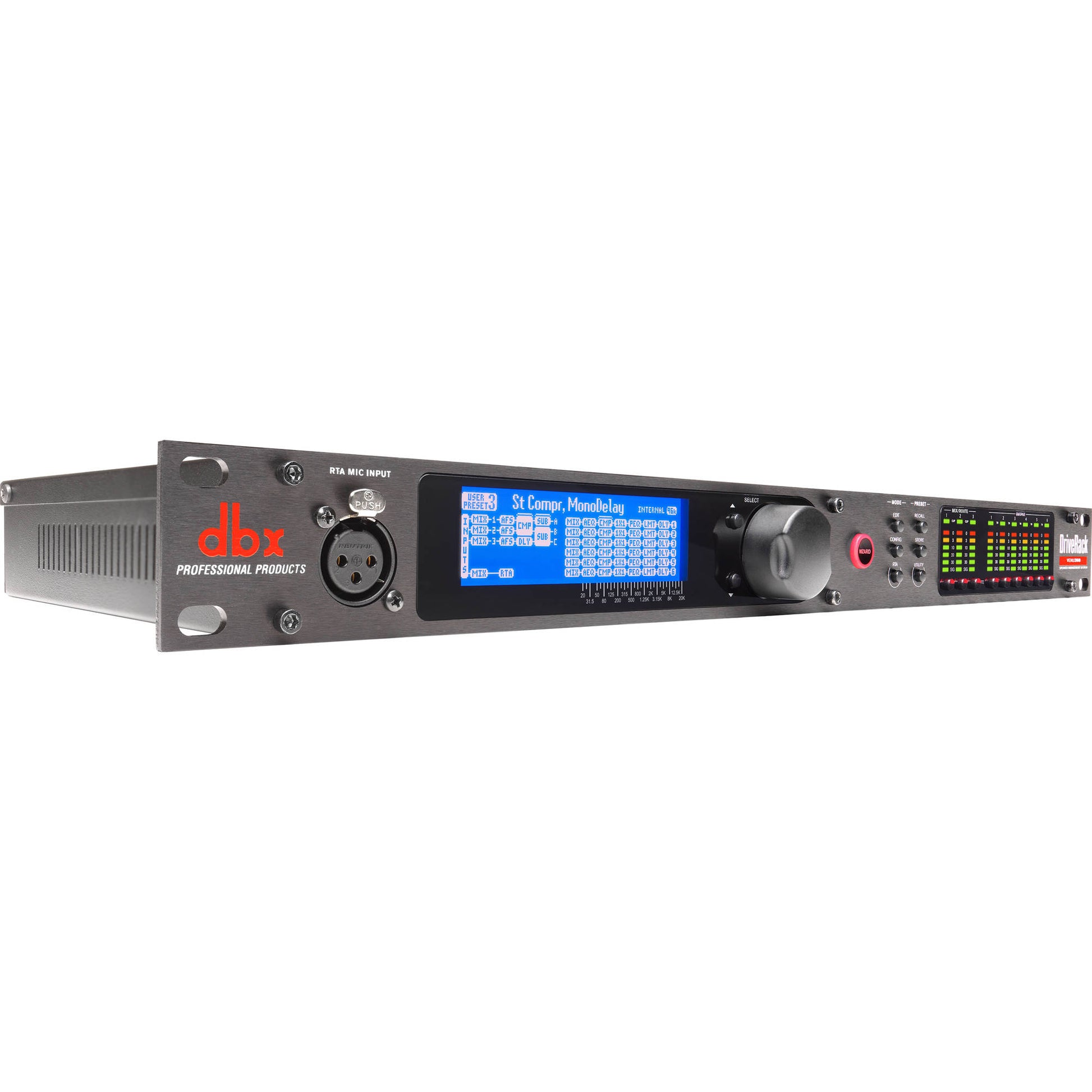

dbx DriveRack VENU360

Product Type

Professional Loudspeaker Management System

Internal Processing

32-Bit Floating Point

Supported Sample Rates

48 / 96 kHz (Natively)

Acoustic & Digital Performance

Frequency Response

20 Hz to 20 kHz (+0 / -0.5 dB)

THD + Noise

0.0025% Typical (at +4 dBu)

Dynamic Range

114 dB A-Weighted (System)

Latency (Analog I/O)

2.57 ms (@ 48 kHz) / 2.28 ms (@ 96 kHz)

Inputs / Outputs

Analog/Digital Inputs

3x XLR (2 selectable for AES/EBU)

RTA Input

1x XLR with +48V Phantom Power

Analog Outputs

6x XLR Line Outputs

Alignment Delay

Up to 1000 ms per Output Channel

Physical & Power

Dimensions (WxDxH)

48.26 x 20.32 x 4.45 cm (19" x 8" x 1.75")

Net Weight

2.49 kg (5.48 lbs)

Power Consumption

30 W (Universal 100-240 VAC)
