Key Specifications

Product

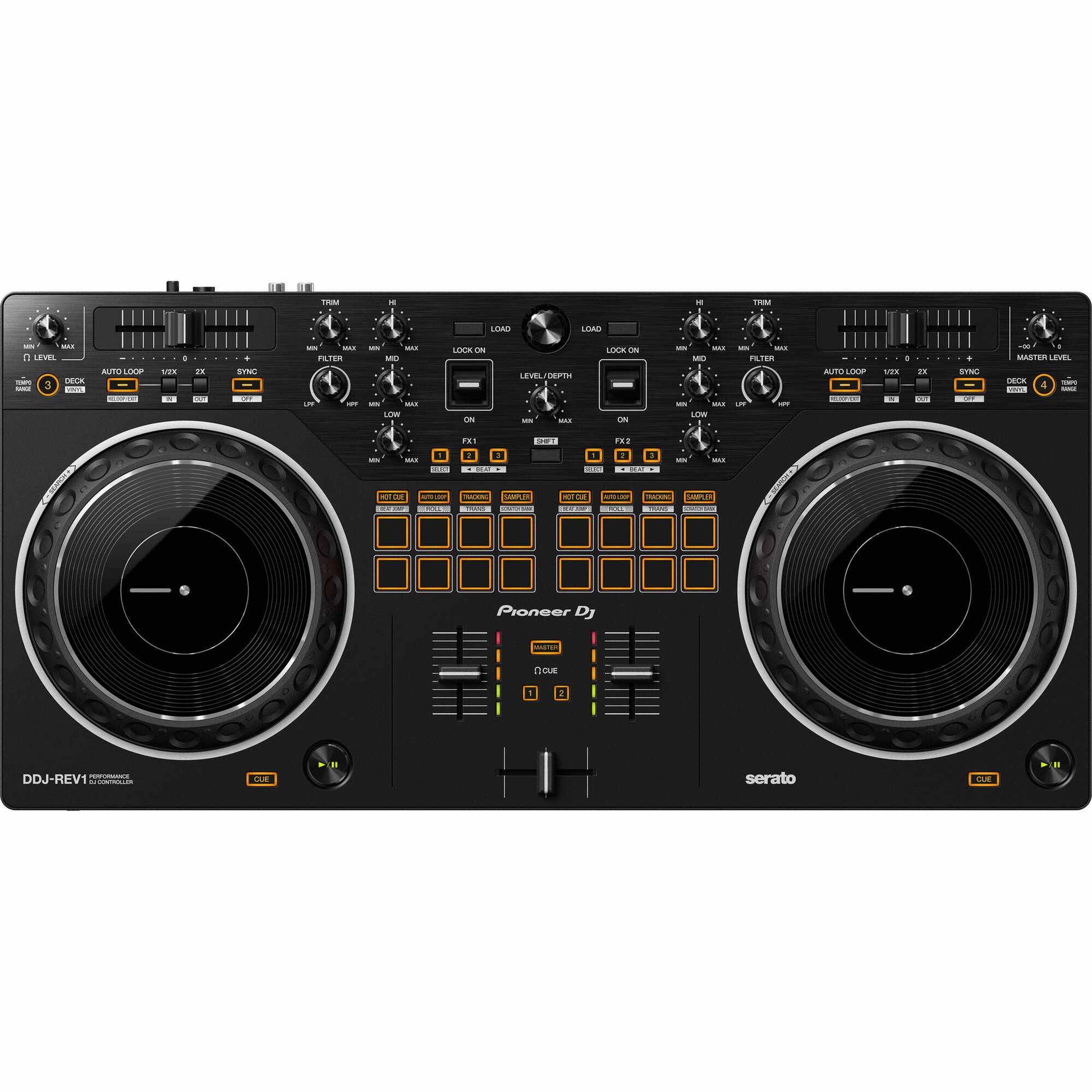

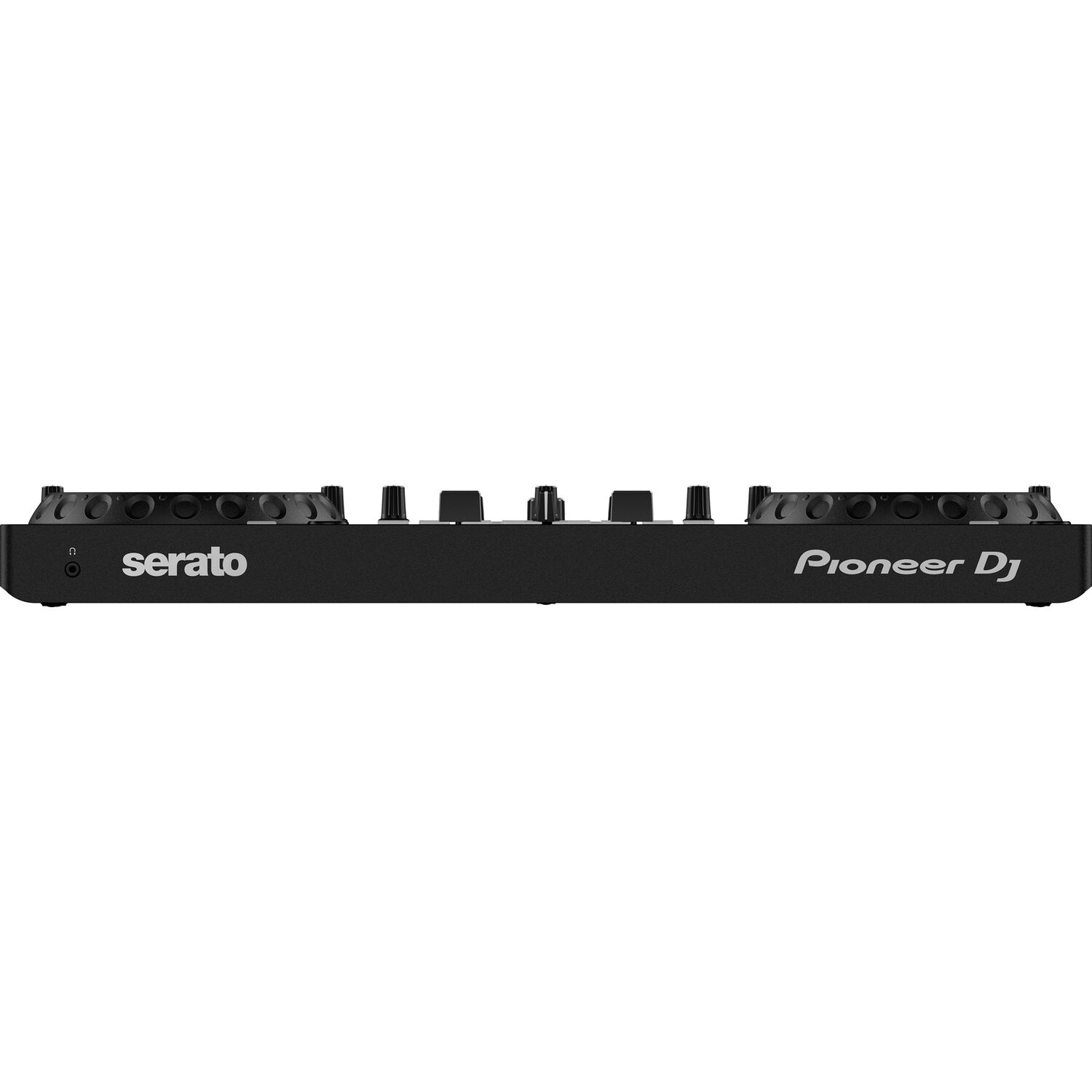

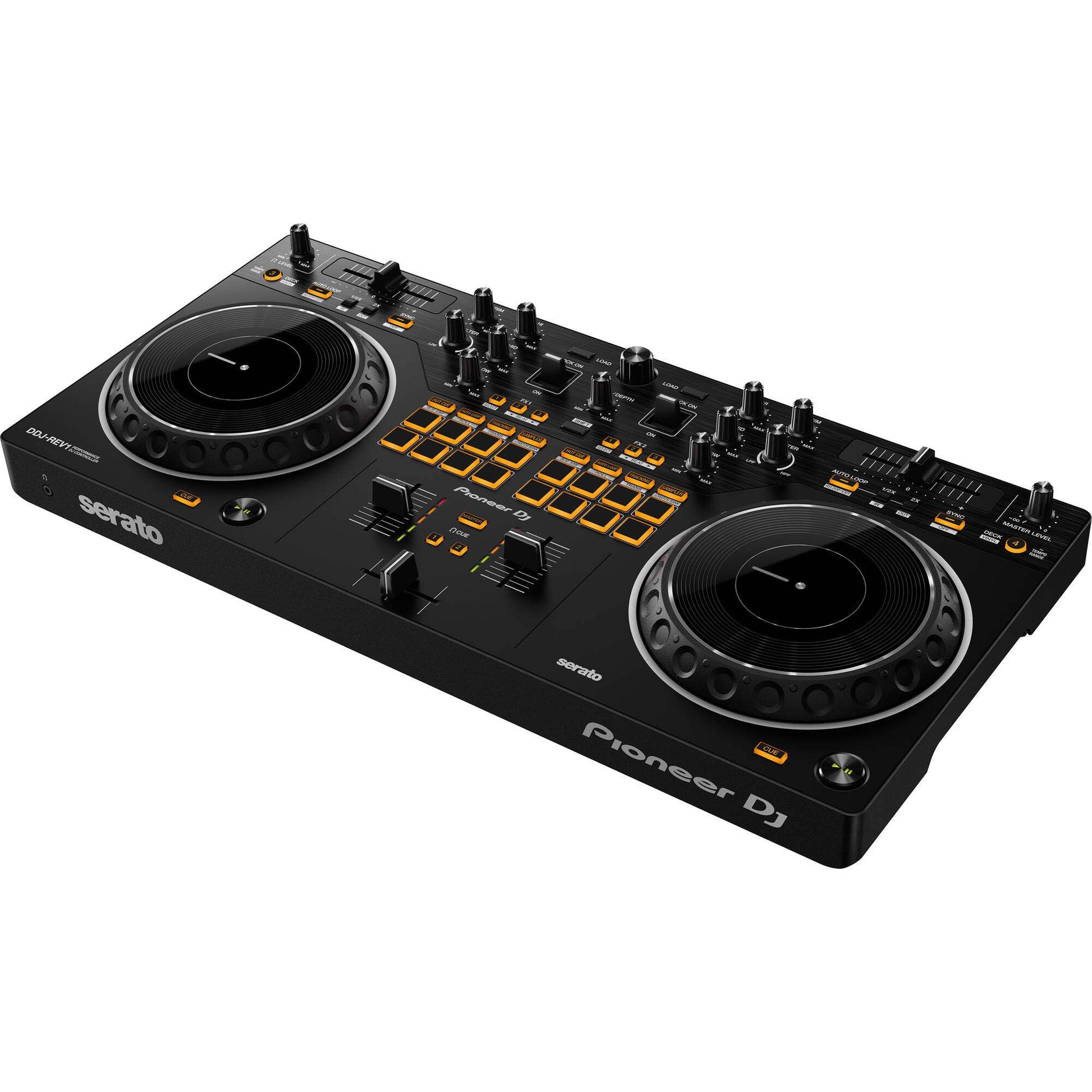

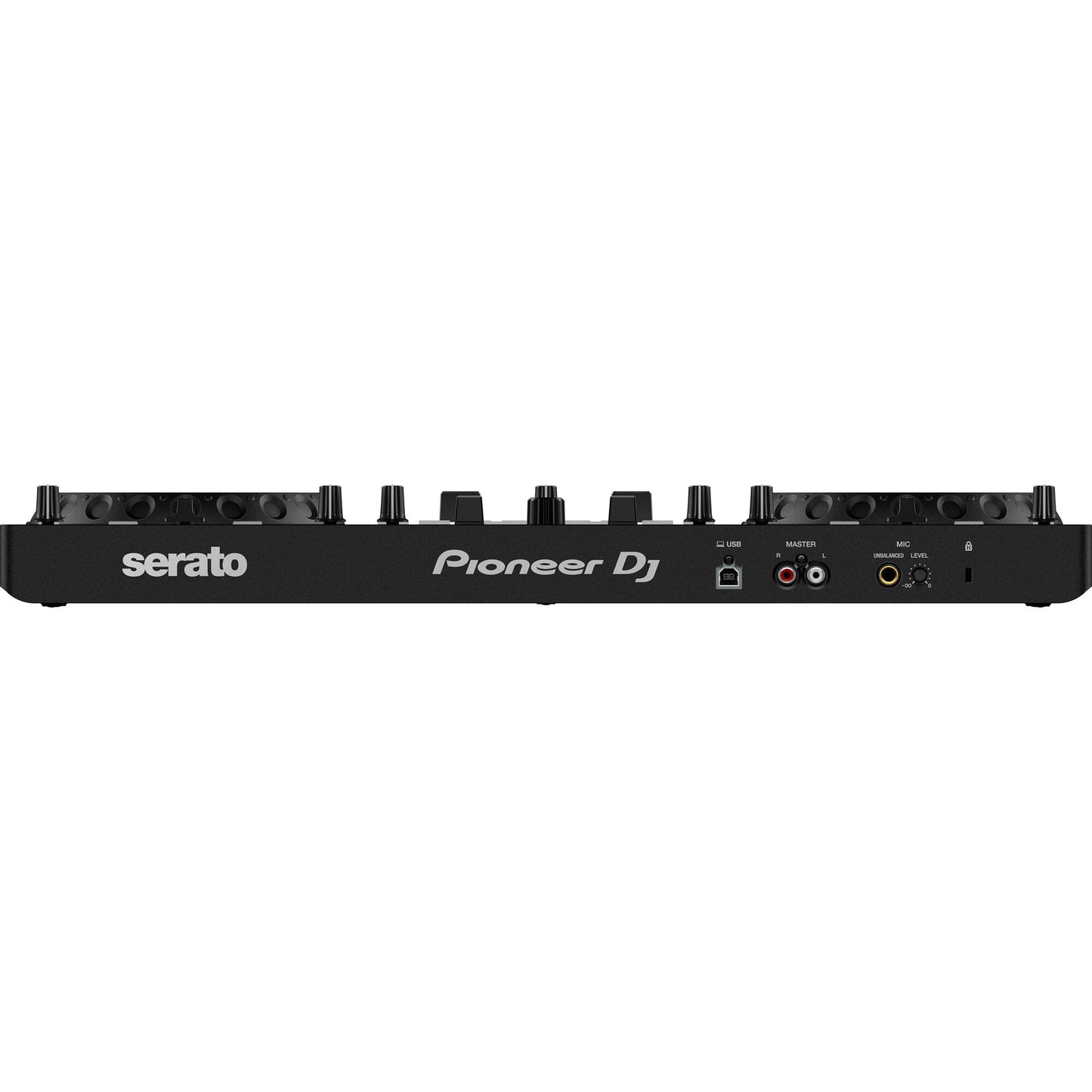

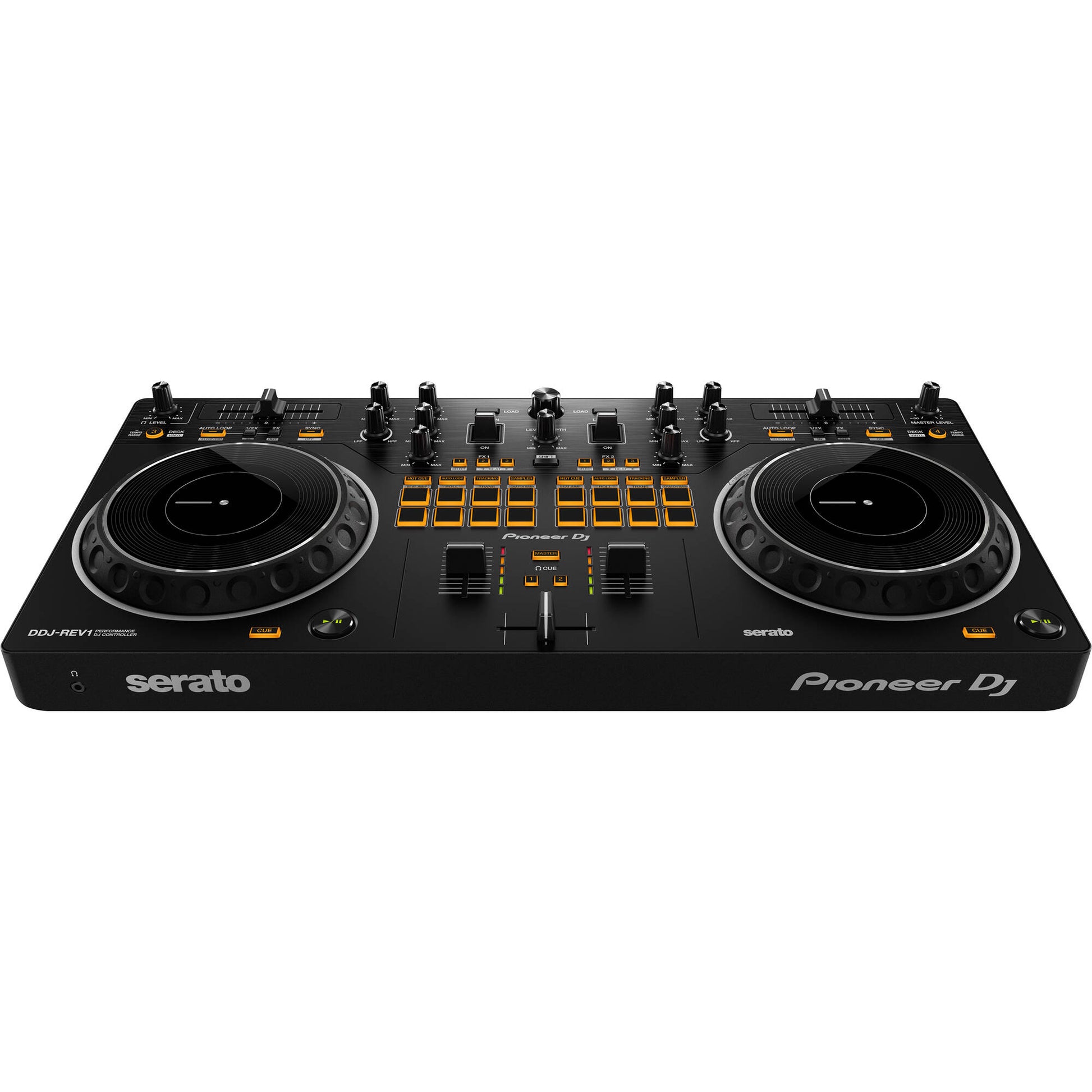

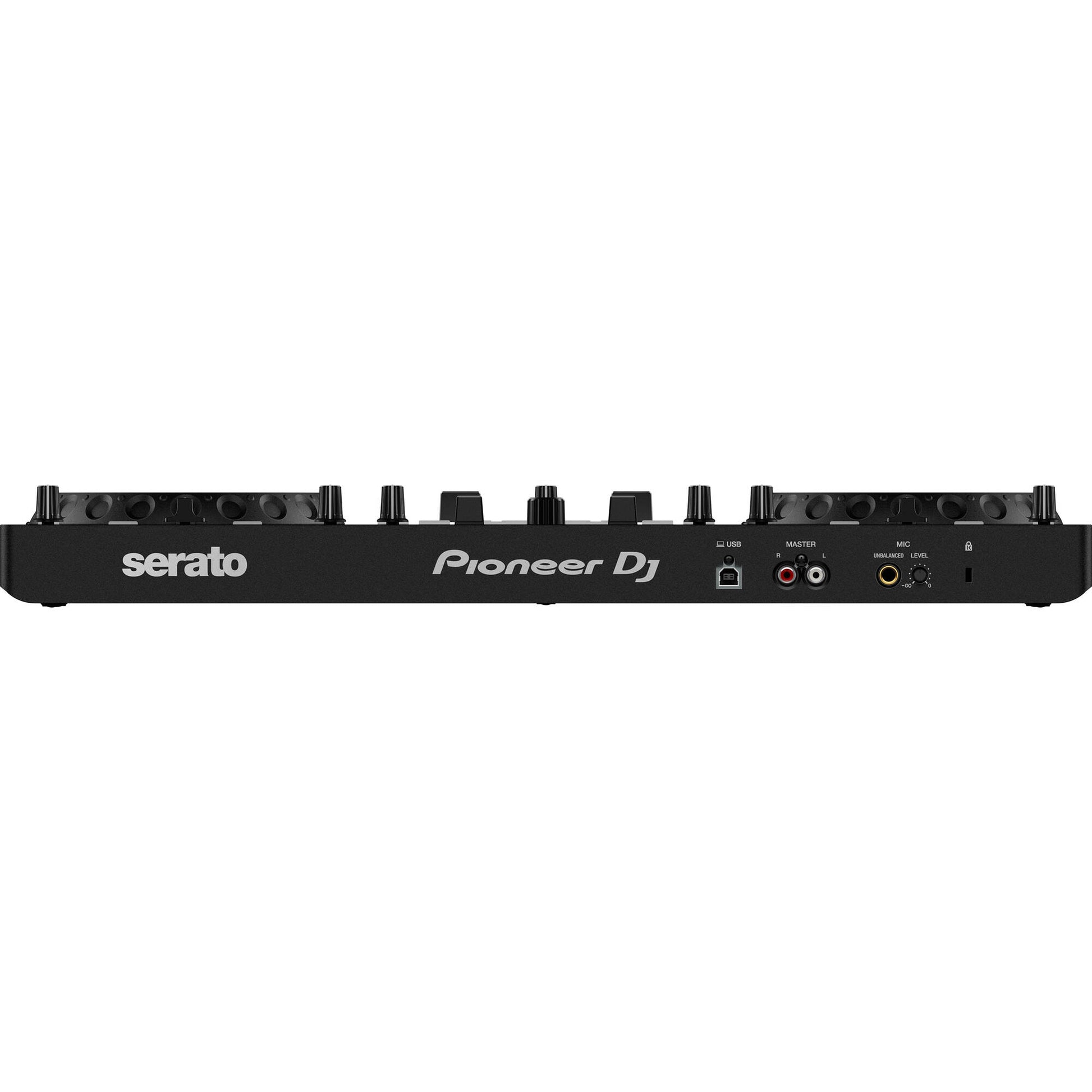

Pioneer DJ DDJ-REV1/SXJ

Configuration

Dual-Deck

Number of Channels

2x Stereo
1x Mic

Performance Controls

Beat Sync, Cues, EQ, FX, High-Pass Filter, Low-Pass Filter, Pitch Control, Sampler, Scratch, Search, Slip Mode, Transport Controls, Vinyl Mode

Built-In Effects

No

Stems Processing

No

USB

1x USB-B

Platter/Jog Wheel

2x Touch-Sensitive

Motorized Platters

No

Faders

2x Channel Level
1x Crossfader
2x 2.4" / 60 mm Tempo/Pitch

Display

No

Sample Pads

8x Assignable per Deck (Backlit)

EQ

2x Channel EQ:
Hi
Mid
Low

Audio Inputs

1x 1/4" TS Mic Input

Audio Outputs

1x 1/8" / 3.5 mm TRS Headphone Output
2x Stereo 2RCA Master Output

Wireless

No

Media Card Slots

No

Internal Drive Bays

No

Supported File Formats

AAC, AIFF, ALAC, FLAC, MP3, WAV

Frequency Response

20 Hz to 20 kHz

SNR

USB: 103 dB

THD

USB: 0.005%

Included Software

Serato DJ Lite

Compatible Software (Not Included)

Serato DJ Pro

OS Compatibility

Windows 7 or Later / macOS 10.12 to 10.14

Processor Requirement

Intel Core i3

RAM Requirements

4 GB

Storage Requirements

5 GB

Minimum Display Resolution

1280 x 720

Required Hardware

Available USB 2.0 Port

Internet Connection

Required for Registration, Software/Driver Download

Power Requirements

USB Bus Power

Power Supply Output

5 VDC at 500 mA

Operating Conditions

41 to 95°F / 5 to 35°C at 5 to 85% Humidity

Dimensions (W × D × H)

20.7 x 10.1 x 2.3" / 52.6 x 25.7 x 5.8 cm

Weight

4.6 lb / 2.1 kg

Package Weight

6.185 lb

Box Dimensions (L × W × H)

22.9 x 12.8 x 5.6"
