Key Specifications

Product

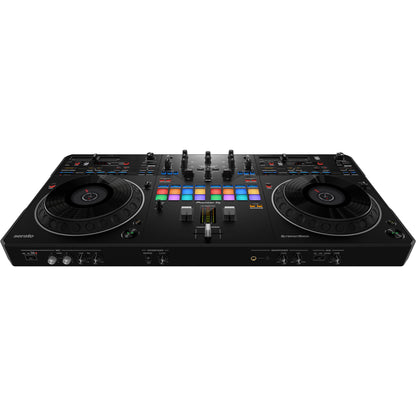

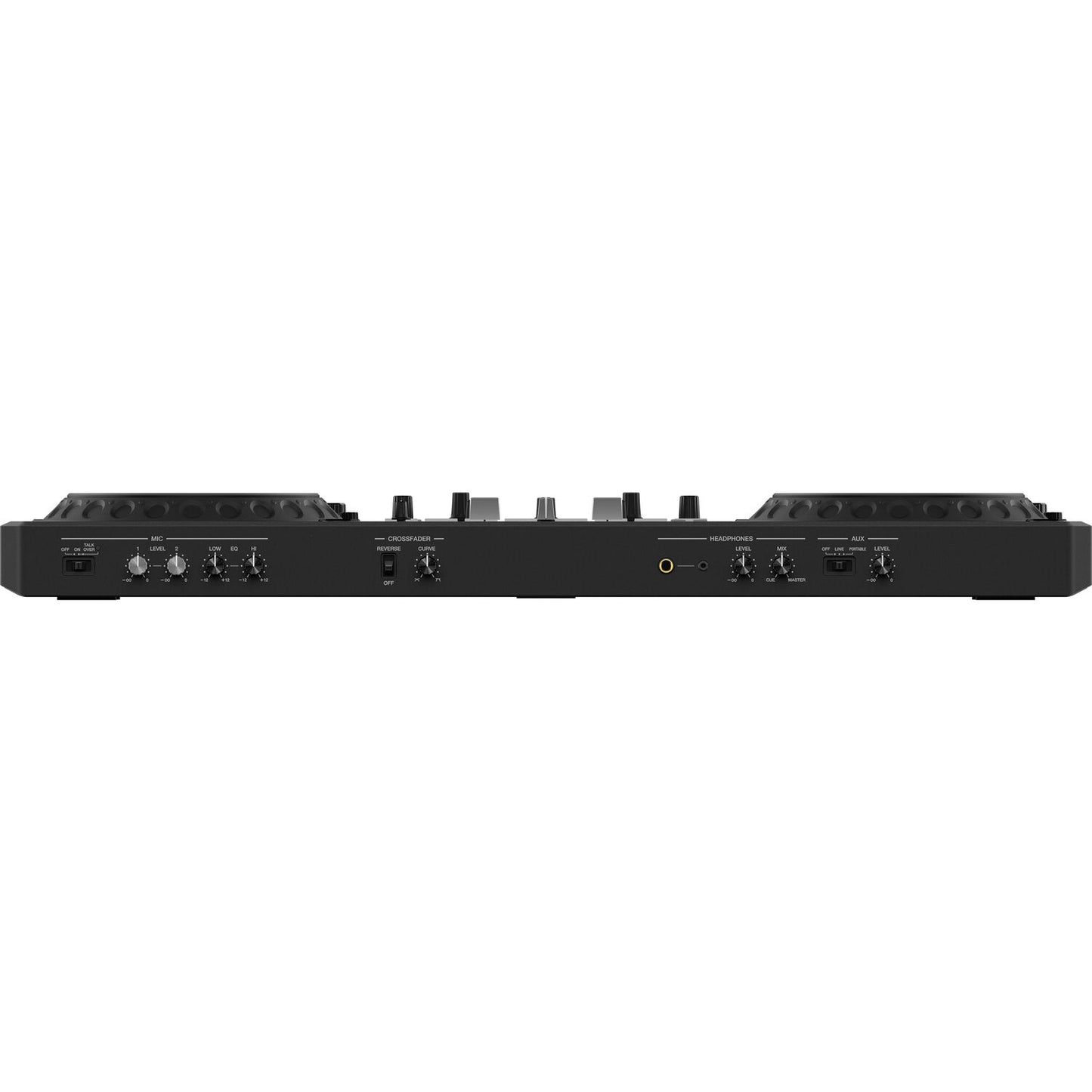

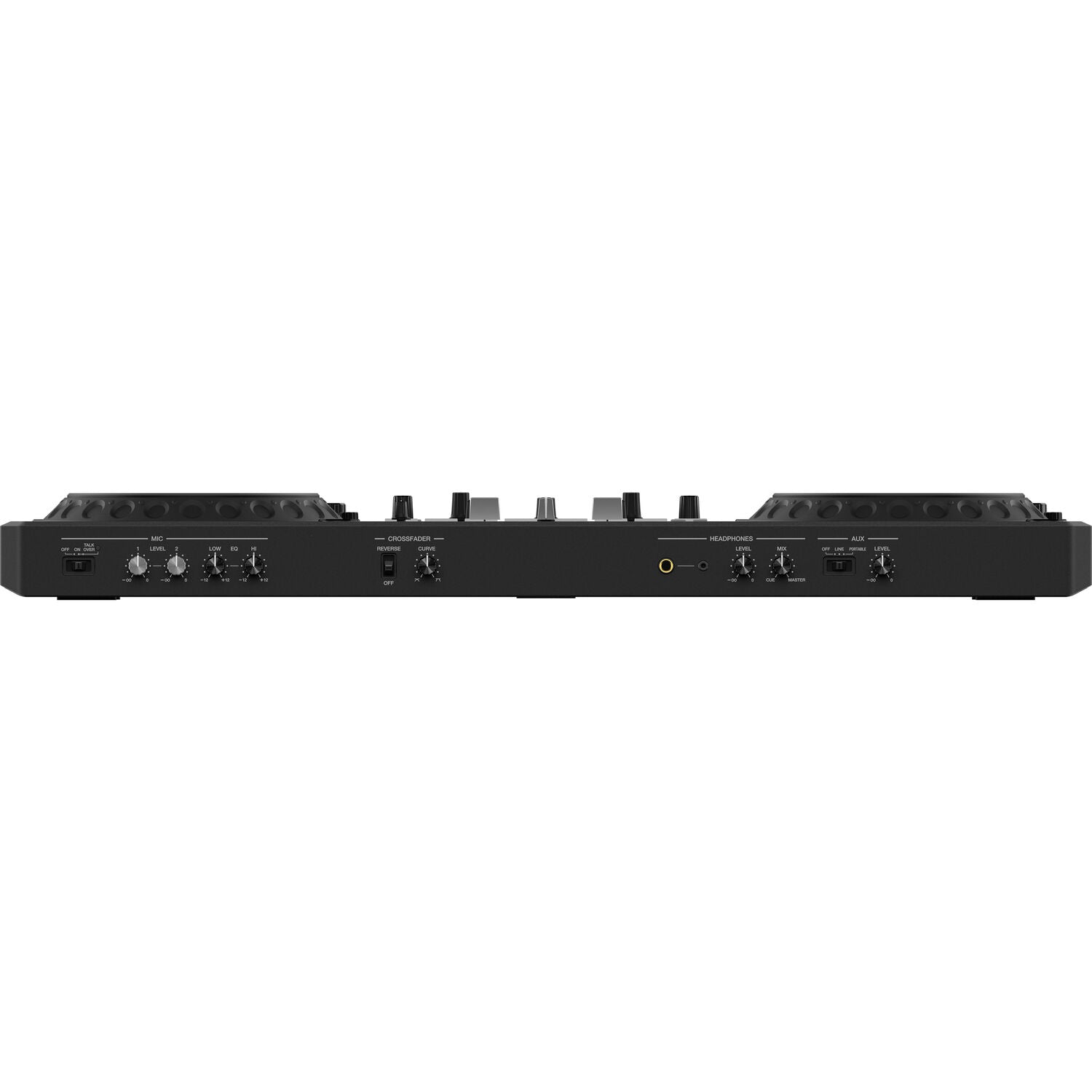

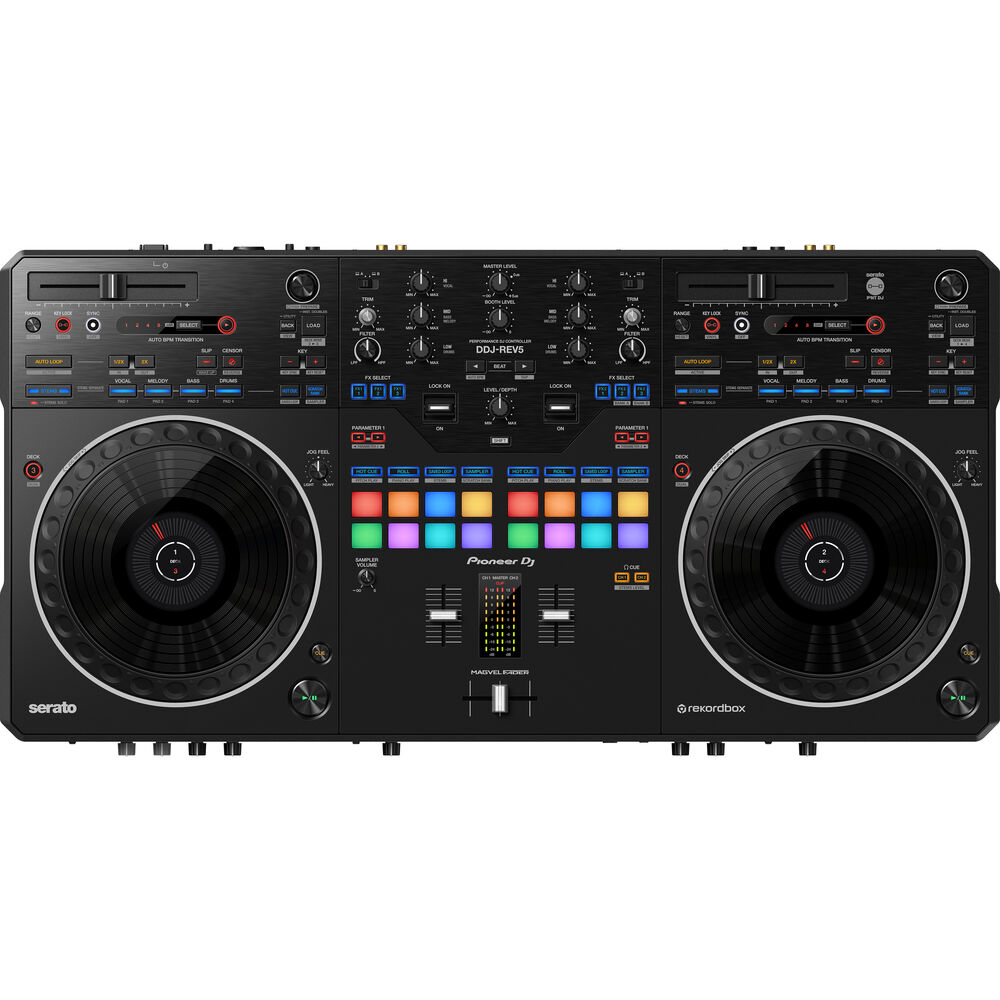

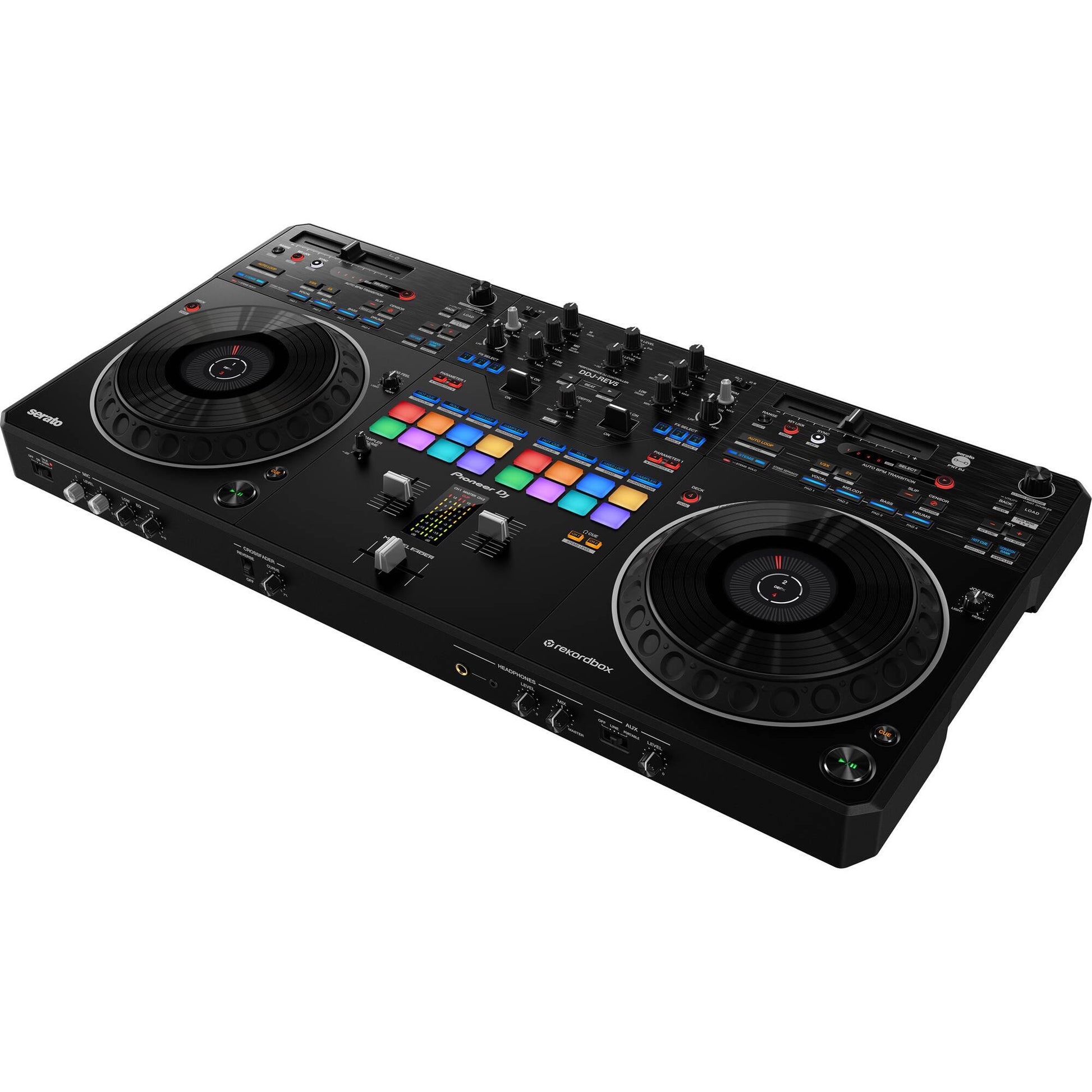

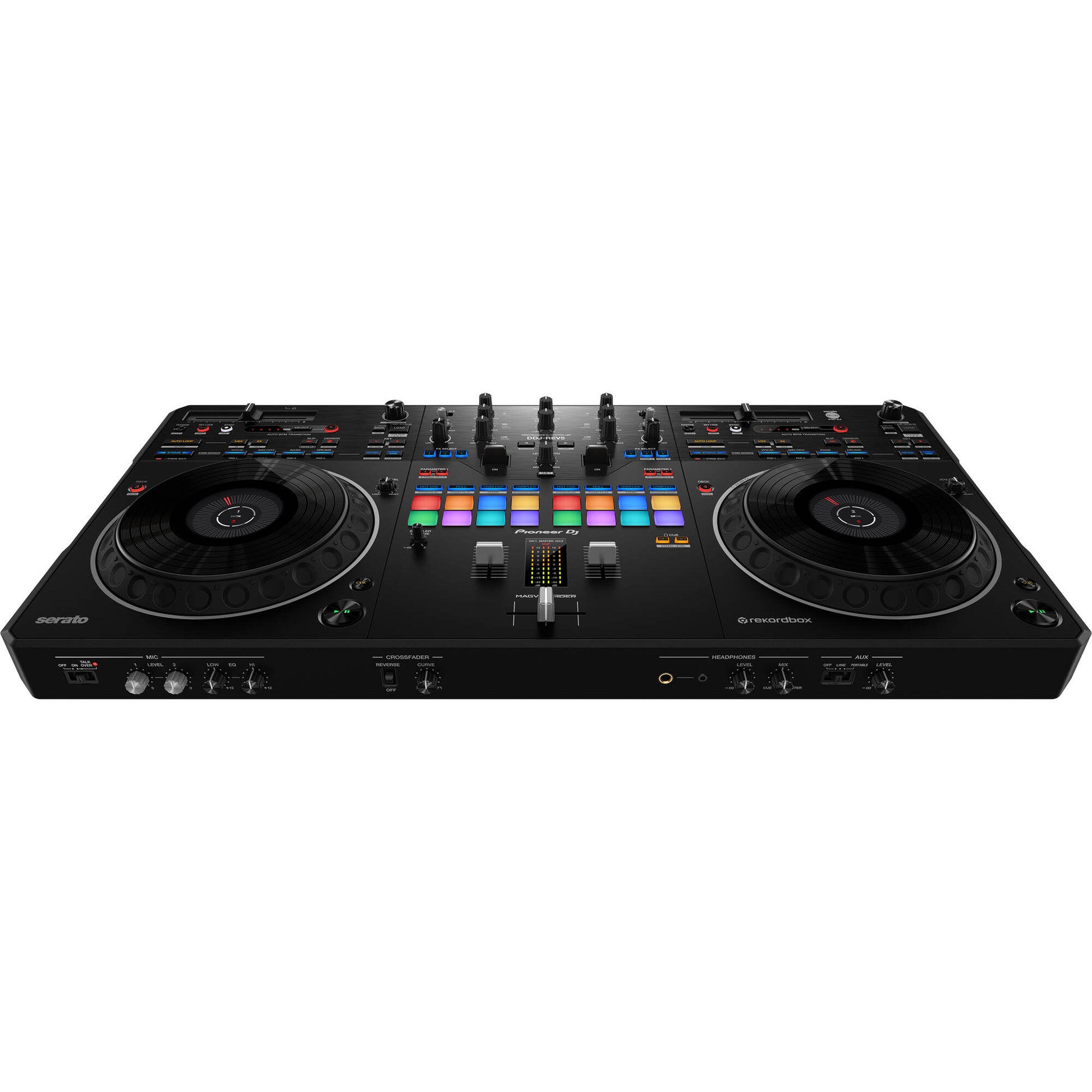

Pioneer DJ DDJ-REV5

Configuration

Dual-Deck

Number of Channels

2x Stereo

Performance Controls

BPM Counter, Beat Sync, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, MIDI Control, Master Tempo, Pitch Control, Sampler, Scratch, Search, Transport Controls, Vinyl Mode

Sample Rates

48 kHz

Bit Depths

24-Bit

Stems Processing

via Dedicated Controls: Vocals/Acapella, Drums/Percussion, Bass, Other

USB

2x USB-C (Host Connection)
1x USB-C (Power Input)

Platter/Jog Wheel

2x 8.1" / 20.6 cm Touch-Sensitive

Motorized Platters

No

Faders

2x Channel Level
1x Crossfader
2x Tempo/Pitch

Sample Pads

8x Assignable per Deck (Backlit)

EQ

2x Channel EQ:
Hi
Mid
Low

Audio Inputs

1x Stereo 2RCA Aux Input
1x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TRS Balanced Mic Input

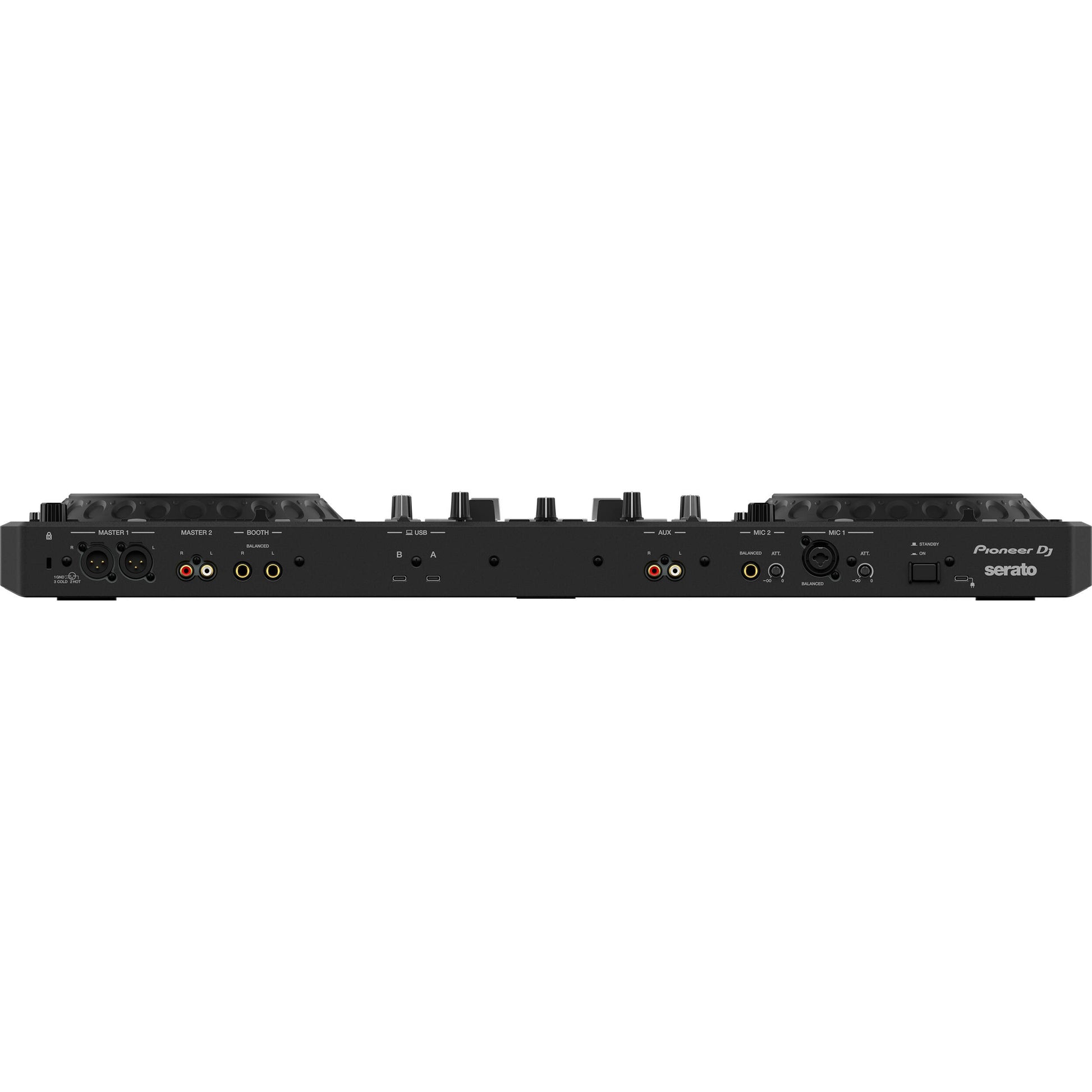

Audio Outputs

2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA Master Output
2x 1/4" TRS Balanced Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output

Wireless

No

Media Card Slots

No

Internal Drive Bays

No

Frequency Response

20 Hz to 20 kHz

SNR

110 dB

THD

Line: 0.003% (USB)

Included Software

Serato DJ Pro
Serato Pitch ’n Time DJ

OS Compatibility

macOS 11.2 to 13 / Windows 10 or Later

Processor Requirement

Intel Core i3 / i5 / i7 / i9 (64-bit), AMD (64-bit), Apple M1 or better

RAM Requirements

4 GB (8 GB Recommended, 64-bit)

Storage Requirements

2 GB

Minimum Display Resolution

1280 x 720

Required Hardware

Available USB-C Port

Internet Connection

Required for Registration, Software/Driver Download

Power Requirements

USB Bus Power

Power Supply Output

5 VDC at 3000 mA

Dimensions (W × D × H)

29.0 x 14.9 x 2.9" / 736.6 x 378.5 x 73.7 mm

Weight

13.67 lb / 6.2 kg

Package Weight

17.87 lb

Box Dimensions (L × W × H)

33 x 18.4 x 6.9"
