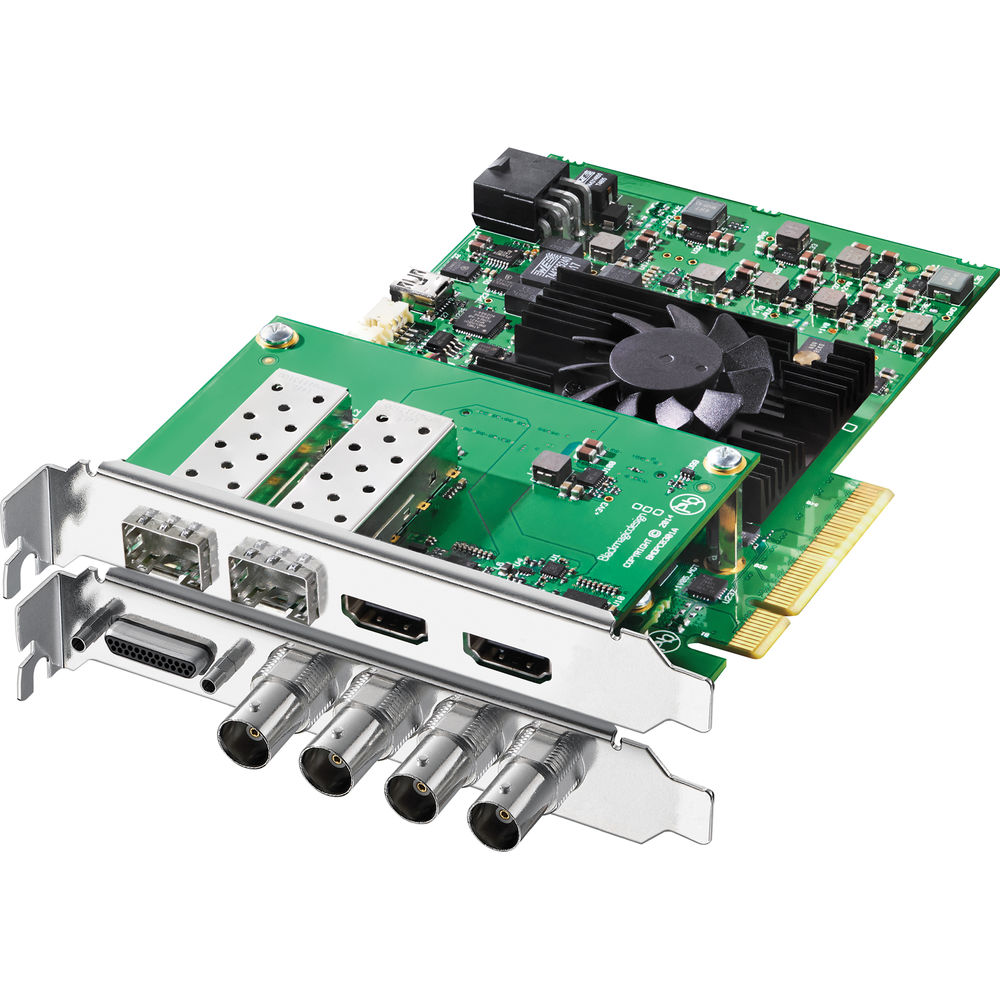

BLACKMAGICDESIGN DeckLink 4K Extreme 12G VIDEO
The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096 x 2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
BLACKMAGICDESIGN DeckLink 4K Extreme 12G
Key Specifications
Inputs/Outputs
System Connection: PCIe 2.0 x8 Video Inputs: 2x BNC (12G-SDI), 1x HDMI (2.0b), 1x 3BNC (Component/Composite/S-Video) Audio Inputs: No Video Outputs: 2x BNC (12G-SDI), 1x HDMI (2.0b), 1x 3BNC (Component/Composite/S-Video) Simultaneous Multi-Input Support: Yes: 2 Simultaneous Inputs
Format Support
Input Video Format:
Component / Composite / SDI (8/10/12-Bit 4:4:4/4:2:2)
DCI 4K at 23.98/24 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps
Component
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps
Composite
576i / 625 lines 480i / 525 lines
Input Audio Format: AES/EBU
Output Video Format:
SDI (8/10/12-Bit 4:4:4/4:2:2)
DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps
Component / Composite
480i / 525 lines at 59.94 fps 576i / 625 lines 50 fps
Output Audio Format: AES/EBU
Embedded Audio:
SDI: 16-Channel HDMI: 8-Channel
Standards
Video Standard Compliance: SMPTE 259M/292M/296M/372M/425M/435/2108-1/ST-2081/ST-2082/ST-2082-10, ITU -R BT.601/BT.656 HDR Support:
Hardware
OS Compatibility: macOS 10.15, macOS 11.1 or Later, Linux, Windows 8.1, Windows 10
Power
Power Consumption: Device: 30 W
Environmental
Operating Temperature: 41 to 104°F / 5 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Operating Humidity: 0 to 90%
General
Dimensions: 6.69" / 169.93 mm Weight: 0.66 lb / 299 g
Packaging Info
Package Weight: 1.9 lb Box Dimensions: 8.85 x 6.1 x 3.15" (LxWxH)
