DeckLink 8K Pro G2

Key Features

8K PCIe Capture & Playback Card
Supports SD, HD, UHD, 4K & 8K Formats
4 x Bidirectional 12G-SDI Ports
HDMI 2.1 Input & Output
4:2:2/4:4:4. 2D/3D Switchable
RS-422 Deck Control
HD & 4K at up to 120 fps
64 Channels Embedded in 4K/8K via SDI
Compatible with macOS, Windows & Linux

DeckLink 8K Pro G2

BLACKMAGICDESIGN

₱61,631.00 VAT INC.

~~₱63,800.00~~ ₱61,631.00

UNIT: PIECE/S

Product Code: SKU:BMD-DECKLINK8KPG2-CHN-300

Key Features

8K PCIe Capture & Playback Card
Supports SD, HD, UHD, 4K & 8K Formats
4 x Bidirectional 12G-SDI Ports
HDMI 2.1 Input & Output
4:2:2/4:4:4. 2D/3D Switchable
RS-422 Deck Control
HD & 4K at up to 120 fps
64 Channels Embedded in 4K/8K via SDI
Compatible with macOS, Windows & Linux

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

Add to Quotation

View full details

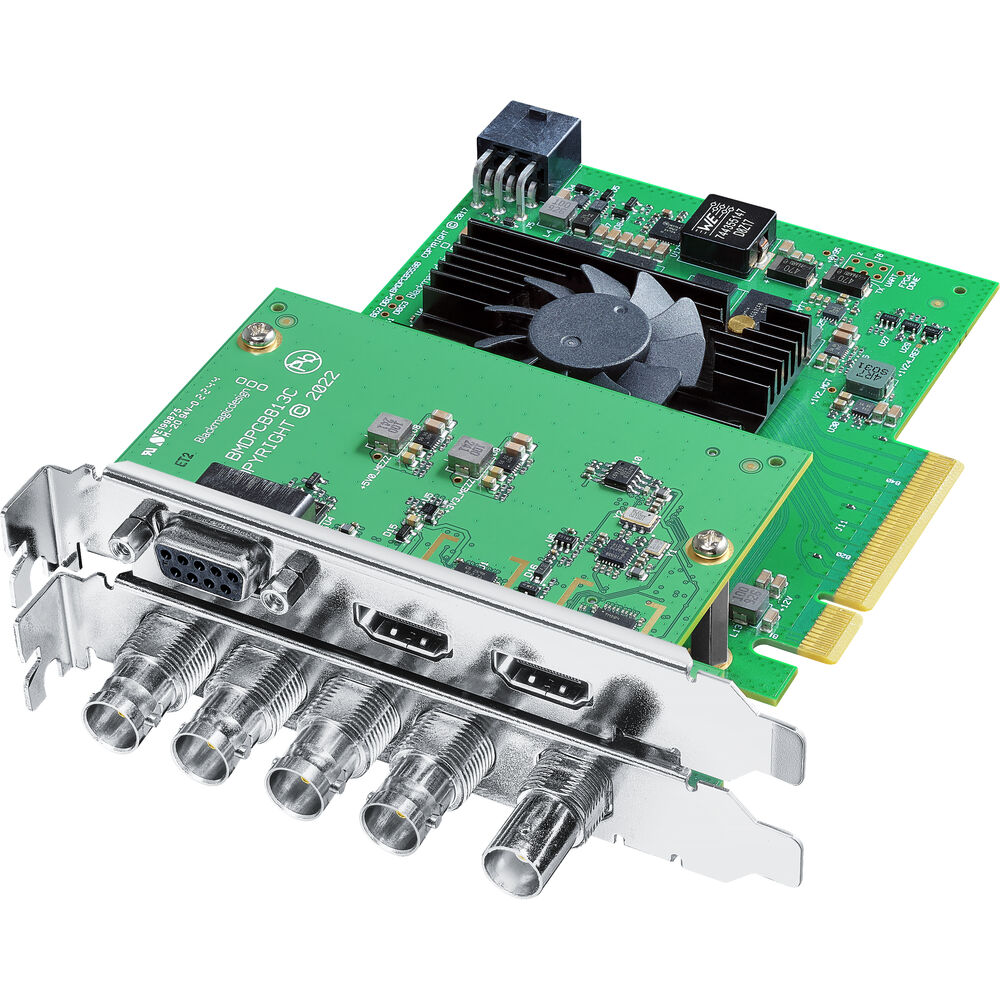

BLACKMAGICDESIGN DeckLink 8K Pro G2

The DeckLink 8K Pro G2 from Blackmagic Design is an 8K-capable PCIe capture and playback card that features four bidirectional 12G-SDI, one HDMI 2.1 input, and one HDMI 2.1 output. The versatile card supports all SD, HD, UHD, 4K, and 8K standards, making it an ideal 8K PCIe capture and playback solution designed for feature film production. When employing the free DeckLink SDK, you can configure up to four video streams in any direction, format, or frame rate up to DCI 4K60, enabling true multi-channel capture and playback.

The DeckLink 8K Pro G2 supports 8- and 10-bit YUV 4:2:2 as well as 10- and 12-bit RGB 4:4:4 with full Rec. 2020 color. The card allows working at up to 120 fps in HD and 4K, and up to 60 fps in 8K. The four 12G-SDI connections also support up to 64 channels of embedded audio. It is compatible with 8- and 16-lane PCI Express slots on macOS, Windows, and Linux systems and requires 2 PCI slots plus connection to computer power supply. The DeckLink 8K Pro G2 is ideal for the next generation of high-resolution, high frame rate, and high dynamic range workflows.

Compatible with Various Software ApplicationsIncluding: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, Adobe Photoshop, Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, and Zoom.

BLACKMAGICDESIGN DeckLink 8K Pro G2

Key Specifications
Inputs/Outputs	Video I/O: Input/Output: 4x BNC (12G-SDI) Female Input: 1x HDMI 2.1 Female Output: 1x HDMI 2.1 Female Other I/O: Input: 1x BNC (Blackburst) Input: 1x DE-9/DB-9 (RS-422)
Format Support	Video Resolution: BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 2048 x 1080PsF at 50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 1920 x 1080PsF at 50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps HDMI Input/Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0) 8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps Audio Format: Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit Embedded Audio: SDI Input: 64-Channel SDI Output: 64-Channel HDMI Input: 32-Channel HDMI Output: 32-Channel
Standards	Video Standard Compliance: SMPTE: 259M/274M/292M/296M/372M/424M/425M/425M-A/425M-B/2048-1/ST 2081-10/ST 2082-11/ST 2082-12 HDR Support: Yes: Hybrid Log Gamma Broadcast System Compatibility: NTSC, PAL
Hardware	OS Compatibility: macOS 13.0 or Later, Windows 10 or Later (64-Bit Only), Linux
Power	Power Consumption: 30 W
General	Operating Conditions: 41 to 122°F / 5 to 50°C up to 90% Humidity Storage Conditions: -4 to 140°F / -20 to 60°C up to 90% Humidity Dimensions: 6.41" / 16.28 cm Weight: 10.4 oz / 295 g
Packaging Info	Package Weight: 1.005 lb Box Dimensions: 10.4 x 5.3 x 1.2" (LxWxH)

BLACKMAGICDESIGN DeckLink 8K Pro G2 Accessories

No accessories available.
