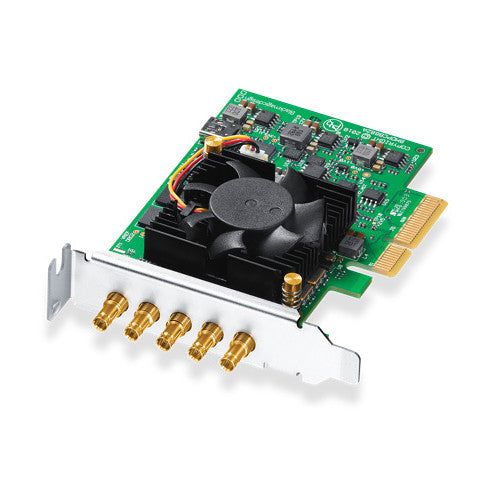

Key Specifications

Supported Operating Systems

• macOS 10.13, 10.14 or Later
• Windows 7, 8.1, 10 (All 64-Bit)
• Linux

Inputs/Outputs

• 4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
• 1 x Reference In

Sync Input

• Tri-Sync or Black Burst

Computer Interface

• PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)

Audio Channels

• 16 x Embedded, HD and SD (Input and Output)

Video Support

• HD:
  • 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080PsF: 23.98, 24, 25, 29.97, 30
  • 1080i: 50, 59.94, 60
  • 720p: 50, 59.94, 60
• SD:
  • 525i: 59.94 NTSC
  • 625i: 50 PAL

Audio Sample Rate

• 24-Bit, 48 kHz

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4

Conversion Modes

• Playback: 720p to 1080p, 1080p to 720p
• Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
• Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
• Color Space Conversion: Hardware-Based, Real-Time

Color Space

• Rec. 601, Rec. 709

SDI Color Precision

• 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
• 8, 10-Bit YUV 4:2:2 (In All Modes)
• 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Video Sampling

• 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
• 8, 10-Bit YUV 4:2:2 (In All Modes)
• 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Compliance

• SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601

SDI Metadata Support

• RP 188/SMPTE 12M-2 and Closed Captioning

Power Consumption

• 10 W

Certifications

• FCC, CE, and C-Tick

Operating Temperature

• 41 to 104°F / 5 to 40°C

Storage Temperature

• -4 to 113°F / -20 to 45°C

Relative Humidity

• 0 to 90% (non-condensing)

Physical Specifications

• Length: 3.9" / 9.9 cm, Low-Profile Form Factor
• Weight: 3.1 oz / 87 g

Packaging Info

• Package Weight: 0.35 lb
• Box Dimensions: 5.3 x 4.15 x 1.15" (LxWxH)
