The Blackmagic Design DeckLink IP 100G is a powerful PCIe Generation 4 capture and playback card engineered for professional broadcast environments using SMPTE 2110 IP network systems. Designed to meet the evolving demands of modern live and post-production workflows, it supports up to eight simultaneous UHD video channels via dual 100G Ethernet QSFP28 ports, enabling full redundancy. Its support for GPU Direct RDMA ensures ultralow latency by facilitating direct memory transfers to GPUs, which is especially valuable in real-time graphics rendering, AI processing, and live compositing applications. Built for diverse broadcast infrastructures, the card is compatible across macOS, Windows, and Linux systems while maintaining universal compatibility with all major video software, including DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, and more.

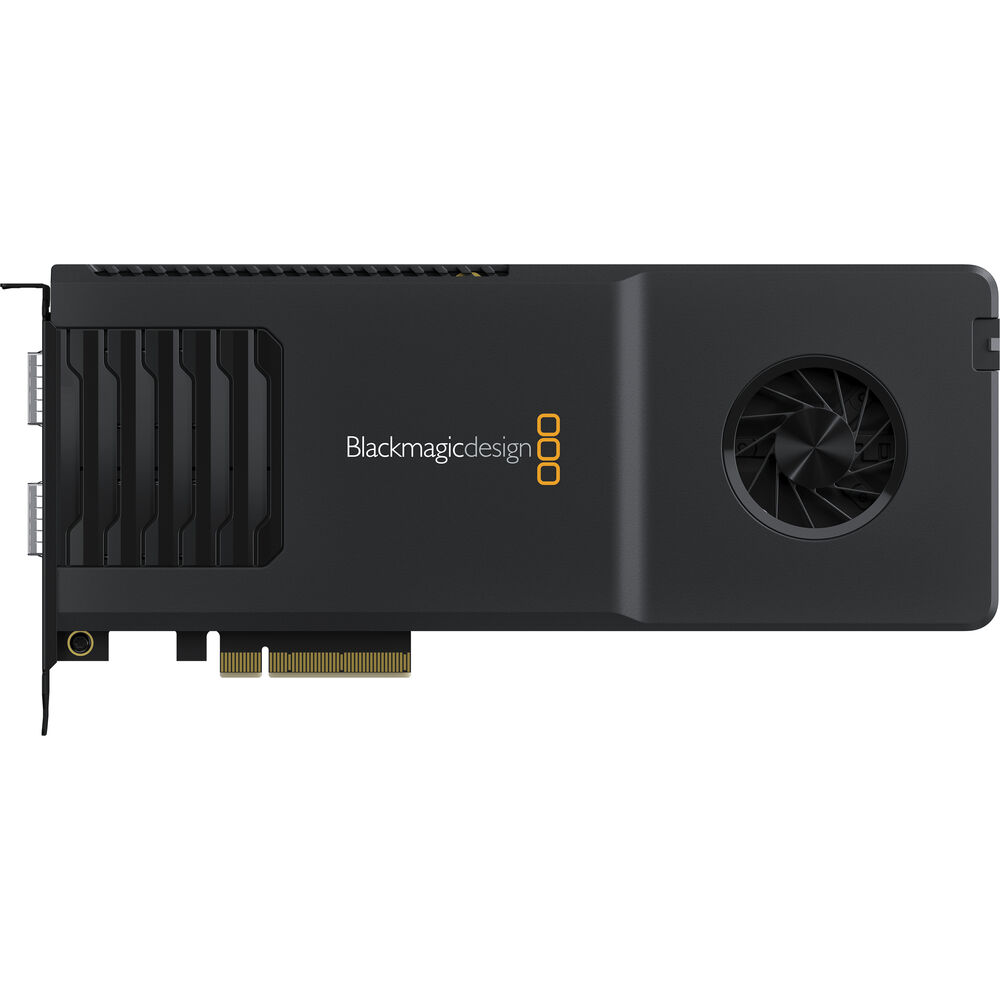

BLACKMAGICDESIGN DeckLink IP 100G
Key Specifications
Format Support
Video Resolution
Fiber Input/Output (8/10/12-Bit 4:4:4 / 4:2:2 RGB, YUV) 4096 × 2160 up to 120 fps
Audio Format
48 kHz / 24-Bit Digital Signal Input/Output
Embedded Audio
IP: 2-Channel
Standards
Video Standard Compliance
SMPTE ST 2110-20 SMPTE ST 2110-21 SMPTE ST 2110
HDCP Support
No
HDR Support
Yes: Hybrid Log Gamma
Broadcast System Compatibility
NTSC, PAL
Hardware
OS Compatibility
Windows 10 to 11 macOS 14.0 macOS 15.0 or Later Linux
