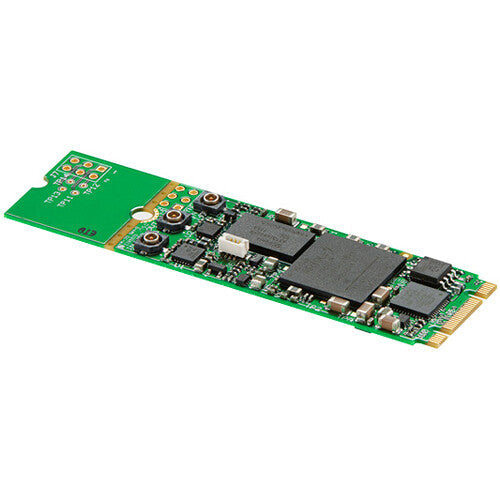

DeckLink SDI Micro

SDI Video Sampling: 4:2:2, 4:4:4
SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.

BLACKMAGICDESIGN

₱11,544.00 VAT INC.

~~₱11,950.00~~ ₱11,544.00

UNIT: PIECE/S

Product Code: SKU:BMD-DECKLINKSDIM-CHN-331

SDI Video Sampling: 4:2:2, 4:4:4
SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

BLACKMAGICDESIGN DeckLink SDI Micro

Key Specifications
Connections
M.2	M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
Standards
SD Video Standards	525i59.94 NTSC 625i50 PAL
HD Video Standards	720p50 720p59.94 720p60 1080p23.98 1080p24 1080p25 1080p29.97 1080p30 1080p50 1080p59.94 1080p60 1080PsF23.98 1080PsF24 1080PsF25 1080PsF29.97 1080PsF30 1080i50 1080i59.94 1080i60
SDI Video Sampling	4:2:2, 4:4:4
SDI Color Precision	8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance	SMPTE 259M SMPTE 292M SMPTE 296M SMPTE 424M SMPTE 425M level A and B ITU-R BT.656 ITU-R BT.601
Power Requirements
Power Consumption	4.03 W (max)
Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 75°C (-40°F to 167°F)
Relative Humidity	0% to 90% non-condensing
What's Included
Included Items	DeckLink SDI Micro Fan and Heat Sink assembly
