Key Specifications

Acoustic Components & Performance

Power Configuration

Full-range (Passive / Non-powered)

LF Driver Size

1x 2.25" (57 mm) Full-range Transducer

Frequency Range (-10 dB)

85 Hz – 19 kHz

Maximum Peak SPL

103 dB SPL

Nominal Coverage Angle

180° Conical (Ultra-wide)

Electrical & Power Data

Continuous Power Rating

20 W (80 W Peak)

Total Power (70/100V)

16 W

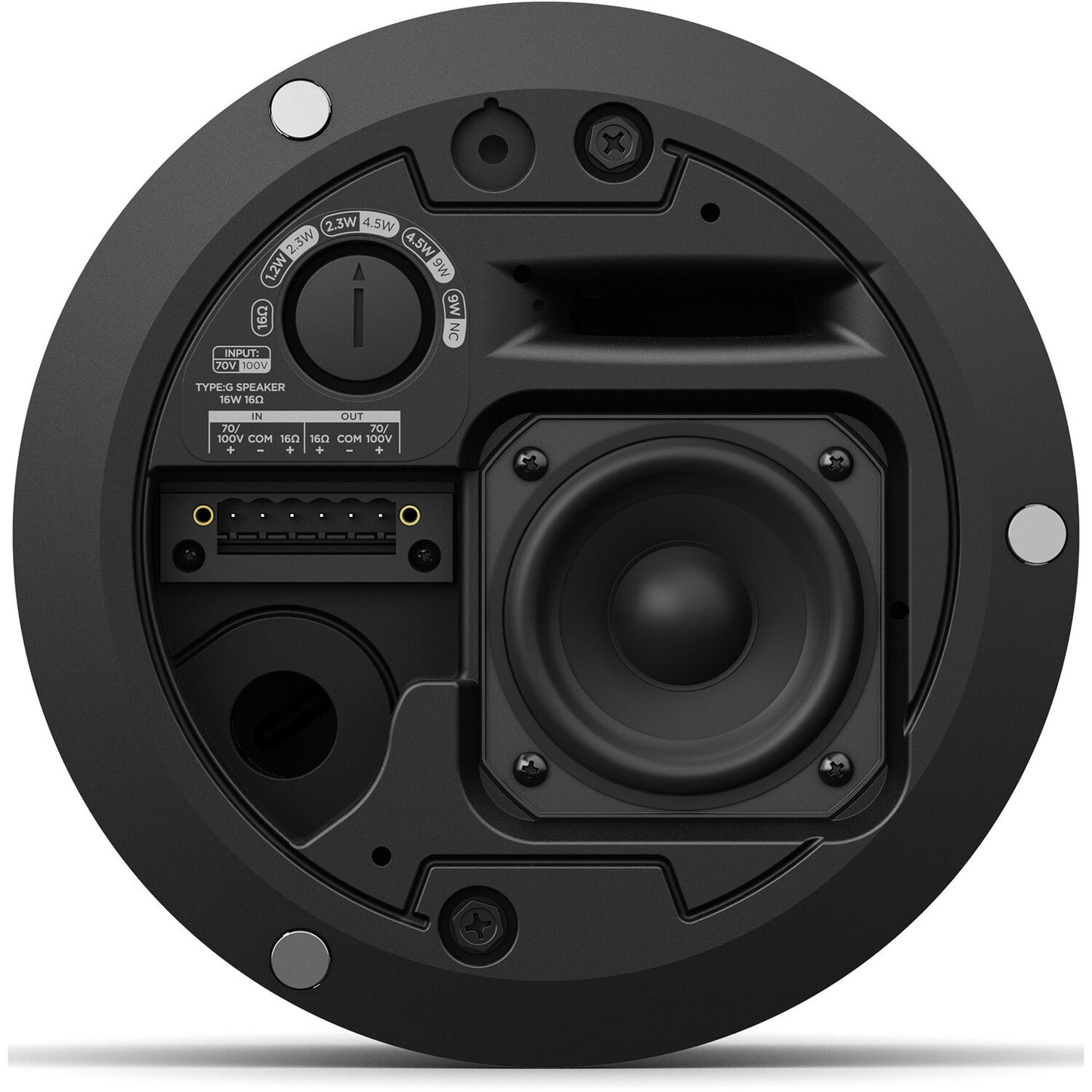

70V Transformer Taps

1.2, 2.3, 4.5, 9 W

100V Transformer Taps

2.3, 4.5, 9 W

Nominal Impedance

16 Ohms (Bypass mode)

Input Connector

Euroblock 6-pin

Physical & Installation

Mounting Options

In-ceiling

Application Environment

Indoor

Dimensions (Diameter x Depth)

7.8" x 4.3" (198 x 110 mm)

Weight (Each)

3.6 lbs (1.6 kg)

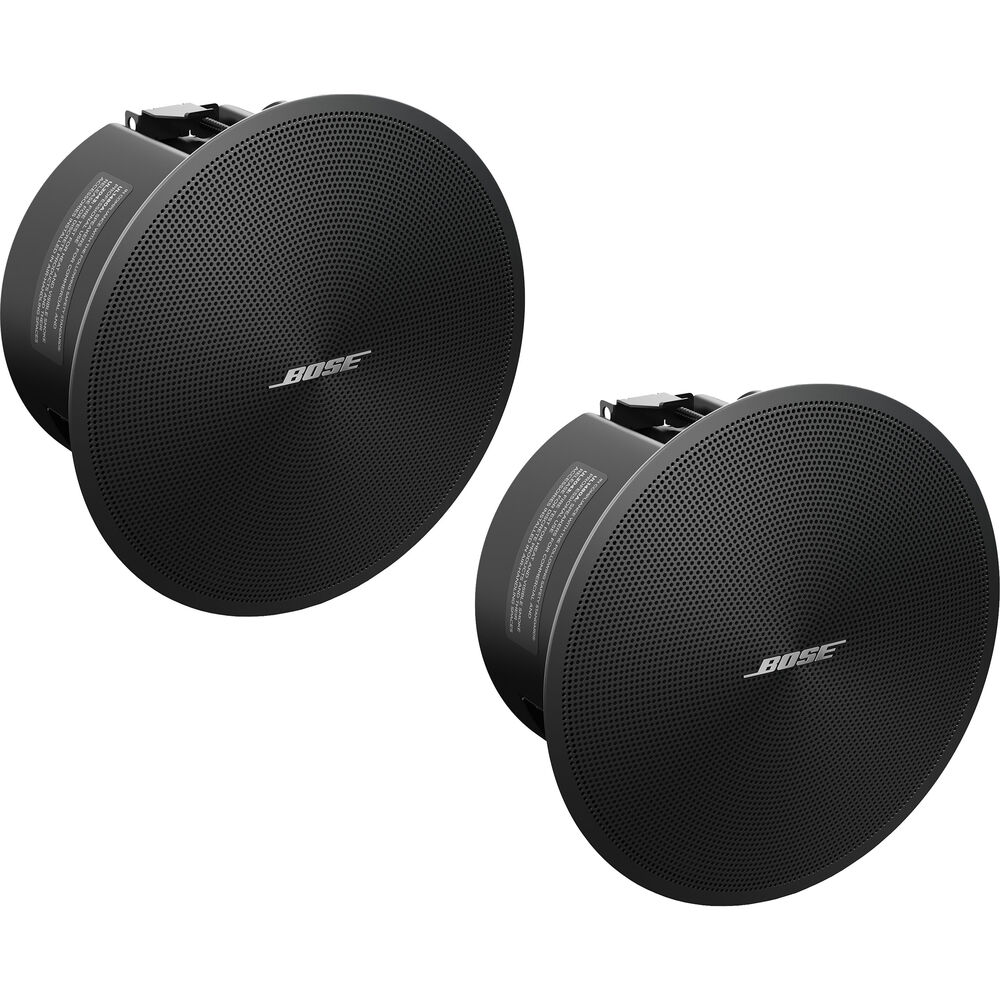

Quantity

Sold as Pair

MPN

815011-0210
