Key Specifications

Acoustic Components & Drivers

Speaker Configuration

2-Way Full-Range (Passive)

LF Driver

1x 3.25" (83 mm) Woofer

HF Driver

1x 0.75" (19 mm) Neodymium Dome Tweeter

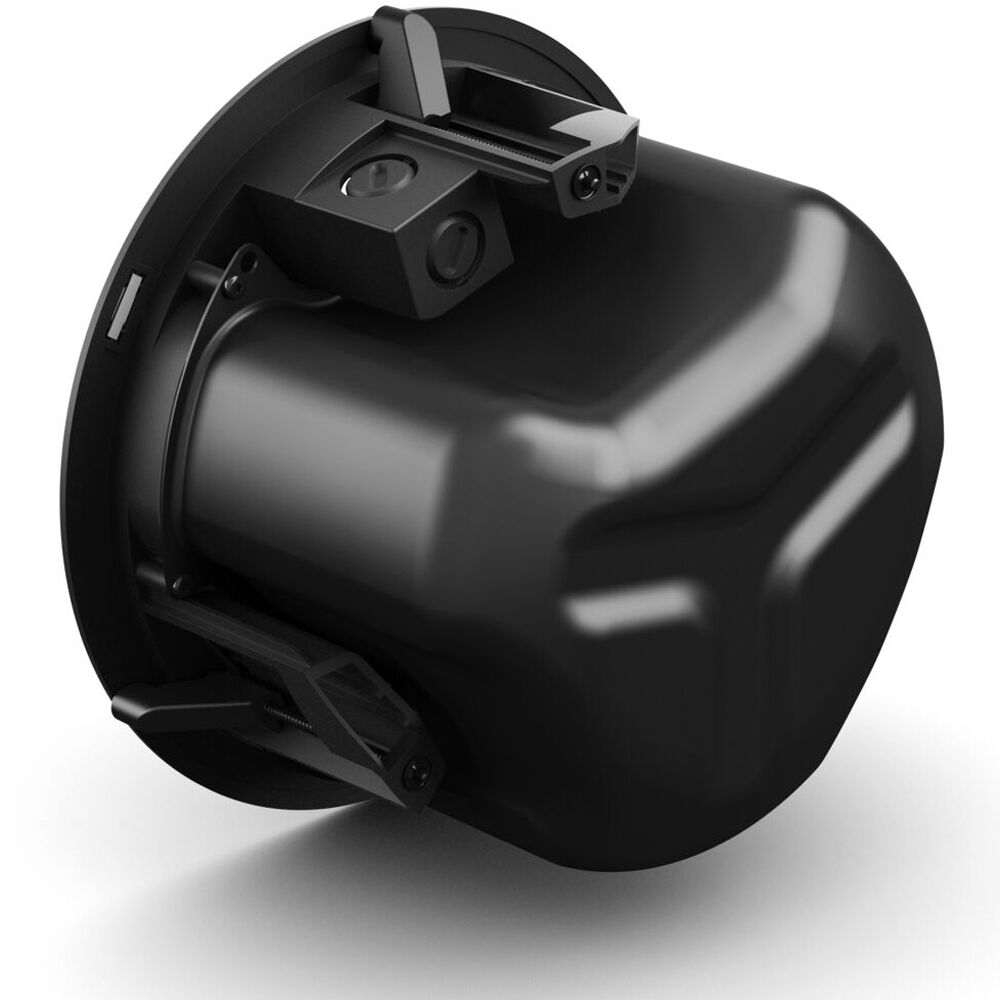

Enclosure Type

Sealed (Backcan)

Performance Data

Frequency Range (-10 dB)

75 Hz – 20 kHz

Frequency Response (-3 dB)

85 Hz – 19 kHz

Sensitivity (SPL / 1W @ 1m)

83 dB

Maximum Continuous SPL

98 dB

Nominal Coverage Angle

135° Conical

Electrical & Power Handling

Power Handling (RMS / Peak)

30 W / 120 W

Program Power Handling

60 W

Nominal Impedance

8 Ohms (Bypass mode)

70V Transformer Taps

3, 6, 12, 25 W

100V Transformer Taps

6, 12, 25 W

Physical & Installation

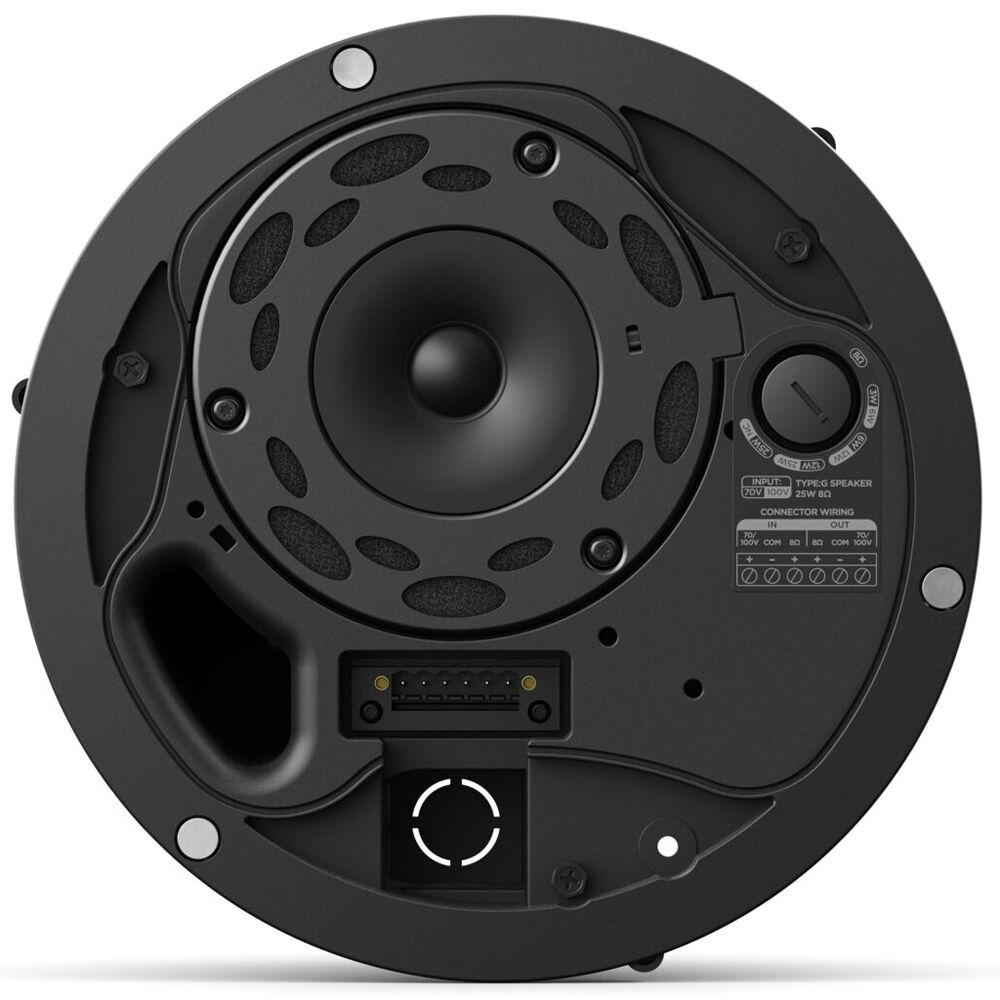

Input Connectors

Euroblock 6-Pin (Input/Thru)

Cutout Size (Diameter)

8.2" (208 mm)

Mount Surface Thickness

Up to 1.5" (38 mm)

Dimensions (Diameter x Depth)

10.0" x 6.0" (254 x 152 mm)

Weight (Each)

5.9 lb (2.7 kg)

Color / Environmental

Black / Indoor (32 to 122°F)

Quantity

Pair (2 Speakers included)
