Key Specifications

Acoustic Components & Performance

Power Configuration

2-way (Passive / Non-powered)

LF Driver Size

3.5" Woofer

HF Driver Size

0.75" Neodymium Dome Tweeter

Frequency Range (-10dB)

75Hz – 20kHz

Crossover Frequency

1.7kHz

Maximum Peak SPL

105dB SPL

Coverage Angle (H x V)

130° x 130°

Electrical & Power Data

Continuous Power Rating

30W

Total Peak Power

120W

Transformer Taps (70V)

25W, 12W, 6W, 3W

Transformer Taps (100V)

25W, 12W, 6W

Nominal Impedance

8 ohms

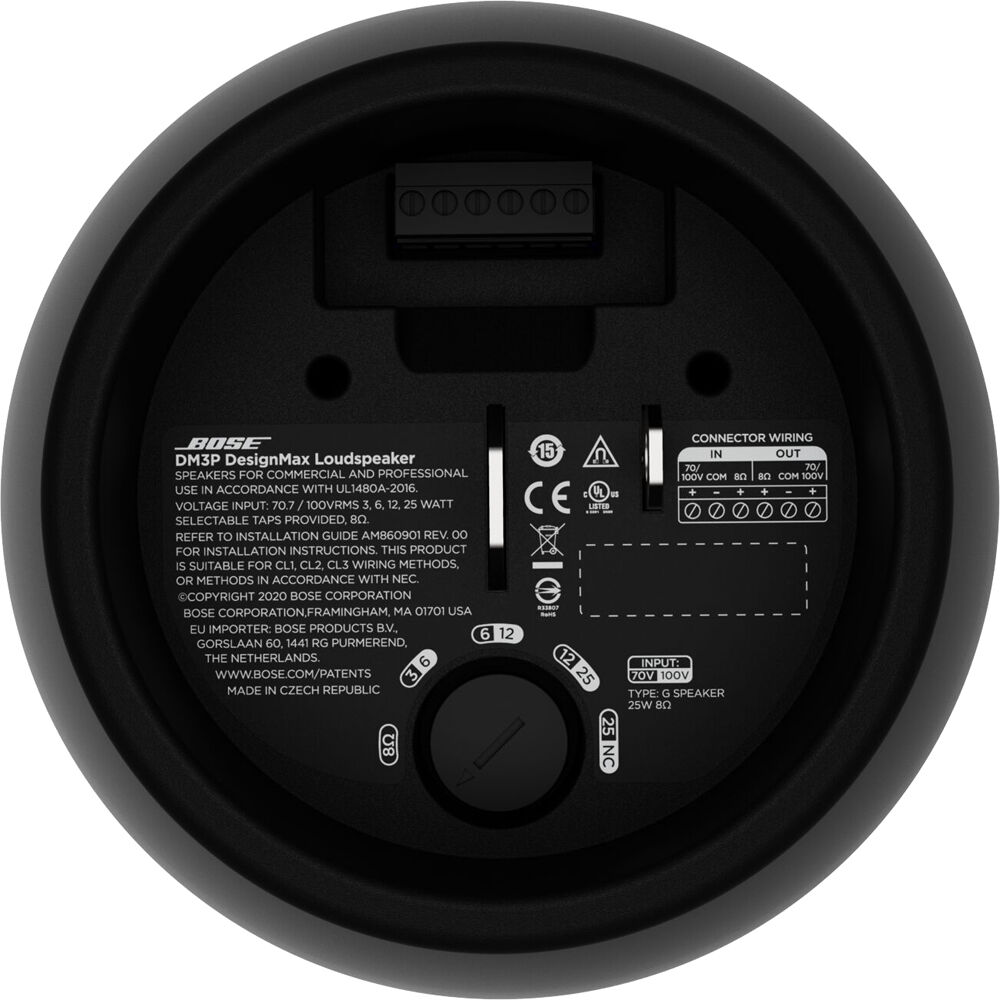

Input Connector

1 x 6-pin Euroblock

Physical & Installation

Enclosure Material

Engineered Plastics

Application Environment

Indoor

Mounting Options

Suspended (Pendant)

Dimensions (Diameter x Depth)

8.2" x 9.8"

Weight (per unit)

5.5 lbs.

Quantity

Sold as Pair

MPN

841165-0110
