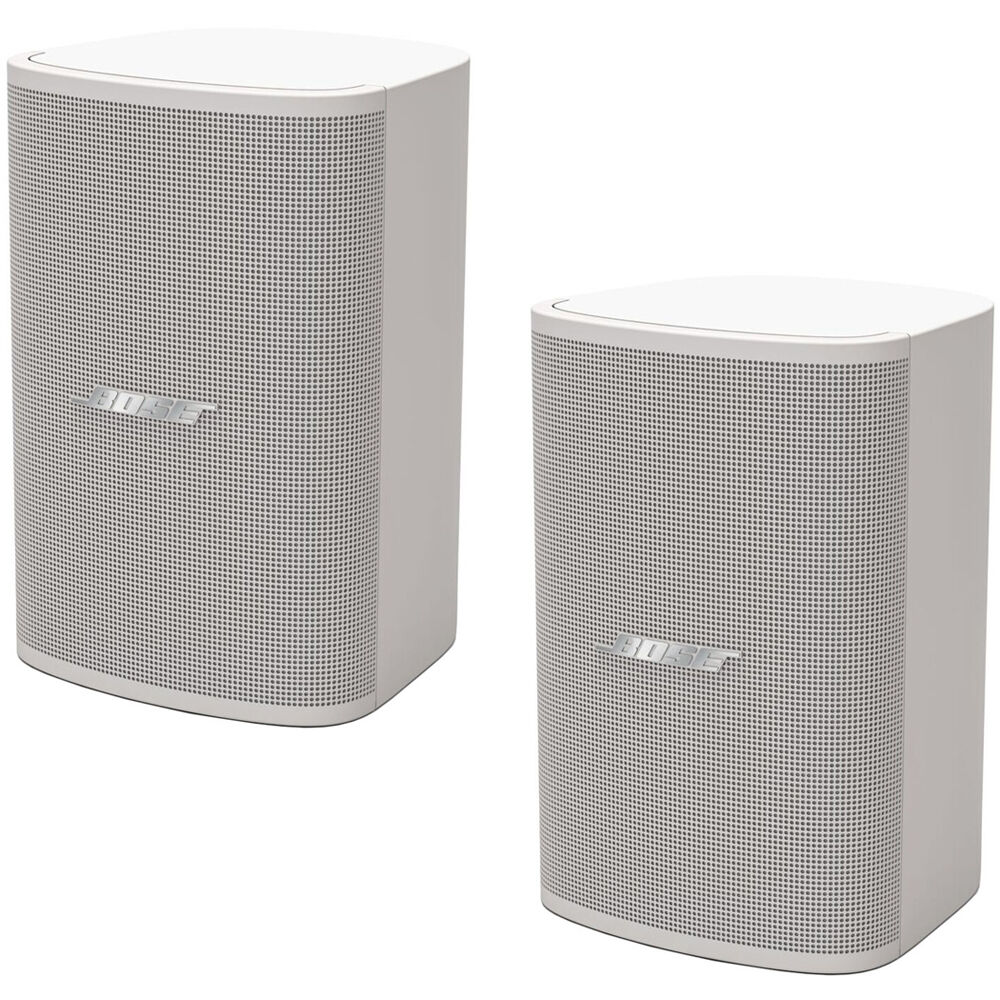

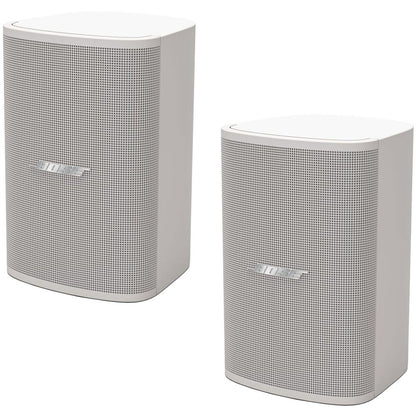

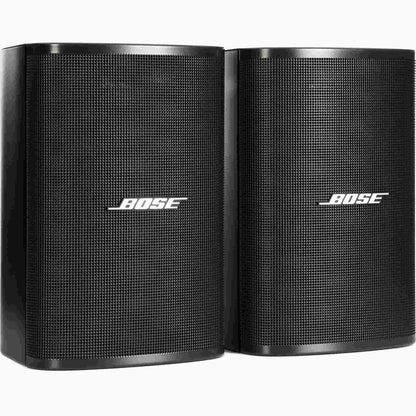

BOSE DesignMax DM3SE
BOSE DesignMax DM3SE
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
Full-Range |
|
Power Handling |
120 W Peak, 60 W Program, 30 W RMS |
|
Constant Voltage / Transformer Taps |
70 V: 25 / 12 / 6 / 3 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
HF Driver |
1 × 0.75" / 19.05 mm Dome Tweeter (Neodymium) |
|
LF Driver |
1 × 3.25" / 82.55 mm Woofer |
|
Frequency Range (-10 dB) |
75 Hz – 20 kHz |
|
Frequency Response (-3 dB) |
85 Hz – 20 kHz |
|
Maximum SPL |
107 dB (Peak) |
|
Sensitivity |
86 dB |
|
Coverage Angle |
140° (Conical) |
|
Inputs/Outputs |
Block 6-Pin Speaker Input/Thru |
|
Maximum Wire Gauge |
14 AWG / 2.5 mm |
|
Environmental Resistance |
No |
|
Color |
Black |
|
Construction Material |
Plastic, Stainless Steel Grille |
|
Dimensions (H×W×D) |
9.1 × 6.1 × 6.1" / 231.1 × 154.9 × 154.9 mm |
|
Weight |
5.6 lb / 2.5 kg |
|
Package Weight |
16.28 lb |
|
Box Dimensions (L×W×H) |
21 × 12.7 × 10.1" |
BOSE DesignMax DM3SE Accessories
- No accessories available.
