Key Specifications

Acoustic Components & Drivers

Speaker Configuration

2-way Full-Range (Passive)

LF Driver

1x 5.25" (133 mm) Woofer

HF Driver

1x 1.25" (32 mm) Neodymium Dome Tweeter

Enclosure Type

Sealed (Pendant Housing)

Performance Data

Frequency Range (-10 dB)

65 Hz – 20 kHz

Frequency Response (-3 dB)

85 Hz – 20 kHz

Sensitivity (SPL / 1W @ 1m)

87 dB

Maximum Peak SPL

111 dB

Nominal Coverage Angle

120° Conical

Electrical & Power Handling

Power Handling (RMS / Peak)

50 W / 200 W

Program Power Handling

100 W

Nominal Impedance

8 Ohms (Bypass mode)

70V Transformer Taps

3, 6, 12, 25, 50 W

100V Transformer Taps

6, 12, 25, 50 W

Physical & Connectivity

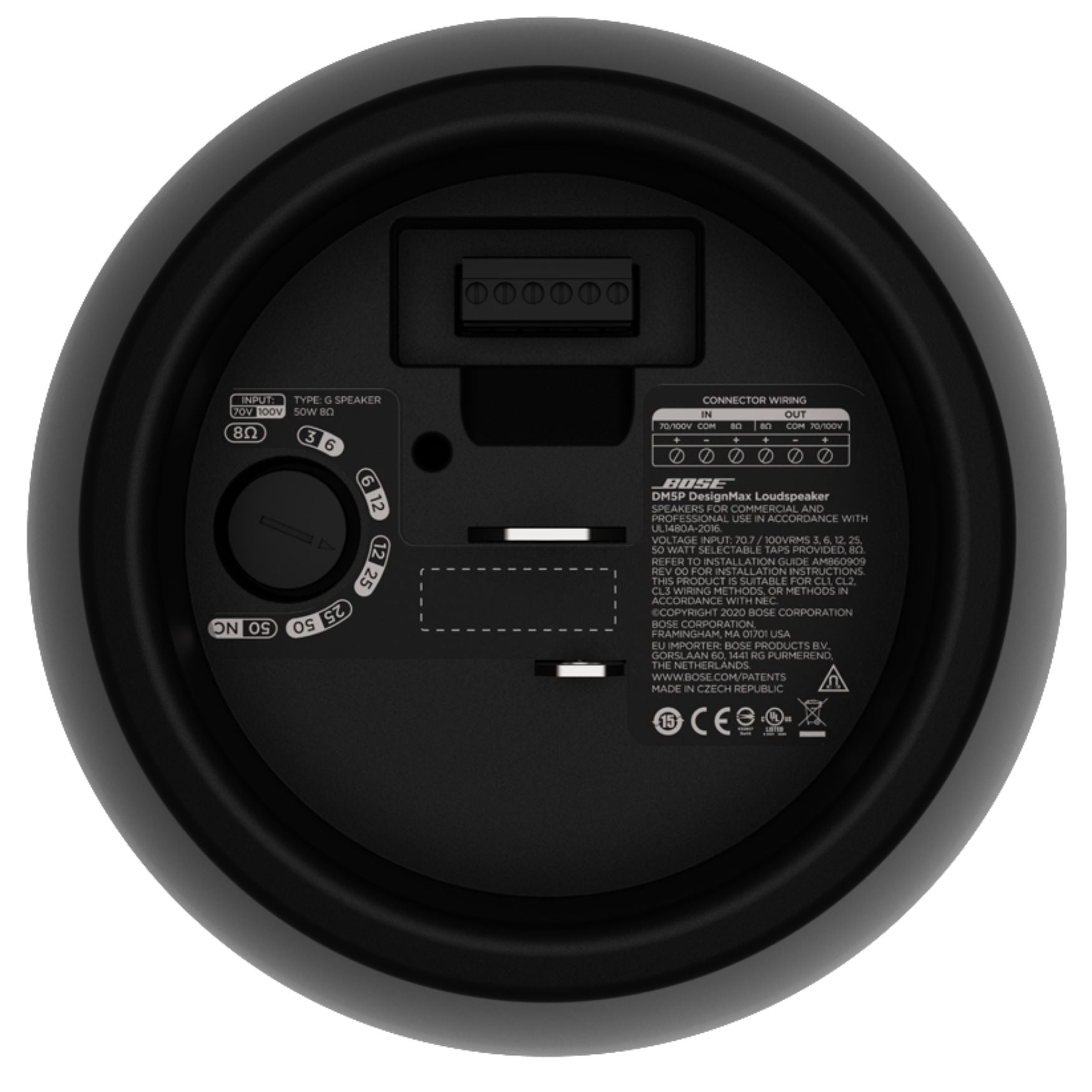

Input Connectors

Euroblock 6-Pin (Input/Thru)

Maximum Wire Gauge

14 AWG (2.5 mm)

Color / Environmental

Black / Indoor Only (No resistance)

Dimensions (Diameter x Depth)

12.1" x 14.8" (307 x 376 mm)

Weight (Each)

12.5 lb (5.7 kg)

Quantity

Pair (2 Speakers included)
