Key Specifications

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

125 W RMS, 250 W Program, 500 W Peak

Constant Voltage / Transformer Taps

70 V: 2.5 / 5 / 10 / 20 / 40 / 80 W or 8 Ohms Bypass
100 V: 5 / 10 / 20 / 40 / 80 W or 8 Ohms Bypass

Impedance

8 Ohms

HF Driver

1 × 1.25" / 31.75 mm Dome Tweeter (Neodymium Magnet)

LF Driver

1 × 6.5" / 165.1 mm Woofer

Frequency Range (-10 dB)

59 Hz – 20 kHz

Frequency Response (-3 dB)

70 Hz – 20 kHz

Maximum SPL

109 dB (Peak)

Sensitivity

88 dB

Coverage Angle

120° (Conical)

Crossover

1.7 kHz

Recommended High-Pass Filter

60 Hz, 24 dB/Octave

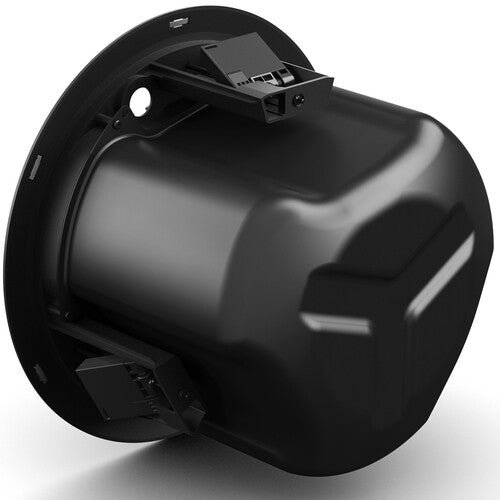

Inputs/Outputs

Block 6-Pin Speaker Input/Thru

Maximum Wire Gauge

14 AWG / 2.5 mm

Environmental Resistance

None

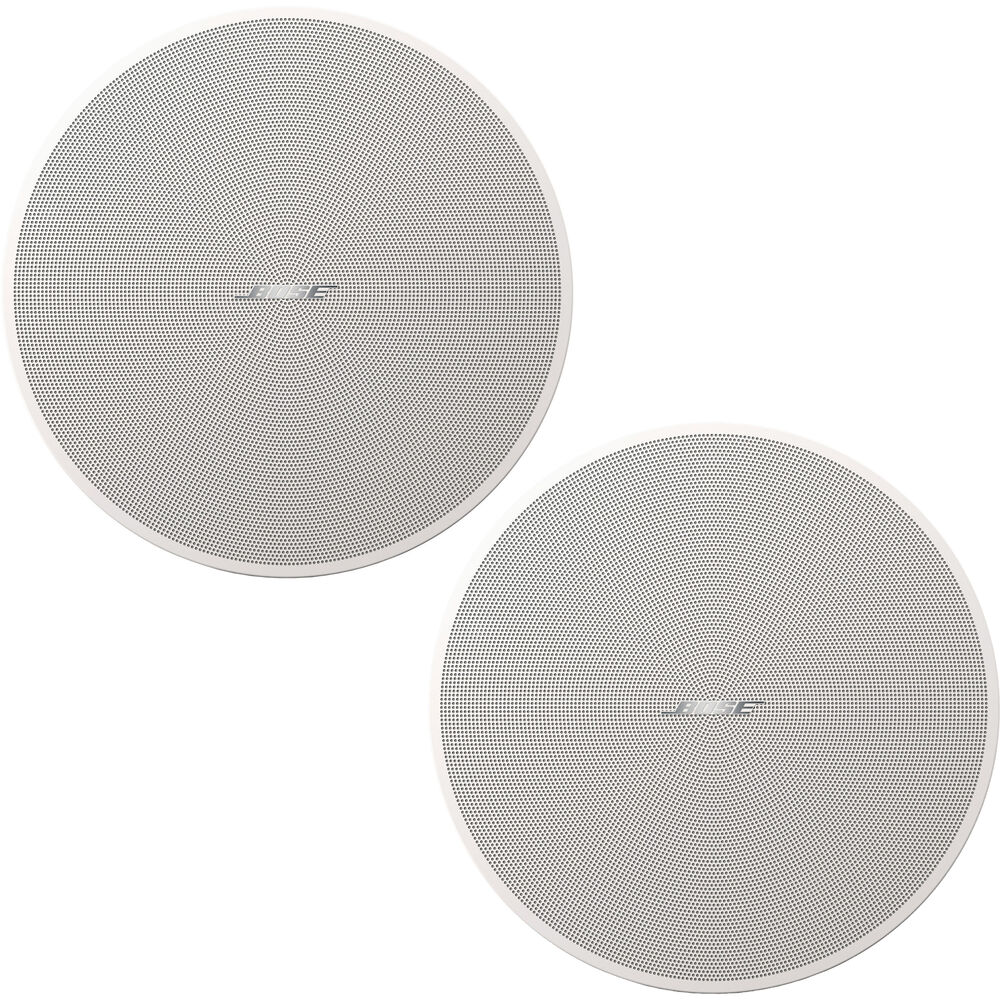

Color

Black, White

Cutout Size

11.5" / 29.2 cm

Mount Surface Thickness

2.3" / 5.8 cm

Construction Material

Plastic, Stainless Steel Grille

Dimensions (H×W)

14 × 9.4" / 355.6 × 238.8 mm

Weight

14.3 lb / 6.5 kg

Package Weight

40.6 lb

Box Dimensions (L×W×H)

31.5 × 19.5 × 15.3"
