Key Specifications

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

500 W Peak
250 W Program
125 W RMS

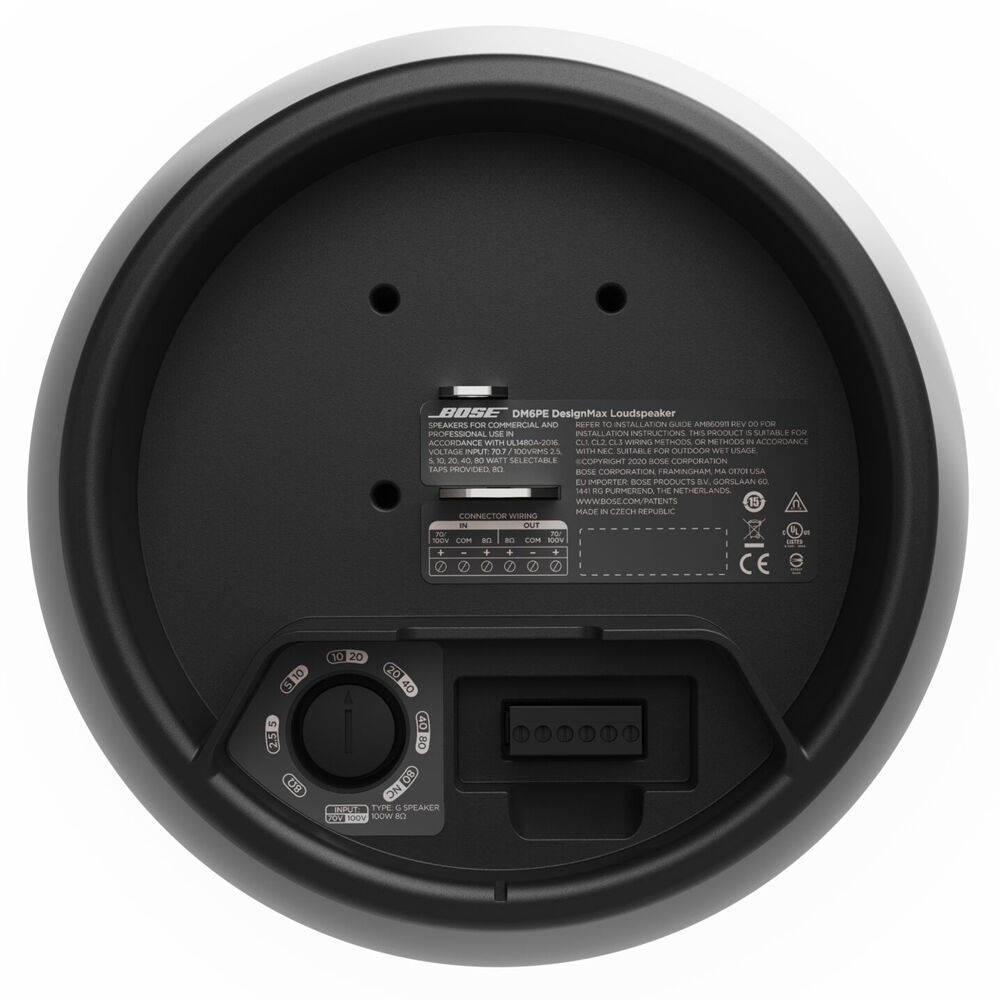

Constant Voltage / Transformer Taps

70 V: 80 / 40 / 20 / 10 / 5 / 2.5 W
100 V: 80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass

Impedance

8 Ohms

HF Driver

1x 1.25" / 31.75 mm Dome Tweeter

LF Driver

1x 6.5" / 165.1 mm Woofer

Frequency Range

62 Hz to 20 kHz (-10 dB)

Color

Black

Speaker

Enclosure Type

Sealed

Drivers

HF Driver

1x 1.25" / 31.75 mm Dome Tweeter

LF Driver

1x 6.5" / 165.1 mm Woofer

Magnet

HF: Neodymium

Performance

Frequency Range

62 Hz to 20 kHz (-10 dB)

Frequency Response

75 Hz to 20 kHz (-3 dB)

Maximum SPL

116 dB (Peak)

Sensitivity

89 dB

Coverage Angle

115° (Conical)

Connectivity

Inputs/Outputs

Block 6-Pin Speaker Input/Thru

Maximum Wire Gauge

14 AWG / 2.5 mm

Physical

Environmental Resistance

No

Color

Black, White

Dimensions

14.8 x 12.1" / 375.9 x 307.3 mm

Weight

12.5 lb / 5.7 kg

Packaging Info

Package Weight

35 lb

Box Dimensions (LxWxH)

30.25 x 20 x 16"
