Key Specifications

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

2-Way

Power Handling

500 W Peak / 250 W Program / 125 W RMS

Constant Voltage / Transformer Taps

70 V: 80 / 40 / 20 / 10 / 5 / 2.5 W or 8 Ohms Bypass
100 V: 80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass

Impedance

8 Ohms

HF Driver

1 x 1.25" / 31.75 mm Dome Tweeter (Neodymium Magnet)

LF Driver

1 x 6.5" / 165.1 mm Woofer

Frequency Range

59 Hz – 20 kHz (-10 dB)

Frequency Response

70 Hz – 20 kHz (-3 dB)

Maximum SPL

117 dB (Peak)

Sensitivity

90 dB

Coverage Angle

125° (Conical)

Connectivity

Inputs/Outputs

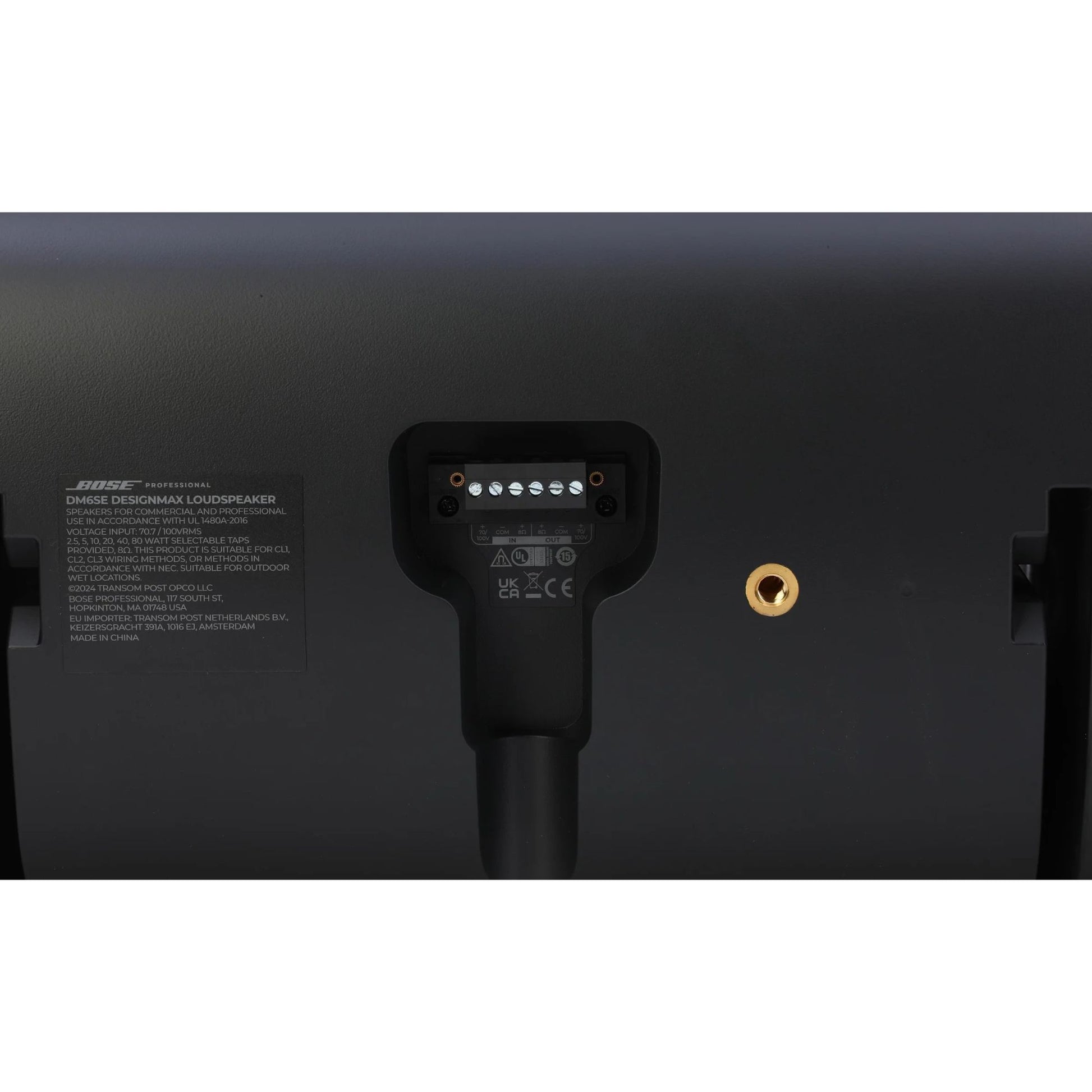

Block 6-Pin Speaker Input/Thru

Maximum Wire Gauge

14 AWG / 2.5 mm

Physical

Environmental Resistance

No

Color

Black, White

Mounting

Bracket Point (Rear)

Construction Material

Plastic, Stainless Steel Grille

Dimensions (H × W × D)

13.4 × 9 × 8.7 in / 340.4 × 228.6 × 221 mm

Weight

13.1 lb / 5.9 kg
