Key Specifications

Interfaces

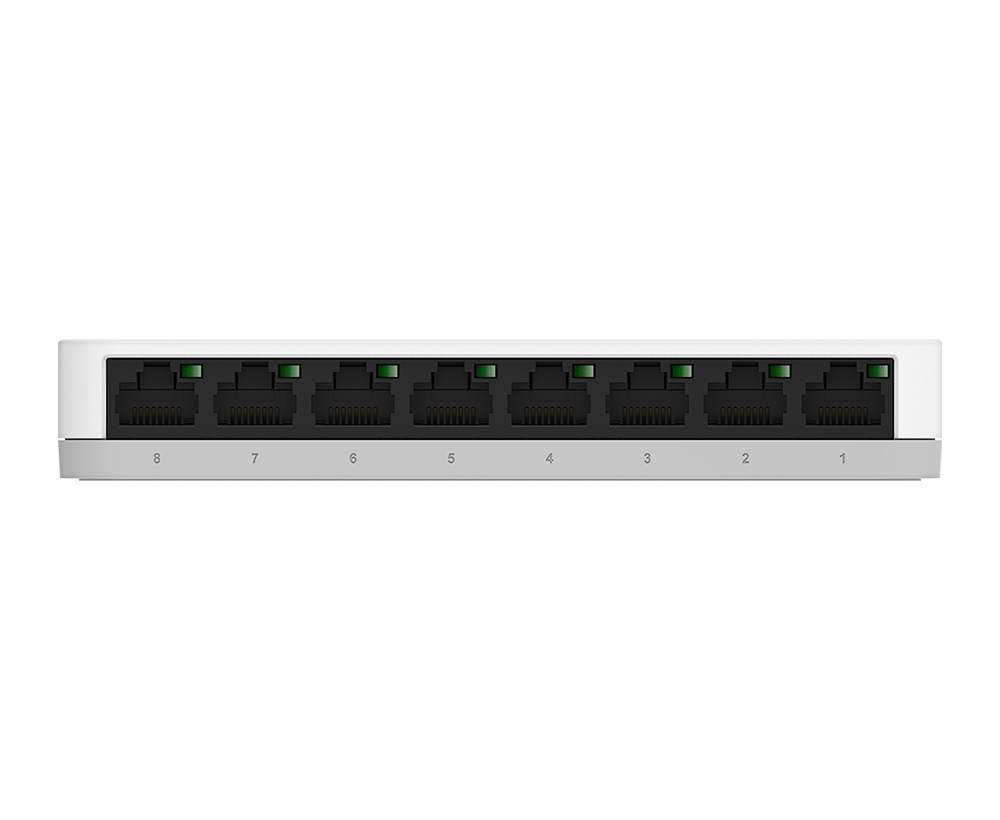

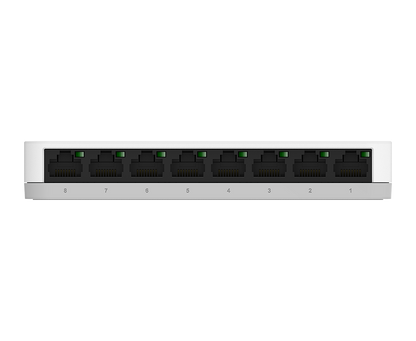

8 × 1000Base-T

Auto MDI/MDIX

Yes

Switch Intelligence

Unmanaged

Switching Capacity

16 Gbps

Max. Packet Forwarding Rate

11.90 Mpps

Store & Forwarding

Yes

Flash Memory Size

64 KBytes

Packet Buffer Size

192 KBytes

MAC Address Table Size

4,000

Control

802.3x Flow Control

Head-of-line (HOL) Blocking Prevention

Yes

Jumbo Frame

9,720 Bytes

Power

Power Input

AC 100 ~ 240 V

Maximum Power Consumption

4.80 W

Standby Power Consumption

0.7 W

Maximum Heat Dissipation

16.368 BTU/h

Environmental

Operating Temperature

0 °C ~ 40 °C

Storage Temperature

-10 °C ~ 70 °C

Operating Humidity

0% ~ 95% RH

Storage Humidity

0% ~ 95% RH

Operating Altitude

2000 m

Protection

Surge / Lightning Protection

AC Power Input: 1 kV

All Ethernet Ports: 1 kV

Air Discharge

8 kV

Contact Discharge

4 kV

Features

Energy Efficient Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

Power Saving By Cable Length

Yes

Comply with RoHS 6

Yes

Physical Properties

Dimensions

130 × 79 × 22 mm

Weight

130 g

Cooling

Fanless

MTBF

1,061,267 hours
