Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way, Bass-Reflex

Total Output Power

325 W RMS / 700 W Peak

Amplifier Class

Class-D

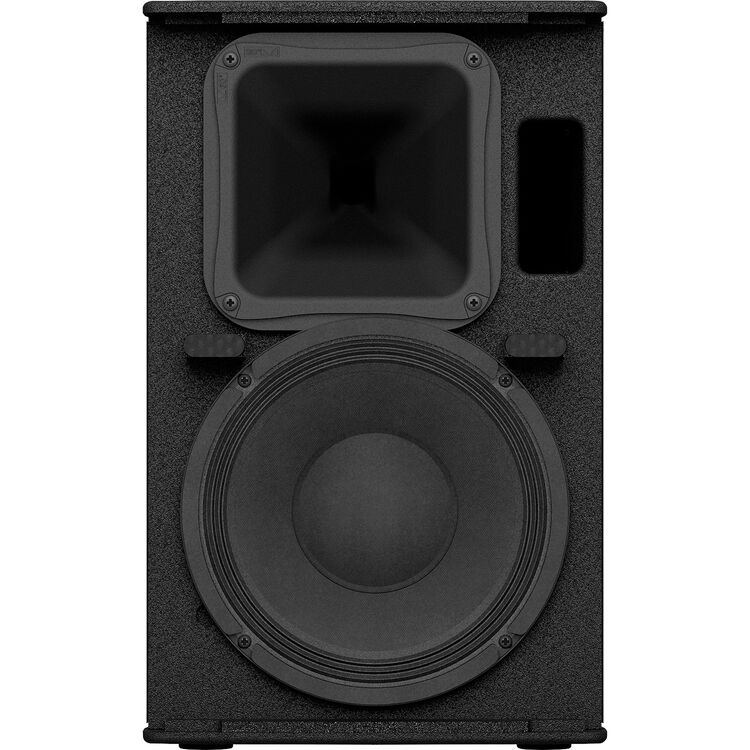

Drivers

LF Driver

1x 10" / 25.4 cm Woofer
Voice Coil: 2" / 50.8 mm
Magnet: Ferrite

HF Driver

1x 1.4" / 35.6 mm Rotatable-Horn Compression Driver
Throat: 1" / 25 mm
Magnet: Ferrite

Performance

Frequency Range / Response

52 Hz – 20 kHz (-10 dB)

Maximum SPL

128 dB

Coverage Angle

90° H × 60° V (Rotatable Horn)

Crossover Frequency

1900 Hz

Protections

DC Fault, Dynamic Clip, Overcurrent, Overvoltage, Power Supply, Thermal

Digital Signal Processing

Venue Settings, High-Pass Filter

Connectivity

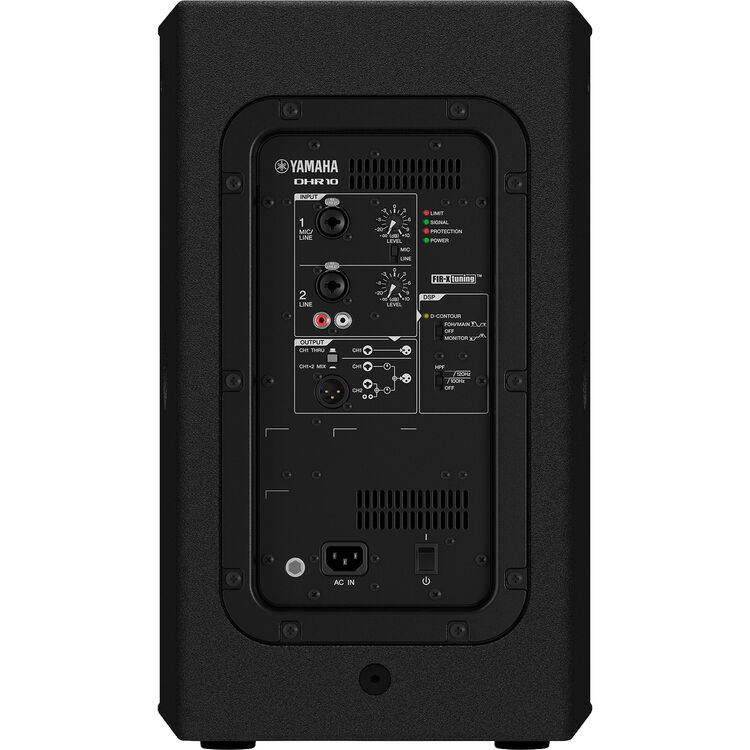

Audio I/O

1x Combo XLR-1/4" TRS Line/Mic Input
1x Combo XLR-1/4" TRS Line Input
1x Stereo 2RCA Line Input
1x XLR 3-Pin Line Thru/Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Power Consumption

18 W (Idle), 60 W (1/8 Power)

Physical

Color

Black

Mounting Options

Stand Mount: 1 × 1.38" / 35 mm Pole Socket (Bottom)
Suspension Points: 2 × M10 (Top), 1 × M10 (Rear)

Handles

1x Top

Construction Material

Perforated Metal Grille, Plywood, Polyurethane

Environmental Resistance

No

Dimensions (H × W × D)

19.5 × 12 × 11.8" / 495.3 × 304.8 × 299.7 mm

Weight

33.1 lb / 15 kg

Packaging Info

Package Weight

39.71 lb

Box Dimensions (L × W × H)

22 × 16.6 × 16.1"
