Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

465 W RMS / 1000 W Peak

Amplifier Class

Class-D

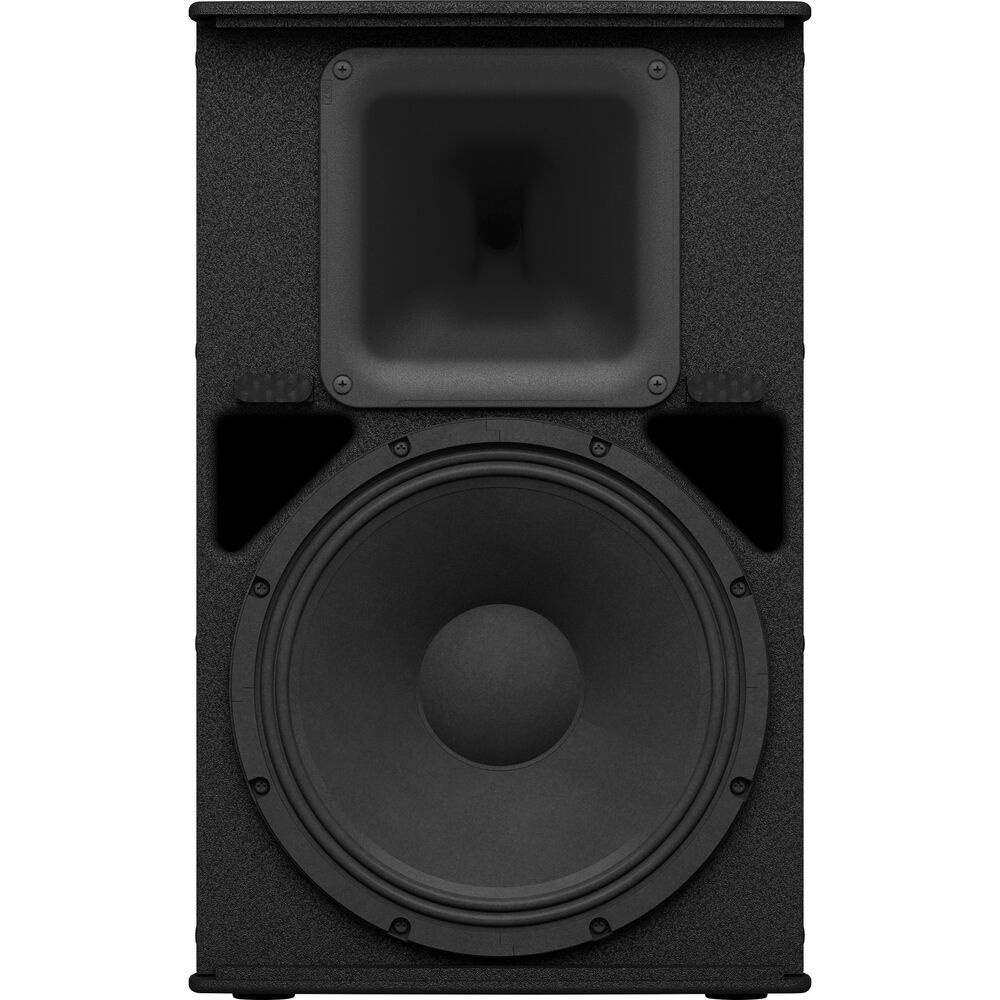

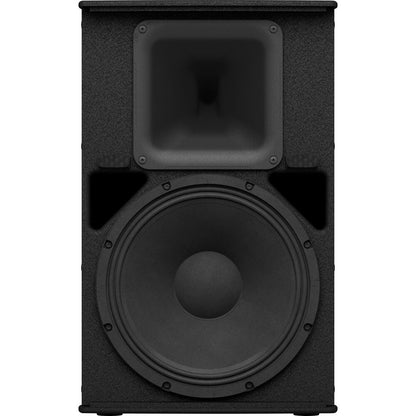

LF Driver

1 × 12" Woofer (2.5" Voice Coil, Ferrite Magnet)

HF Driver

1 × 1.4" Horn-Loaded Compression Driver (1" Throat, Ferrite Magnet)

Frequency Response

48 Hz to 20 kHz (-10 dB)

Maximum SPL

130 dB

Coverage Angle

90° H × 60° V (Rotatable Horn)

Protections

DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal

Crossover Frequency

1800 Hz

DSP

Venue Settings

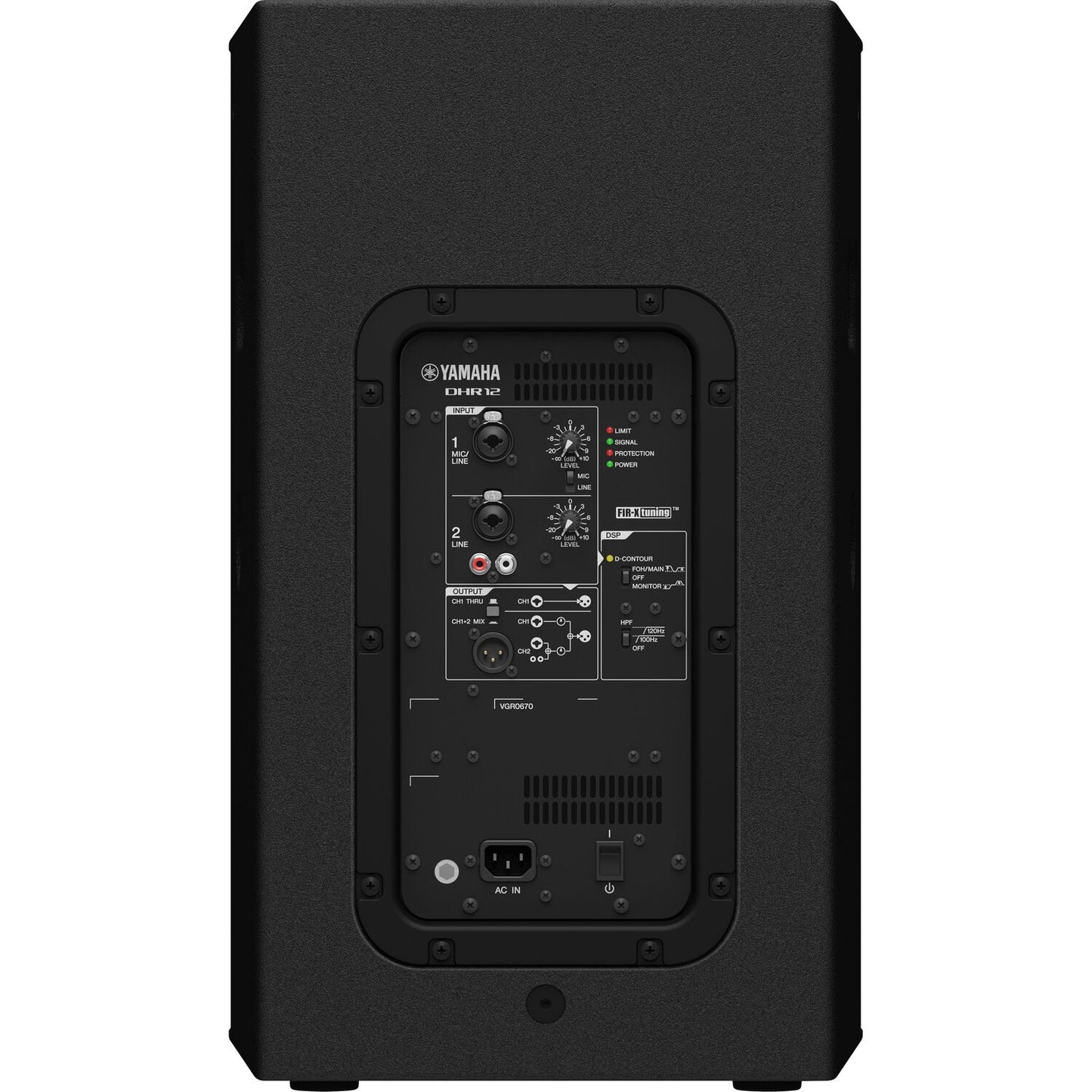

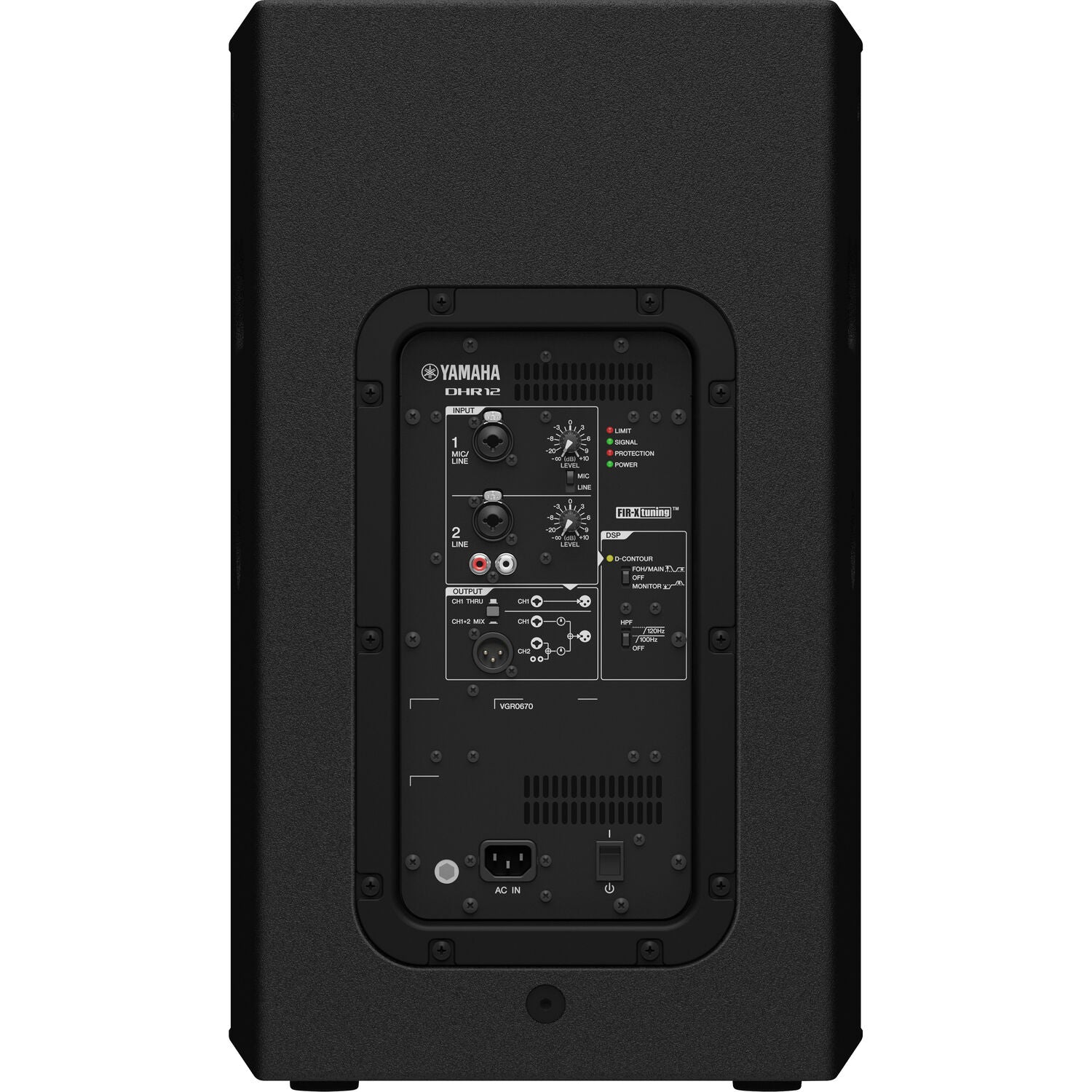

Audio Inputs

1 × Combo XLR / 1/4" TRS Mic/Line Input, 1 × Combo XLR / 1/4" TRS Line Input, 1 × Stereo RCA Line Input

Audio Outputs

1 × XLR 3-Pin Line Thru/Output

Power Input

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

IEC Input

Power Consumption

18 W (Idle), 74 W (1/8 Power)

Mounting

Stand Mount, 35 mm Dual-Angle Pole Socket

Suspension Points

2 × M10 (Top), 1 × M10 (Rear), 2 × M8 (Bottom), 2 × M8 (Side)

Handles

1 × Top, 1 × Each Side

Construction Material

Metal Grille, Plywood, Polyurethane

Color

Black

Dimensions

22.8 × 14.1 × 13.4" (579 × 358 × 340 mm)

Weight

42.3 lb (19.2 kg)
