Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way, Bass-Reflex

Total Output Power

465 W RMS / 1000 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

1x 12" / 30.5 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Ferrite

HF Driver

1x 1.75" / 44.45 mm Horn-Loaded Compression Driver
Throat: 1" / 25 mm
Magnet: Ferrite

Performance

Frequency Range / Response

55 Hz – 20 kHz (-10 dB)

Maximum SPL

129 dB

Coverage Angle

90° H × 90° V

Crossover Frequency

1800 Hz

Protections

DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal

Digital Signal Processing

Venue Settings

EQ & Filters

No

Alignment Delay

No

Connectivity

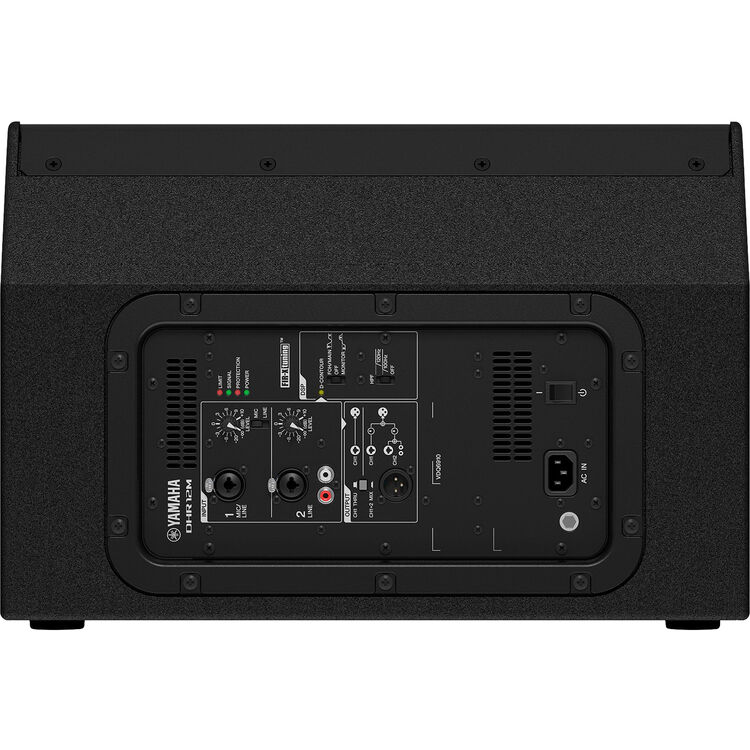

Audio I/O

1x Combo speakON-1/4" TRS Line/Mic Input
1x Combo XLR-1/4" TRS Line Input
1x Stereo 2RCA Line Input
1x XLR 3-Pin Line Thru/Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Power Consumption

18 W (Idle), 74 W (1/8 Power)

Physical

Color

Black

Mounting

1 × 1.38" / 35 mm Pole Socket

Handles

1x Side

Construction Material

Perforated Metal Grille, Plywood, Polyurethane

Environmental Resistance

No

Dimensions (H × W × D)

19.7 × 17.9 × 13.5" / 500.4 × 454.7 × 342.9 mm

Weight

36.4 lb / 16.5 kg

Packaging Info

Package Weight

49.2 lb

Box Dimensions (L × W × H)

22.8 × 21.8 × 17.8"
