Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

465 W RMS / 1000 W Peak

Amplifier Class

Class-D

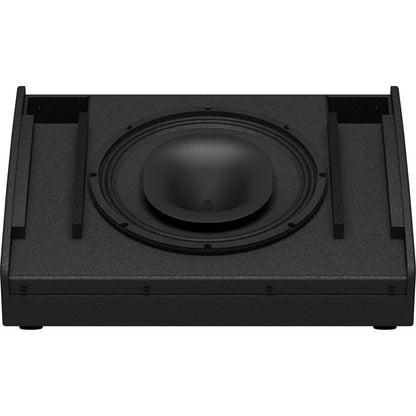

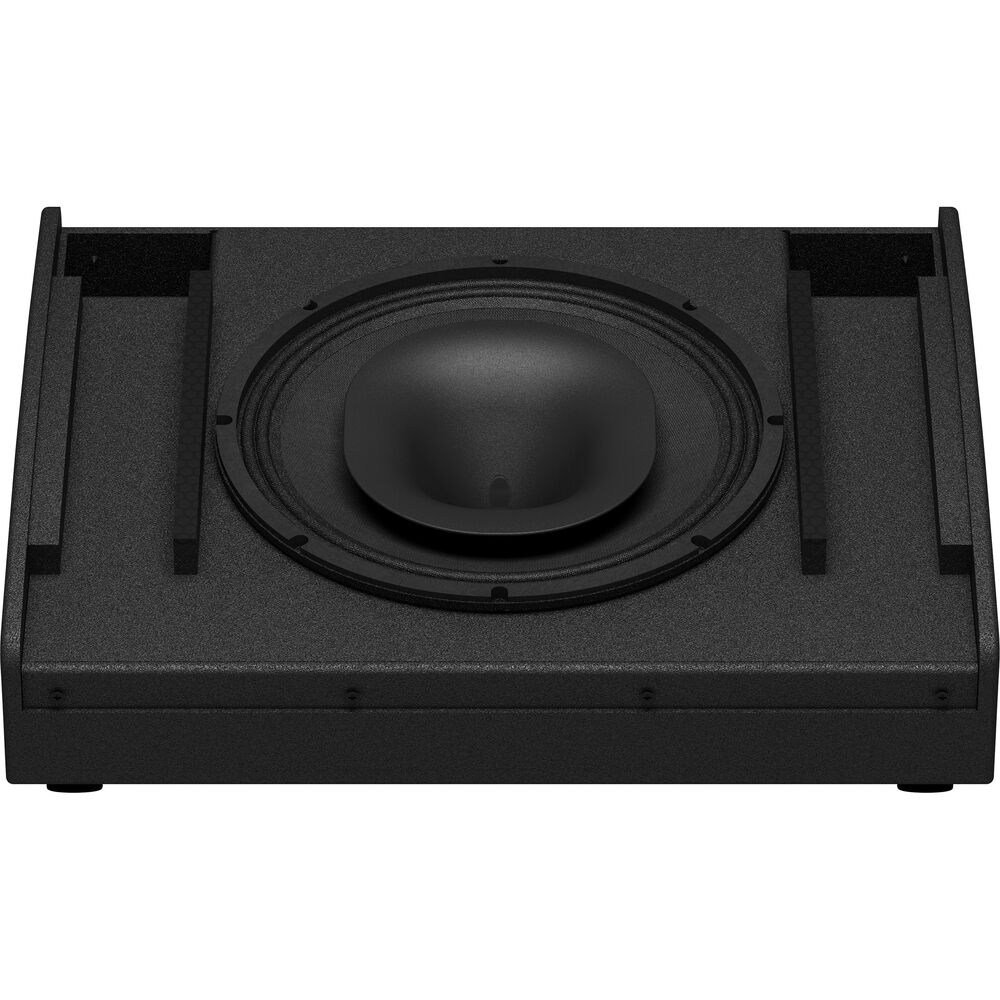

LF Driver

1 × 15" Woofer (3" Voice Coil, Ferrite Magnet)

HF Driver

1 × 1.75" Horn-Loaded Compression Driver (1" Throat, Ferrite Magnet)

Frequency Response

50 Hz to 20 kHz (-10 dB)

Maximum SPL

131 dB

Coverage Angle

65° H × 75° V

Protections

DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal

Crossover Frequency

1800 Hz

DSP

Venue Settings

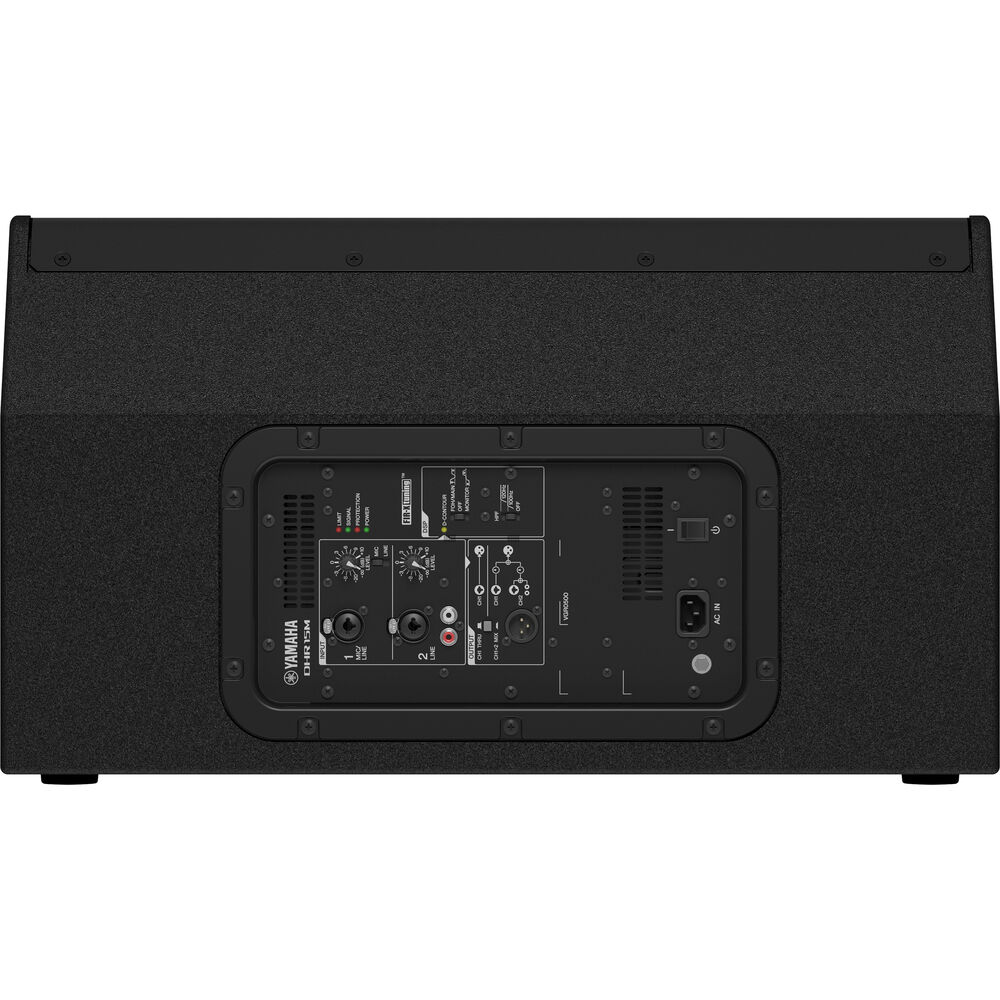

Audio Inputs

1 × Combo speakON / 1/4" TRS Mic/Line Input, 1 × Combo XLR / 1/4" TRS Line Input, 1 × Stereo RCA Line Input

Audio Outputs

1 × XLR 3-Pin Line Thru/Output

Power Input

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

IEC Input

Power Consumption

18 W (Idle), 74 W (1/8 Power)

Mounting

35 mm Pole Socket

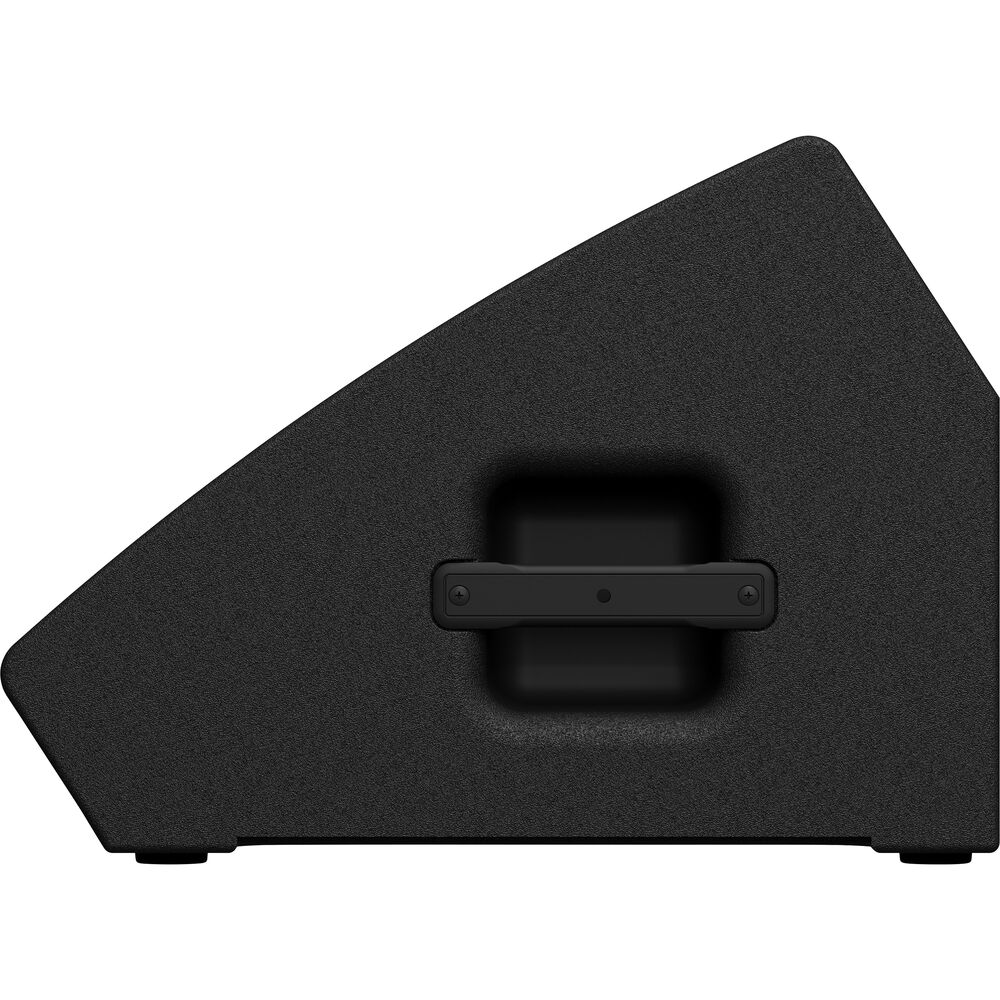

Handle

1 × Side Handle

Construction Material

Perforated Metal Grille, Plywood, Polyurethane

Color

Black

Dimensions

25.3 × 18.9 × 14.5" (643 × 480 × 368 mm)

Weight

50.7 lb (23 kg)
