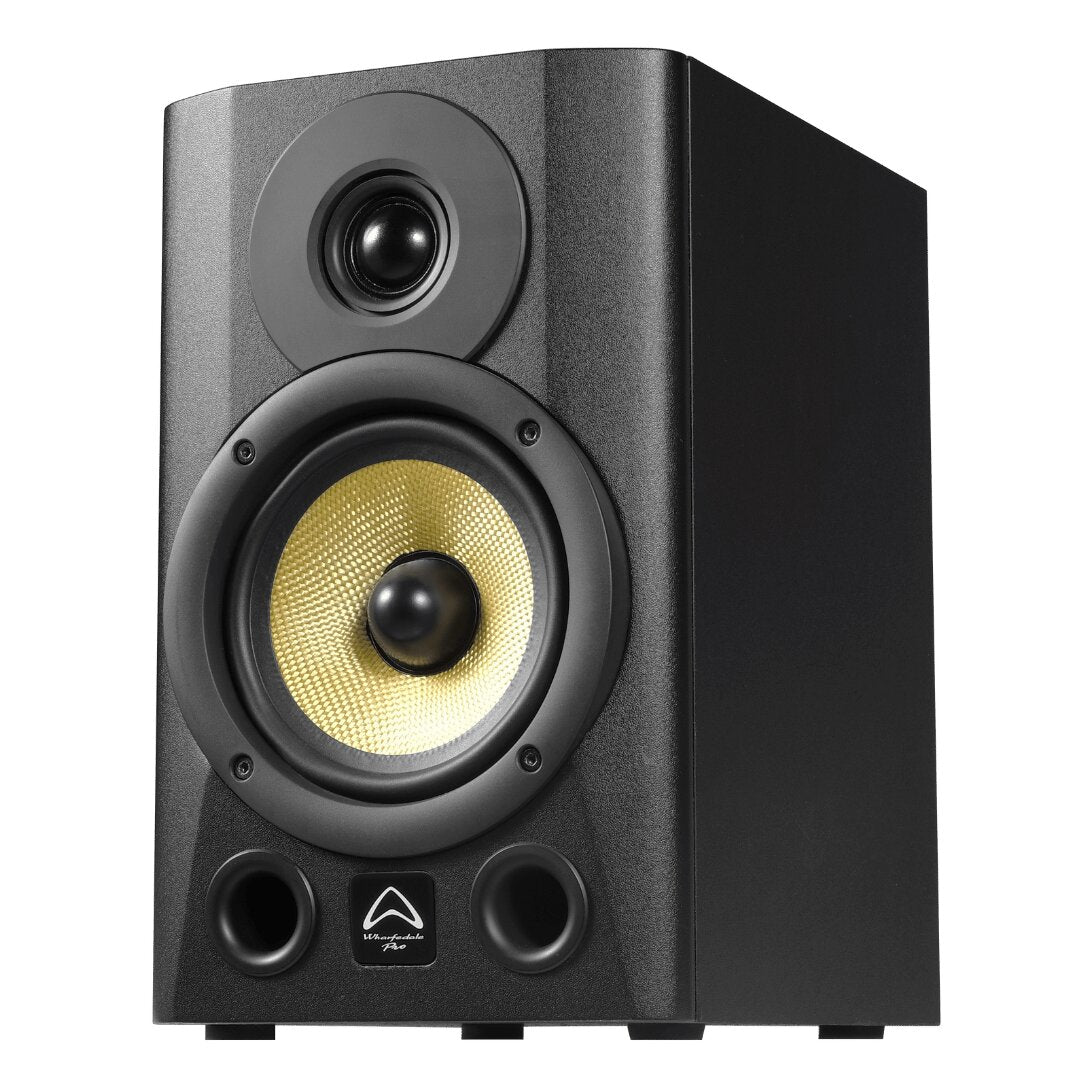

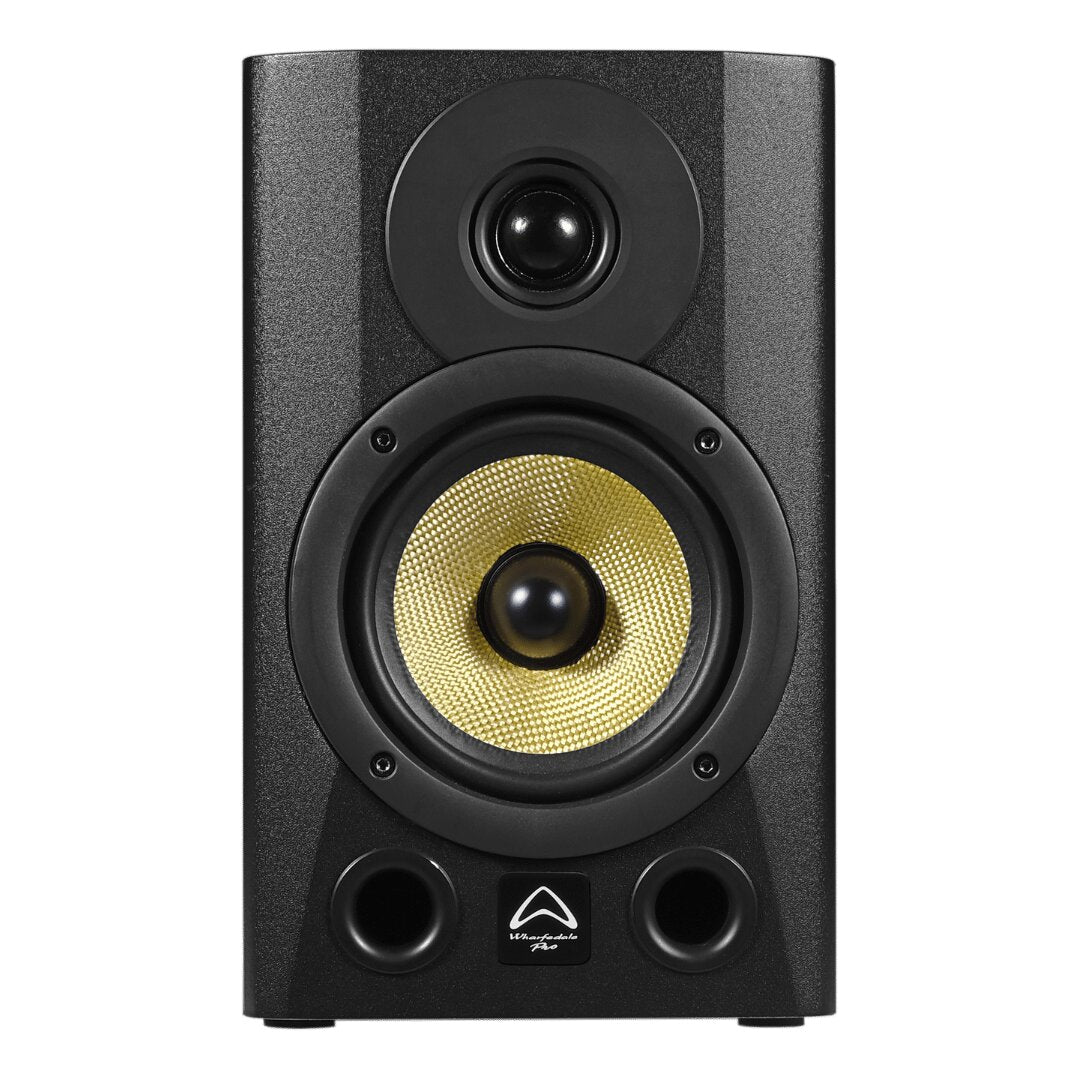

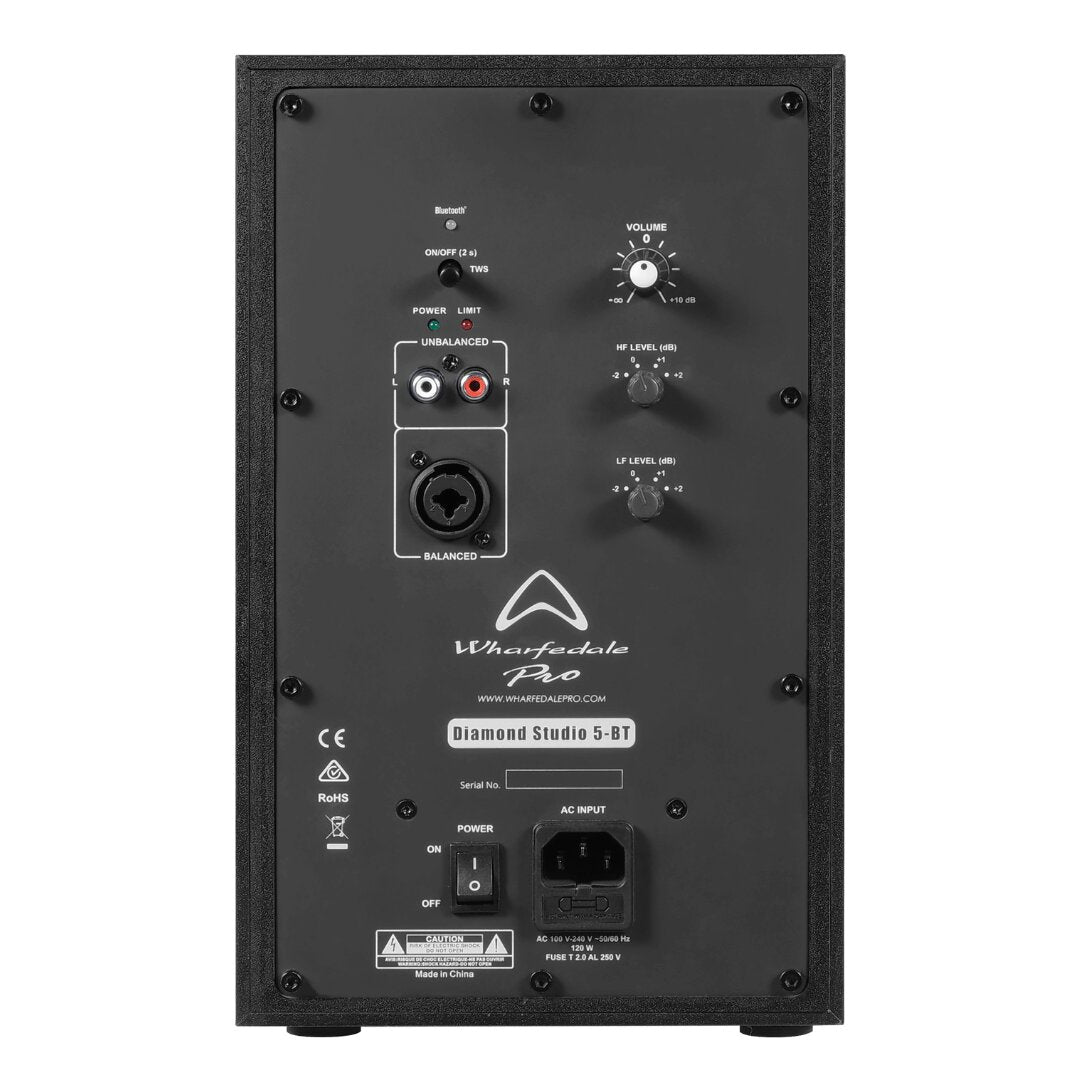

WHARFEDALE Diamond Studio 5-BT
WHARFEDALE Diamond Studio 5-BT
|
Key Specifications |
|
|
Active or Passive |
Active |
|
System Type |
Studio Monitor |
|
Configuration |
2-way |
|
System Continuous Power |
140 W |
|
System Peak Power |
280 W |
|
Max SPL @ 1m |
110 dB |
|
Freq Range (-10 dB) |
45 Hz – 25 kHz |
|
Freq Response (+/-3 dB) |
55 Hz – 25 kHz |
|
Bi-amp Mode Switch |
No |
|
Bluetooth |
Yes |
|
IP Certification |
None |
|
Driver Brand |
Wharfedale Pro |
|
LF Driver Size |
5" |
|
LF Voice Coil Size |
1" |
|
LF Rated Impedance |
4 Ω |
|
LF Power (RE:AES2-2012) |
50 W |
|
HF Driver Type |
Soft Dome Tweeter |
|
HF Voice Coil Size |
1" |
|
HF Diaphragm Material |
Silk |
|
HF Power (RE:AES2-2012) |
10 W |
|
HF Rated Impedance |
4 Ω |
|
HF Nominal Coverage (H x V) |
135° x 110° |
|
Preset Library |
No |
|
Input Connector |
1/4” Jack / XLR Combo / 2 x RCA / BT |
|
Waveguide Type |
Rounded |
|
Enclosure Material |
MDF |
|
Finish |
Black Paint |
|
Deployment |
Desktop |
|
Pole Mount |
None |
|
Brackets Included |
No |
|
Rigging |
No |
|
Sensitivity 2.83v / 1m |
n/a dB |
|
System Rated Impedance |
n/a |
|
Crossover Frequency |
2.2 kHz |
|
Recommended HPF |
BW 18 dB/OCT. 45 Hz |
|
Amplifier design |
Class D |
|
DSP Controls |
HF / LF Level Adjust (-2, 0, +1, +2) |
|
EQ Type |
HF / LF Level Adjust (-2, 0, +1, +2) |
|
Main Power |
100 V - 240 V |
|
Power Supply |
SMPS |
|
Included Accessory |
Quick Start Guide, AC cable |
|
Unpacked Dimensions (mm) |
290 (H) x 180 (W) x 240 (D) |
|
Weight (Nett / Gross) |
5.62 kg / 6.47 kg |
