Key Specifications

Product Model

dbx DJDI

Product Type

2-Channel Passive Direct Box

Circuitry

Passive (Transformer-based)

Number of Channels

2 Independent Channels

Performance & Audio Quality

Input Impedance

50 kΩ (Unbalanced)

Output Impedance

600 Ω (Balanced)

THD + Noise

0.23% (at 1 kHz)

Signal-to-Noise Ratio

-104 dBu (22 Hz to 22 kHz)

Connectivity & Features

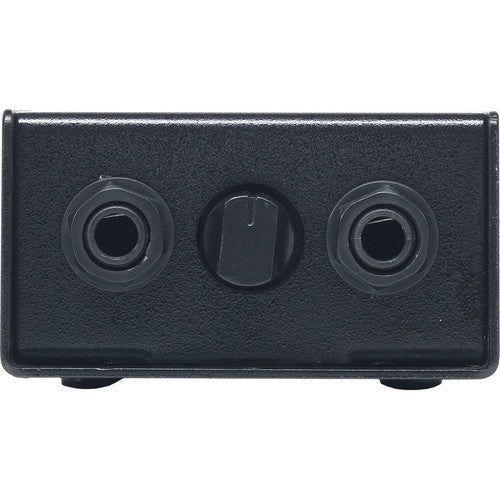

Inputs

2x 1/4" TS Unbalanced

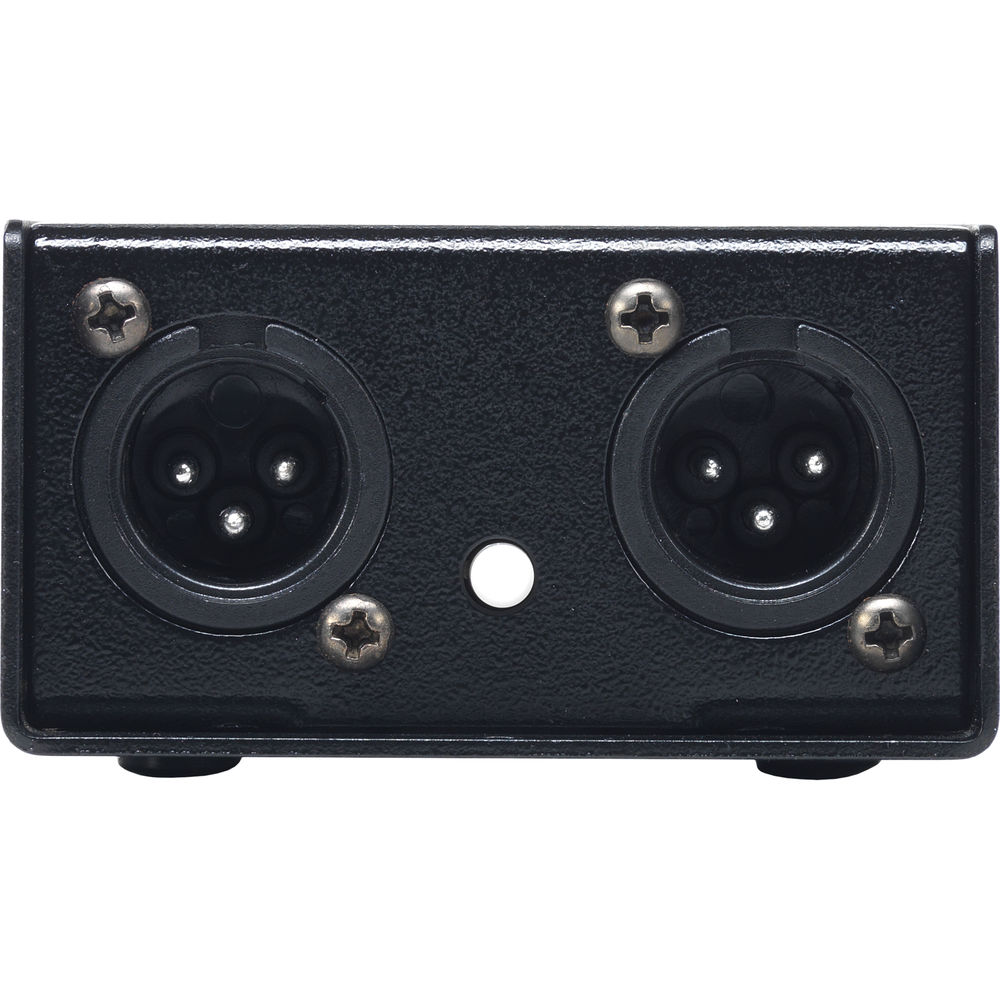

Outputs

2x XLR 3-Pin Balanced

Input Attenuation

Continuously Variable Input Level Control

Ground Lift

Yes (Per Channel)

Physical & Power

Power Requirements

Passive (No Power Required)

Dimensions (WxDxH)

137 x 79 x 43 mm (5.4" x 3.1" x 1.7")

Weight

400 g (1 lb)
