Key Specifications

Product Name

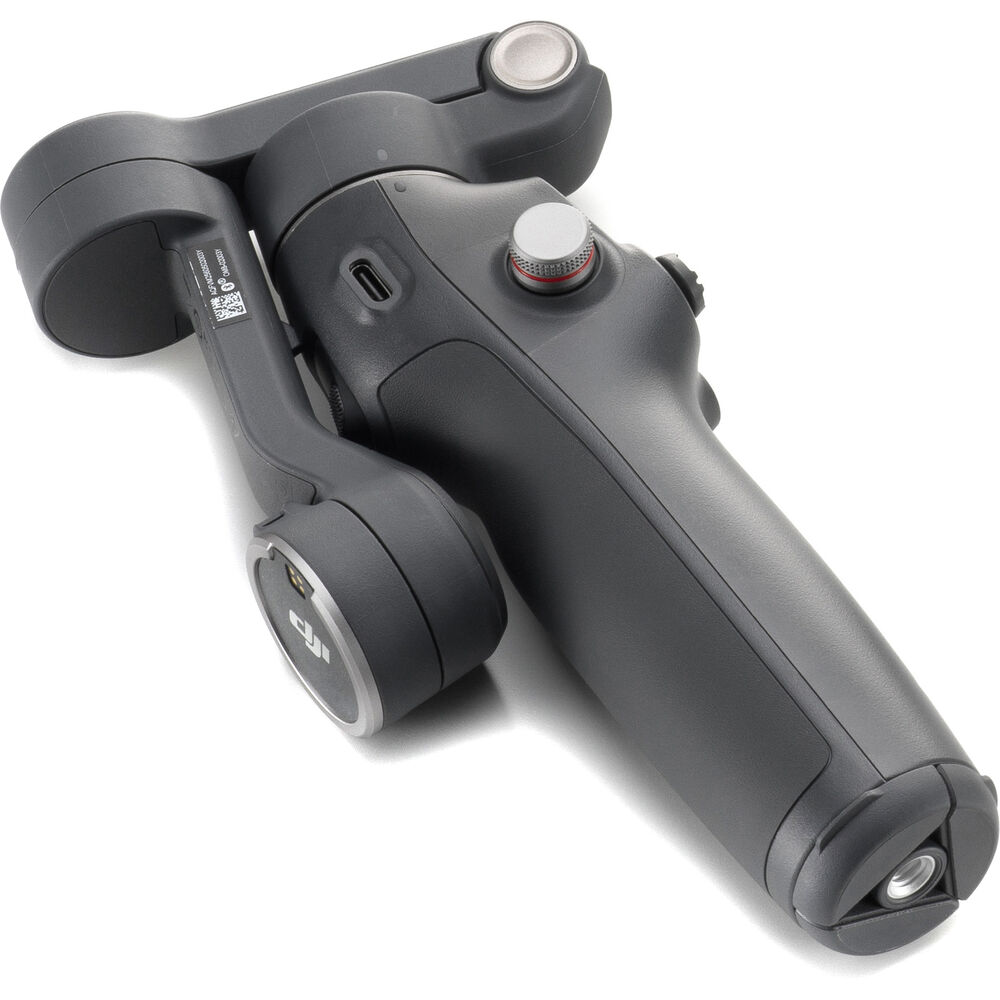

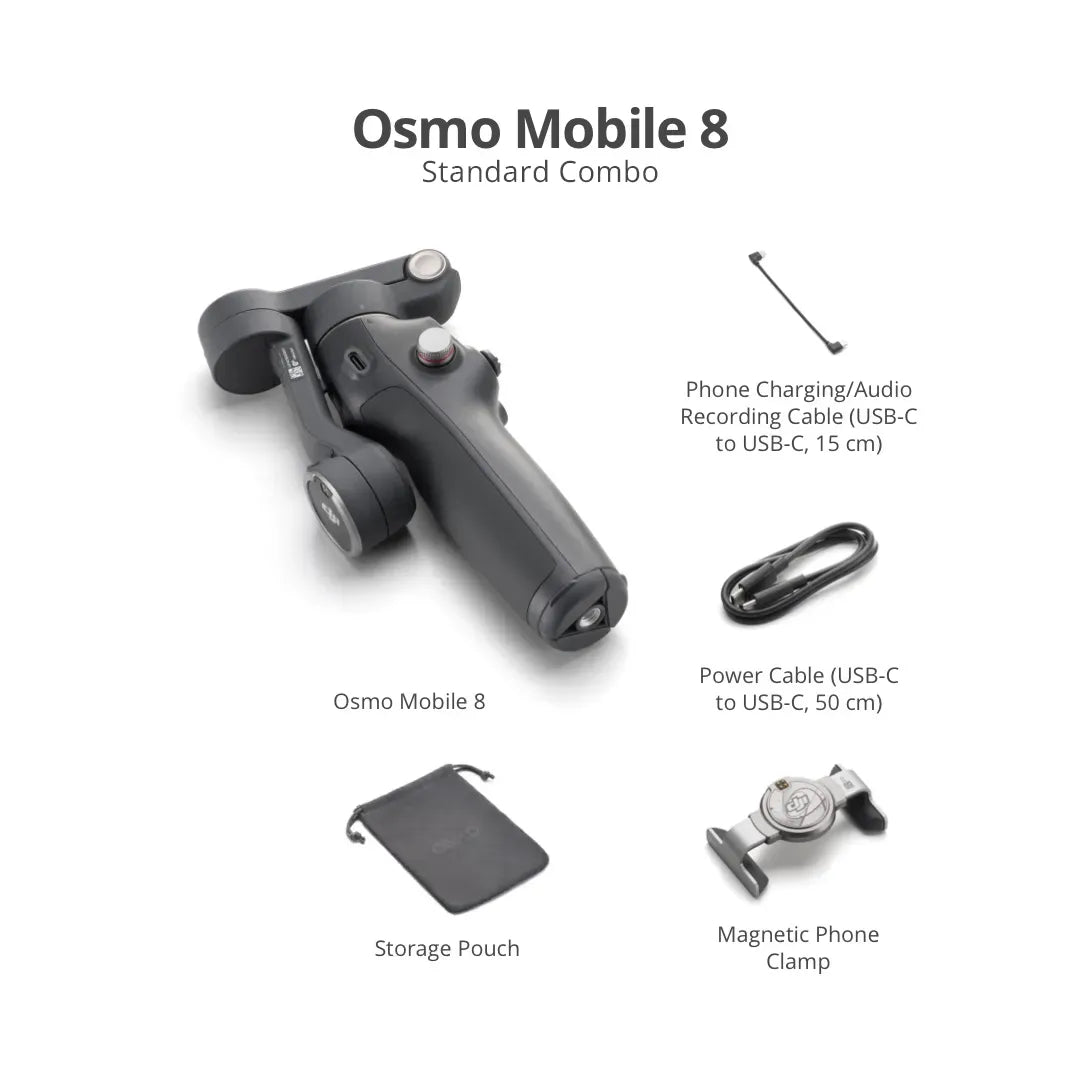

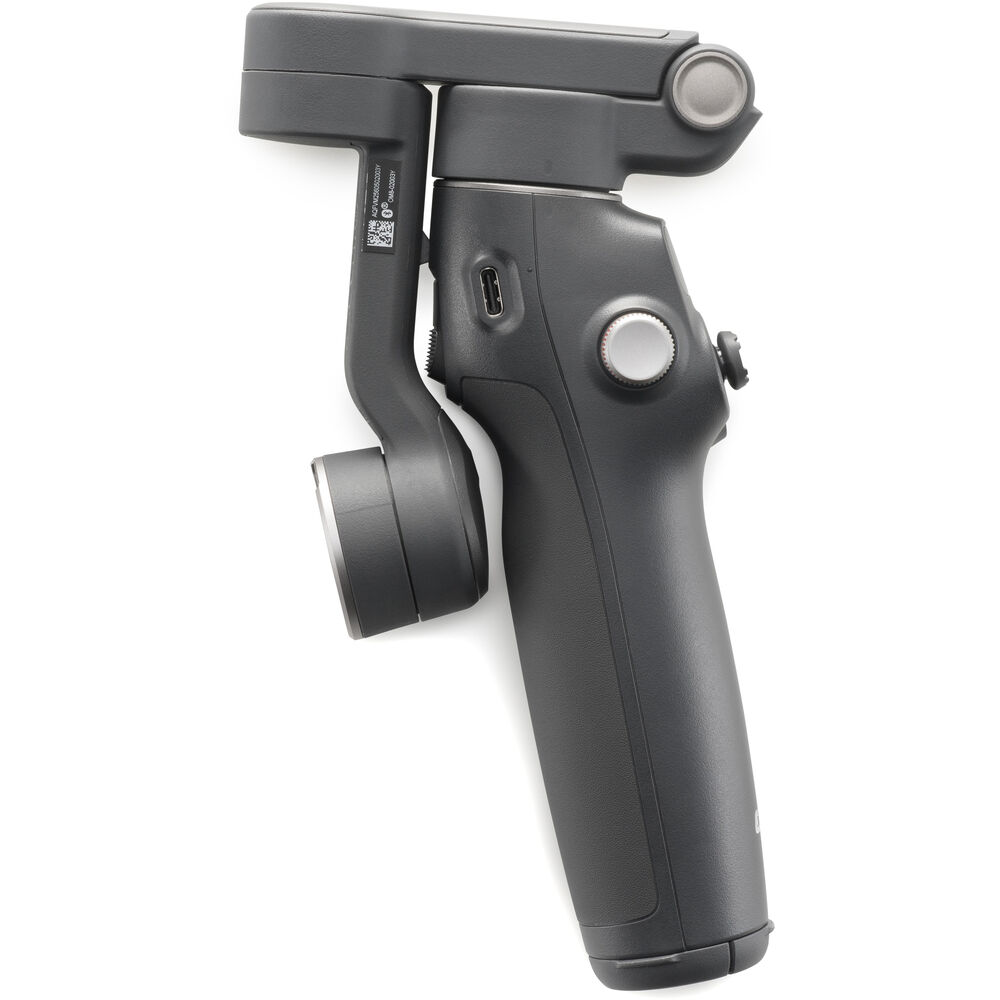

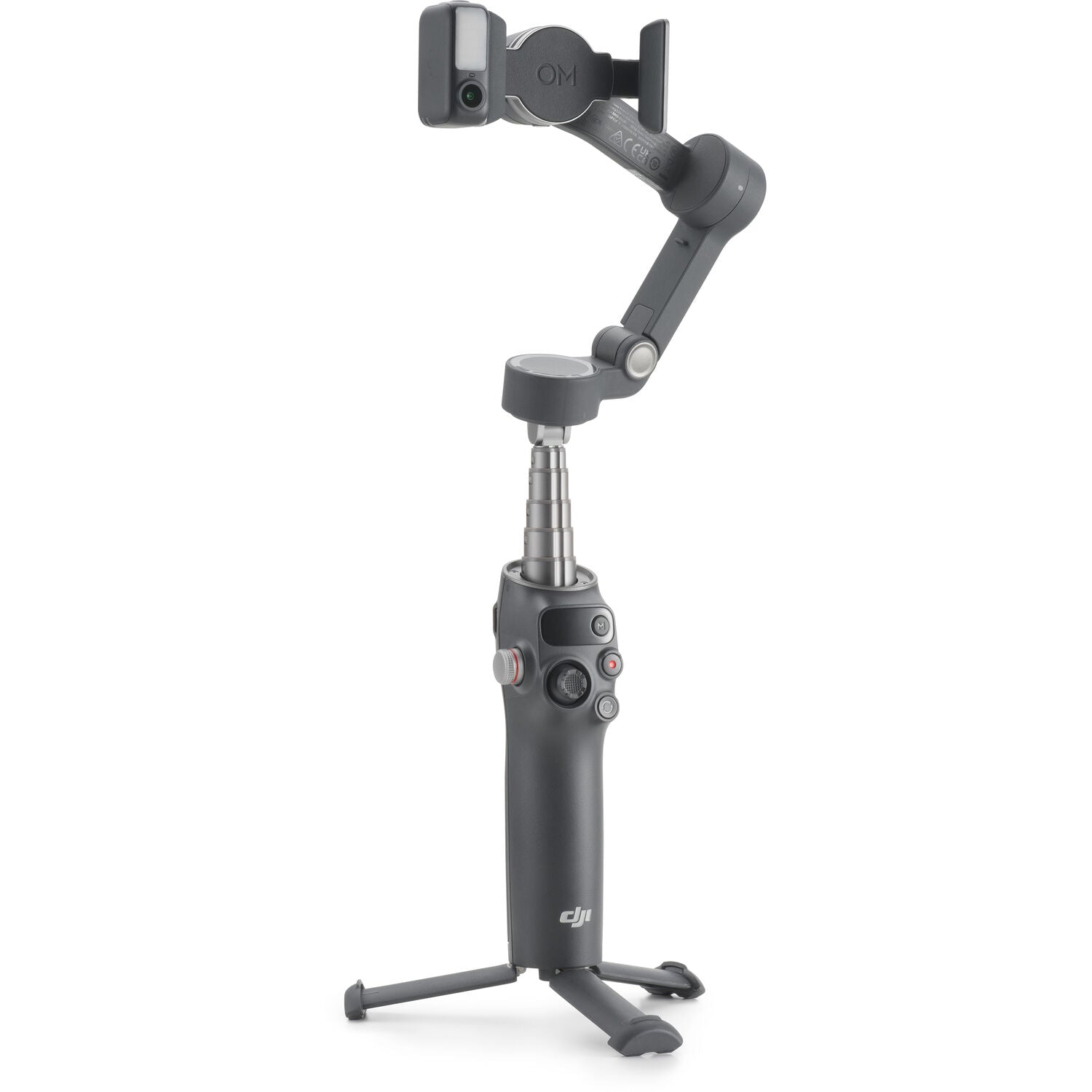

DJI Mobile 8

Gimbal Design

Single Handgrip

Load Capacity

6 to 10.6 oz / 170 to 300 g

Number of Axes

Three: Pitch (Tilt) / Roll / Yaw (Pan)

Follow Speed

120°/s

Counterweight

No

Joystick Controller

Yes (Included)

Gimbal Rotation Range

Controllable Range

Yaw (Pan): 360°
Roll: 312° (-67 to 245°)
Pitch (Tilt): 60° (-20 to 40°)

Mechanical Range

Yaw (Pan): 360°
Roll: 332° (-77 to 255°)
Pitch (Tilt): 324° (-224 to 100°)

Compatibility

Smartphone Dimensions

Thickness: 0.3 to 0.4" / 6.9 to 10 mm
Width: 2.6 to 3.3" / 67 to 84 mm

Smartphone Mounting Method

Magnetic Clamp

Connectivity

Inputs / Outputs

1x USB-C Input/Output

Wireless Connectivity

Bluetooth 5.3

Mobile App Compatibility

Yes: Android & iOS
App Name: DJI Mimo

Battery

Battery Type

1x Lithium-Ion Polymer

Battery Runtime

10 Hours

Battery Charging Time

2.5 Hours

Physical

Display Type

No

Environmental Resistance

No

Operating Conditions

32 to 104°F / 0 to 40°C

Accessory Mounting

1 x 1/4"-20 Female

Folded Dimensions

7.5 x 3.7 x 1.8" / 190 x 95 x 46 mm

Unfolded Dimensions

11.3 x 4.2 x 3.8" / 288 x 107 x 96 mm

Weight

13.1 oz / 370 g

Packaging Info

Package Weight

1.21 lb

Box Dimensions

8.3 x 5.3 x 2.4"
