Key Specifications

Product

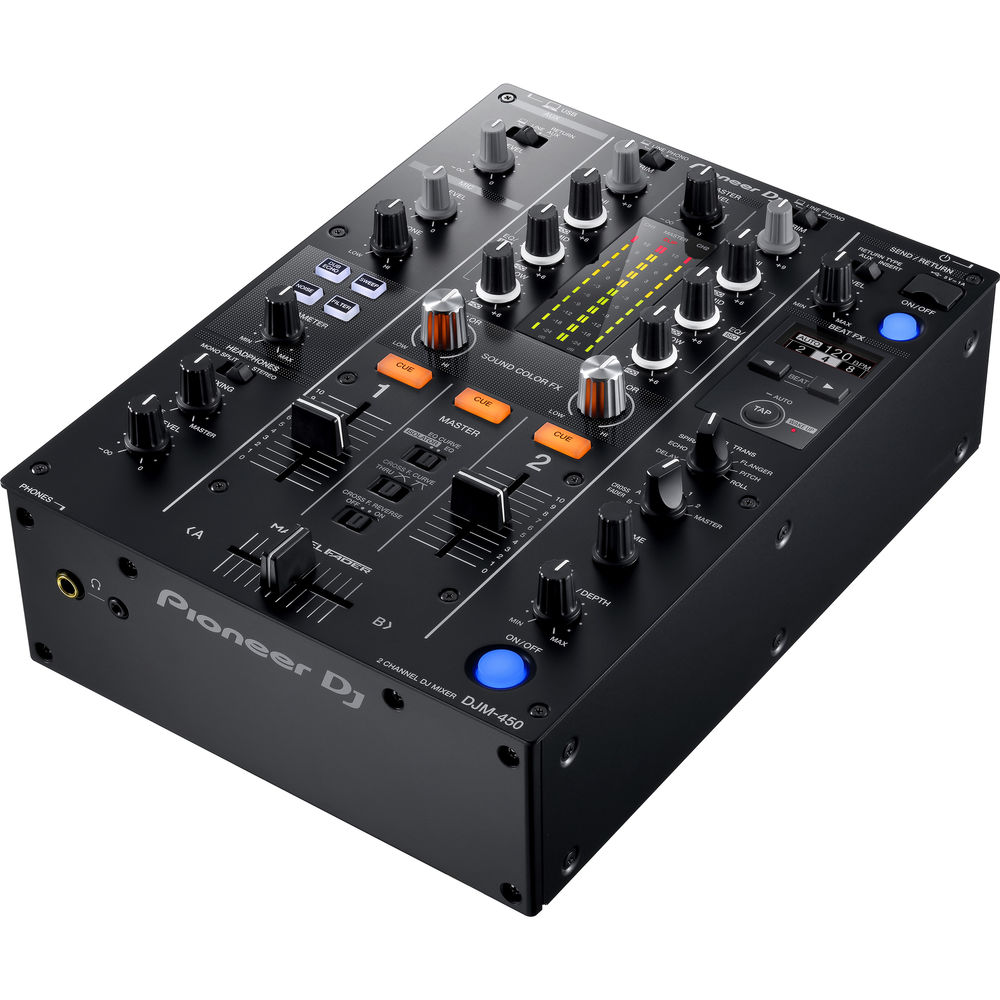

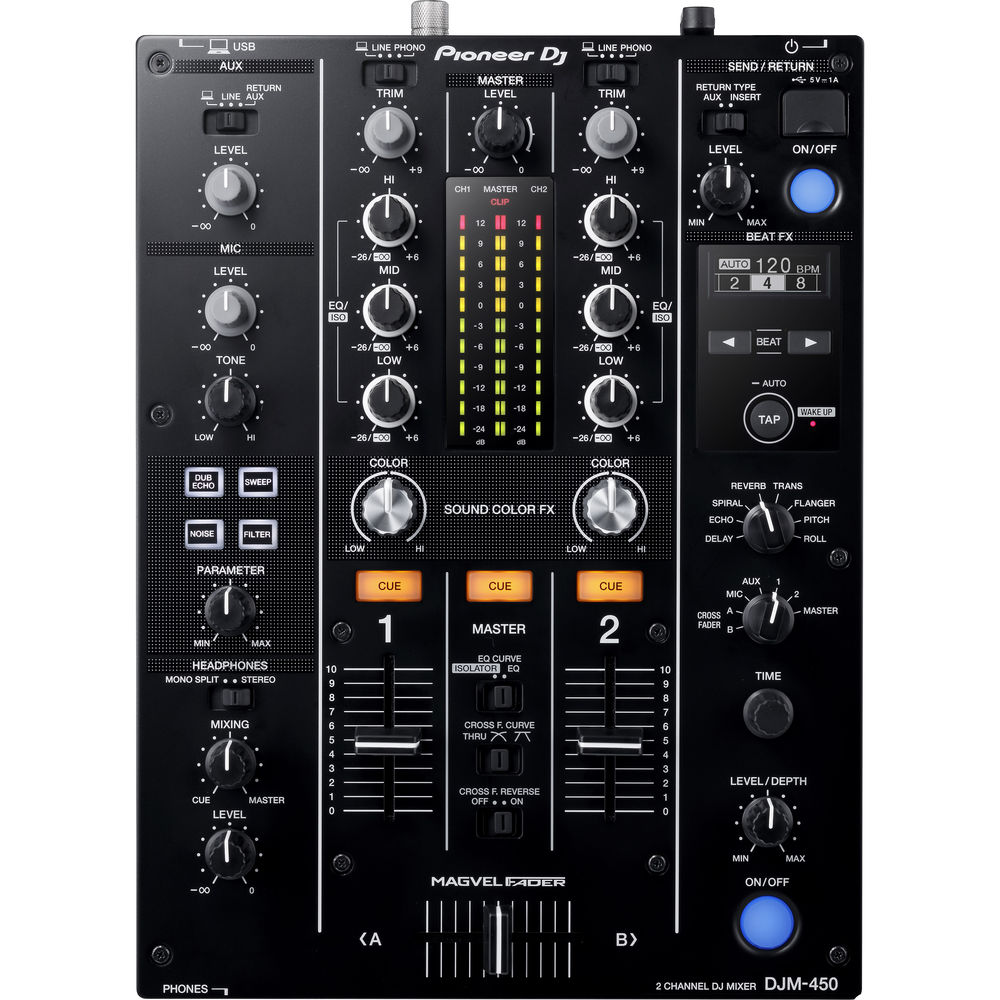

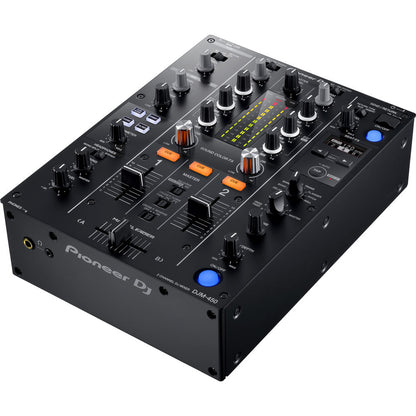

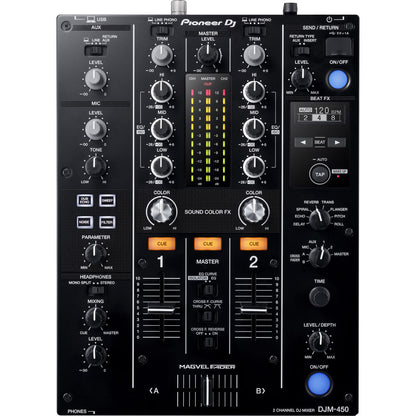

Pioneer DJ DJM-450

Configuration

DJ Mixer

Number of Channels

2x Stereo

Performance Controls

BPM Counter, EQ, Pitch Control

Built-In Effects

Delay, Echo (Dub-Style), Flanger

Audio I/O

XLR / Stereo 2RCA / 1/4" Headphone / 1/8" (3.5 mm) Headphone

USB

1x USB-B

Platter/Jog Wheel

No

Faders

2x Channel Level
1x Crossfader

Meters

LED

Display

1x Monochrome

Sample Pads

No

EQ

2x Channel EQ:
Hi: -26 to +6 dB at 20 kHz
Mid: -26 to +6 dB at 1 kHz
Low: -26 to +6 dB at 20 Hz

Mic EQ

Hi: -12 to +0 dB at 10 kHz
Low: -12 to +0 dB at 100 Hz

Sample Rates

48 kHz

Bit Depths

24-Bit

Stems Processing

No

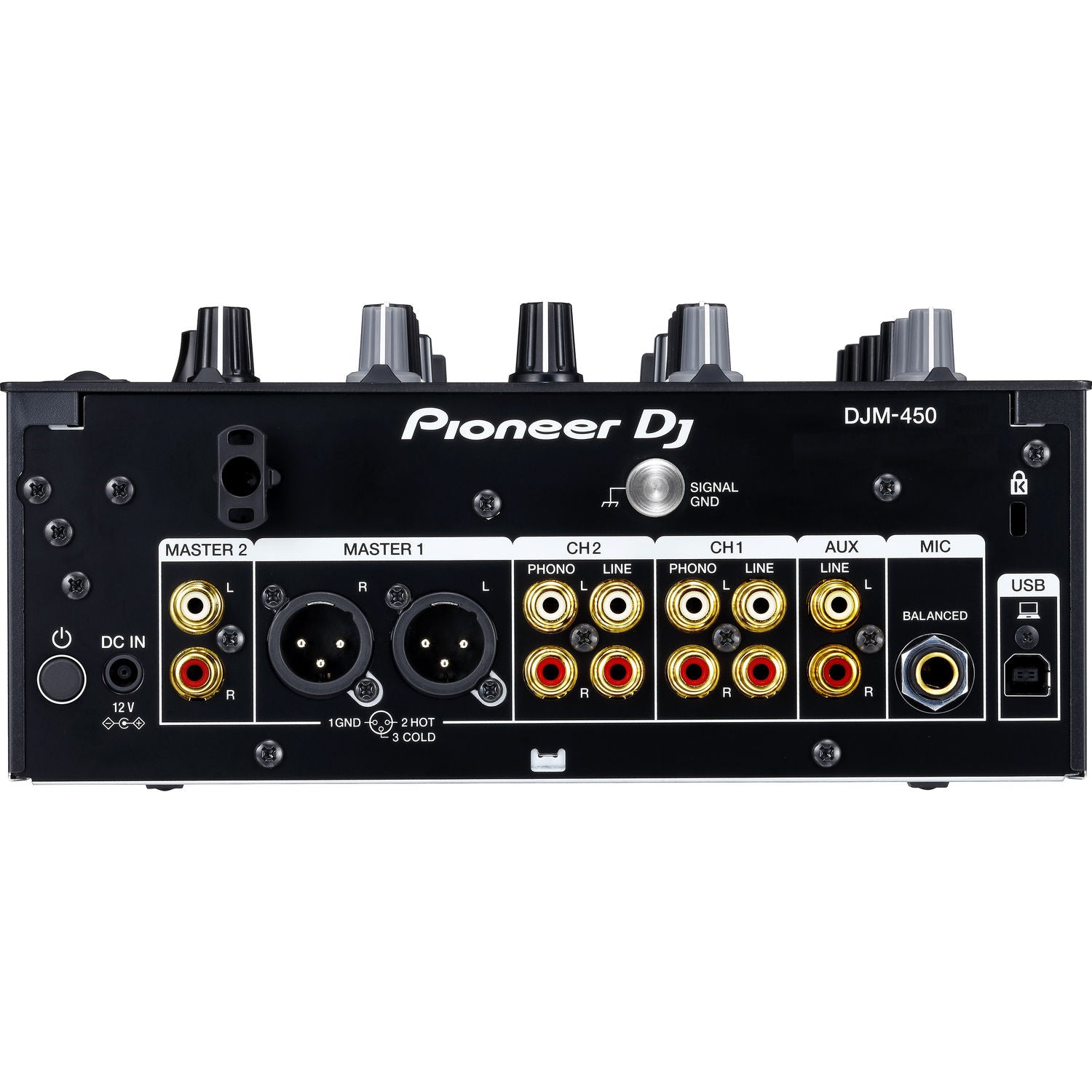

Audio Inputs

2x Stereo 2RCA Line Input
2x Stereo 2RCA Phono Input
1x Stereo 2RCA Aux Input
1x 1/4" TS Mic Input

Audio Outputs

2x XLR 3-Pin Master Output
1x Stereo 2RCA Master Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output

Other I/O

1x Phono Ground Terminal

Wireless

No

Media Card Slots

No

Frequency Response

Line: 20 Hz to 20 kHz

Input Level

Phono: -52 dBu
Line: -12 dBu
Mic: -52 dBu
Aux: -12 dBu

Output Level

XLR Master: +6 dBu (Typical), +25 dBu (Max)
RCA Master: +2 dBu (Typical), +21 dBu (Max)
Headphone: +8 dBu

I/O Impedance

XLR Master Output: ≤150 Ω
RCA Master Output: ≤220 Ω
Headphone Output: ≤1 Ω
Aux/Line/Phono Input: 47 kΩ
Mic Input: 8.5 kΩ

SNR

Phono: 80 dB
Line: 94 dB
Mic: 77 dB
Aux: 96 dB

THD

Line/Master: 0.005%

Included Software

rekordbox DVS

OS Compatibility

macOS / Windows
Mobile: iOS Only (iPhone / iPad)

Required Hardware

USB 2.0 Port

Internet Connection

Required for Software/Driver Download

Power Requirements

AC/DC Power Adapter (Included)

Power Supply Output

12 VDC at 2 A

AC Input Power

100 to 240 VAC, 50/60 Hz

Power Consumption

0.5 W (Standby)

Operating Conditions

41 to 95°F / 5 to 35°C at 5 to 85% Humidity

Dimensions (W × D × H)

9.1 x 12.6 x 4.2" / 230.0 x 319.5 x 107.9 mm

Weight

7.1 lb / 3.2 kg

Package Weight

9.75 lb

Box Dimensions (L × W × H)

16.2 x 11.9 x 8.6"
