Key Specifications

Product

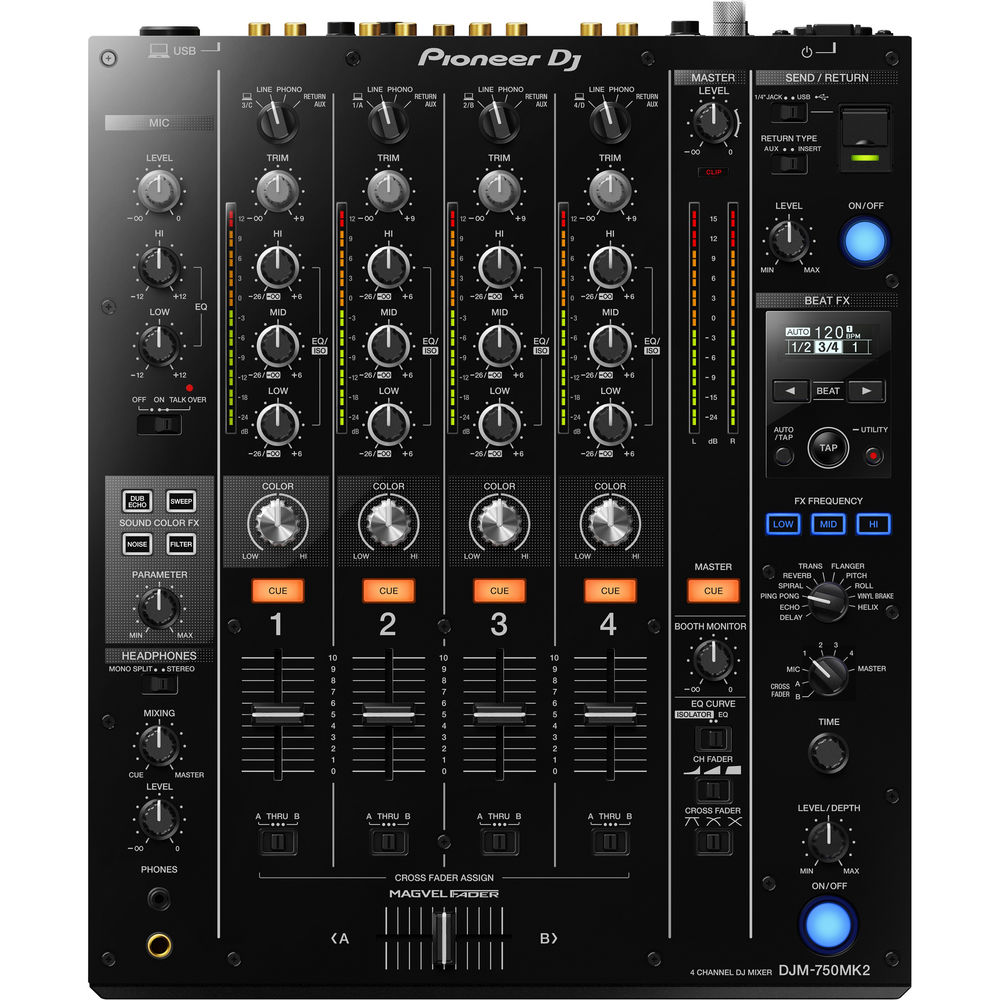

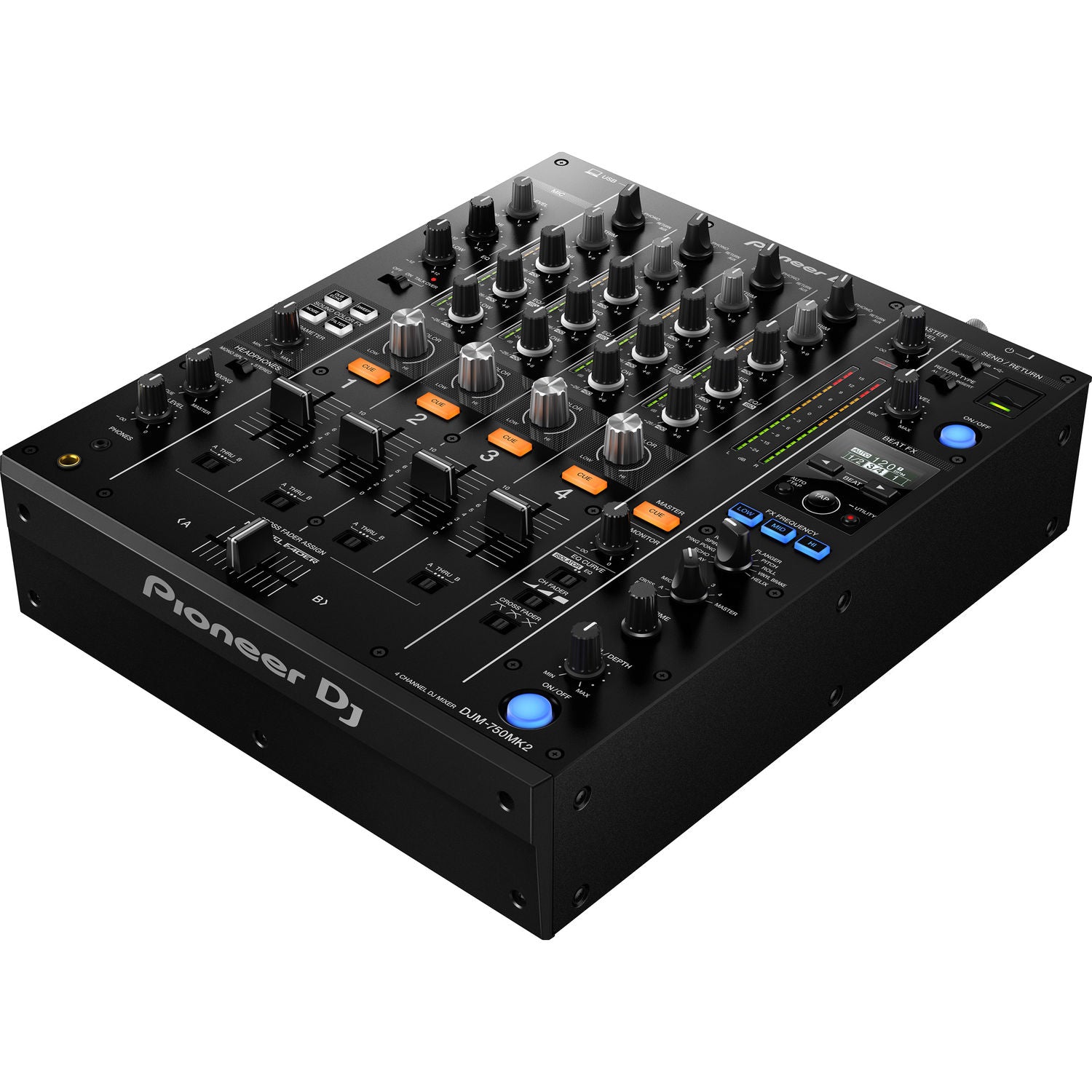

Pioneer DJ DJM-750MK2

Configuration

DJ Mixer

Number of Channels

4x Stereo
1x Mic

Performance Controls

Brake, EQ, Pitch Bend

Built-In Effects

Delay (Stereo/Ping Pong), Echo (Type Unspecified), Flanger

Audio I/O

Combo XLR-1/4" / XLR / 1/4" / Stereo 2RCA / 1/4" Headphone / 1/8" (3.5 mm) Headphone

USB

1x USB-A (Device Charging/Device Connection)
1x USB-B (Host Connection)

Platter/Jog Wheel

No

Faders

4x Channel Level
1x Crossfader

Meters

Channel Meter: 4x LED
Main Meter: 1x LED

Display

Main Display: 1x Monochrome LCD

Sample Pads

No

EQ

Channel EQ:
Hi: -26 to +6 dB at 20 kHz
Mid: -26 to +6 dB at 1 kHz
Low: -26 to +6 dB at 20 Hz

Mic EQ:
Hi: -12 to +12 dB at 10 kHz
Low: -12 to +12 dB at 100 Hz

Sample Rates

48 kHz

Bit Depths

32-Bit (Master Output)
32-Bit (A/D Conversion)
24-Bit (D/A Conversion)

Stems Processing

No

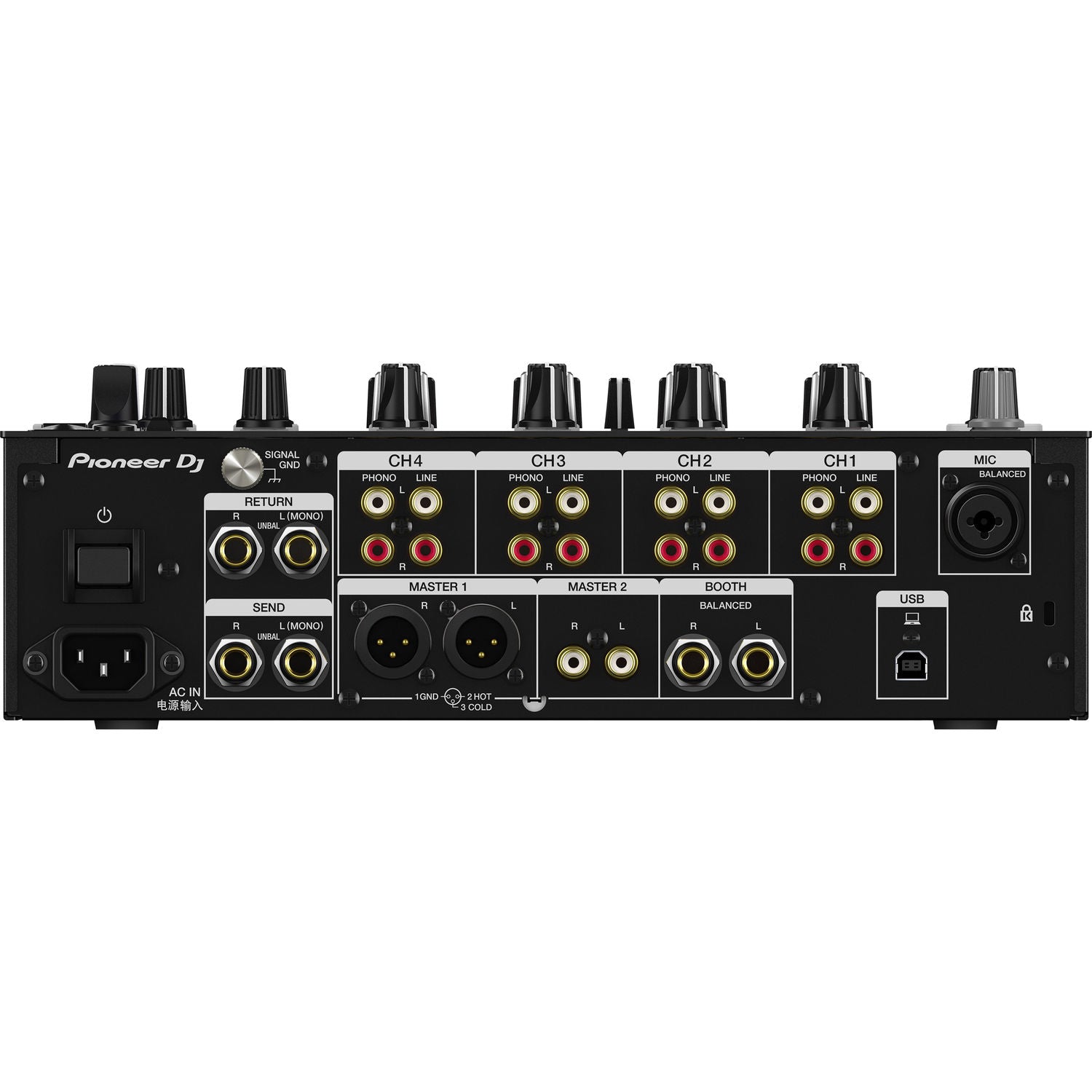

Audio Inputs

4x Stereo 2RCA Phono Input
4x Stereo 2RCA Line Input
1x Combo XLR-1/4" TRS Mic Input
2x 1/4" TS Return

Audio Outputs

2x XLR 3-Pin Master Output
1x Stereo 2RCA Master Output
2x 1/4" TRS Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
2x 1/4" TS Send

Wireless

No

Media Card Slots

No

Frequency Response

Line: 20 Hz to 20 kHz

Input Level

Phono: -52 dBu
Line: -12 dBu
Mic: -57 dBu
Return: -12 dBu

Output Level

XLR Master: +6 dBu / +25 dBu (Max)
RCA Master: +2 dBu / +21 dBu (Max)
Booth: +6 dBu
Aux/Send: -6 dB
Send/Insert: -12 dB
Headphone: +8 dBu

I/O Impedance

Phono Input: 47 Kilohms
Line Input: 47 Kilohms
Mic Input: 3 Kilohms
Return Input: 47 Kilohms
XLR Master Output: 300 Ohms
RCA Master Output: 680 Ohms
Booth Output: 300 Ohms
Send Output: 680 Ohms
Headphone Output: ≤10 Ohms

SNR

Phono: 87 dB
Line: 105 dB
Mic: 79 dB

THD

Line/Master: 0.005%

Included Software

rekordbox DVS

Compatible Software (Not Included)

Traktor DVS

OS Compatibility

Computer: macOS / Windows
Mobile: iOS Only

Mobile Device Compatibility

iPhone
iPad

Required Hardware

USB 2.0 Port

Internet Connection

Required for Software/Driver Download

Power Requirements

AC Input, USB Bus Power

Power Supply Output

Included

AC Input Power

110 to 240 VAC, 50/60 Hz

AC Power I/O

IEC

Power Consumption

40 W
0.3 W (Standby)

Operating Conditions

41 to 95°F / 5 to 35°C at 5 to 85% Humidity

Dimensions (W × D × H)

12.6 x 15.3 x 4.2" / 320.0 x 388.6 x 106.7 mm

Weight

14.6 lb / 6.6 kg

Package Weight

19.35 lb

Box Dimensions (L × W × H)

16.7 x 16.5 x 9.3"
