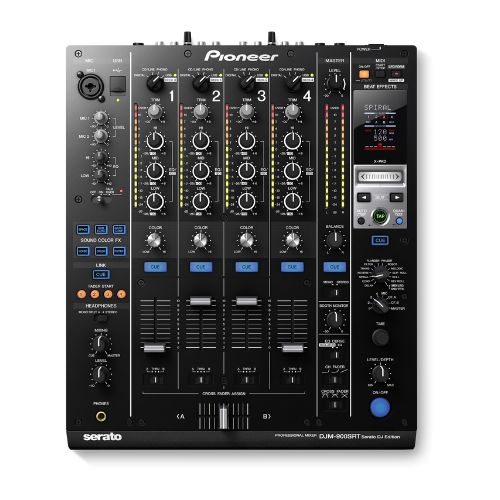

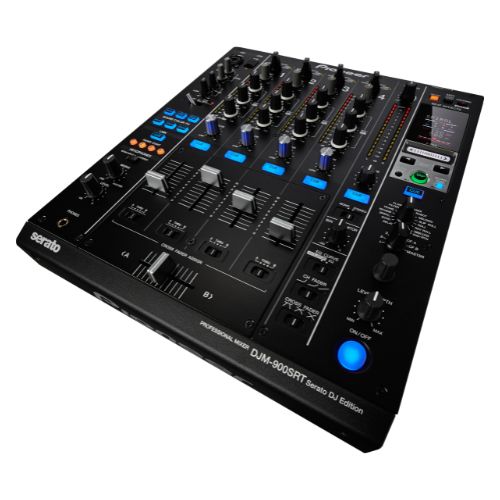

Key Specifications

Power Requirements

AC 110 V to 240 V, 50 Hz / 60 Hz

Power Consumption

41 W

Power Consumption (Standby)

0.4 W

Main Unit Weight

7.1 kg

Max. External Dimensions

331 mm (W) × 107.9 mm (H) × 404 mm (D)

Tolerable Operating Temperature

+5 °C to +35 °C

Tolerable Operating Humidity

5 % to 85 % (no condensation)

Sampling Rate

96 kHz

MASTER D/A Converter

32 bits

Other A/D and D/A Converters

24 bits

Frequency Characteristic (CD/LINE)

20 Hz to 20 kHz

S/N Ratio (PHONO)

88 dB

S/N Ratio (CD/LINE)

105 dB

S/N Ratio (MIC1, MIC2)

84 dB

Total Harmonic Distortion (CD/LINE — MASTER1)

0.005 %

Standard Input Level / Input Impedance (PHONO)

–52 dBu / 47 kΩ

Standard Input Level / Input Impedance (CD/LINE)

–12 dBu / 47 kΩ

Standard Input Level / Input Impedance (MIC1, MIC2)

–52 dBu / 8 kΩ

Standard Input Level / Input Impedance (RETURN)

–12 dBu / 47 kΩ

MASTER1 Output Level / Load Impedance / Output Impedance

+8 dBu / 10 kΩ / 5 Ω or lower

MASTER2 Output Level / Load Impedance / Output Impedance

+2 dBu / 10 kΩ / 22 Ω or lower

REC OUT Output Level / Load Impedance / Output Impedance

–8 dBu / 10 kΩ / 22 Ω or lower

BOOTH Output Level / Load Impedance / Output Impedance

+8 dBu / 10 kΩ / 1 kΩ or lower

SEND Output Level / Load Impedance / Output Impedance

–12 dBu / 10 kΩ / 1 kΩ or lower

PHONES Output Level / Load Impedance / Output Impedance

+8.5 dBu / 32 Ω / 1 Ω or lower

Rated Output Level (MASTER1)

+26 dBu / 10 kΩ

Rated Output Level (MASTER2)

+22 dBu / 10 kΩ

Crosstalk (LINE)

82 dB

Channel Equalizer Characteristic - HI

–26 dB to +6 dB (13 kHz)

Channel Equalizer Characteristic - MID

–26 dB to +6 dB (1 kHz)

Channel Equalizer Characteristic - LOW

–26 dB to +6 dB (70 Hz)

Microphone Equalizer Characteristic - HI

–12 dB to +12 dB (10 kHz)

Microphone Equalizer Characteristic - LOW

–12 dB to +12 dB (100 Hz)

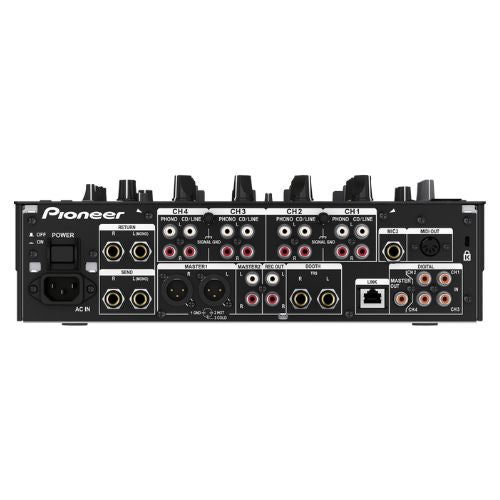

PHONO Input Terminal

RCA pin jacks — 4 sets

CD/LINE Input Terminal

RCA pin jacks — 4 sets

MIC1 Input Terminal (XLR/TRS)

XLR connector / phone jack (Ø 6.3 mm) — 1 set

MIC2 Input Terminal (TRS)

Phone jack (Ø 6.3 mm) — 1 set

RETURN Input Terminal (TS)

Phone jack (Ø 6.3 mm) — 1 set

DIGITAL IN Coaxial Input Terminal

RCA pin jacks — 4 sets

MASTER Output Terminal

XLR connector — 1 set
RCA pin jacks — 1 set

BOOTH Output Terminal (TRS)

Phone jack (Ø 6.3 mm) — 1 set

REC OUT Output Terminal

RCA pin jacks — 1 set

SEND Output Terminal (TS)

Phone jack (Ø 6.3 mm) — 1 set

DIGITAL MASTER OUT Coaxial Output Terminal

RCA pin jacks — 1 set

MIDI OUT Terminal

5P DIN — 1 set

PHONES Output Terminal

Stereo phone jack (Ø 6.3 mm) — 1 set

USB Terminal

B type — 1 set

LINK Terminal

LAN terminal (100Base-TX) — 1 set
