Key Specifications

Product

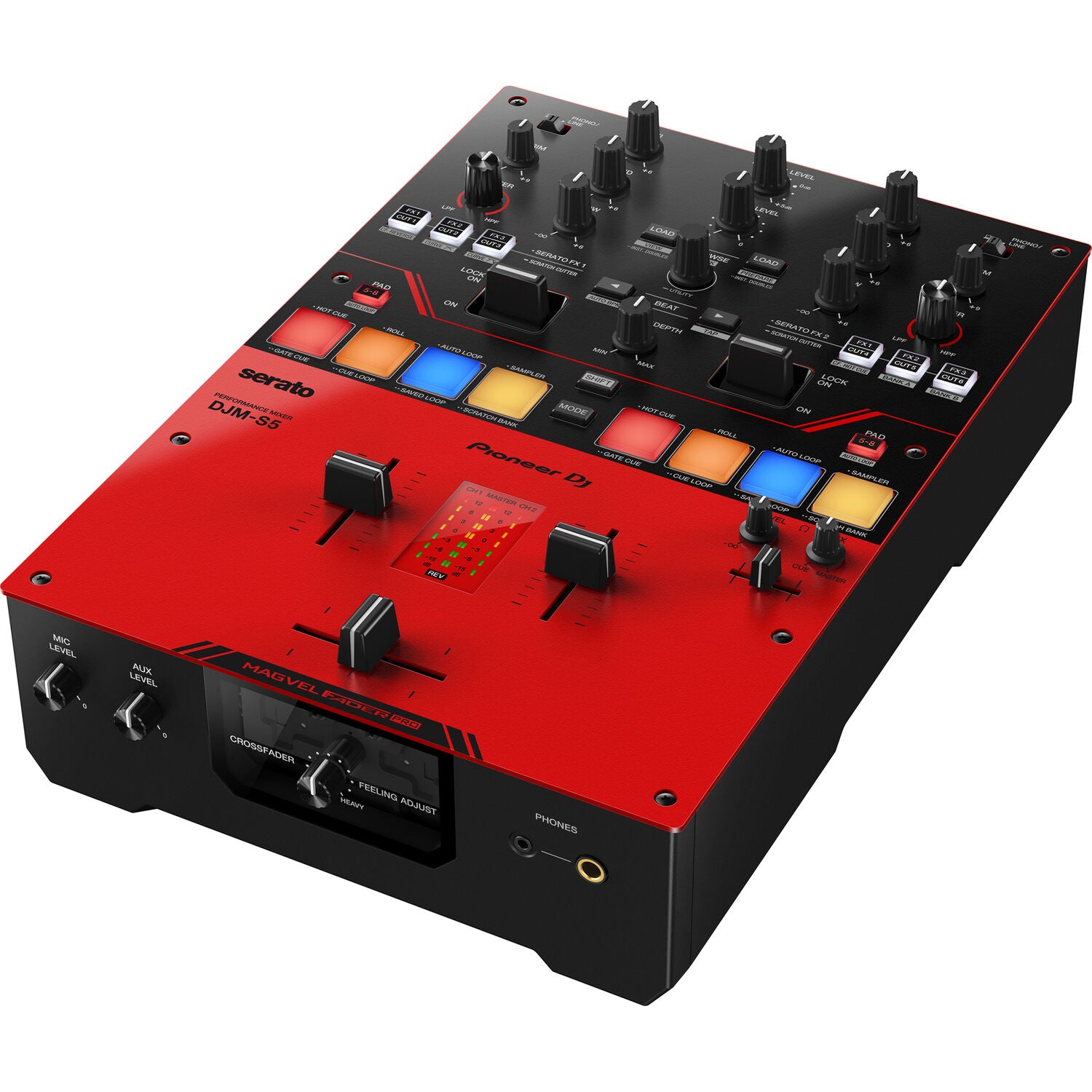

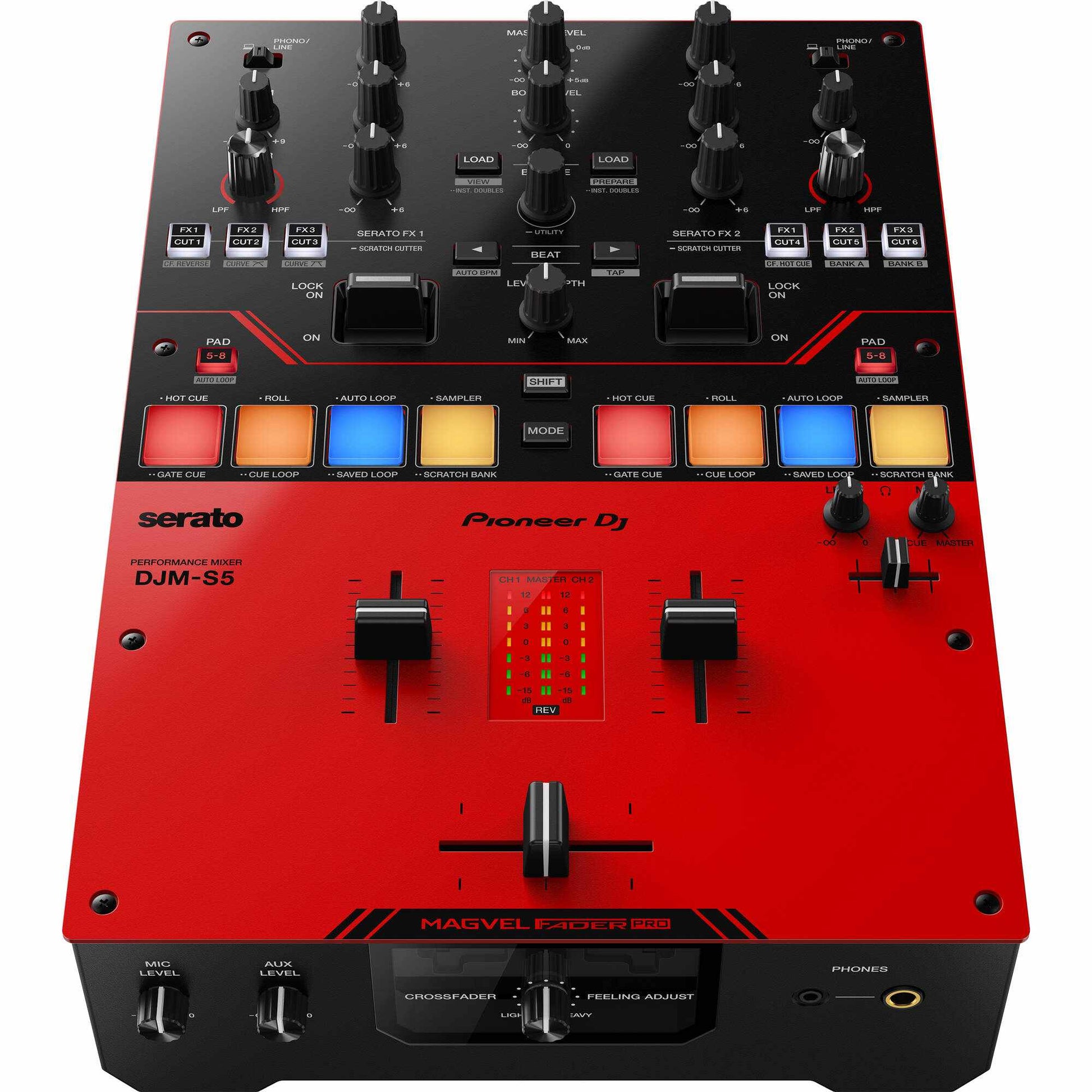

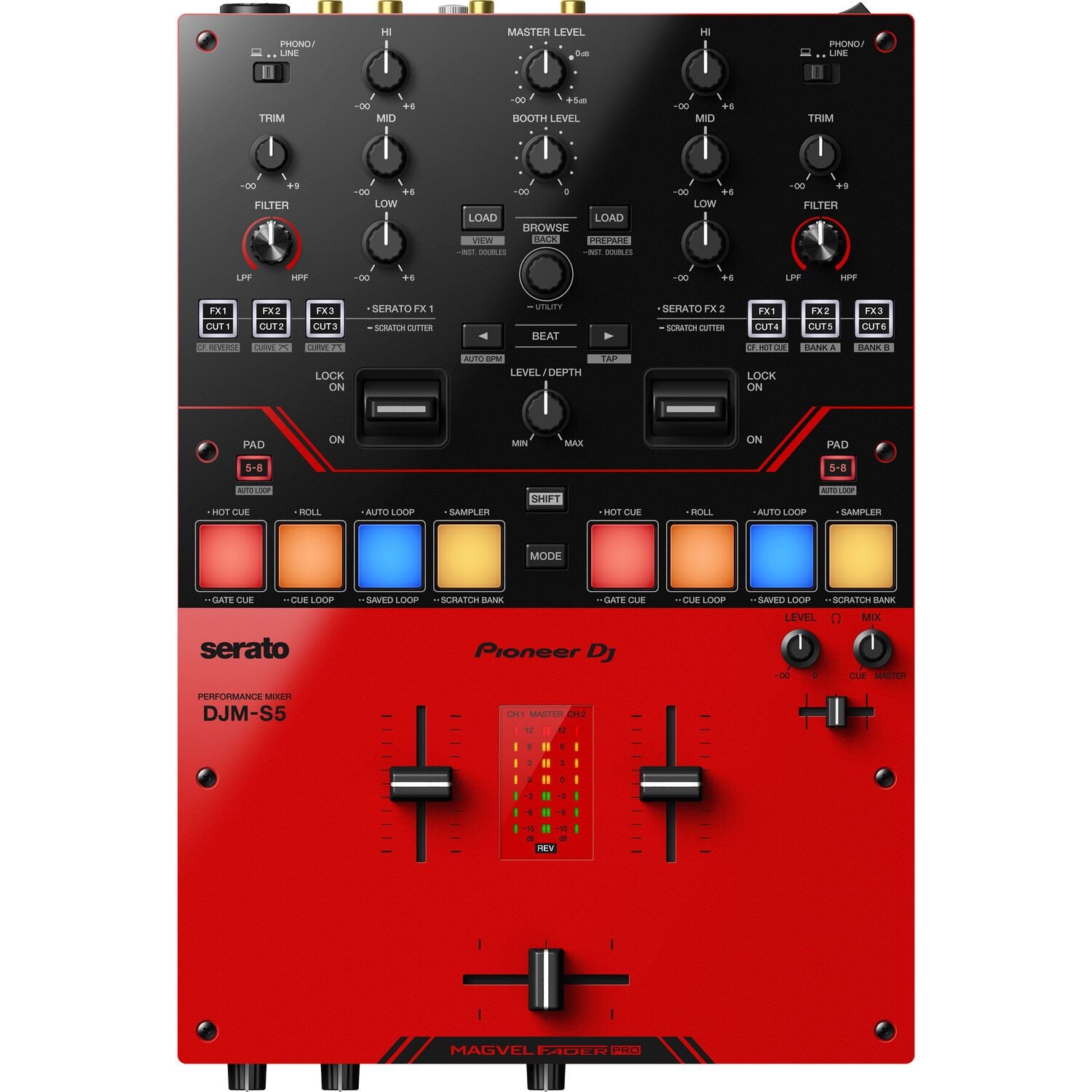

Pioneer DJ DJM-S5

Configuration

DJ Mixer

Number of Channels

2x Stereo
1x Mic

Performance Controls

Cues, EQ, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Sampler, Scratch

Built-In Effects

No

Audio I/O

Combo XLR-1/4" / XLR / Stereo 2RCA / 1/4" Headphone / 1/8" (3.5 mm) Headphone

USB

1x USB-C (Power Input)
1x USB-C (Host Connection / Power Input)

Platter/Jog Wheel

No

Faders

2x Channel Level
1x Crossfader (Adjustable Fade Curve, Adjustable Tension)

Meters

Channel Meter: 2x 7-Segment LED
Main Meter: 2x 7-Segment LED

Meter Range

Channel / Main: -15 to +12 dB Peak / Clip

Display

No

Sample Pads

4x Assignable per Deck

EQ

2x Channel EQ:
Hi: -∞ to +6 dB at 20 kHz
Mid: -∞ to +6 dB at 1 kHz
Low: -∞ to +6 dB at 20 Hz

Sample Rates

48 kHz

Bit Depths

24-Bit

Stems Processing

No

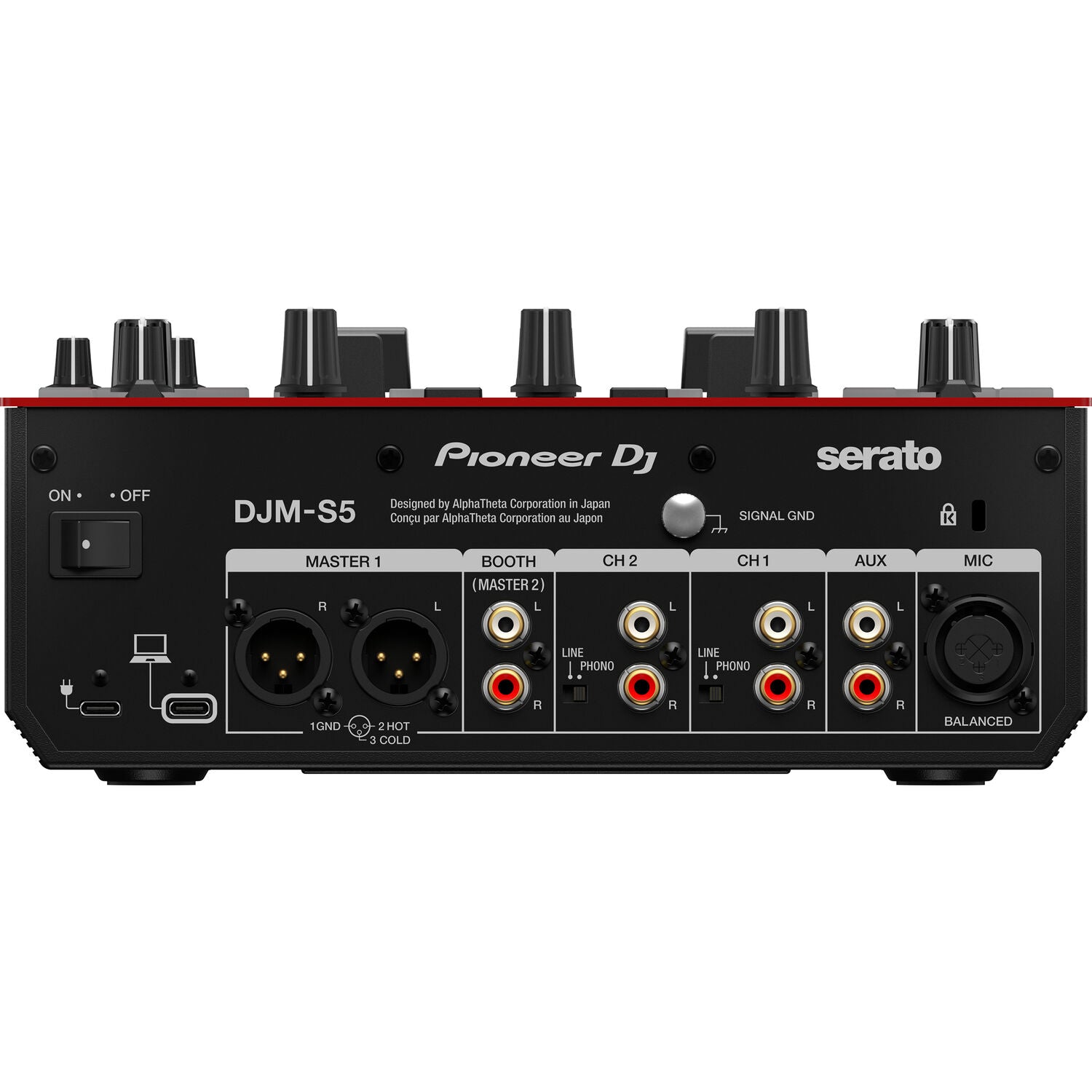

Audio Inputs

1x Combo XLR-1/4" TRS Balanced Mic Input
2x Stereo 2RCA Line/Phono Input
1x Stereo 2RCA Aux Input

Audio Outputs

2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA Booth Output

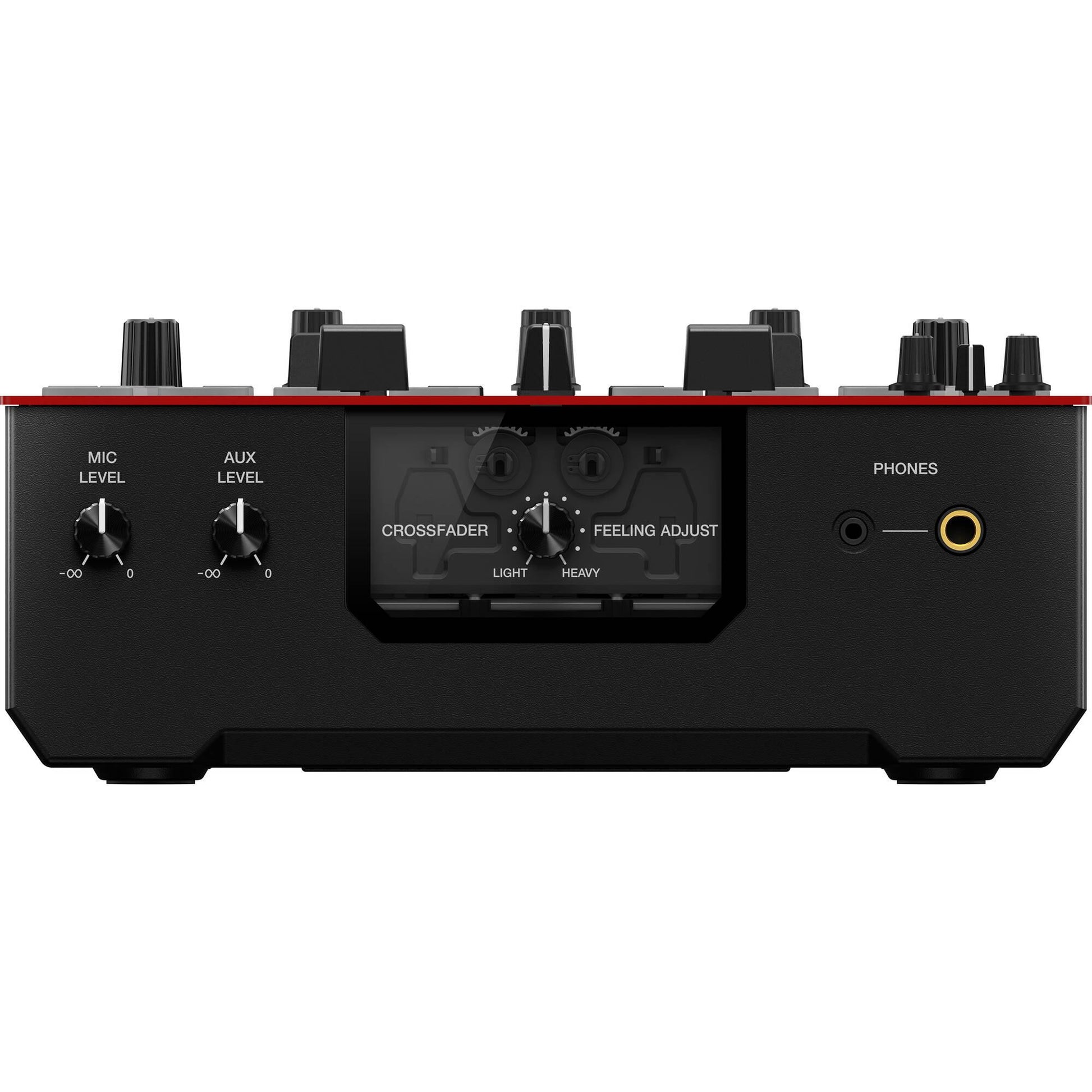

1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output

Other I/O

1x Phono Ground Terminal

Wireless

No

Media Card Slots

No

Frequency Response

20 Hz to 20 kHz

Input Level

Aux/Line: -12 dBu (Nominal), +11 dBu (Max)
Phono: -52 dBu (Nominal), -17.8 dBu (Max)
Mic: -57 dBu (Nominal), +2.3 dBu (Max)

Output Level

XLR Master: -2 dBu (Typical), +14 dBu (Max)
RCA Booth: -6 dBu (Typical), +10 dBu (Max)
Headphone: +3 dBu (Typical)

I/O Impedance

Aux/Line/Phono Input: 47 kΩ
Mic Input: 3.3 kΩ
XLR Master Output: ≤430 Ω
RCA Booth Output: ≤400 Ω
Headphone Output: ≤10 Ω

SNR

Mic: 75 dB
Line: 94 dB
Phono: 82 dB
Aux: 94 dB
USB: 108 dB

THD

Line: 0.007%
USB: 0.003%

Included Software

Serato DJ Pro

Compatible Software (Not Included)

Serato Pitch ’n Time DJ

OS Compatibility

macOS / Windows

Internet Connection

Required for Registration, Software/Driver Download

Power Requirements

USB Bus Power

Power Supply Output

5 VDC at 500 mA

Operating Conditions

41 to 95°F / 5 to 35°C at 5 to 85% Humidity

Dimensions (W × D × H)

9.6 x 14.3 x 4.3" / 24.5 x 36.3 x 10.8 cm

Weight

7.5 lb / 3.4 kg

Package Weight

11.65 lb

Box Dimensions (L × W × H)

18.8 x 13.9 x 8.3"
