Key Specifications

Max I/O Capacity

16x Input / 8x Output

Number of Analog Input Channels

16 (16 Mono / 0 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

8

Faders & Level Adjustment

No

Built-In Effects

Stereo Reverb
Stereo Delay
Stereo Chorus
Stereo Flanger

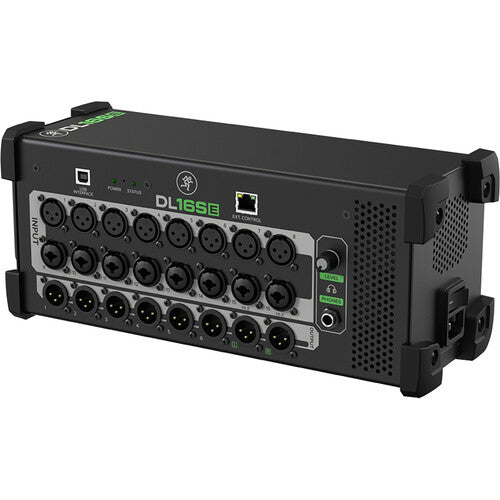

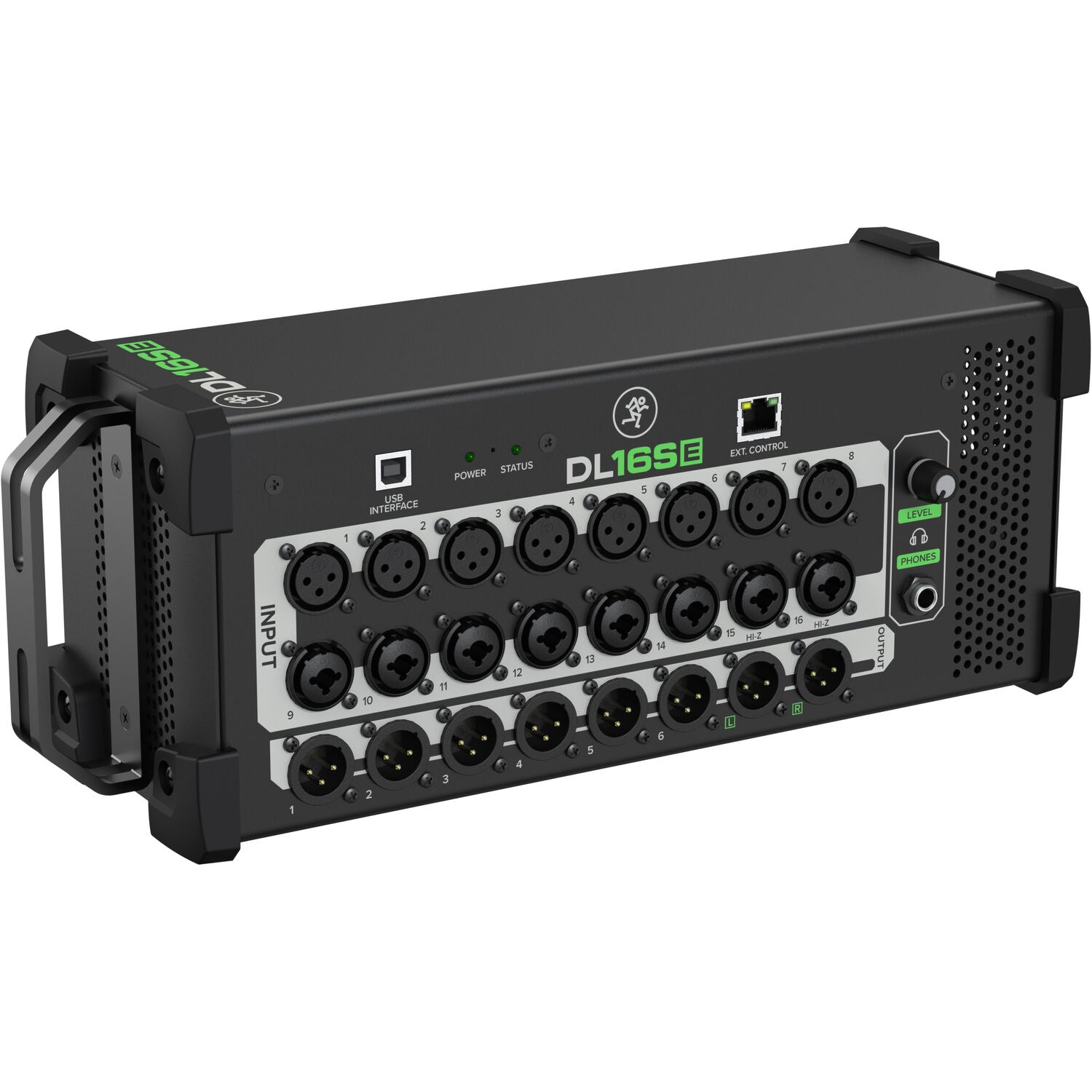

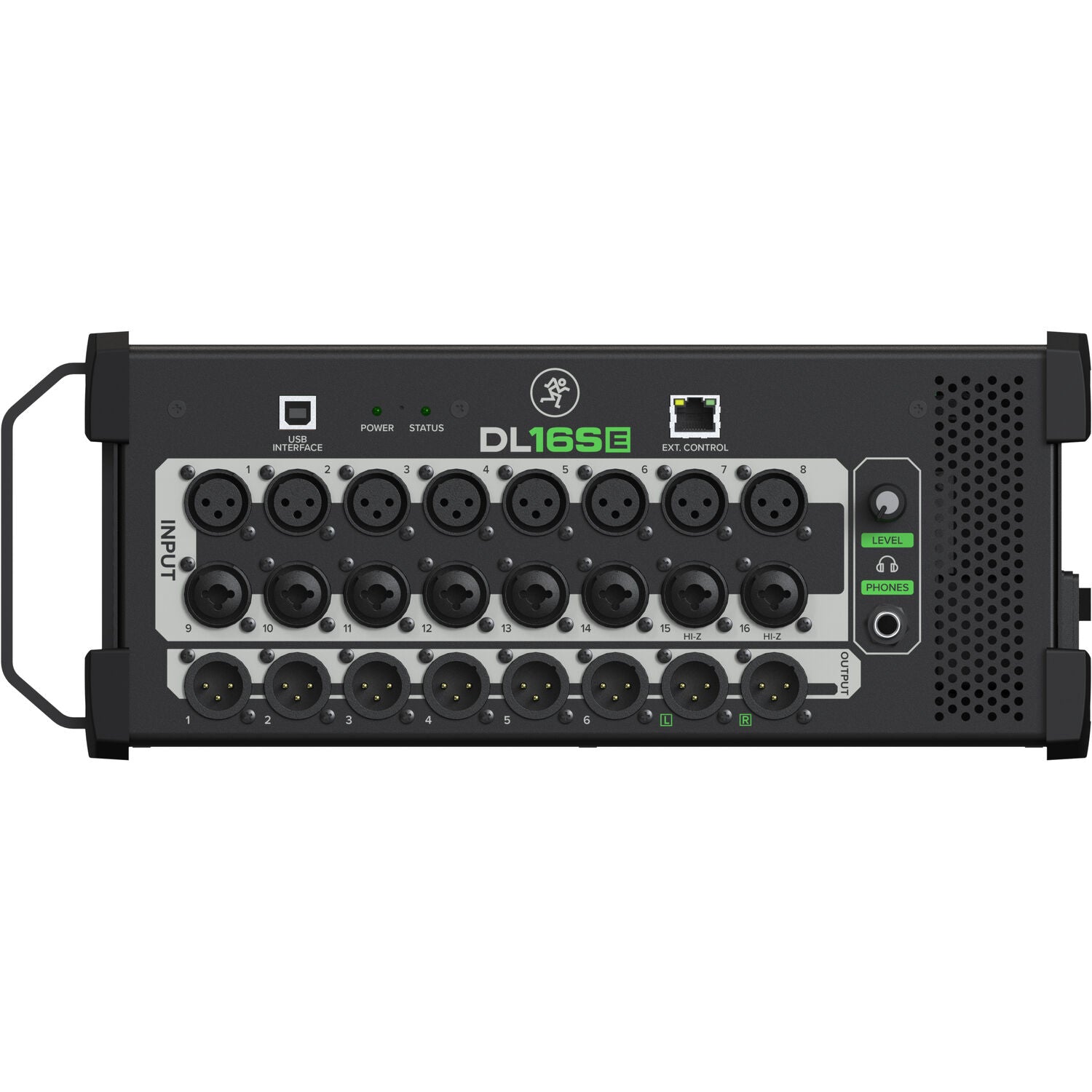

Analog Inputs

8x XLR Balanced Input
8x Combo XLR-1/4" TRS Balanced Input

Analog Outputs

8x XLR Output
1x 1/4" Headphone Output

Digital I/O

1x RJ45 (Wi-Fi Router, 100 Mb/s)

USB I/O

USB-B

Wireless

No

Rack Mountable

Yes

Mixer

Max I/O Capacity

16x Input / 8x Output

Number of Analog Input Channels

16 (16 Mono / 0 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

8

Mix Routing

6x Stereo Aux Send
6x Subgroup

Groups

6x VCA Group
6x Mute Group

Faders & Level Adjustment

No

Signal Processing

Dynamic Processing

Input Channels: Compressor, Gate
Buses, Master: Compressor, Limiter

EQ

Input Channels: 4-Band Parametric
Output Buses: 4-Band Parametric, 31-Band Graphic

Graphic EQ

31-Band

Filters

Input Channels: High-Pass
Outputs: High-Pass, Low-Pass

Solo/Mute

No

Built-In Effects

Stereo Reverb
Stereo Delay
Stereo Chorus
Stereo Flanger

Audio Delay

Yes

Automatic Mic Mixing

No

Connectivity

Analog Inputs

8x XLR Balanced Input
8x Combo XLR-1/4" TRS Balanced Input

Analog Outputs

8x XLR Balanced Output
1x 1/4" TRS Headphone Output

Phantom Power

+48 V, Selectable On/Off (Selectable on Individual Inputs)

Digital I/O

1x RJ45 (Wi-Fi Router, 100 Mb/s)

MIDI I/O

No

USB I/O

1x USB-B 2.0 (Host Connection)

Wireless

No

External Display I/O

No

Recording

Max Multitrack Recording

16 Tracks

Media Support

HDD

File Format Support

WAV

Power

Input Power

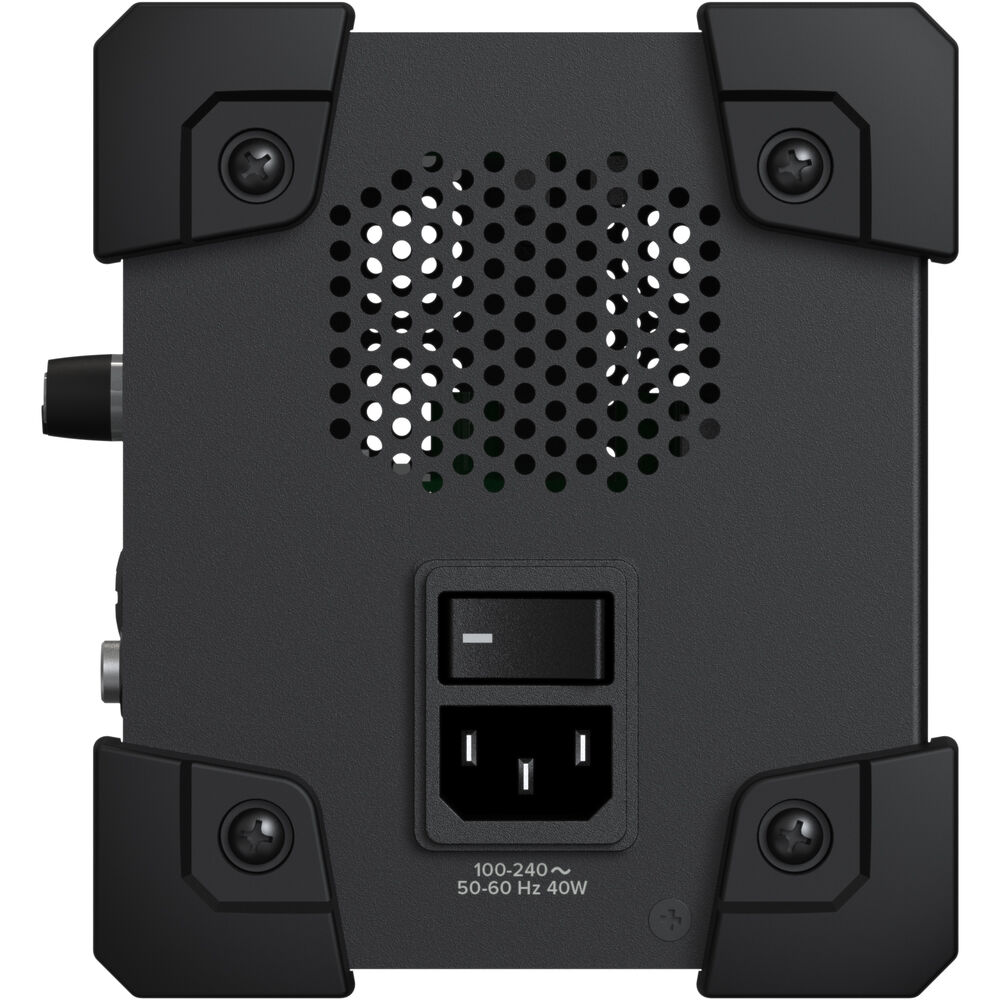

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Rackmount Size

3 U (with Included Hardware)

Dimensions

14.1 x 5.6 x 5.8" / 35.8 x 14.2 x 14.7 cm

Weight

6.1 lb / 2.8 kg

Packaging Info

Package Weight

10.825 lb

Box Dimensions (L × W × H)

17.8 x 9 x 8.9"
