Key Specifications

Max I/O Capacity

32x Input / 12x Output

Number of Analog Input Channels

32 (32 Mono / 0 Stereo)

Number of Mic Preamps

32

Number of Analog Output Channels

10

Faders & Level Adjustment

No

Built-In Effects

4x Stereo Preset (Factory)

Analog Inputs

16x XLR 3-Pin Balanced Input
16x Combo XLR-1/4" TRS Balanced Input

Analog Outputs

10x XLR Output
1x 1/4" Headphone Output

Digital I/O

1x RJ45 (Wi-Fi Router, 100 Mb/s)

USB I/O

USB-B

Wireless

Wi-Fi

Rack Mountable

Yes

Mixer

Max I/O Capacity

32x Input / 12x Output

Number of Analog Input Channels

32 (32 Mono / 0 Stereo)

Number of Mic Preamps

32

Number of Analog Output Channels

10

Mix Routing

8x Stereo Aux Send
6x Subgroup

Groups

6x VCA Group
6x Mute Group

Faders & Level Adjustment

No

Signal Processing

Dynamic Processing

Input Channels: Compressor, Gate
Buses, Master: Compressor, Limiter

EQ

Input Channels: 4-Band Parametric
Output Buses: 4-Band Parametric, 31-Band Graphic

Graphic EQ

31-Band

Filters

Input Channels: High-Pass
Outputs: High-Pass, Low-Pass

Solo/Mute

No

Built-In Effects

4x Stereo Preset (Factory)

Automatic Mic Mixing

No

Performance

Analog Dynamic Range

Input to Output: 109 dBA at Unity Gain

Connectivity

Analog Inputs

16x XLR 3-Pin Balanced Input
16x Combo XLR-1/4" TRS Balanced Input

Analog Outputs

10x XLR Balanced Output
1x 1/4" TRS Headphone Output

Phantom Power

+48 V, Selectable On/Off (Selectable on Individual Inputs)

Digital I/O

1x RJ45 (Wi-Fi Router, 100 Mb/s)

MIDI I/O

No

USB I/O

1x USB-B 2.0 (Host Connection)

Wireless

Wi-Fi

External Display I/O

No

Recording

Max Multitrack Recording

32 Tracks

Media Support

HDD

File Format Support

WAV

Power

Input Power

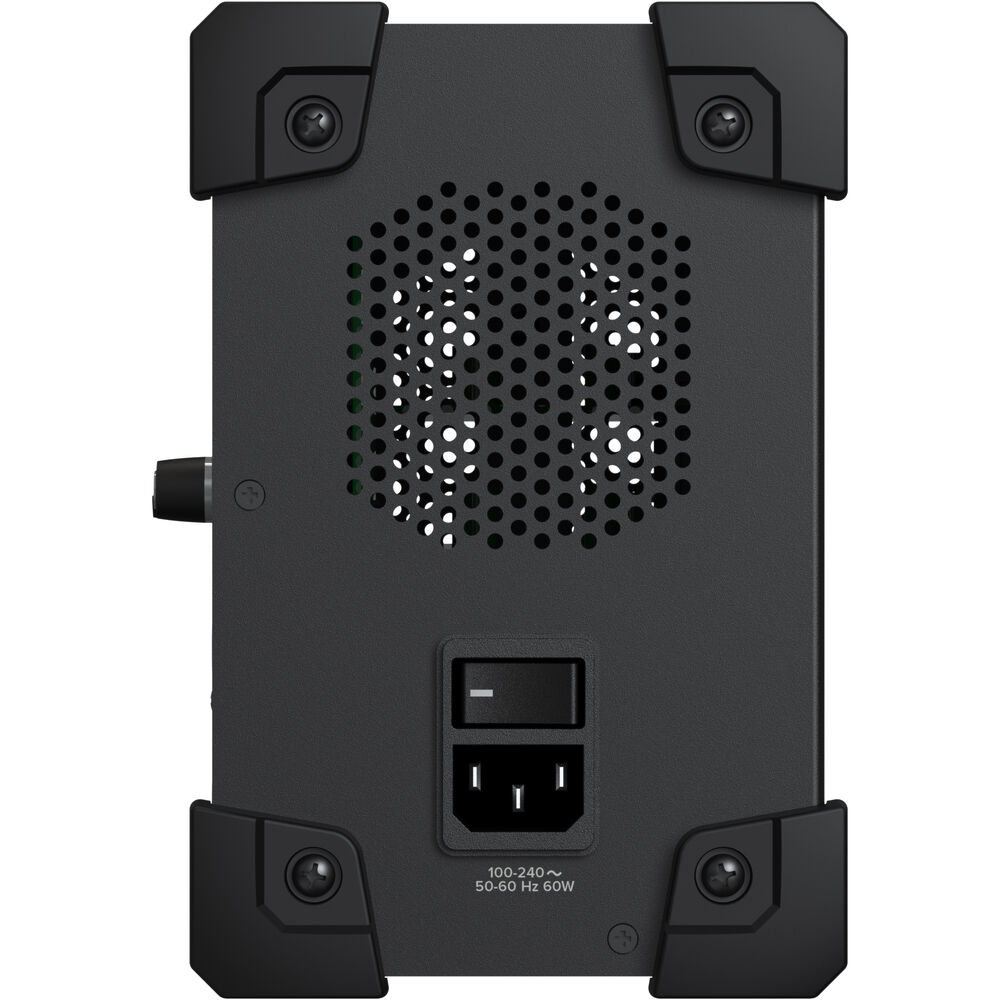

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Rackmount Size

4 U (with Included Hardware)

Dimensions

17.6 x 7.3 x 5.8" / 447 x 185.4 x 147.3 mm

Weight

8.7 lb / 3.9 kg

Packaging Info

Package Weight

14.315 lb

Box Dimensions (L × W × H)

20.8 x 10.9 x 9"
