Key Specifications

Product / Accessory Type

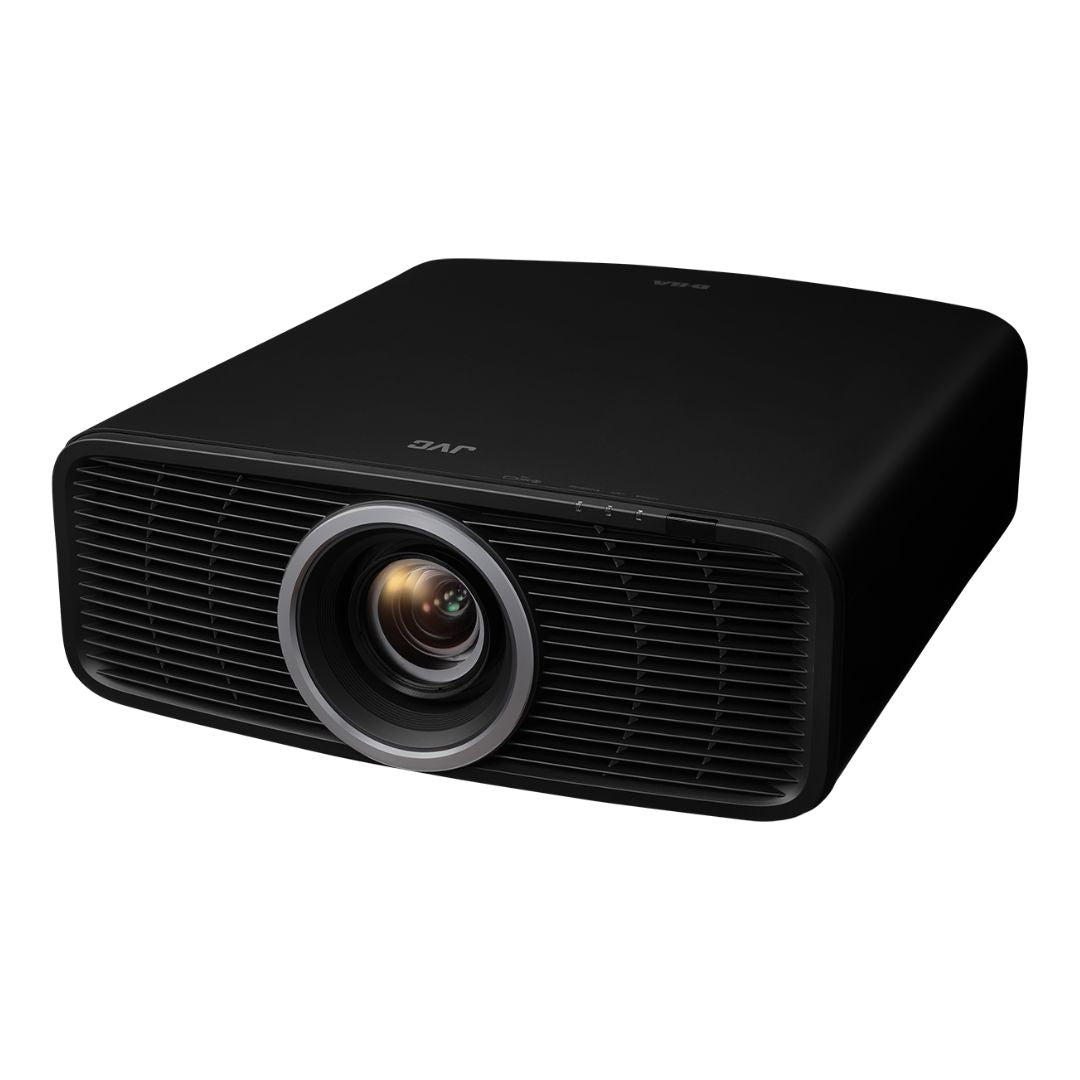

Native 4K D-ILA Home Theater Video Projector

Display Technology & Device

3x 3rd Generation 0.69" Native 4K D-ILA Devices (4096 x 2160 Native Resolution per Chip)

Enclosure Lens Barrel & Optics Construction

15-Element, 11-Group Lens Assembly, 80 mm Diameter, Automatic Motorized Lens Cover

Included Accessories

Wireless Remote Control (RM-MH27), AC Power Cord, Quick Guide, 2x AAA Batteries

Acoustic, Thermal & Environmental Specifications

Acoustic Noise Level

23 dB (Eco Mode)

Operating Temperature Range

5 °C to 35 °C (41 °F to 95 °F)

Operating Relative Humidity

20% to 80% (Non-Condensing)

Installation Altitude & Tilt Angle

Maximum Installation Altitude: Below 2,000 m (6,561.68 ft); Installation Angle: Horizontal ±10°, Vertical ±10°

Display & Optical Performance Specifications

Native & Displayed Resolution

4096 x 2160 Native 4K Resolution

Light Source & Operational Life

BLU-Escent Laser Diode Engine; 20,000 Hours Lifespan (Standard Mode)

Luminous Flux Output (Brightness)

2300 Lumens

Contrast Ratio

80,000:1 Native Contrast Ratio; ∞:1 Dynamic Contrast Ratio

Aperture & Light Control

Dynamic Light Power Control (Low, High, Balance, Off); Manual Aperture System Range -15 (Closed) to 0 (Open)

Color Gamut, Processing Depth & Certification

100% REC.709 Color Space Coverage, DCI-P3 Color Gamut Support, 12-Bit Color Processing Depth, ISFccc Certified Calibration

Projection Image Size (Diagonal)

60" to 200" (1,524.00 mm to 5,080.00 mm)

Lens Optical Parameters

1.6x Motorized Optical Zoom, Throw Ratio 1.34–2.14:1 (16:9) / 1.26–2.01:1 (17.9), Motorized Focus

Motorized Lens Shift Range

Vertical Range: ±70%; Horizontal Range: ±28%

High Dynamic Range (HDR) & Signal Processing Specifications

High Dynamic Range (HDR) Standards

HDR10, HDR10+, Frame Adapt HDR (Modes 1 & 2), HLG (Hybrid Log-Gamma)

HDR Image Enhancement & Analytics

Deep Black Tone Control, Mastering Information Display (MaxCLL, MaxFALL, DML Metadata Readout)

Video Processing & Calibration Features

12-Bit Gamma Processing Depth, 6-Axis Color Management System (CMS), MPC (Multiple Pixel Control), Filmmaker Mode, Auto Calibration Software Function, Control4 SDDP

Installation Memory & Aspect Modes

5 User Preset Installation Memories (Stores Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect); 4-Mode Anamorphic Stretch (A, B, C, D)

Electrical & Power Specifications

Input Power Supply

AC 100 V to 240 V, 50 / 60 Hz Universal Power Supply

Power Consumption & Standby Timer

280 W Operational Power Draw; 1.5 W Network Standby (LAN); 0.3 W Eco Standby Mode; Approx. 15-Minute Automatic Switchover Time to Standby

Connectivity & Signal Processing Specifications

HDMI Audio / Video Inputs

2x HDMI Inputs (32 Gbps Bandwidth, HDCP 2.3 Compliant, EDID Modes Standard / Option 1 / Option 2)

Supported HDMI Video Input Resolutions

4K Input: Up to 4096 x 2160p / 3840 x 2160p @ 24/25/30/50/60 Hz;
HD Input: 1080p @ 24/25/30/50/60 Hz, 720p 50/60 Hz, 576p, 480p

Supported PC Input Formats

640x480, 800x600, 1600x1200, 1920x1200, 2048x1080, 2048x1536, 2560x1440

Color Space & Input Level Adjustment

Color Space: Auto, YCbCr 4:4:4, YCbCr 4:2:2, RGB;
Input Level: Auto, Standard (16–235), Enhanced (0–255), Super White (16–255)

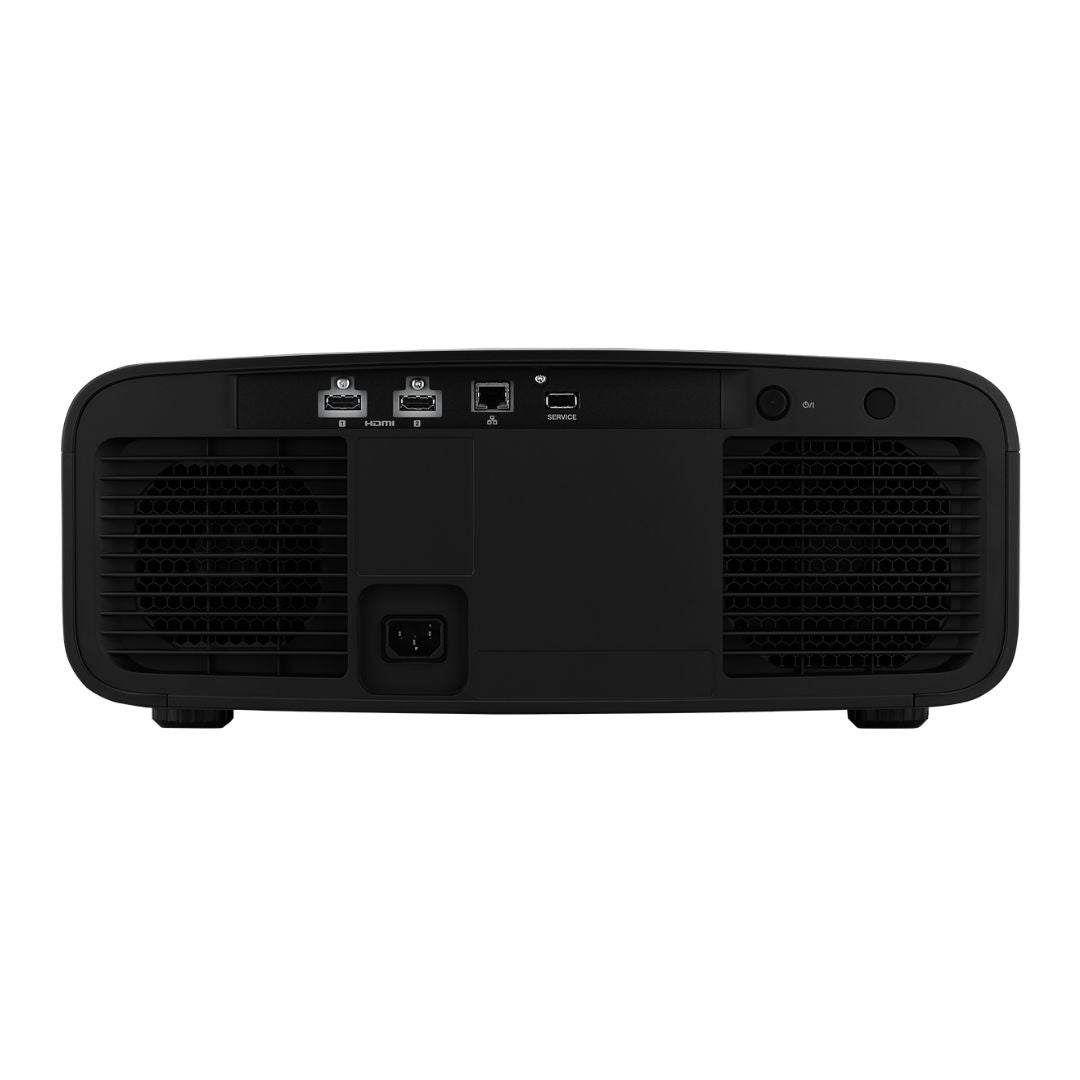

Control, System & Network Interfaces

1x RJ-45 LAN Network Port, 1x USB Type-A Service Port (Firmware Updates & Backup)

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

450 mm x 182 mm x 479 mm (17.72" x 7.16" x 18.88")

Product Net Weight

14.79 kg (32.6 lbs)
