JVC DLA-NZ800
JVC DLA-NZ800
|
Key Specifications |
|
|
Product / Accessory Type |
D-ILA Home Theater Video Projector |
|
Display Technology & Device |
3x 3rd Generation 0.69" 4K D-ILA Devices (4096 x 2160 Native Resolution per Chip) |
|
Enclosure Lens Barrel & Optics Construction |
17-Element, 15-Group All-Glass Lens in Full Aluminum Barrel, 65 mm Diameter, Automatic Motorized Lens Cover |
|
Included Accessories |
Wireless Remote Control (RM-MH27), AC Power Cord, Quick Guide, 2x AAA Batteries |
|
Optional Accessories |
PK-EM2 3D Synchro Emitter, PK-AG3 3D Glasses, External Calibration Optical Probe |
|
Acoustic, Thermal & Environmental Specifications |
|
|
Acoustic Noise Level |
24 dB (Eco Mode) |
|
Operating Temperature Range |
5 °C to 35 °C (41 °F to 95 °F) |
|
Operating Relative Humidity |
20% to 80% (Non-Condensing) |
|
Installation Altitude & Tilt Angle |
Maximum Installation Altitude: Below 2,000 m (6,561.68 ft); Installation Angle: Horizontal ±10°, Vertical ±10° |
|
Display & Optical Performance Specifications |
|
|
Native & Displayed Resolution |
4096 x 2160 Native Resolution; 8192 x 4320 Display Resolution (8K/e-shiftX Signal Processing) |
|
Light Source & Operational Life |
BLU-Escent Laser Diode Engine; 20,000 Hours Lifespan (Standard Mode) |
|
Luminous Flux Output (Brightness) |
2700 Lumens |
|
Contrast Ratio |
100,000:1 Native Contrast Ratio; ∞:1 Dynamic Contrast Ratio |
|
Aperture & Light Control |
Dynamic Light Power Control (Low, High, Balance, Off); Manual Aperture System Range -15 (Closed) to 0 (Open) |
|
Color Gamut, Processing Depth & Certification |
100% REC.709 Color Space Coverage, DCI-P3 Color Gamut Support, 12-Bit Color Processing Depth, ISFccc Certified Calibration |
|
Projection Image Size (Diagonal) |
60" to 200" (1,524.00 mm to 5,080.00 mm) |
|
Lens Optical Parameters |
2.0x Motorized Optical Zoom, Throw Ratio 1.43–2.92:1, Motorized Focus |
|
Motorized Lens Shift Range |
Vertical Range: ±80%; Horizontal Range: ±34% |
|
High Dynamic Range (HDR) & Signal Processing Specifications |
|
|
High Dynamic Range (HDR) Standards |
HDR10, HDR10+, Frame Adapt HDR, HLG (Hybrid Log-Gamma) |
|
HDR Image Enhancement & Analytics |
Theater Optimizer, Auto Tone Mapping, Deep Black Tone Control, Mastering Information Display (MaxCLL, MaxFALL, DML Metadata Readout) |
|
Video Processing & Calibration Features |
12-Bit Gamma Processing Depth, 6-Axis Color Management System (CMS), MPC (Multiple Pixel Control), Filmmaker Mode, Low Latency Mode, Clear Motion Drive, Motion Enhance, Auto Calibration Software Function, Control4 SDDP |
|
Installation Memory & Aspect Modes |
10 User Preset Installation Memories (Stores Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect); 4-Mode Anamorphic Stretch (A, B, C, D) |
|
3D Signal Capability & Formatting |
Frame Packing (720p 50/60, 1080p 24), Side-by-Side (720p 50/60, 1080i 50/60, 1080p 24/50/60), Top & Bottom (720p 50/60, 1080p 24) |
|
Electrical & Power Specifications |
|
|
Input Power Supply |
AC 100 V to 240 V, 50 / 60 Hz Universal Power Supply |
|
Power Consumption |
440 W Operational Power Draw; 1.5 W Network Standby (LAN); 0.3 W Eco Standby Mode |
|
Connectivity & Signal Processing Specifications |
|
|
HDMI Audio / Video Inputs |
2x HDMI Inputs (48 Gbps Bandwidth, HDCP 2.3 Compliant, EDID Modes A / B / C) |
|
Supported HDMI Video Input Resolutions |
8K Input: Up to 7680 x 4320p @ 24/25/30/50/60 Hz; |
|
Supported PC Input Formats |
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, WUXGA, WQHD (60 Hz / 120 Hz) |
|
Color Space & Input Level Adjustment |
Color Space: Auto, YCbCr 4:4:4, YCbCr 4:2:2, RGB; |
|
Control, System & Trigger Interfaces |

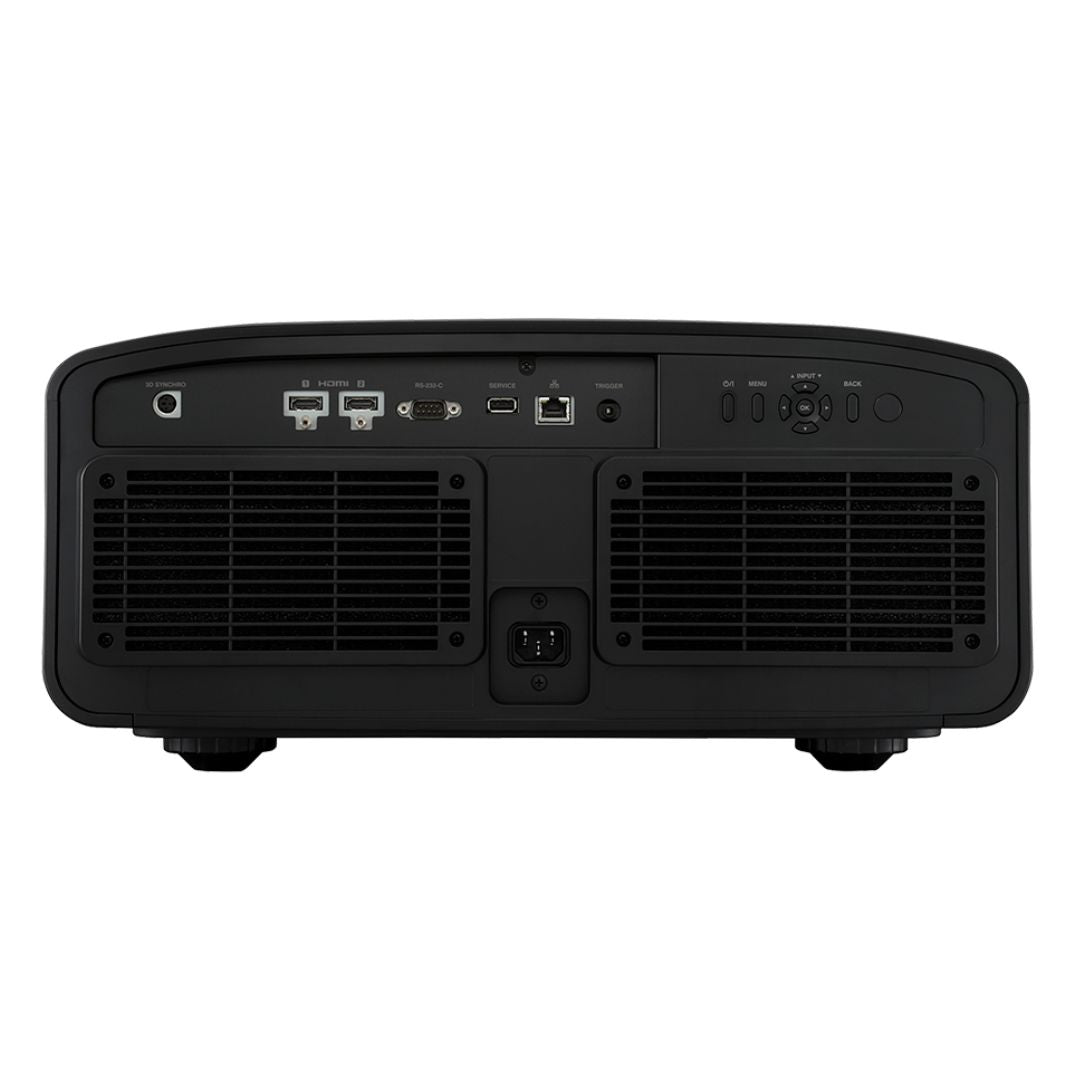

1x 3.5 mm Mini-Jack Trigger Output (DC 12 V / 100 mA), 1x 3-Pin Mini DIN 3D Synchro Terminal, 1x RJ-45 LAN Network Port, 1x RS-232C D-Sub 9-Pin Serial Control Port, 1x USB Type-A Service Port (Firmware Updates & Backup) |
|
Dimensions & Weight Specifications |
|
|
Product Dimensions (W×H×D) |
500 mm x 234 mm x 505 mm (19.69" x 9.22" x 19.91") |
|
Product Net Weight |
23.04 kg (50.8 lbs) |
