Key Specifications

Product / Accessory Type

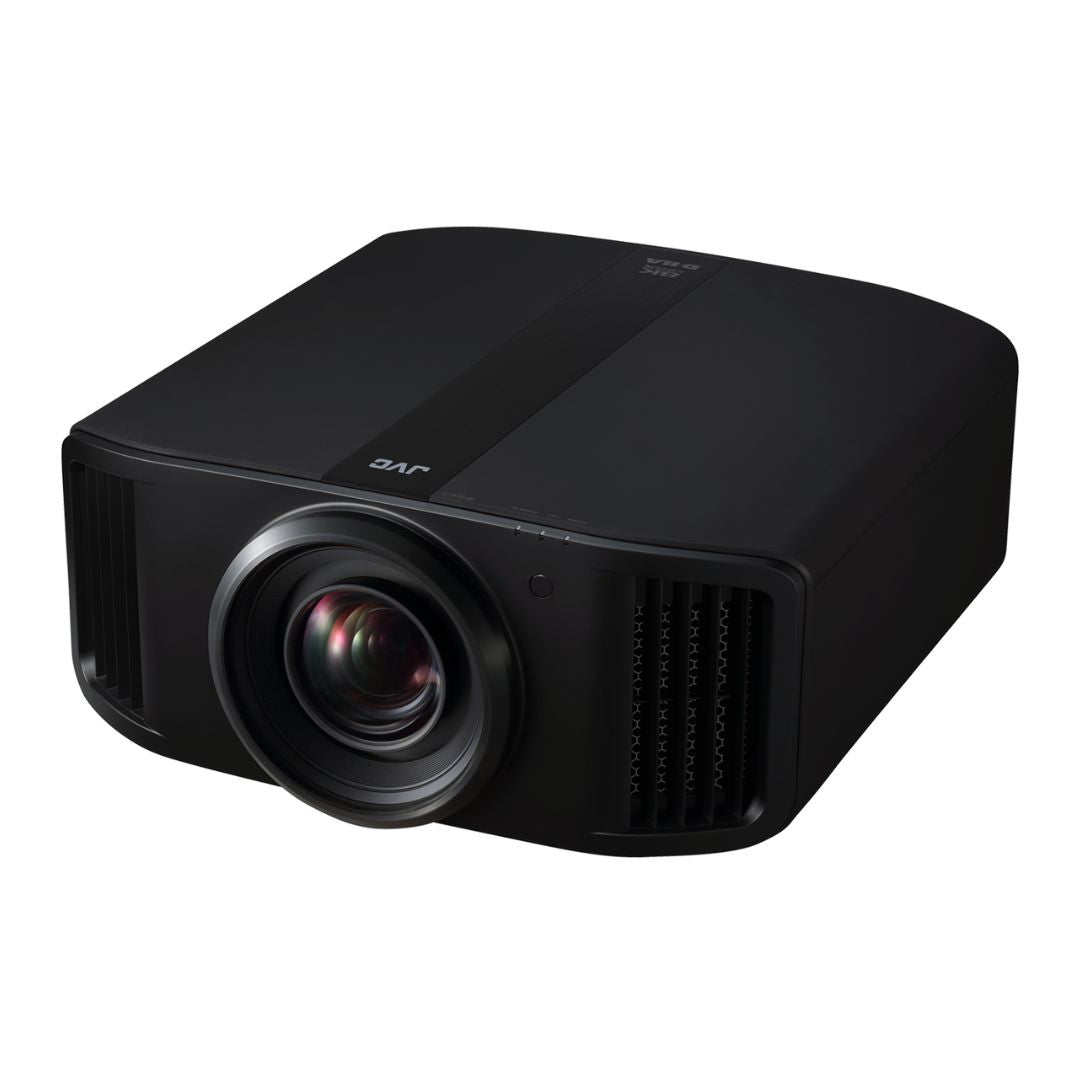

D-ILA Home Theater Video Projector

Display Technology & Device

3x 3rd Generation 0.69" 4K D-ILA Devices (4096 x 2160 Native Resolution per Chip)

Enclosure Lens Barrel & Optics Construction

18-Element, 16-Group All-Glass Lens in Full Aluminum Barrel, 100 mm Diameter, Automatic Motorized Lens Cover

Included Accessories

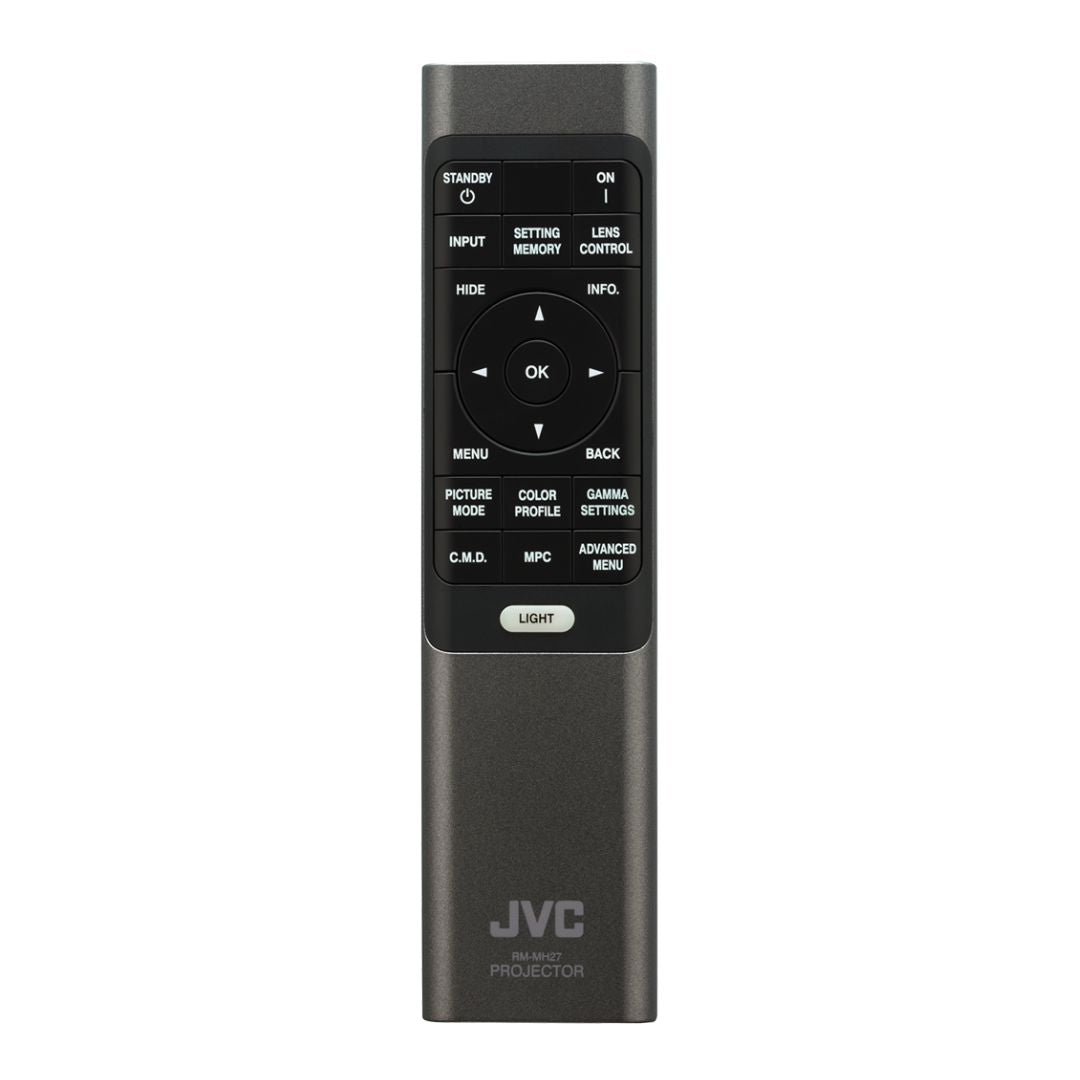

Wireless Remote Control (RM-MH27), AC Power Cord, Quick Guide, 2x AAA Batteries

Optional Accessories

PK-EM2 3D Synchro Emitter, PK-AG3 3D Glasses, External Calibration Optical Probe

Acoustic, Thermal & Environmental Specifications

Acoustic Noise Level

24 dB (Eco Mode)

Operating Temperature Range

5 °C to 35 °C (41 °F to 95 °F)

Operating Relative Humidity

20% to 80% (Non-Condensing)

Installation Altitude & Tilt Angle

Maximum Installation Altitude: Below 2,000 m (6,561.68 ft); Installation Angle: Horizontal ±10°, Vertical ±10°

Display & Optical Performance Specifications

Native & Displayed Resolution

4096 x 2160 Native Resolution; 8192 x 4320 Display Resolution (8K/e-shiftX Signal Processing)

Light Source & Operational Life

BLU-Escent Laser Diode Engine; 20,000 Hours Lifespan (Standard Mode)

Luminous Flux Output (Brightness)

3300 Lumens

Contrast Ratio

150,000:1 Native Contrast Ratio; ∞:1 Dynamic Contrast Ratio

Aperture & Light Control

Dynamic Light Power Control (Low, High, Balance, Off); Manual Aperture System Range -15 (Closed) to 0 (Open)

Color Gamut, Processing Depth & Certification

100% REC.709 Color Space Coverage, DCI-P3 Color Gamut Support, 12-Bit Color Processing Depth, ISFccc Certified Calibration

Projection Image Size (Diagonal)

60" to 300" (1,524.00 mm to 7,620.00 mm)

Lens Optical Parameters

2.0x Motorized Optical Zoom, Throw Ratio 1.35–2.75:1, Motorized Focus

Motorized Lens Shift Range

Vertical Range: ±100%; Horizontal Range: ±43%

High Dynamic Range (HDR) & Signal Processing Specifications

High Dynamic Range (HDR) Standards

HDR10, HDR10+, Frame Adapt HDR, HLG (Hybrid Log-Gamma)

HDR Image Enhancement & Analytics

Theater Optimizer, Auto Tone Mapping, Deep Black Tone Control, Mastering Information Display (MaxCLL, MaxFALL, DML Metadata Readout)

Video Processing & Calibration Features

12-Bit Gamma Processing Depth, 6-Axis Color Management System (CMS), MPC (Multiple Pixel Control), Filmmaker Mode, Low Latency Mode, Clear Motion Drive, Motion Enhance, Auto Calibration Software Function, Control4 SDDP

Installation Memory & Aspect Modes

10 User Preset Installation Memories (Stores Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect); 4-Mode Anamorphic Stretch (A, B, C, D)

3D Signal Capability & Formatting

Frame Packing (720p 50/60, 1080p 24), Side-by-Side (720p 50/60, 1080i 50/60, 1080p 24/50/60), Top & Bottom (720p 50/60, 1080p 24)

Electrical & Power Specifications

Input Power Supply

AC 100 V to 240 V, 50 / 60 Hz Universal Power Supply

Power Consumption

440 W Operational Power Draw; 1.5 W Network Standby (LAN); 0.3 W Eco Standby Mode

Connectivity & Signal Processing Specifications

HDMI Audio / Video Inputs

2x HDMI Inputs (48 Gbps Bandwidth, HDCP 2.3 Compliant, EDID Modes A / B / C)

Supported HDMI Video Input Resolutions

8K Input: Up to 7680 x 4320p @ 24/25/30/50/60 Hz;
4K Input: Up to 4096 x 2160p / 3840 x 2160p @ 24/25/30/50/60/100/120 Hz;
HD Input: 1080p @ 24/25/30/50/60/100/120 Hz, 1080i 50/60 Hz, 720p 50/60 Hz, 576p, 480p

Supported PC Input Formats

VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, WUXGA, WQHD (60 Hz / 120 Hz)

Color Space & Input Level Adjustment

Color Space: Auto, YCbCr 4:4:4, YCbCr 4:2:2, RGB;
Input Level: Auto, Standard (16–235), Enhanced (0–255), Super White (16–255)

Control, System & Trigger Interfaces

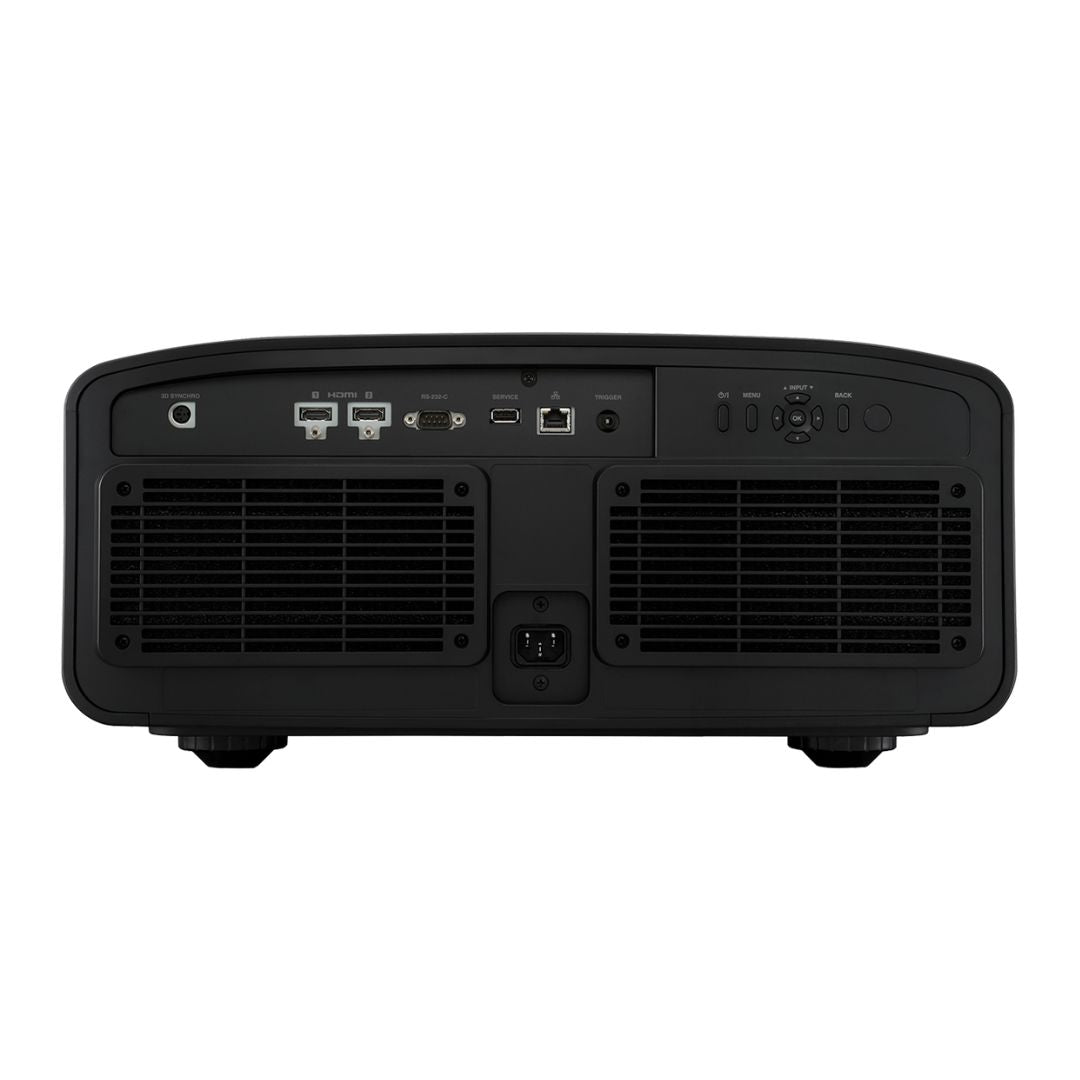

1x 3.5 mm Mini-Jack Trigger Output (DC 12 V / 100 mA), 1x 3-Pin Mini DIN 3D Synchro Terminal, 1x RJ-45 LAN Network Port, 1x RS-232C D-Sub 9-Pin Serial Control Port, 1x USB Type-A Service Port (Firmware Updates & Backup)

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

500 mm x 234 mm x 528 mm (19.69" x 9.21" x 20.79")

Product Net Weight

25.3 kg (55.78 lbs)

Packaging Dimensions (W×H×D)

640 mm x 415 mm x 665 mm (25.20" x 16.34" x 26.18")

Gross Shipping Weight

30.7 kg (67.68 lbs)
