Key Specifications

Type

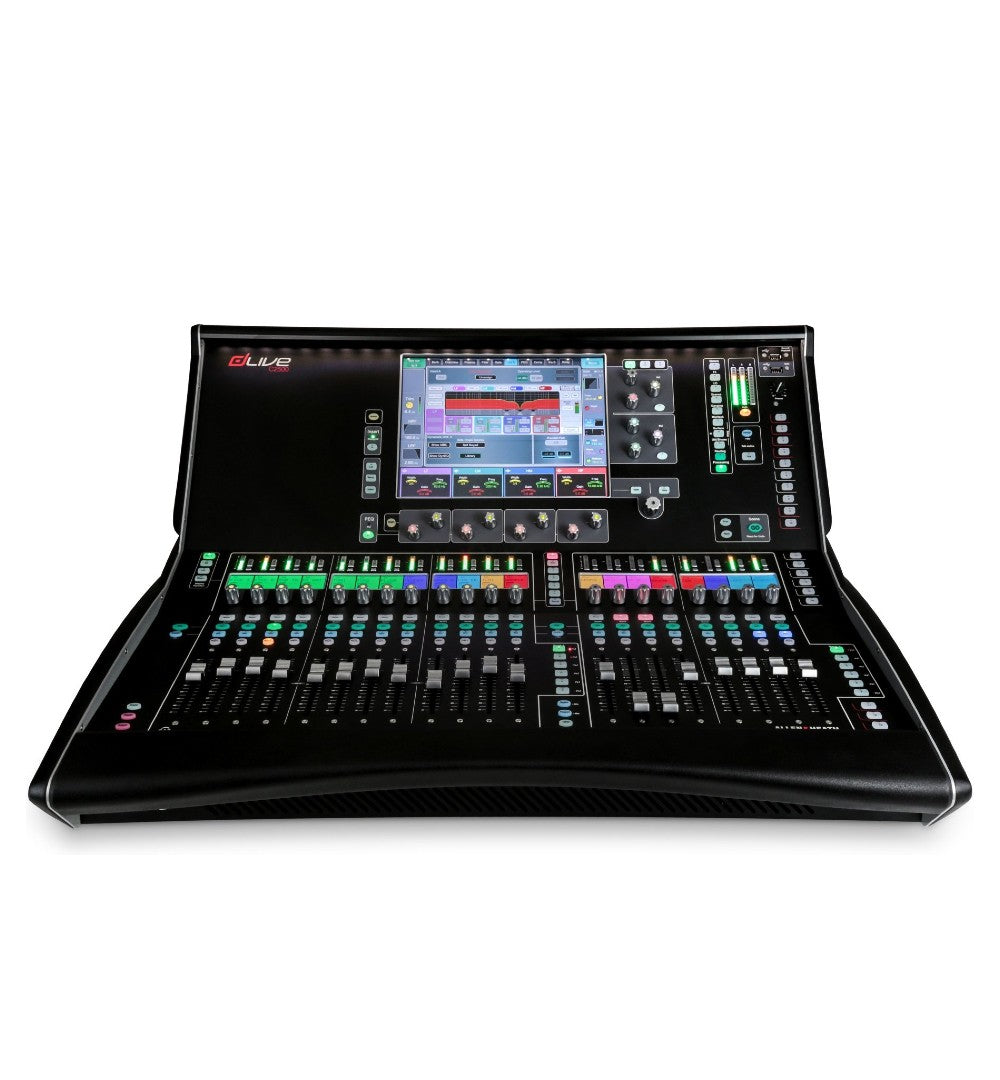

dLive Control Surface

Channels

20 channel faders with 6 layers

Inputs - Mic Preamps

6 x XLR (mic/line)

Phantom Power

6 Channels

Outputs - Main

6 x XLR

Inputs - Digital

1 x XLR (AES3)

Outputs - Digital

1 x XLR (AES3)

Busses/Groups

64 bus internal architecture

Data I/O

RJ45 (DX5 link), RJ45 (GigaACE link), 2 x Network ports

Headphones

1 x 1/4", 1 x 1/8"

USB

2 x Type A

Computer Connectivity

USB (2 x 2)

I/O Expansion Slots

1 x Expansion slot (iLive/GLD option cards)

Word Clock

1 x BNC In/Out

Faders

20 x motorized faders

EQ Bands

4-band parametric, graphic EQ

Effects

16 RackExtra FX

Features

• Touch screen features pinch, swipe, drag'n drop gestures
• 19 assignable soft keys
• Video out

Screen

12" touchscreen

Dimensions

• Height: 12.8"
• Depth: 26.2"
• Width: 30.5"

Weight

54 lbs.

Manufacturer Part Number

AH-DLIVE-DLC25
