Key Specifications

Max I/O Capacity

300x Input / 300x Output (with Optional Hardware)

Mix Routing

144x Bus

Display

12" LCD Touchscreen (Backlit, Daylight-Viewable)

Faders & Controls

20 Faders, 3x Multi-Segment LED Meters

Presets & Signal Generator

Presets supported, Built-in Signal Generator

Rack Mountable

No

Audio Channels & Performance Specifications

Analog I/O Channels

6 Analog Inputs (6 Mic Preamps) / 6 Analog Outputs

Frequency Response

20 Hz to 30 kHz (-0.8 dB)

Dynamic Range

110 dB (Analog)

SNR / THD+N

SNR: -92 dB | THD+N: 0.0015%

Digital Processing

Up to 96 kHz / 24-Bit Delta Sigma

Signal Processing & EQ

4-Band Parametric EQ, Audio Delay (No Graphic EQ, No Automatic Mic Mixing)

Gain / Trim Range & Pad

Input: -5 dB to +60 dB, -20 dB Pad

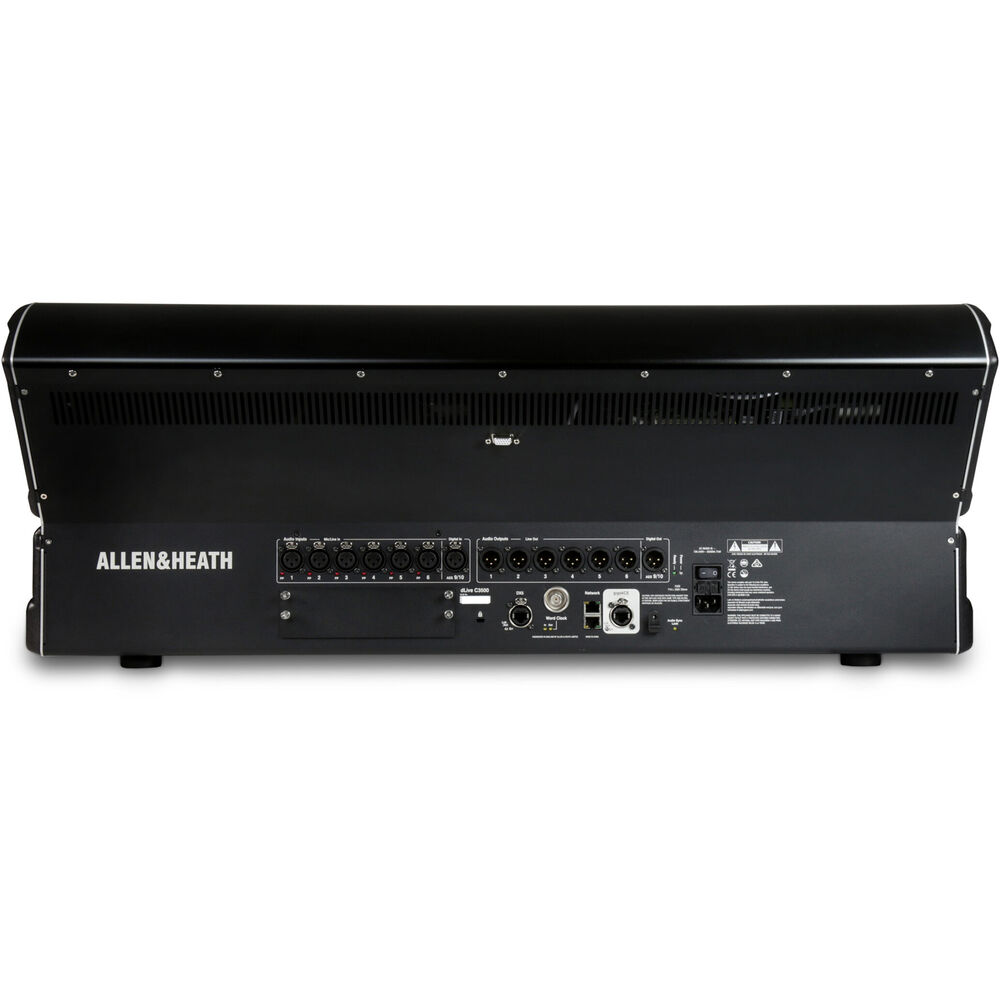

Connectivity & Interfaces

Analog Inputs

6x XLR 3-Pin Balanced Mic/Line (+48V Phantom Power)

Analog Outputs

6x XLR 3-Pin Balanced Line Outputs

Headphone Outputs

1x 1/4" TRS, 1x 1/8" (3.5 mm) TRS

Digital I/O

1x XLR AES3 Input, 1x XLR AES3 Output

USB Ports

2x USB-A (2-Track Record, Audio Playback)

Network & Control I/O

1x RJ45 Control, 1x RJ45 Expansion (No MIDI, No Wireless, No External Display I/O)

Input & Output Impedance

XLR Input: 4 kΩ (Pad Out) / 10 kΩ (Pad In); XLR Output: 75 Ω

Power Specifications

Input Power

100 to 240 VAC, 50 / 60 Hz

Dimensions & Weight

Item Dimensions (W×D×H)

884mm x 665mm x 325mm (34.8" x 26.2" x 12.8")

Item Weight

28.0kg (61.7 lbs)
