Key Specifications

Max I/O Capacity

12x Input / 6x Output

Number of Analog Input Channels

8 (4 Mono / 2 Stereo)

Number of Mic Preamps

4

Number of Analog Output Channels

6

Faders & Level Adjustment

9 Fader

Built-In Effects

Delay
Reverb

Analog Inputs

4x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input

Analog Outputs

2x 1/4" Main Output
4x 1/4" Headphone Output

Digital I/O

No

USB I/O

1x USB-A 2.0 (Audio Playback, Audio Streaming, Multitrack Record, Recording)
1x USB-C (Host Connection)

Wireless

Bluetooth 5.0

Rack Mountable

No

Mixer

Max I/O Capacity

12x Input / 6x Output

Number of Analog Input Channels

8 (4 Mono / 2 Stereo)

Number of Mic Preamps

4

Number of Analog Output Channels

6

Mix Routing

1x Stereo Main LRC
4x Stereo Headphone

Groups

No

Presets

No

Display

10.1" LCD Touchscreen

Faders & Level Adjustment

9 Fader

Meters

9x LED

Signal Processing

Dynamic Processing

Compressor, Gate

EQ

3-Band Parametric

Graphic EQ

No

Solo/Mute

Solo, Mute per Input Channel

Built-In Effects

Delay
Reverb

Audio Delay

No

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

48 kHz

Bit Depth

24-Bit

Performance

Signal Generator

Yes

Connectivity

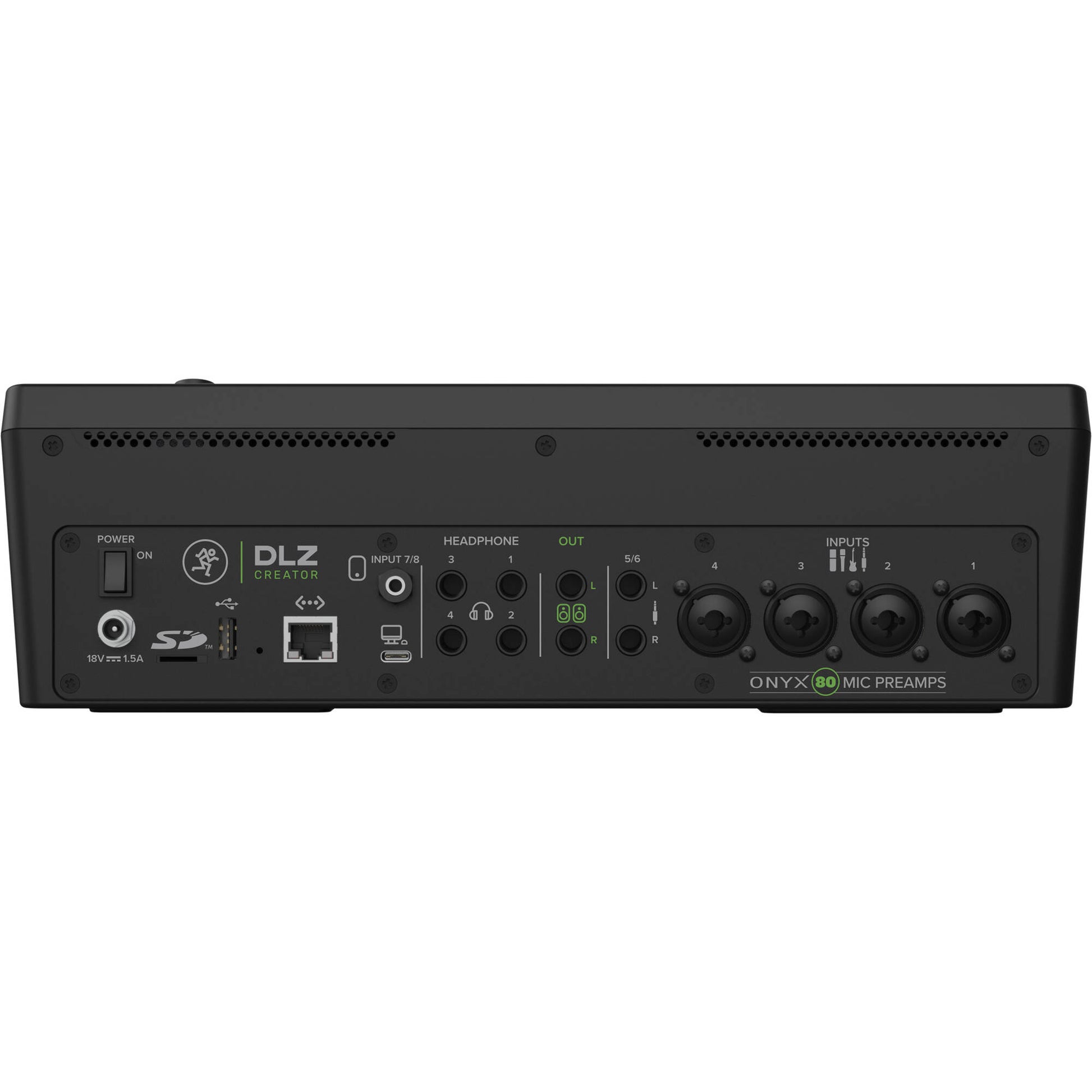

Analog Inputs

4x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input

Analog Outputs

2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
4x 1/4" TRS Unbalanced Stereo Headphone Output

Phantom Power

+48 V

Digital I/O

No

MIDI I/O

No

USB I/O

1x USB-A 2.0 (Audio Playback, Audio Streaming, Multitrack Record, Recording)
1x USB-C (Host Connection)

USB I/O Capacity

12x Input / 2x Output

Expansion Ports

No

Wireless

Bluetooth 5.0

External Display I/O

No

Recording

Max Multitrack Recording

12 Tracks

Media Support

SD

Compatibility

OS Compatibility

macOS / Windows

Power

Input Power

18 VDC at 1.5 A
100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Dimensions

15 x 13 x 4.1" / 38.1 x 33 x 10.4 cm

Weight

6.1 lb / 2.8 kg

Packaging Info

Package Weight

9.57 lb

Box Dimensions (LxWxH)

16.6 x 15 x 5.1"
