Key Specifications

Max I/O Capacity

5x Input / 4x Output

Number of Analog Input Channels

4 (2 Mono / 2 Stereo)

Number of Mic Preamps

2

Number of Analog Output Channels

3

Faders & Level Adjustment

9 Non-Motorized Channel Knob

Built-In Effects

1x De-Esser
1x Reverb
1x Delay

Analog Inputs

2x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1x 1/8" / 3.5 mm TRS Stereo Line Input

Analog Outputs

2x 1/4" Line Output
2x 1/4" Headphone Output

Digital I/O

1x RJ45 Ethernet Input/Output (I/O, Link)

USB I/O

1x USB-C (Audio Playback, Audio Streaming, Host Connection, Recording)

Wireless

Bluetooth

Rack Mountable

No

Mixer

Max I/O Capacity

5x Input / 4x Output

Number of Analog Input Channels

4 (2 Mono / 2 Stereo)

Number of Mic Preamps

2

Number of Analog Output Channels

3

Mix Routing

2x Mono Bus
3x Stereo Bus

Groups

No

Presets

3x Preset (Factory)

Display

7" LCD Touchscreen

Faders & Level Adjustment

9 Non-Motorized Channel Knob

Signal Processing

Dynamic Processing

Compressor, Gate

EQ

3-Band Parametric

Filters

1x High-Pass

Solo/Mute

Solo, Mute per Input Channel

Built-In Effects

1x De-Esser
1x Reverb
1x Delay

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

48 kHz

Bit Depth

24-Bit

Connectivity

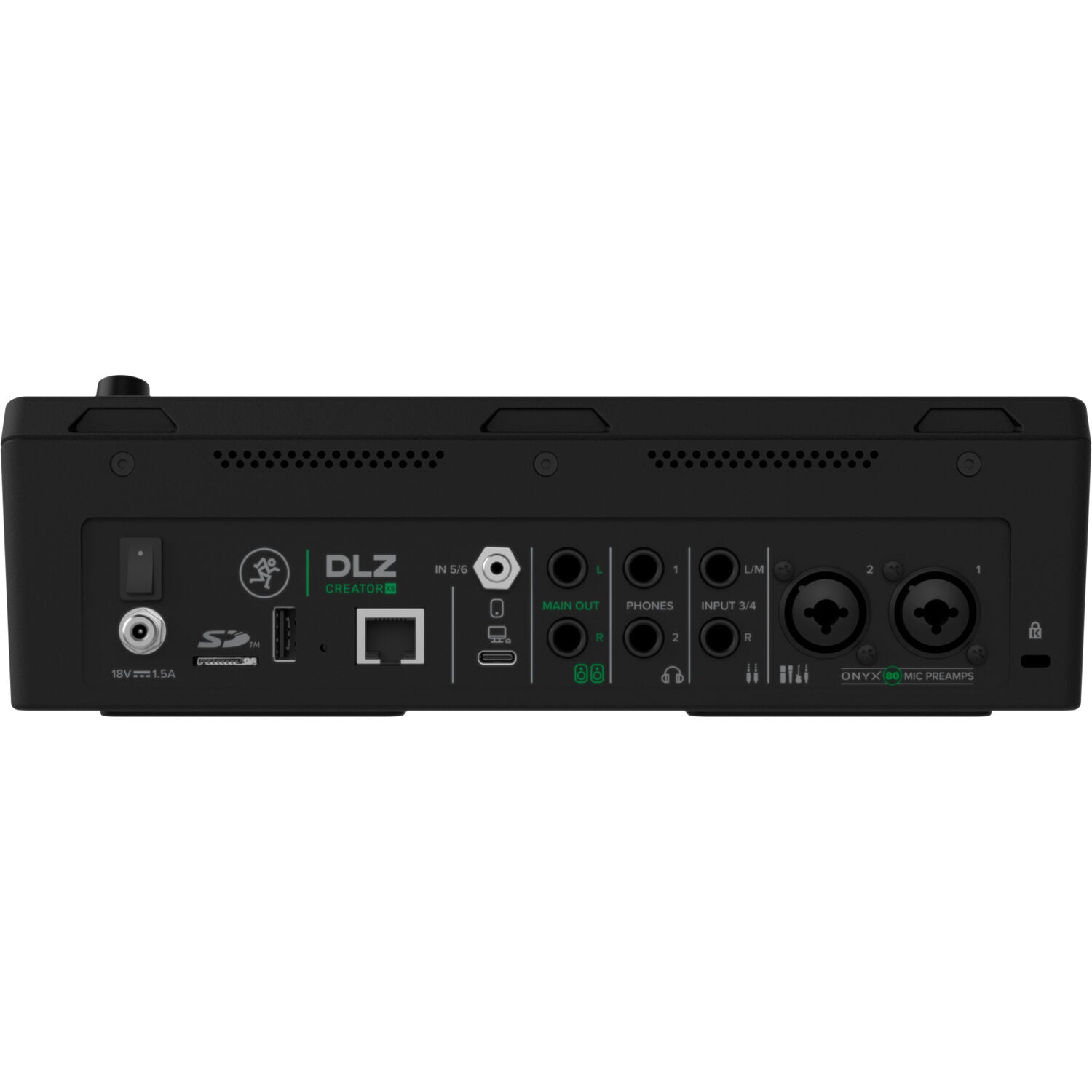

Analog Inputs

2x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1x 1/8" / 3.5 mm TRS Stereo Line Input

Analog Outputs

2x 1/4" TRS Balanced/Unbalanced Line Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader)

Digital I/O

1x RJ45 Ethernet Input/Output (I/O, Link)

MIDI I/O

No

USB I/O

1x USB-C (Audio Playback, Audio Streaming, Host Connection, Recording)

USB I/O Capacity

14x Input / 4x Output

Wireless

Bluetooth

External Display I/O

No

Recording

Max Multitrack Recording

4 Tracks

Media Support

SD, USB Drive

Compatibility

OS Compatibility

macOS / Windows

Power

Input Power

18 VDC at 1.5 A

Physical

Rack Mountable

No

Dimensions

10.2 x 3.3 x 8" / 25.9 x 8.4 x 20.3 cm

Weight

2.6 lb / 1.2 kg

Packaging Info

Package Weight

4.545 lb

Box Dimensions (LxWxH)

12.9 x 8.9 x 3.9"
