Key Specifications

Product / Accessory Type

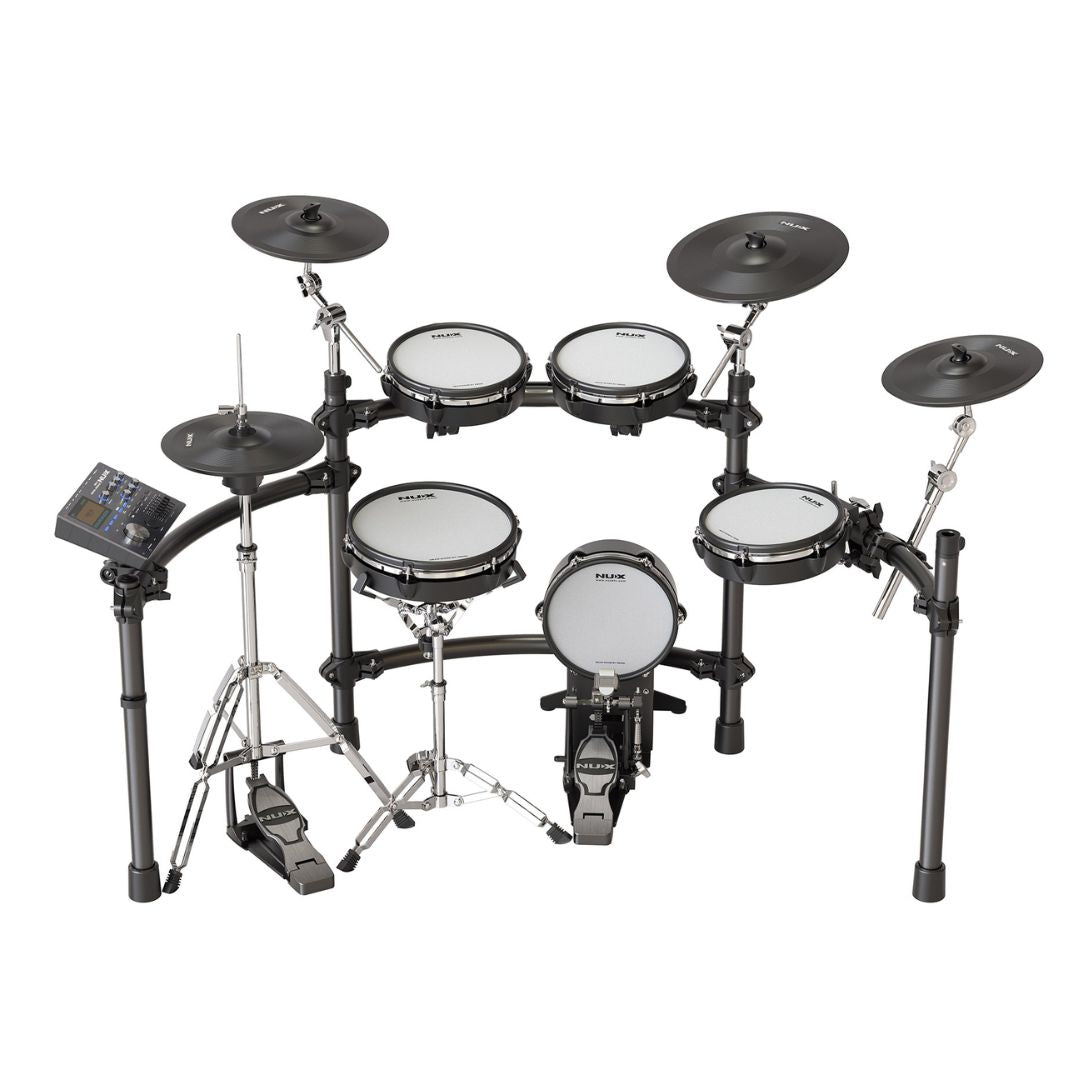

9-Piece Professional Electronic Drum Kit with Mesh Heads

Drum Head Technology

Remo Mesh Heads (Enhanced Feel & Natural Response)

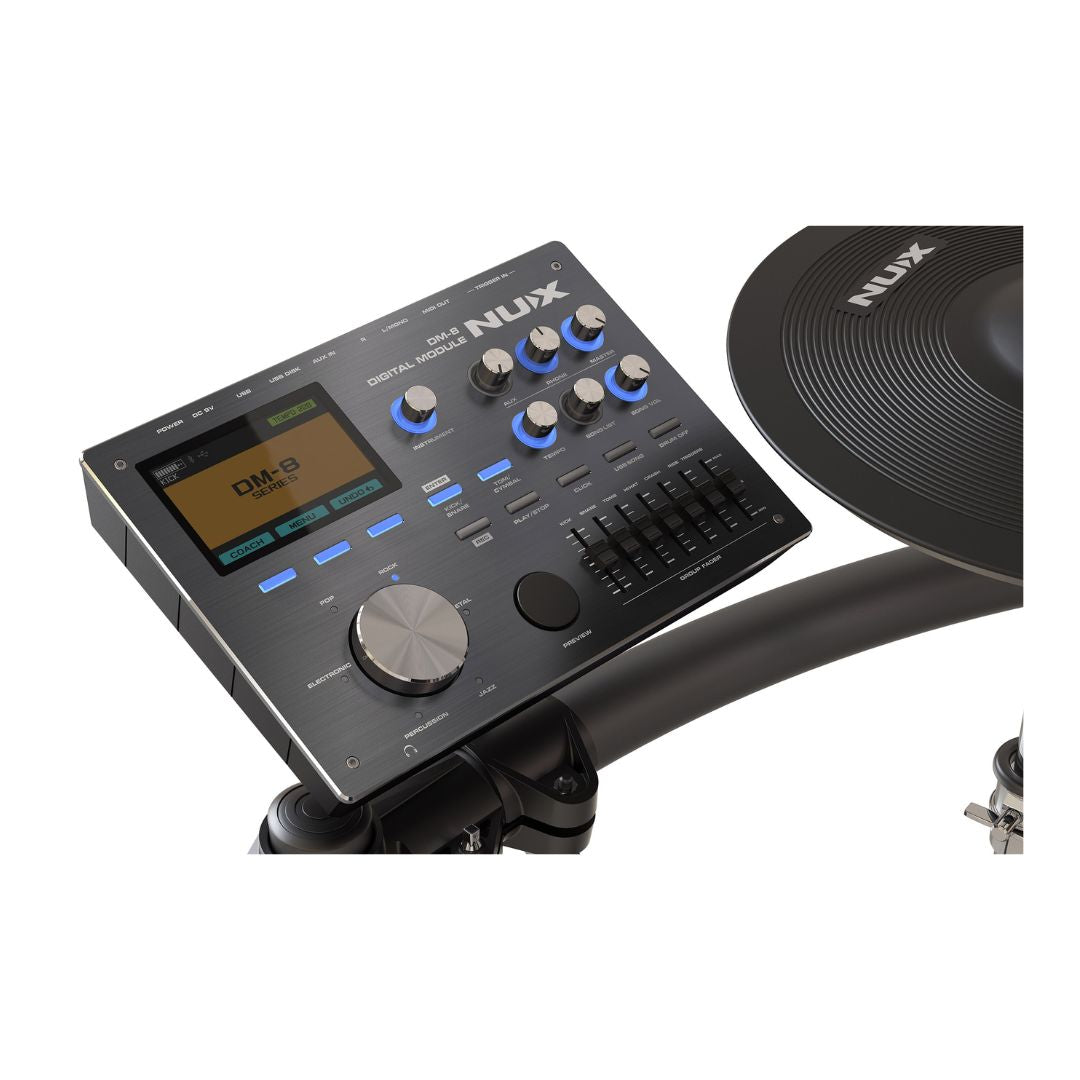

Drum Sound Module

DM-8 Drum Sound Engine / Control Module

Kit Configuration & Hardware Components

Snare Drum Pad & Stand

1x 304.80 mm (12.00") Dual-Zone Snare Pad + 1x Dedicated Snare Stand

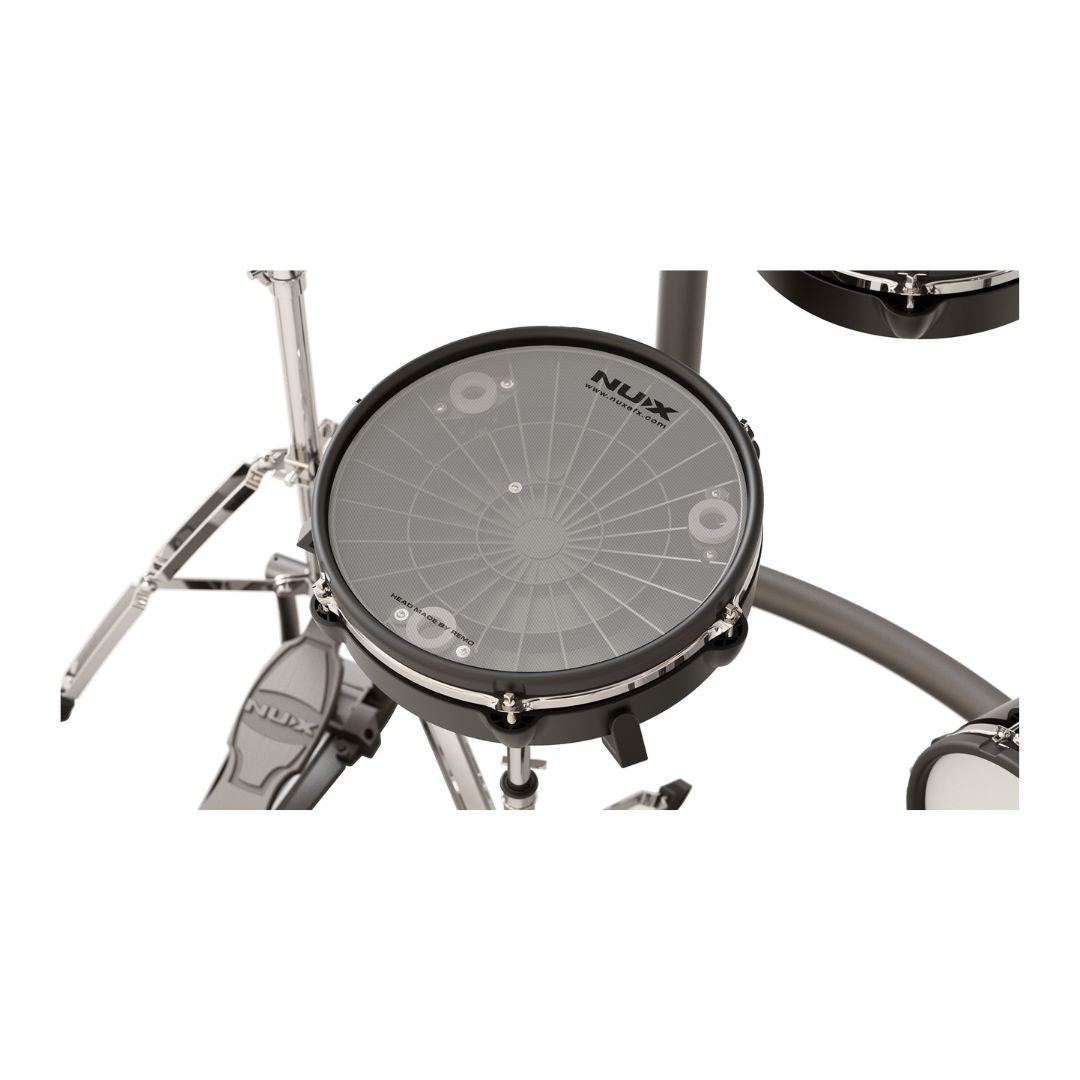

Tom Drum Pads

3x 254.00 mm (10.00") Tom Pads

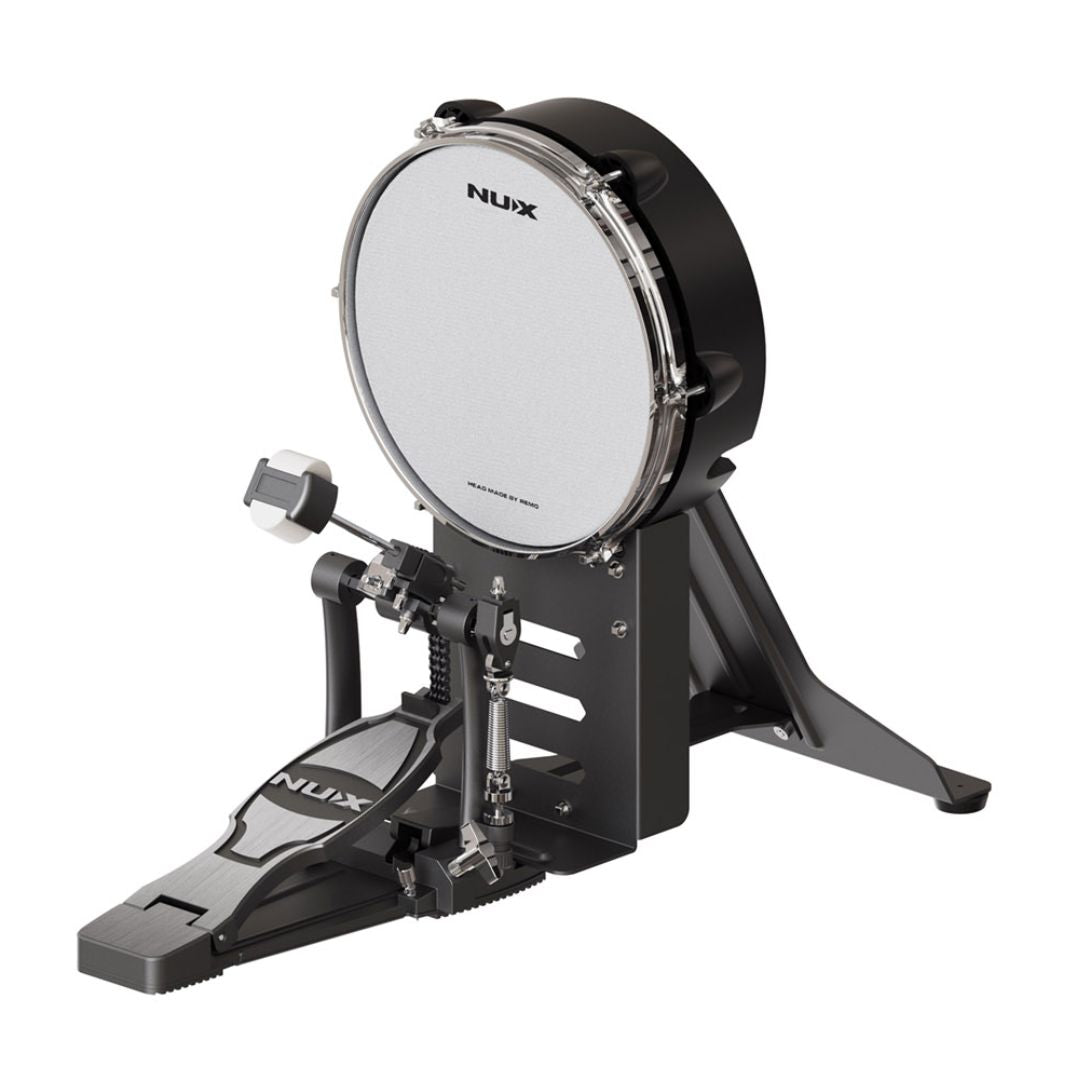

Kick / Bass Drum Tower & Pedal

1x 254.00 mm (10.00") Kick Drum Tower Pad + 1x Kick Pedal

Hi-Hat Cymbal Pad & Stand

1x 304.80 mm (12.00") Hi-Hat Cymbal Pad + 1x Heavy-Duty Hi-Hat Stand

Crash Cymbal Pads

2x 304.80 mm (12.00") Crash Cymbal Pads with Choke

Ride Cymbal Pad

1x 355.60 mm (14.00") Multi-Zone Ride Cymbal Pad

Module Features & DSP Functions

Integrated Functions & Effects

Metronome, Practice Coach Function, Onboard Effects Processing, Recording (REC), Play-Along Songs

Sample Import & Hardware Mix Control

WAV Sample Import Capability, Dedicated Group Level Faders

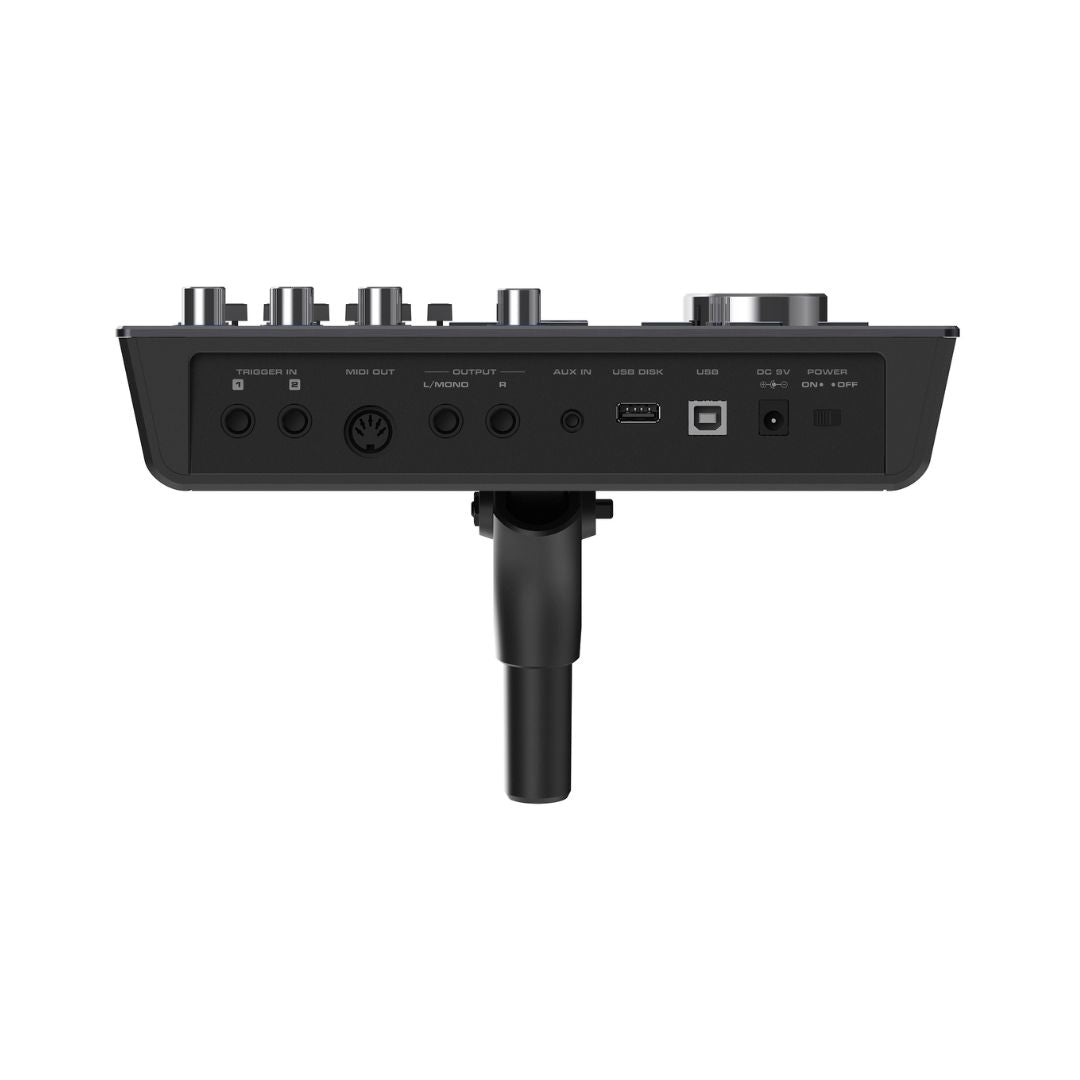

Connectivity, Interfaces & Expansion

Wireless Connectivity

Integrated Bluetooth (Audio Streaming & MIDI)

Digital & Storage Connectivity

USB Type-B (USB Audio / MIDI Streaming), USB Flash Drive Slot (USB DISK for WAV Import)

Analog Audio Outputs & Monitoring

L/MONO & R Main Line Outputs (1/4" Jacks), 1/4" Headphone Output, 1/8" Aux Input (AUX IN)

MIDI & Pad Expansion Inputs

5-Pin DIN MIDI Output, 2x External Trigger Expansion Inputs (TRIGGER IN 1 & 2)

Power & Electrical Specifications

Module Power Requirements

9 VDC Power Supply (DC 9V Adapter)
