Key Specifications

Number of Analog Input Channels

12 (8 Mono / 2 Stereo)

Number of Mic Preamps

8

Analog Output Channels

1 × Stereo Master Output

EQ

3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)

Built-In Effects

No

Wireless

No

Rack Mountable

No

Mixer

Number of Analog Input Channels

12 (8 Mono / 2 Stereo)

Number of Mic Preamps

8

Analog Output Channels

1 × Stereo Master Output

Mix Routing

1 × Stereo Main Mix
2 × Mono Aux Send per Mono Input Channel, Stereo Input Channel

Faders & Level Adjustment

10 × 2.4" / 60 mm Channel Fader
2 × 2.4" / 60 mm Master Fader

Meters

Main Meter: 2 × 10-Segment LED

Signal Processing

Gain / Trim Range

+10 dB to +60 dB

Dynamic Processing

No

EQ

3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)

EQ Parameters

Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 150 Hz to 3.5 kHz (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)

Graphic EQ

No

Solo / Mute

Mute, PFL per Input Channel

Built-In Effects

No

Performance

Frequency Response

20 Hz to 20 kHz (-1 dB)
20 Hz to 70 kHz (-3 dB)

Maximum Input Level

XLR Mic Input:
+11 dBu at +10 dB Gain (Balanced, Mono)
1/4" Line Input:
+30 dBu (Balanced, Mono)
1/4" Line/Insert:
+21 dBu (Balanced, Stereo)

I/O Impedance

XLR Mic Input:
2 Kilohms (Balanced, Mono)
1/4" Line Input:
20 Kilohms (Balanced/Unbalanced, Mono and Stereo)
1/4" TRS Aux Send:
240 Ohms (Balanced)
120 Ohms (Unbalanced)
1/4" TRS Monitor Output:
240 Ohms (Balanced)
120 Ohms (Unbalanced)
XLR Main Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
1/4" TRS Headphone Output:
25 Ohms (Unbalanced)
Stereo RCA Tape Output:
1 Kilohms (Unbalanced)

Noise Floor

Main Output:
-104 dBu Unweighted (Master Level at -∞, Channel Levels at -∞)
-91 dBu Unweighted (Master Level at Unity, Channel Levels at -∞)
-84 dBu Unweighted (Master Level at Unity, Channel Levels at Unity)

THD+N

Mic Input to Main Output:
0.005% at Unity Gain (1 kHz)

Connectivity

Analog Inputs

8 × XLR 3-Pin Balanced Mic Input
8 × 1/4" TRS Balanced/Unbalanced Line Input
10 × 1/4" TRS Unbalanced Insert
4 × 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
1 × Stereo RCA Coaxial Unbalanced Stereo Line Input (1 Stereo Pair)

Analog Outputs

2 × XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 × 1/4" TRS Balanced/Unbalanced Stereo Monitor Output
2 × 1/4" TRS Balanced/Unbalanced Mono Aux Send
1 × Stereo RCA Coaxial Unbalanced Stereo 2-Track Output (1 Stereo Pair)
1 × 1/4" TRS Unbalanced Stereo Headphone Output

Phantom Power

+48 V

Digital I/O

No

Wireless

No

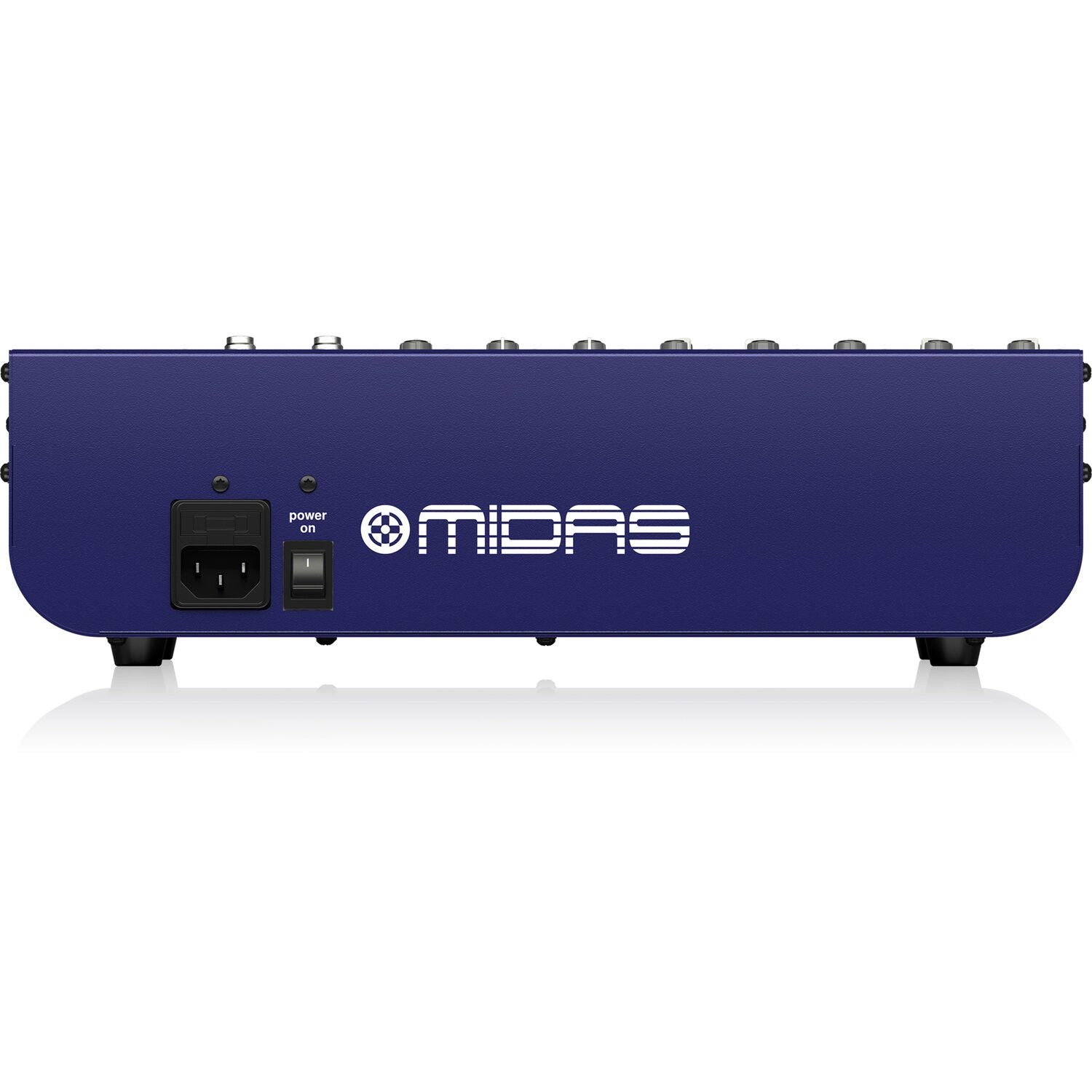

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Input Power

100 to 240 VAC, 50 / 60 Hz (T 1.6 A H 250 V)

Physical

Rack Mountable

No

Dimensions

12.9 × 3.7 × 14.6" / 32.8 × 9.4 × 37.1 cm

Weight

8.6 lb / 3.9 kg

Packaging Information

Package Weight

10.64 lb

Box Dimensions (L × W × H)

17.5 × 16.4 × 5.8"
