Key Specifications

Product / Accessory Type

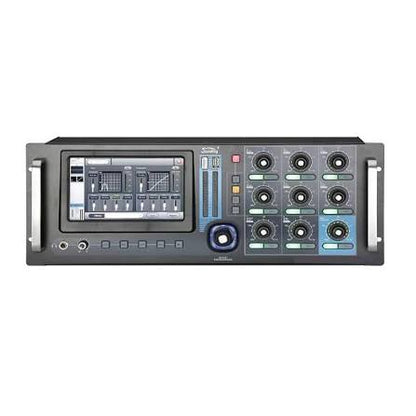

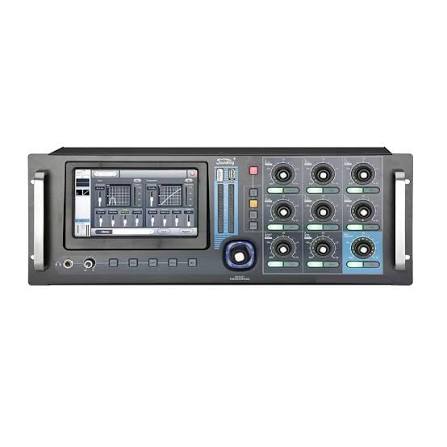

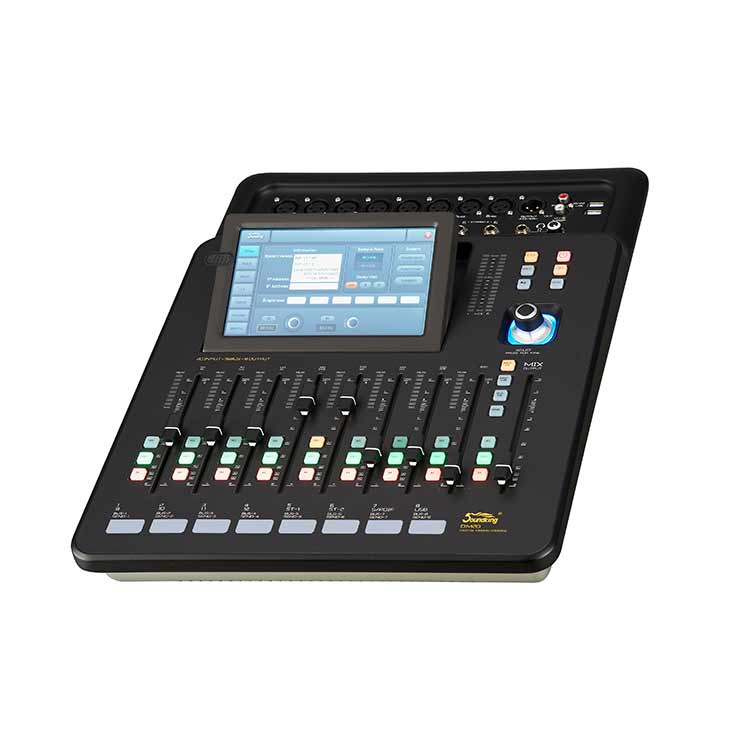

16-Channel Compact Digital Mixing Console with Motorized Faders

User Interface & Display

177.80 mm (7.00") IPS Touch Screen (1024 x 600 Resolution, Angle Fully Adjustable)

Fader Assembly

9x 100.00 mm (3.94") ALPS Motorized Faders

Connector Hardware Quality

Neutrik High-Quality Audio Connectors

Audio Performance & System Specifications

System Latency

< 2.0 ms

Total Input Channels

16 Channels (12x Microphone Inputs, 2x Stereo Line Inputs)

Bussing & Routing Architecture

16 Internal Mix Buses (4x Mono Output Buses, 5x Stereo Output Buses, 1x Stereo Monitor Bus)

Integrated DSP & Internal Effects

Onboard FX Processors

8 Built-In FX Modules: 2x Reverb Engines, 2x Modulation Processors, 2x Delay Engines, 2x 15-Band Graphic Equalizers (GEQ)

Connectivity & Digital Interface Specifications

Analog Audio Output Interfaces

8x Customizable XLR Balanced Line Outputs;
1x Stereo Track Monitor Output;
1x Headphone / Earphone Output Interface

Digital Audio Inputs & Outputs

S/PDIF Digital Input & Output Interfaces;
AES/EBU Balanced Digital Output

USB Recording & Playback Interfaces

2x USB Ports (USB Flash Drive Playback & Multi-Track Recording, WAV Format Support)

Dimensions & Weight Specifications

Product Dimensions (W×D×H)

429.00 mm x 335.00 mm x 83.00 mm (16.89" x 13.19" x 3.27")
