Key Specifications

Product Type

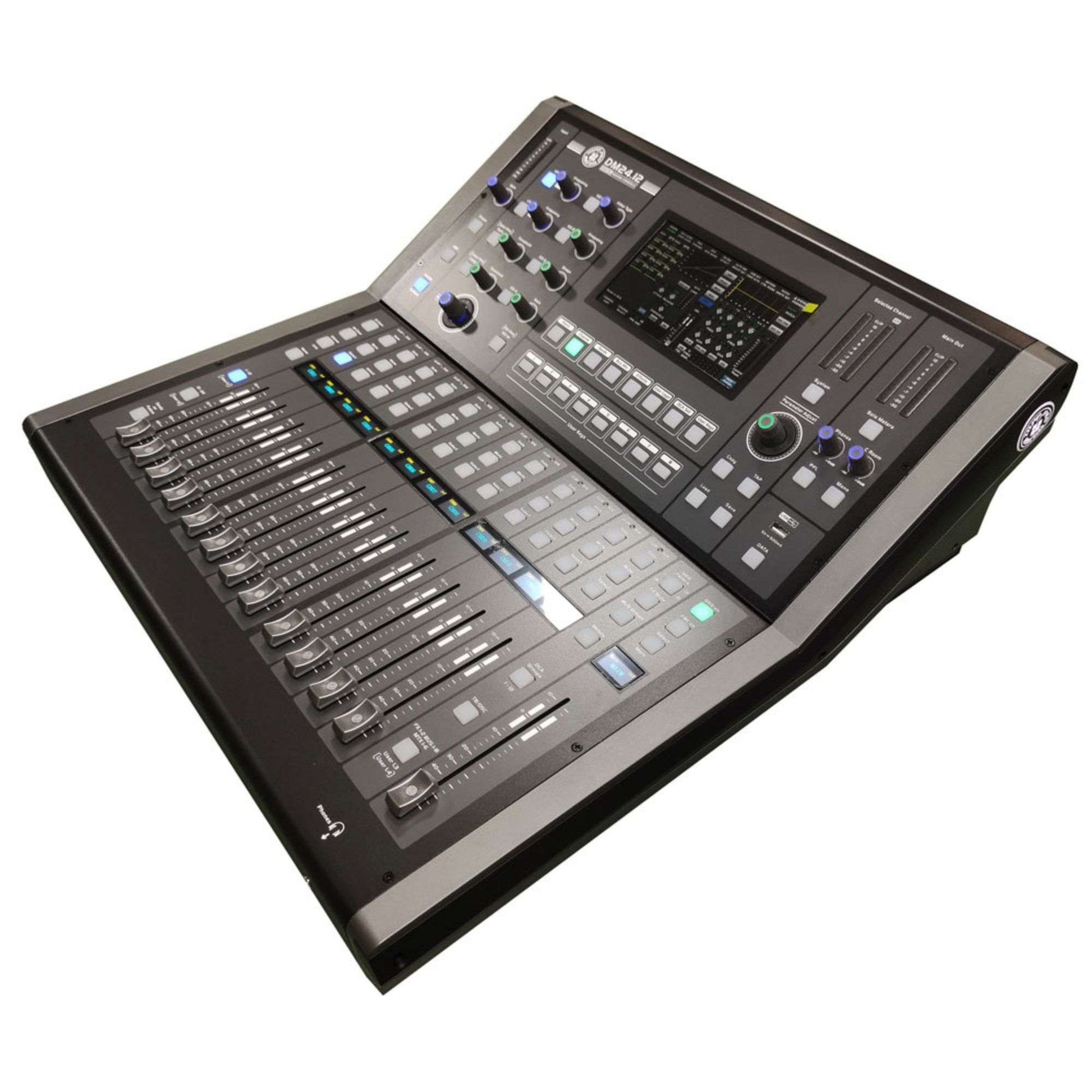

Professional Digital Mixing Console

Internal Processing

32-bit Floating Point

ADC / DAC Performance

32-bit ADC / 24-bit DAC | 113 dB Dynamic Range

Signal-to-Noise Ratio

108 dB

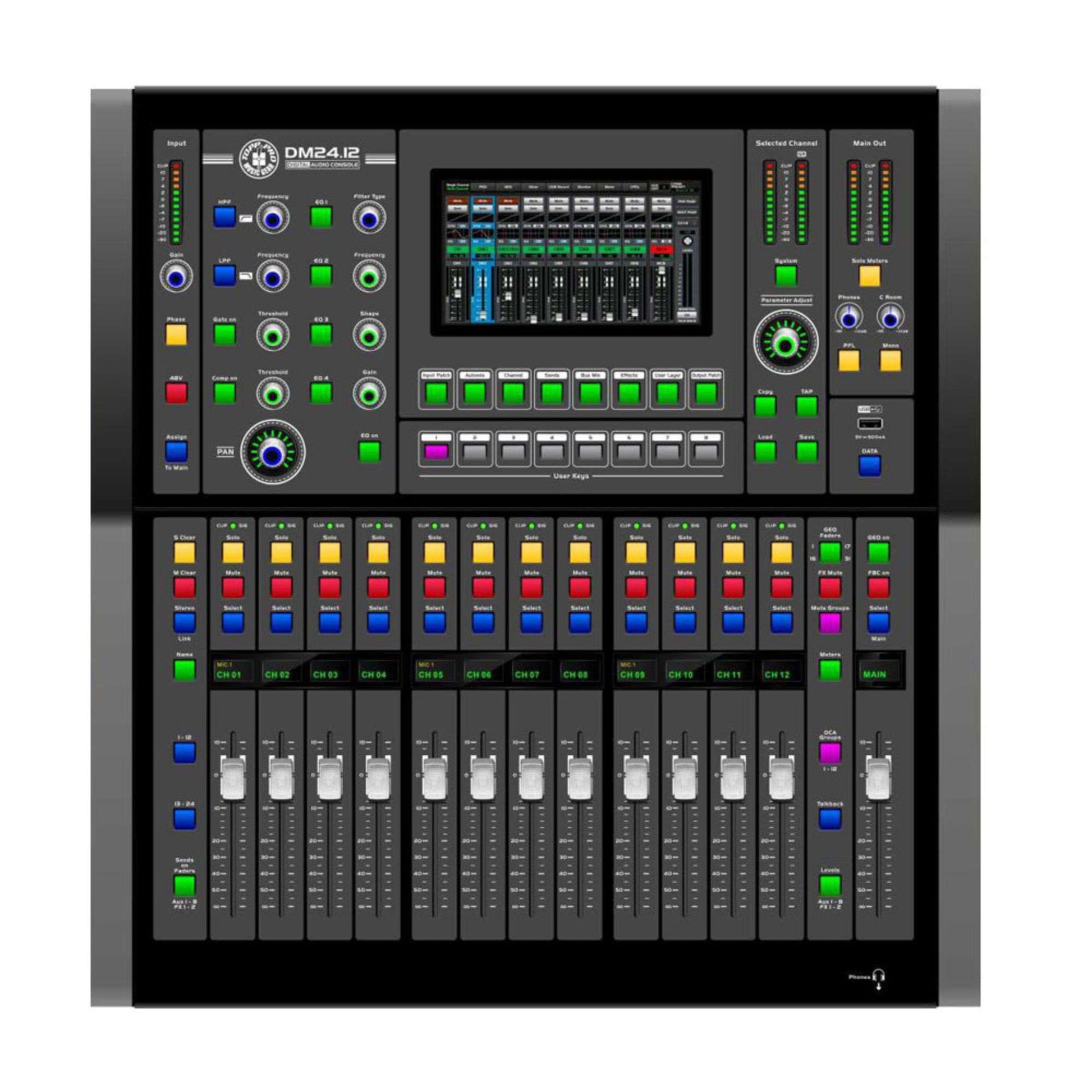

Visual Interface

Main Display

7-inch LCD (1024 x 600)

Channel Displays

0.96-inch individual LCDs (128 x 64)

Audio Performance

Frequency Response

22 Hz to 22 kHz (±1.5 dBu)

Max Input / Output Level

+20 dBu

Crosstalk / Noise

-88 dBu (I/O) | -87 dBu (Adjacent Channels)

DSP & Signal Processing

4-Band Parametric EQ

20 Hz to 20 kHz (±15 dB per band)

Compressor / Gate

Threshold: -84 to +19 dBu | Attack: 0 to 250 ms

Compression Ratio

1:1 to 40:1 (up to ∞:1 limiting)

Impedance & Temp

Input / Output Impedance

6.8 kΩ (Mic) | 120 Ω (All Outputs)

Operating Temperature

0°C to 40°C (32°F to 104°F)
