Key Specifications

Max I/O Capacity

20× Input / 12× Output

Number of Analog Input Channels

16 (Mono)

Number of Mic Preamps

16

Number of Analog Output Channels

8

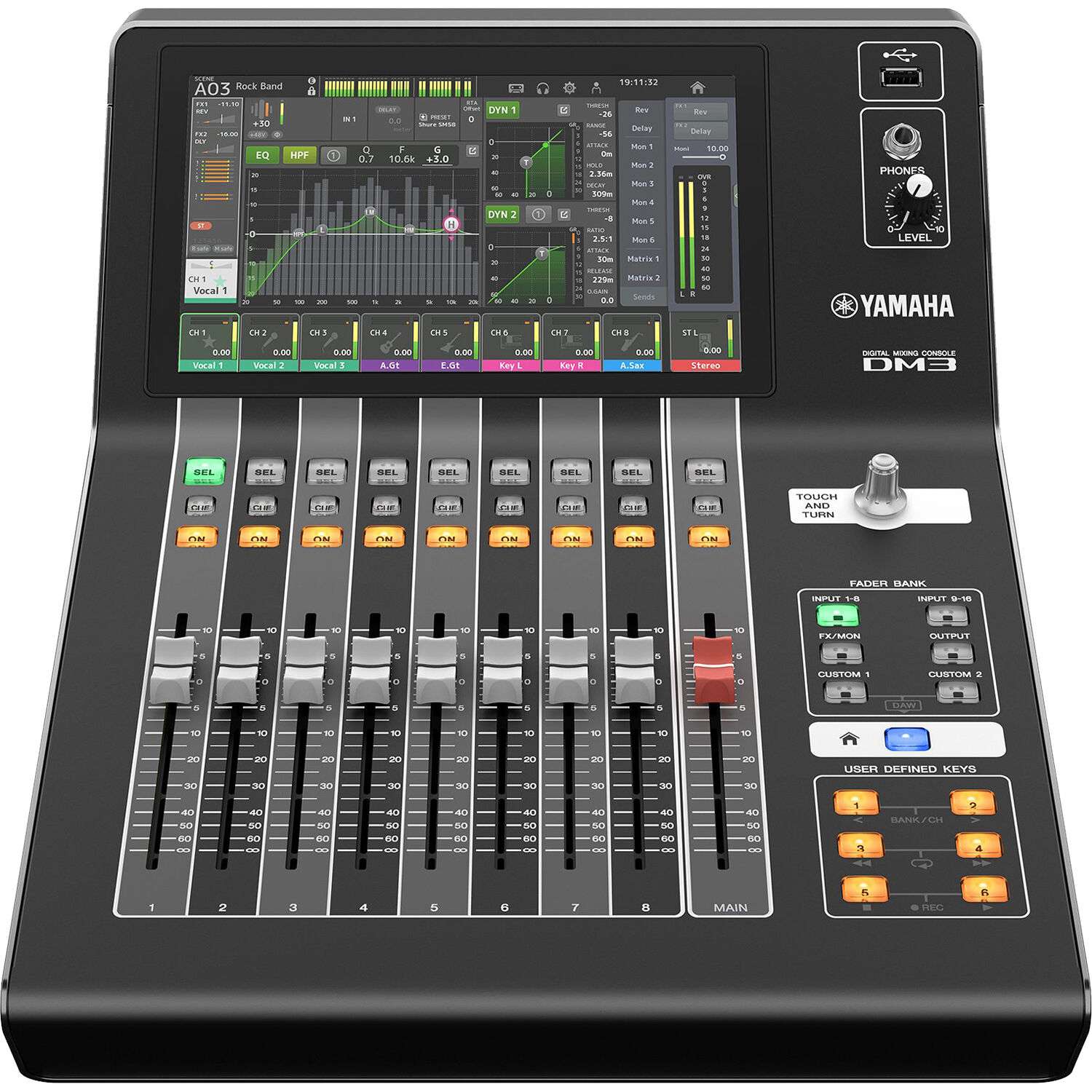

Faders & Level Adjustment

9× 3.9″ / 100 mm Motorized Faders (Touch Sensitive)

Built-In Effects

18× Effect (Type Unspecified)

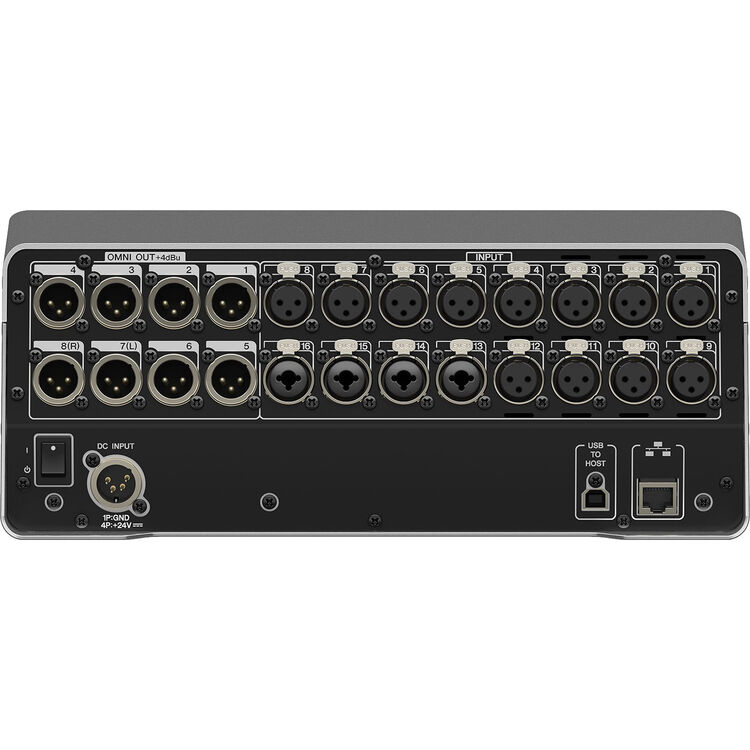

Analog Inputs

12× XLR 3-Pin Balanced Mic/Line Input
4× Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input

Analog Outputs

8× XLR Balanced Output

Digital I/O

1× RJ45 Ethernet (Network)

USB I/O

1× USB-B (Host Connection, Multitrack Record)
1× USB-A (2-Track Record, Audio Playback, Control, External Memory)

Wireless

No

Rack Mountable

Yes

Mixer

Mix Routing

1× Stereo Main LRC
6× Bus
2× Mono Matrix
2× Stereo FX Return

Presets

200× Scene
13× Factory Preset

Display

Main Display: 9″ LCD Touchscreen

Signal Processing

Gain/Trim Range

0 dB to +64 dB

Input Pad

-24 dB

Input Polarity

Normal / Reverse

Dynamic Processing

Compressor, Gate

EQ

Input Channels, Output Buses, Outputs, Subgroups, FX Returns: 4-Band Parametric

Graphic EQ

Yes

Audio Delay

Adjustable up to 1000 ms

Digital Audio

Sample Rates

48 kHz / 96 kHz

Bit Depth

24 / 32-Bit (Record)

Performance

Frequency Response

20 Hz to 20 kHz +0.5 / -1 dB

Max Input Level

Mic/Line Input: +24 dBu

Analog Dynamic Range

Output: 110 dB

Headphone Output Power

2.5 mW / 100 mW (Max)

Connectivity

Analog Inputs

12× XLR 3-Pin Balanced Mic/Line Input
4× Combo XLR-1/4″ Balanced/Unbalanced Mic/Line Input

Analog Outputs

8× XLR Balanced Output

Digital I/O

2× etherCON Dante (I/O), 1× RJ-45 Ethernet Network

USB I/O Capacity

18× Input / 18× Output

Power

24 V DC at 2.5 A (100-240 VAC, 50/60 Hz)

Physical

Dimensions: 12.6 × 5.5 × 17.9 in / 32 × 14 × 45.5 cm
Weight: 14.3 lb / 6.5 kg

Packaging Info

Package Weight

20.21 lb

Box Dimensions (L×W×H)

21.7 × 17.7 × 9.4 in
