DM3S

Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns

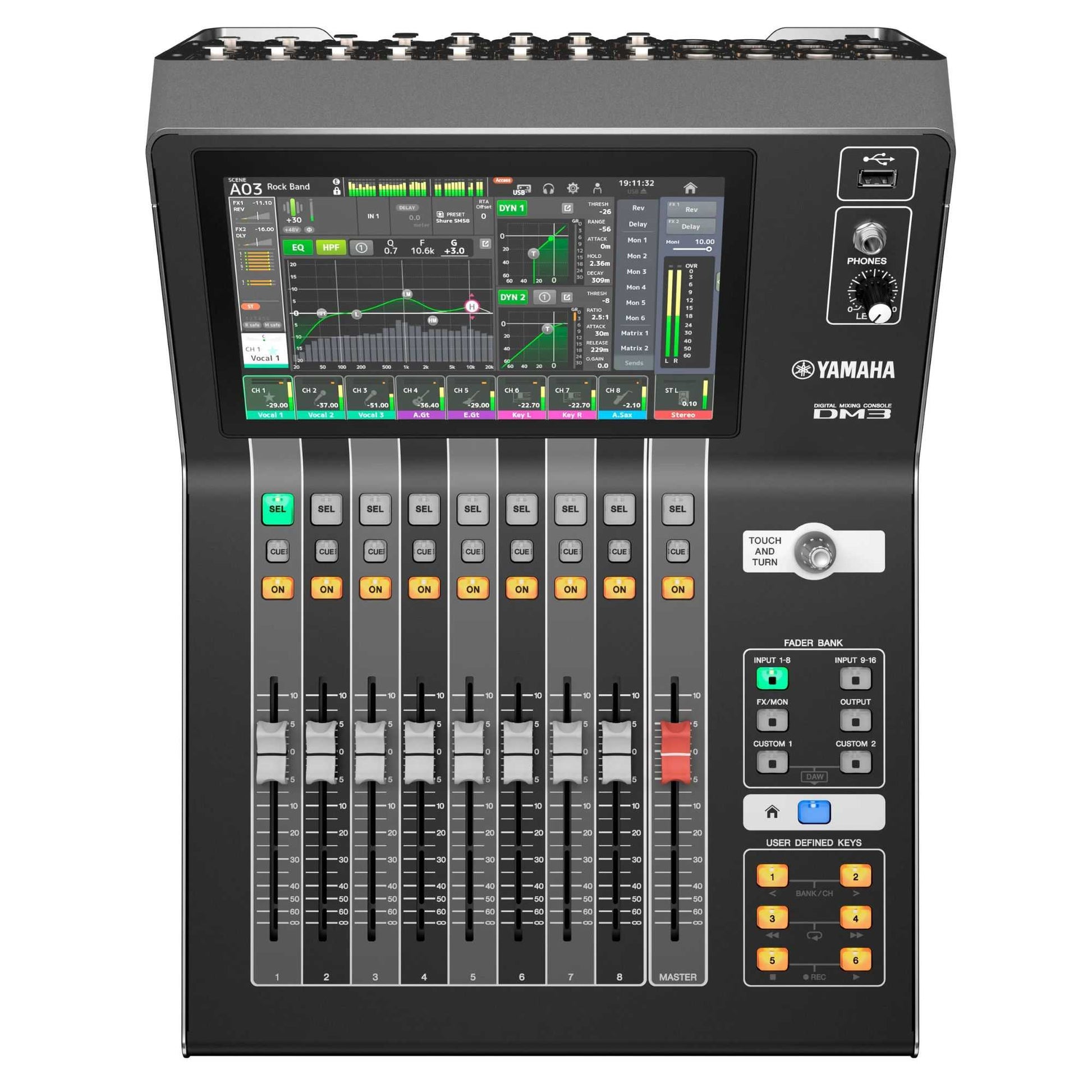

9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
Capable of sampling rates as high as 96kHz
6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
16 outstanding mic preamps and 8 convenient analog outputs
Excellent built-in DSP effects
18 x 18 USB audio interface for playback and recording

YAMAHA

₱119,900.00 VAT INC.

₱119,900.00

UNIT: PIECE/S

Product Code: SKU:YAMH-DM3S-CHN-961

Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns
9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
Capable of sampling rates as high as 96kHz
6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
16 outstanding mic preamps and 8 convenient analog outputs
Excellent built-in DSP effects
18 x 18 USB audio interface for playback and recording

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

YAMAHA DM3S

Key Specifications
Type	Digital Mixer
Channels	22

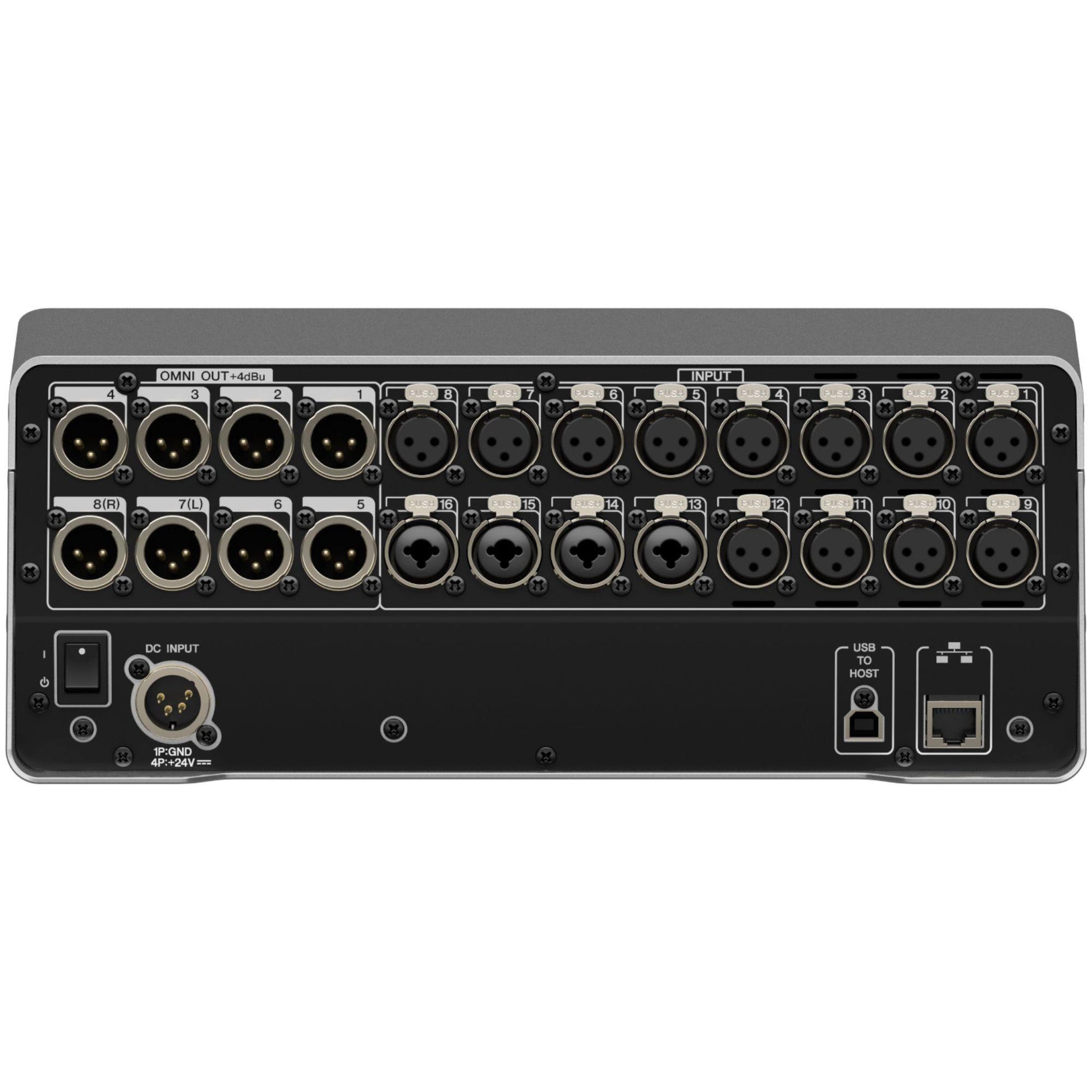

Inputs – Mic Preamps	12× XLR 4× XLR-1/4″ Combo
Phantom Power	16 Channels
Outputs – Main	8× XLR
Busses / Groups	Internal (1× Stereo, 6× Mix, 2× FX, 2× Matrix)
Data I/O	1× RJ-45 (LAN)
Headphones	1× 1/4″
USB	1× Type A 1× Type B
Computer Connectivity	USB (18×18)
Faders	9× 100 mm Motorized Faders
A/D Resolution	Up to 96 kHz
DAW Control	Yes
Screen	9″ Touchscreen
Storage	USB Slot
Power Source	24 V DC, 2.5 A Power Supply (Included)
Physical
Height	5.5″
Depth	17.9″
Width	12.6″
Weight	14.33 lb
Manufacturer Part Number	DM3S
