Key Specifications

Product / Accessory Type

Digital Mixing Console / Mixer

Total Mixing Channels

60 Channels

Busses, Groups & DCAs

24 Mix Busses, 1 Stereo Bus, 12 Matrix Busses, 12 DCAs

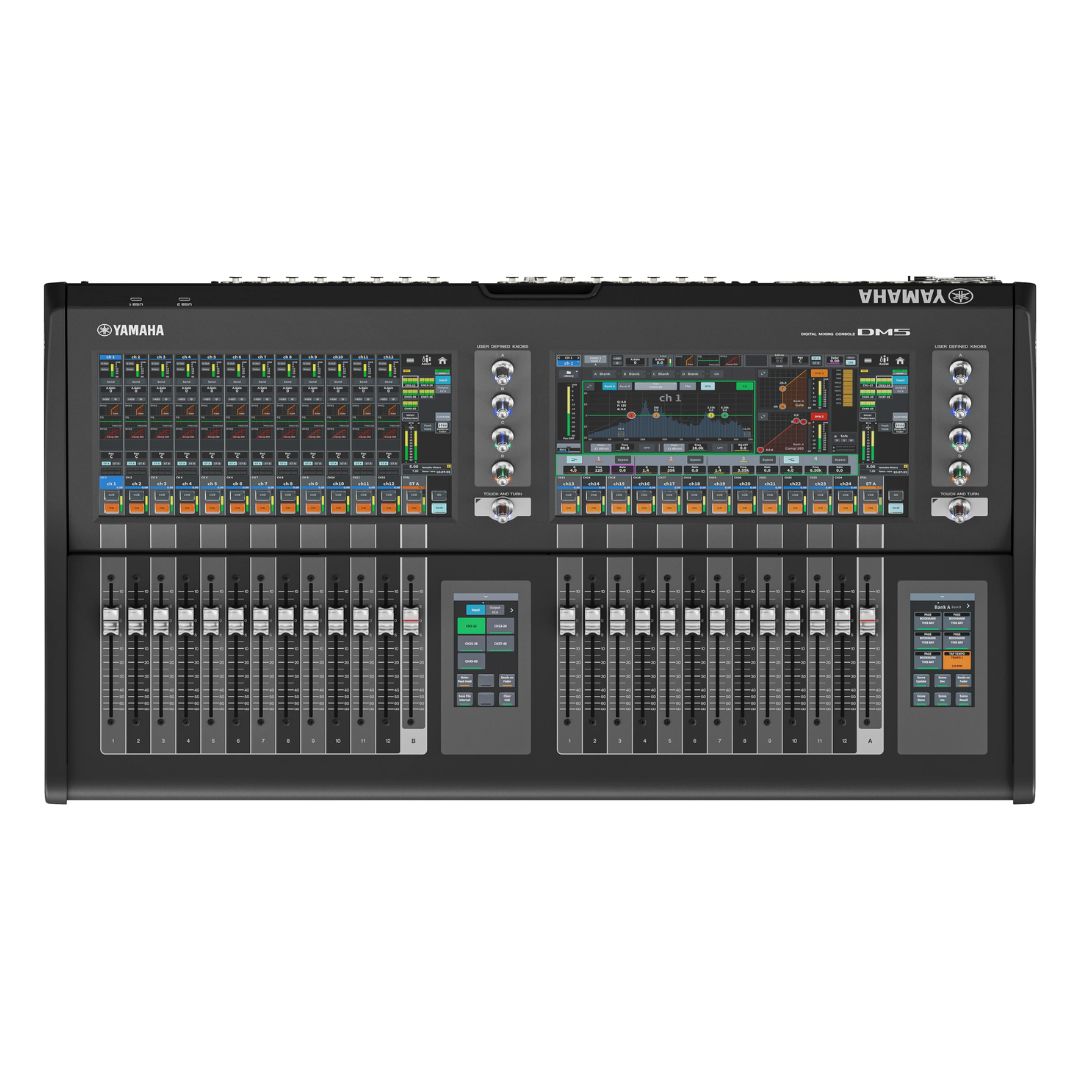

Faders & Physical Controls

26 Motorized Faders, Dedicated Transport Controls

Displays & User Interface

2x 13.3" Touchscreens, 2x 4.3" Touchscreens

DAW Integration / Control

Yes (DAW Control Supported)

Manufacturer Part Number

DM5

Performance & Processing Specifications

A/D Conversion / Sample Rate Resolution

96 kHz

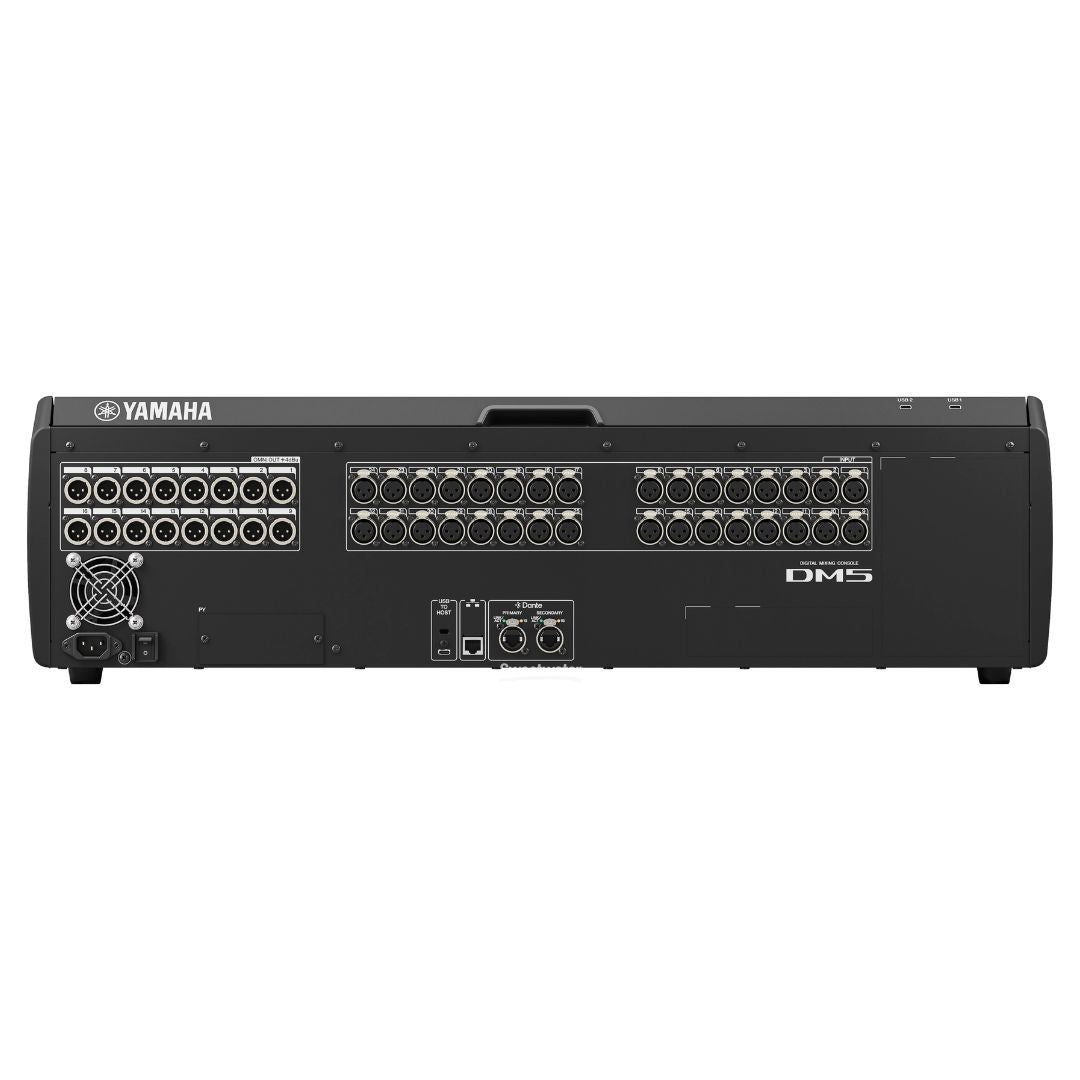

Connectivity & Expansion Specifications

Analog Inputs (Mic Preamps)

32x XLR Female

Analog Outputs (Main / Line)

16x XLR Male

Digital Inputs / Network Audio I/O

2x etherCON (Dante Network Audio)

USB Ports & Computer Connectivity

3x USB-C Ports; USB Audio Interface (18 Inputs x 18 Outputs)

Data Network & Control I/O

1x Ethernet RJ-45 Port (Network Control)

Headphone Outputs

1x 1/4" (6.35 mm) TRS Output

I/O Expansion Slots

1x Option Card Expansion Slot Available

Power Specifications

Power Source & Connector

Standard IEC AC Cable
