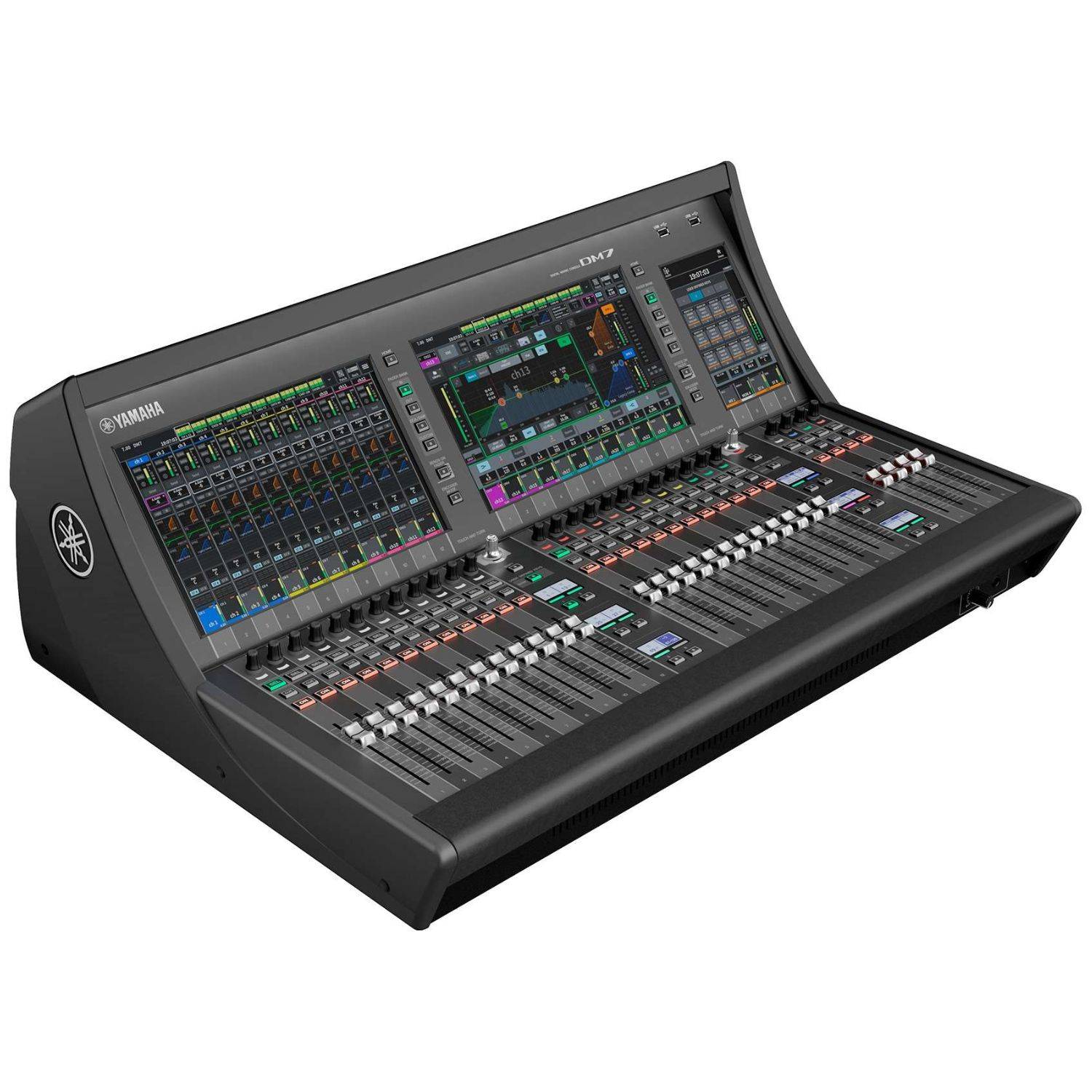

DM7

48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
32 excellent-sounding mic preamps and 16 convenient analog outputs
Excellent built-in DSP effects
64 assignable premium processing slots, 16 assignable Yamaha FX slots, and 4 assignable inserts per channel
144 x 144 Dante interface supplies loads of room for expansion
18 x 18 USB audio interface that works with Yamaha's VST Rack
DAW remote mode with transport control
AI assist features seamlessly adapt its functions to your preferences and workflow
Split mode assists a single engineer performing more than one task
Internal dual power supply

YAMAHA

₱1,800,000.00 VAT INC.

₱1,800,000.00

UNIT: PIECE/S

Product Code: SKU:YAMH-DM7-CHN-346

48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
32 excellent-sounding mic preamps and 16 convenient analog outputs
Excellent built-in DSP effects
64 assignable premium processing slots, 16 assignable Yamaha FX slots, and 4 assignable inserts per channel
144 x 144 Dante interface supplies loads of room for expansion
18 x 18 USB audio interface that works with Yamaha's VST Rack
DAW remote mode with transport control
AI assist features seamlessly adapt its functions to your preferences and workflow
Split mode assists a single engineer performing more than one task
Internal dual power supply

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

YAMAHA DM7

Key Specifications
Type	Digital Mixer
Channels	120
A/D Resolution	Up to 24‑bit / 96 kHz
Inputs / Outputs
Mic Preamps (XLR Inputs)	32 × XLR
Phantom Power	32 Channels
Main Outputs	16 × XLR (main)
Digital Inputs	2 × XLR (AES/EBU), 2 × RJ-45 (Dante)
Digital Outputs	2 × XLR (AES/EBU)
Buses / Groups / Mixes	48 mixes, 12 matrices, 2 stereo buses, 2 cue mixes
MIDI I/O	1 × 15‑pin DIN (GPI)
Headphones	1 × 1/4"
USB I/O	1 × USB‑C (Host / Computer Connectivity, 18 × 18), Ethernet
I/O Expansion Slots	1 slot available
Word Clock	2 × BNC (In / Out)
Faders & Control
Faders	28 Motorized
Transport Controls / DAW Control	Yes
Screen	2 × 12" touchscreen, 7" touchscreen
Signal Processing & Effects
Assignable Processing Slots	64
Assignable FX Slots	16
Inserts per Channel	4
Effects	Yes
Features	A.I. Mix Assistant
Software / Connectivity
Software	DM7 Editor, DM7 StageMix, Console File Converter, MonitorMix, ProVisionaire Control/Touch
Power / Physical
Power Source	2 × Standard IEC AC Cable (Redundant Power Supply)
Height	12.75"
Width	31.2"
Depth	22.2"
Weight	50.7 lbs.
