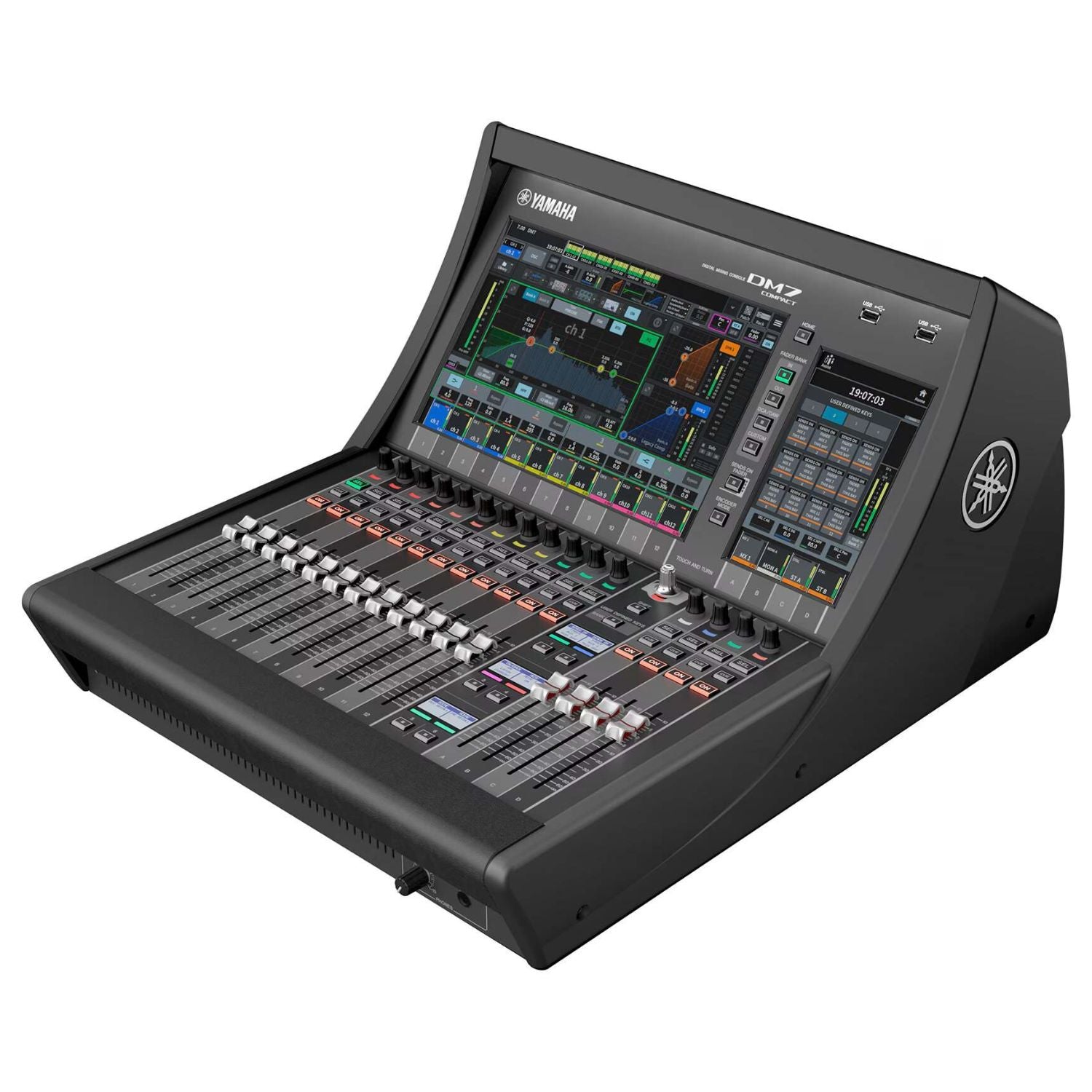

YAMAHA DM7C
YAMAHA DM7C
|
Key Specifications |
|
|
Type |
Digital Mixer |
|
Channels |
72 |
|
A/D Resolution |
Up to 24‑bit / 96 kHz |
|

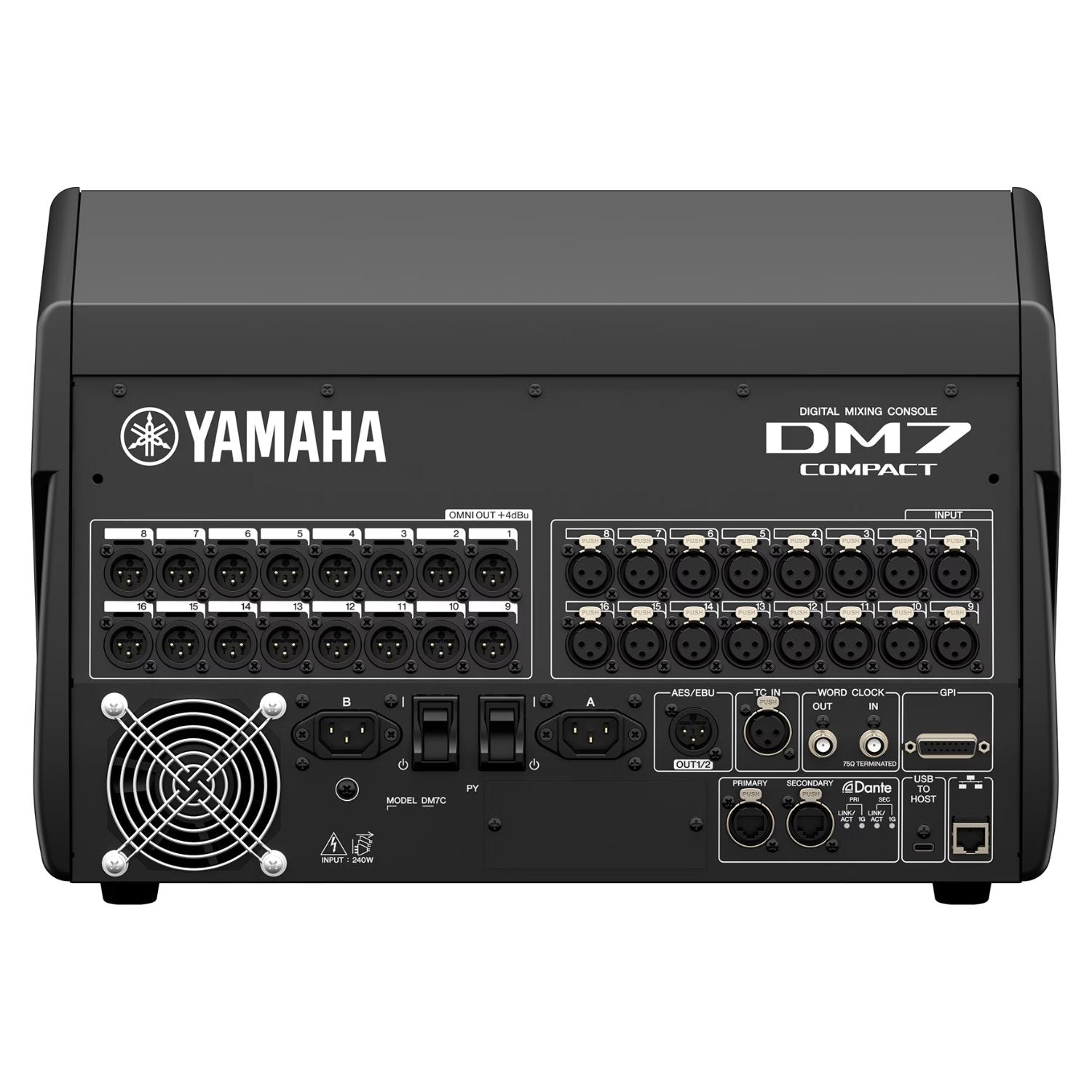

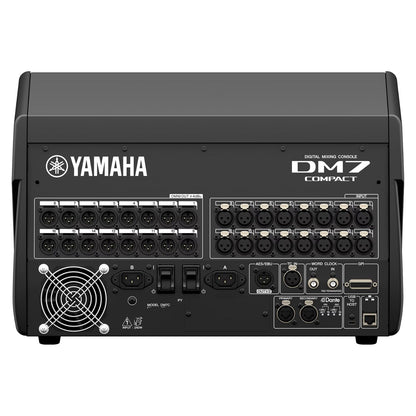

Inputs / Outputs |
|
|
Mic Preamps (XLR Inputs) |
16 × XLR |
|
Phantom Power |
16 Channels |
|
Main Outputs |
16 × XLR (main) |
|
Other Output |
1 × XLR (AES/EBU) |
|
Digital Inputs |
2 × RJ-45 (Dante) |
|
Digital Outputs |
1 × XLR (AES/EBU) |
|
Buses / Groups / Mixes |
48 mixes, 12 matrices, 2 stereo buses, 2 cue mixes |
|
MIDI I/O |
1 × 15‑pin DIN (GPI) |
|
Headphones |
1 × 1/4" |
|
USB I/O |
1 × USB‑C (Host / Computer Connectivity, 18 × 18), Ethernet |
|
I/O Expansion Slots |
1 slot available |
|
Word Clock |
2 × BNC (In / Out) |
|
Faders & Control |
|
|
Faders |
16 Motorized |
|
Transport Controls / DAW Control |
Yes |
|

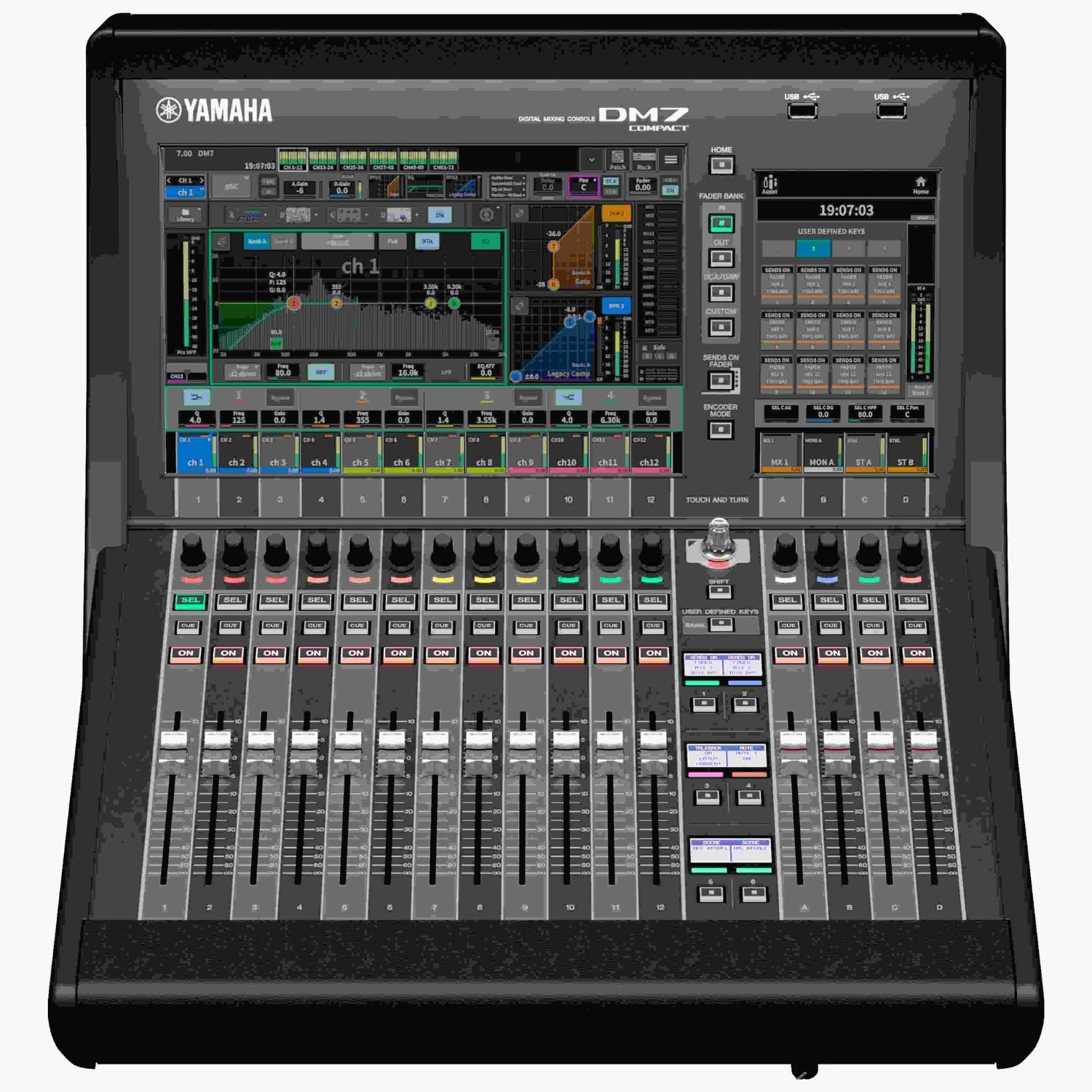

Screen |
12" touchscreen, 7" touchscreen |
|
Signal Processing & Features |
|
|
Assignable Processing Slots |
64 |
|
Assignable FX Slots |
16 |
|
Inserts per Channel |
4 |
|
Features |
A.I. Mix Assistant, DAW Control, Transport Controls |
|
Software / Connectivity |
|
|
Software |
DM7 Editor, DM7 StageMix, Console File Converter, MonitorMix, ProVisionaire Control/Touch |
|
Power / Physical |
|
|
Power Source |
2 × Standard IEC AC Cable (Redundant Power Supply) |
|
Height |
12.75" |
YAMAHA DM7C Accessories
- No accessories available.
