DMS 6410

Standard system: up to 60 consoles DMS 6410 (2 lines; 30 consoles per line connected in daisychain)
Expanded system: up to 180 consoles DMS 6410 (6 lines; 30 consoles per line connected in daisychain. The further 120 consoles can be added by installing the optional board DEC 6104 into the central unit DMU 6100 and connecting the external power supply unit DPS 6202
2 aux inputs, A and B, with XLR sockets, each configurable by means of DIP switches (PHANTOM, MIC / LINE, HIGH-PASS) and with a gain control and an enable / mute command

₱34,000.00 VAT INC.

₱34,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-DMS6410-CHN-248

Standard system: up to 60 consoles DMS 6410 (2 lines; 30 consoles per line connected in daisychain)
Expanded system: up to 180 consoles DMS 6410 (6 lines; 30 consoles per line connected in daisychain. The further 120 consoles can be added by installing the optional board DEC 6104 into the central unit DMU 6100 and connecting the external power supply unit DPS 6202
2 aux inputs, A and B, with XLR sockets, each configurable by means of DIP switches (PHANTOM, MIC / LINE, HIGH-PASS) and with a gain control and an enable / mute command

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

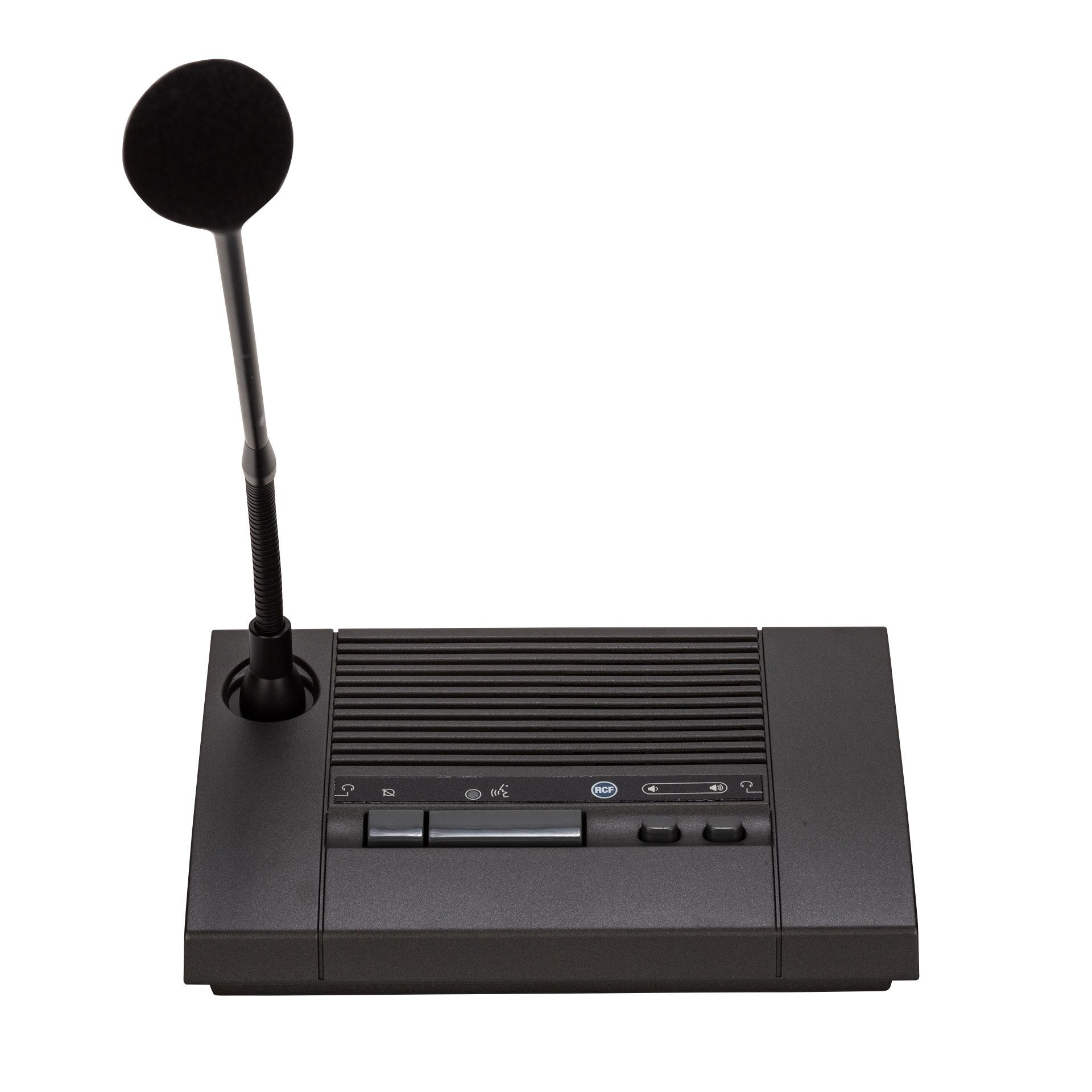

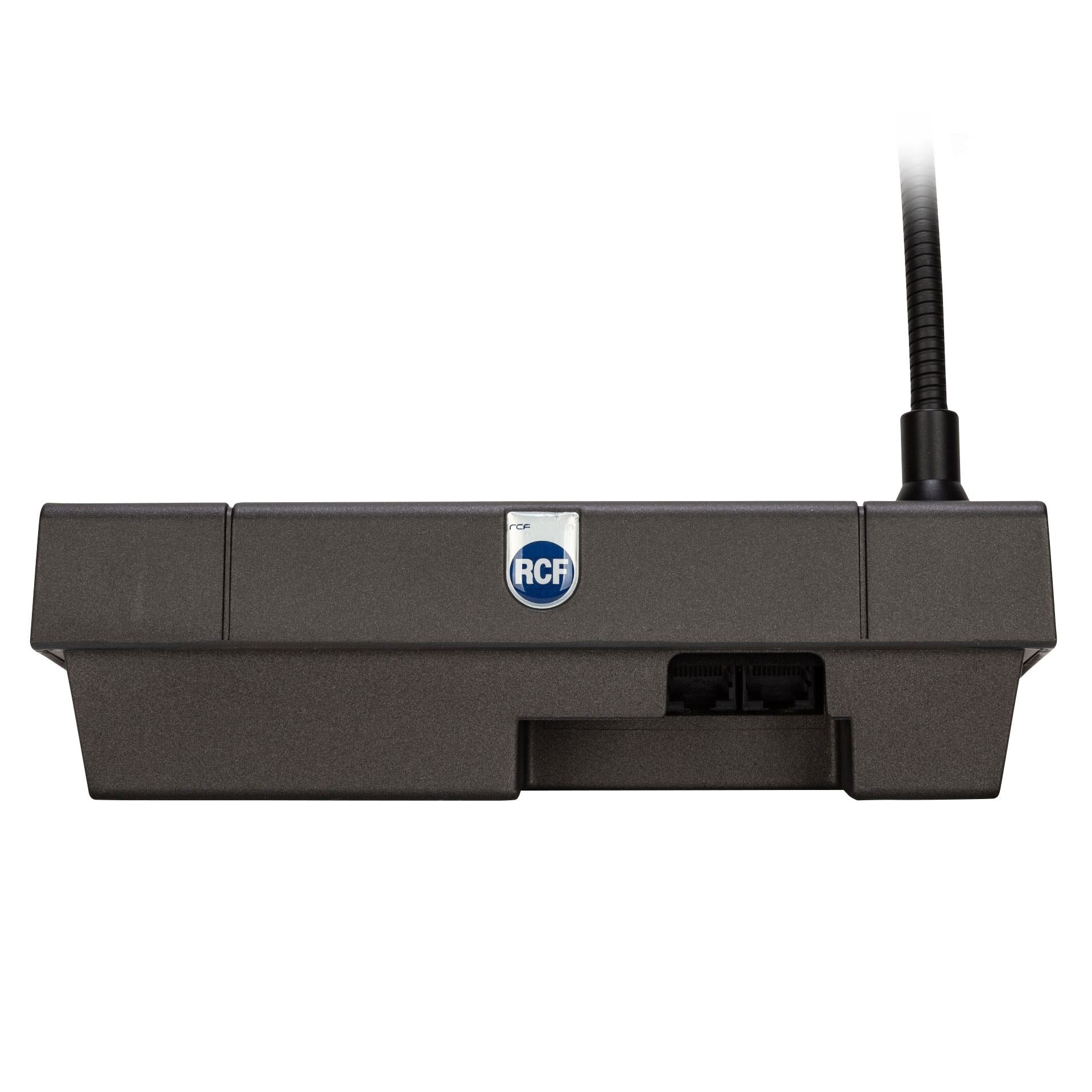

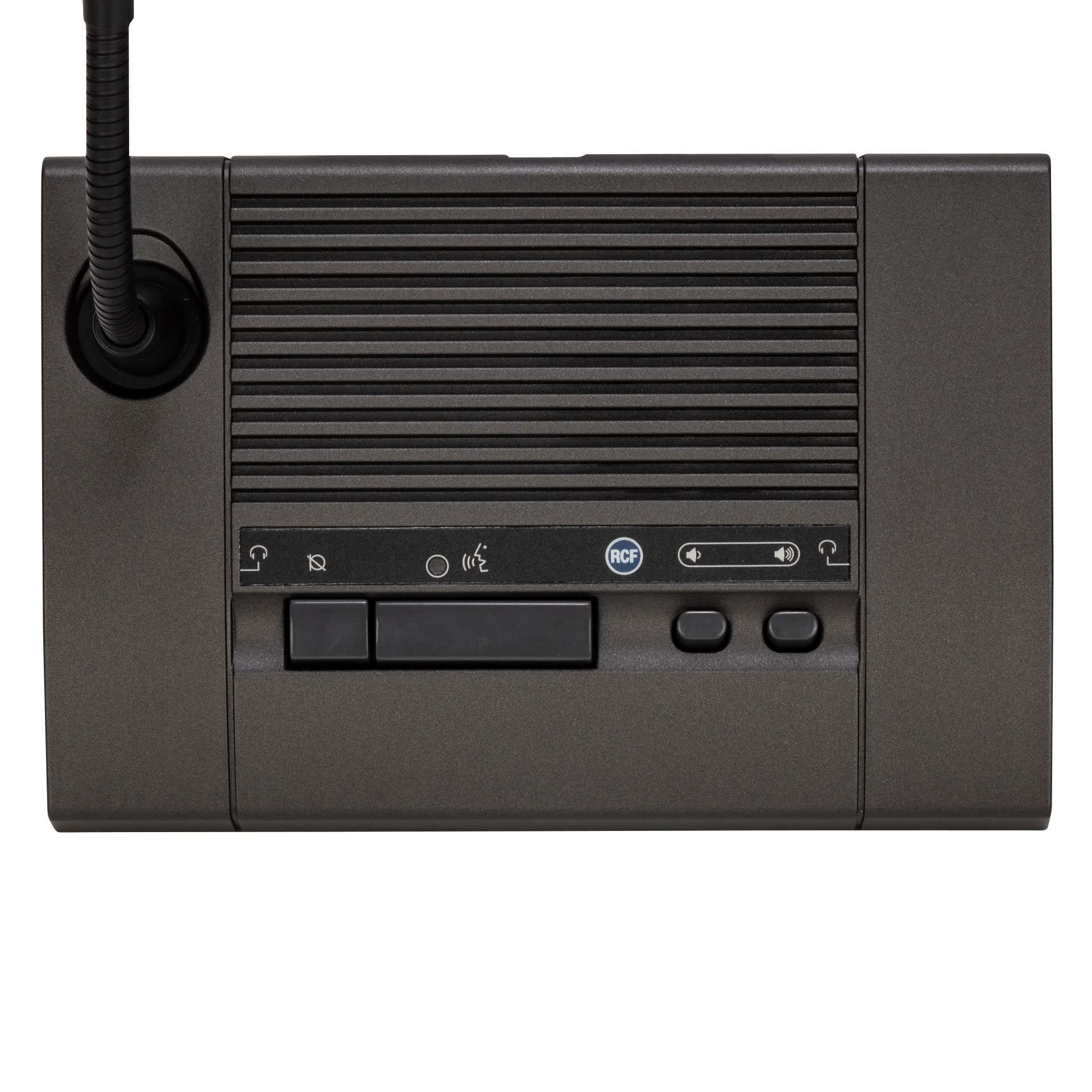

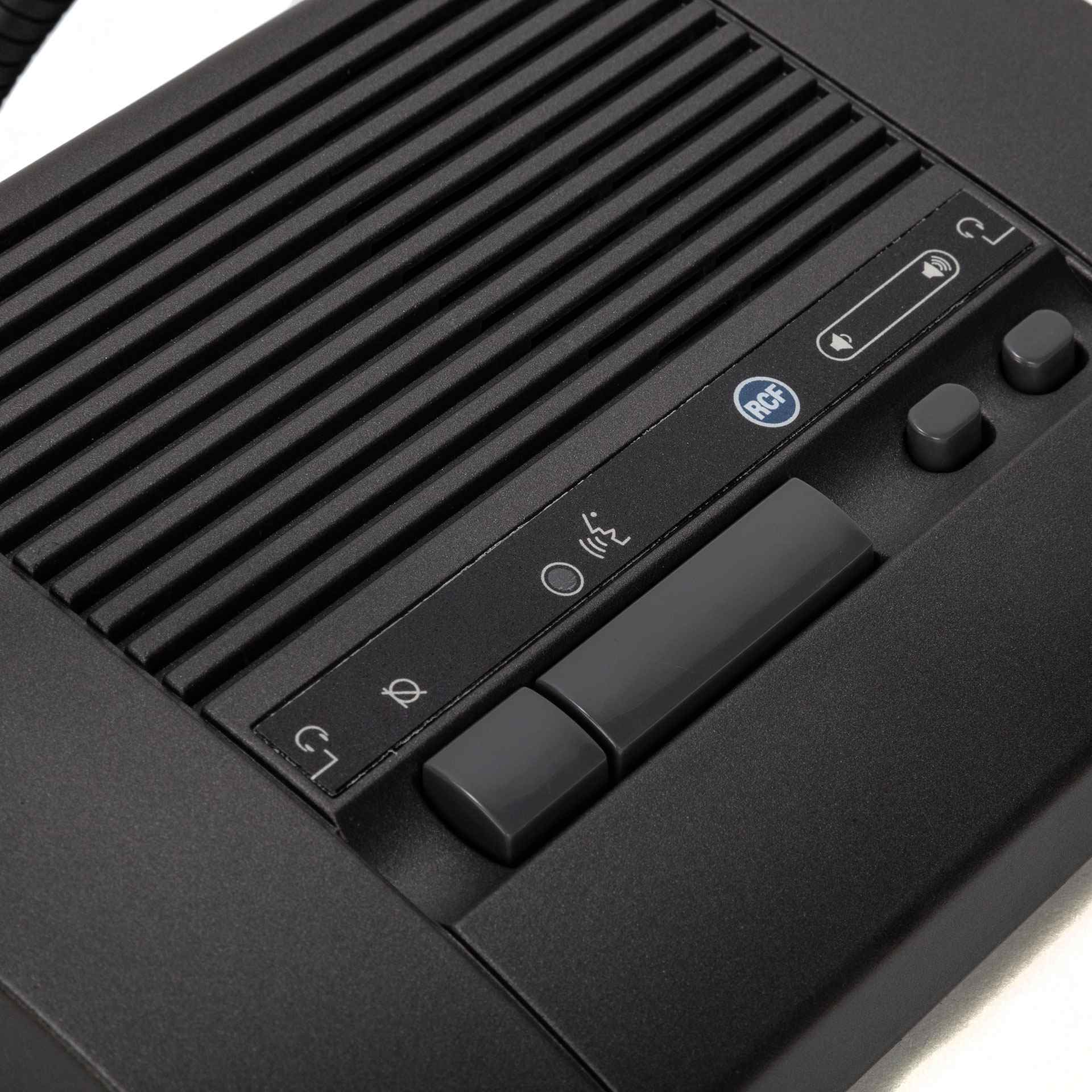

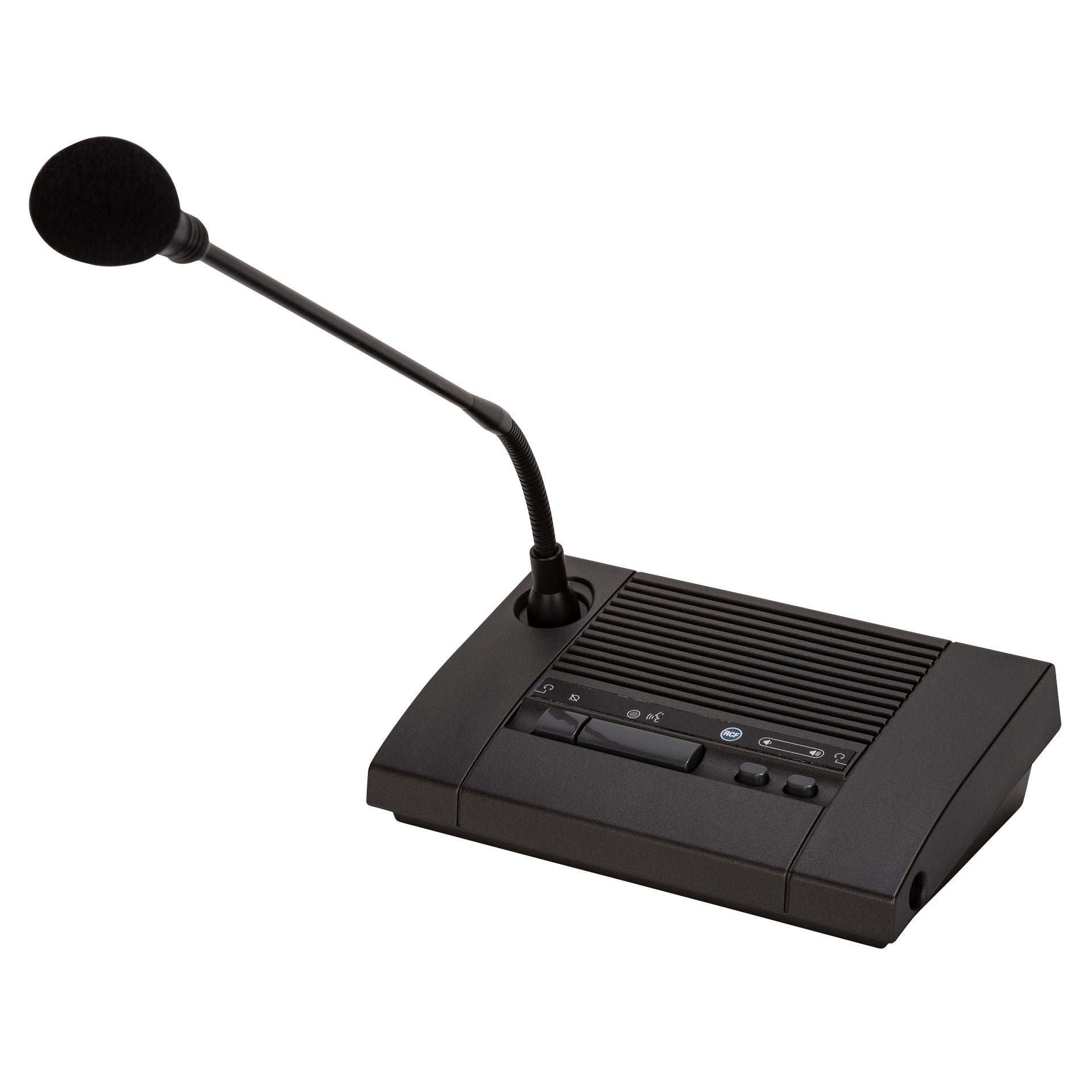

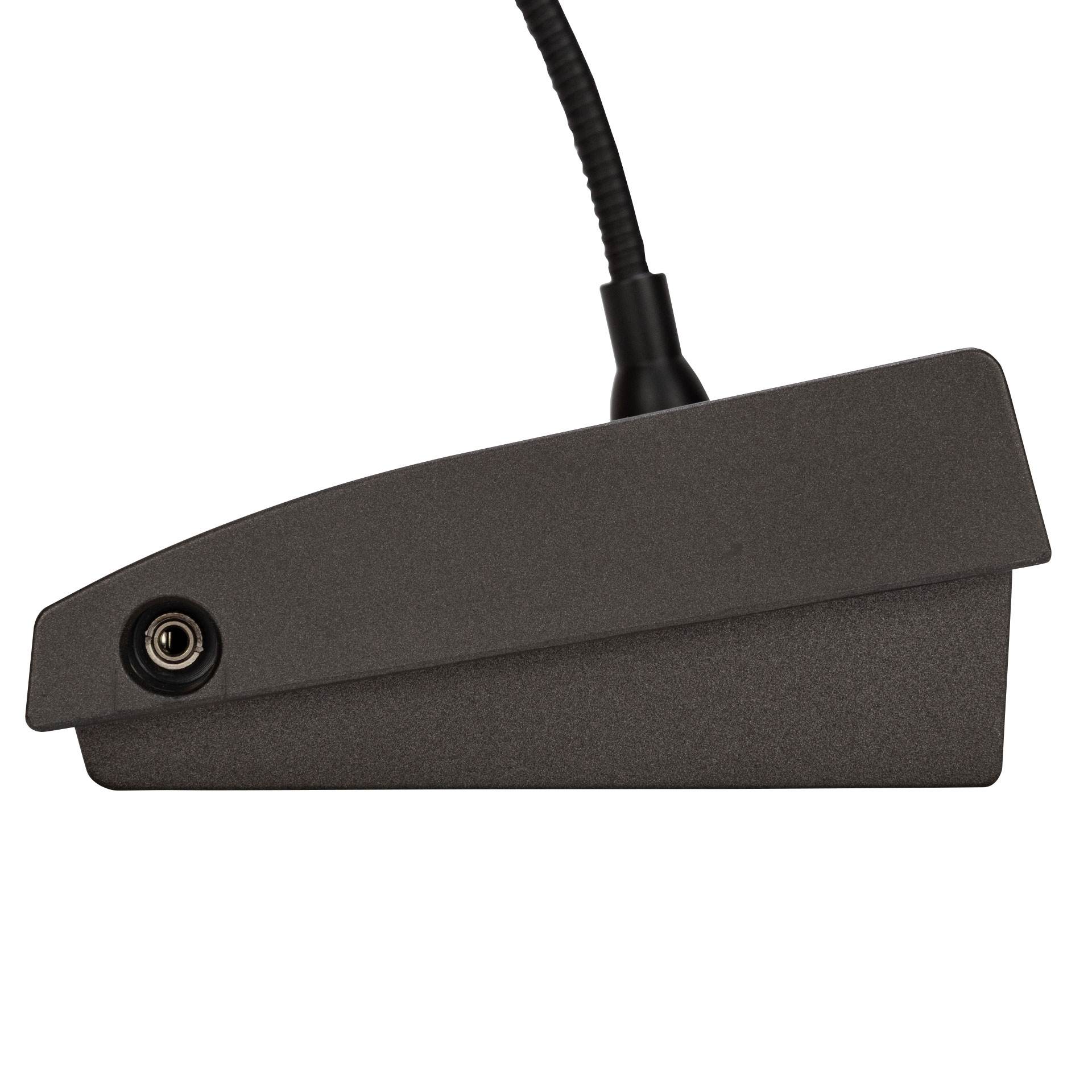

RCF DMS 6410

Key Specifications
Type	Electret (Gooseneck)
Directivity	Cardioid
Frequency Response (-3 dB)	70 Hz - 18000 Hz
Signal / Noise Ratio (@ 1kHz)	60.00 dB
Console Specifications
Console Type	Conference (FORUM 6000 System)
Configuration Modes	Chairman, Delegate, or Interpreter
LED Indicators	Yes (Mic activation / Status)
Power & Connectivity
Operating Voltage	48 V DC
Connectors	RJ45 (10-pole)
Daisy-chain Support	Yes (Max 30 units per line)
Included Cable	Yes (2.5 m / 8.2 ft)
Physical Specifications
Material / Color	Plastic / Grey
Dimensions (H x W x D)	63 x 200 x 135 mm / 2.48 x 7.87 x 5.31 inches
Weight	1.22 kg / 2.69 lbs
Shipping Information
Package Dimensions	240 x 510 x 210 mm / 9.45 x 20.08 x 8.27 inches
Package Weight	2.11 kg / 4.65 lbs
