DMU 6100

Two universal inputs for connecting any additional sources such as a wireless microphone or a lectern microphone or any other complementary device, even a mixer-preamplifier.
Two inputs can be configured in different ways; for instance they can be mixed with the system audio, have priority on system microphone sets, one mixed and one priority etc.
Dedicated IN and OUT connections are available echo-free for the link to a teleconference system
VOX operation or command operation are available

₱12,000.00 VAT INC.

₱12,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-DMU6100-CHN-634

Two universal inputs for connecting any additional sources such as a wireless microphone or a lectern microphone or any other complementary device, even a mixer-preamplifier.
Two inputs can be configured in different ways; for instance they can be mixed with the system audio, have priority on system microphone sets, one mixed and one priority etc.
Dedicated IN and OUT connections are available echo-free for the link to a teleconference system
VOX operation or command operation are available

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

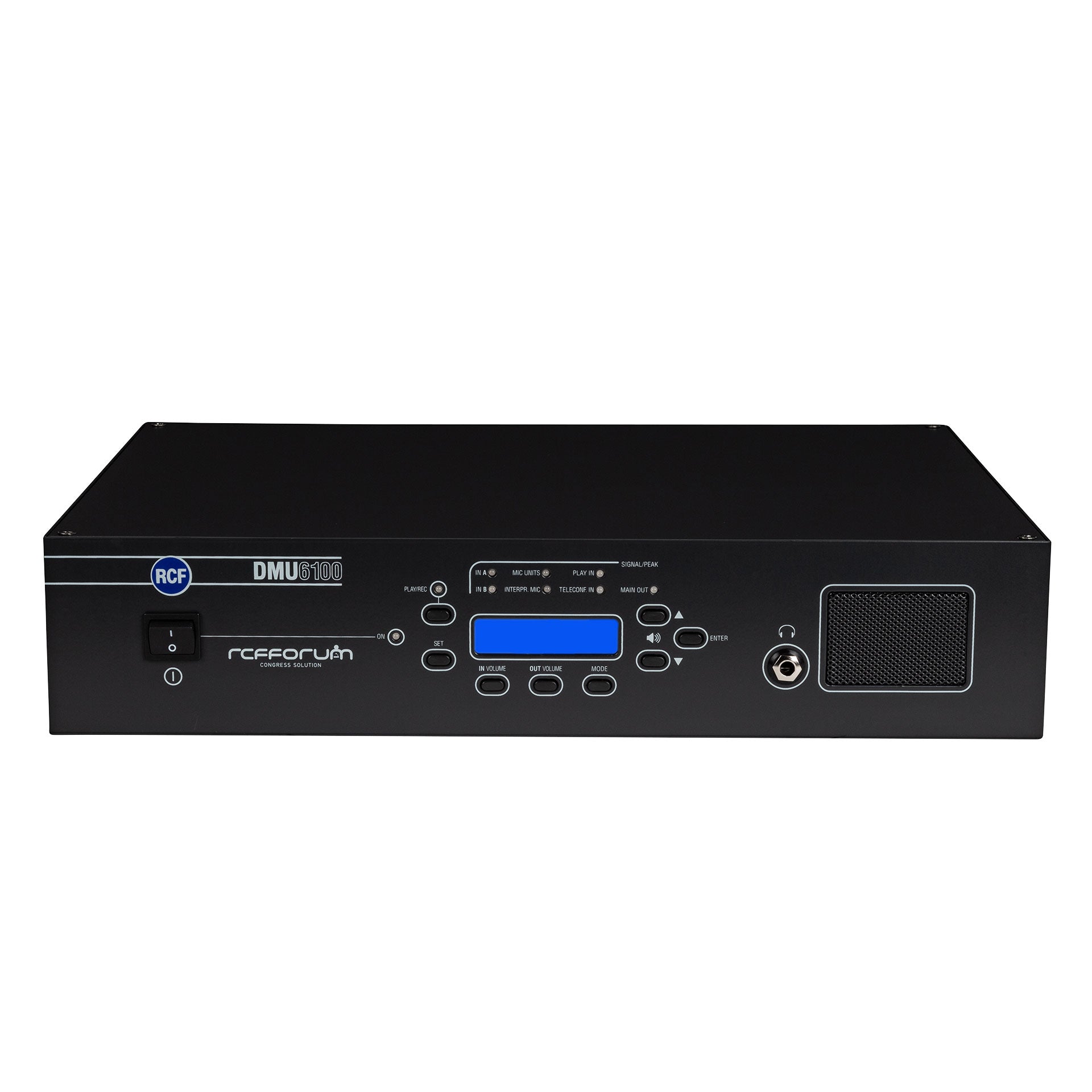

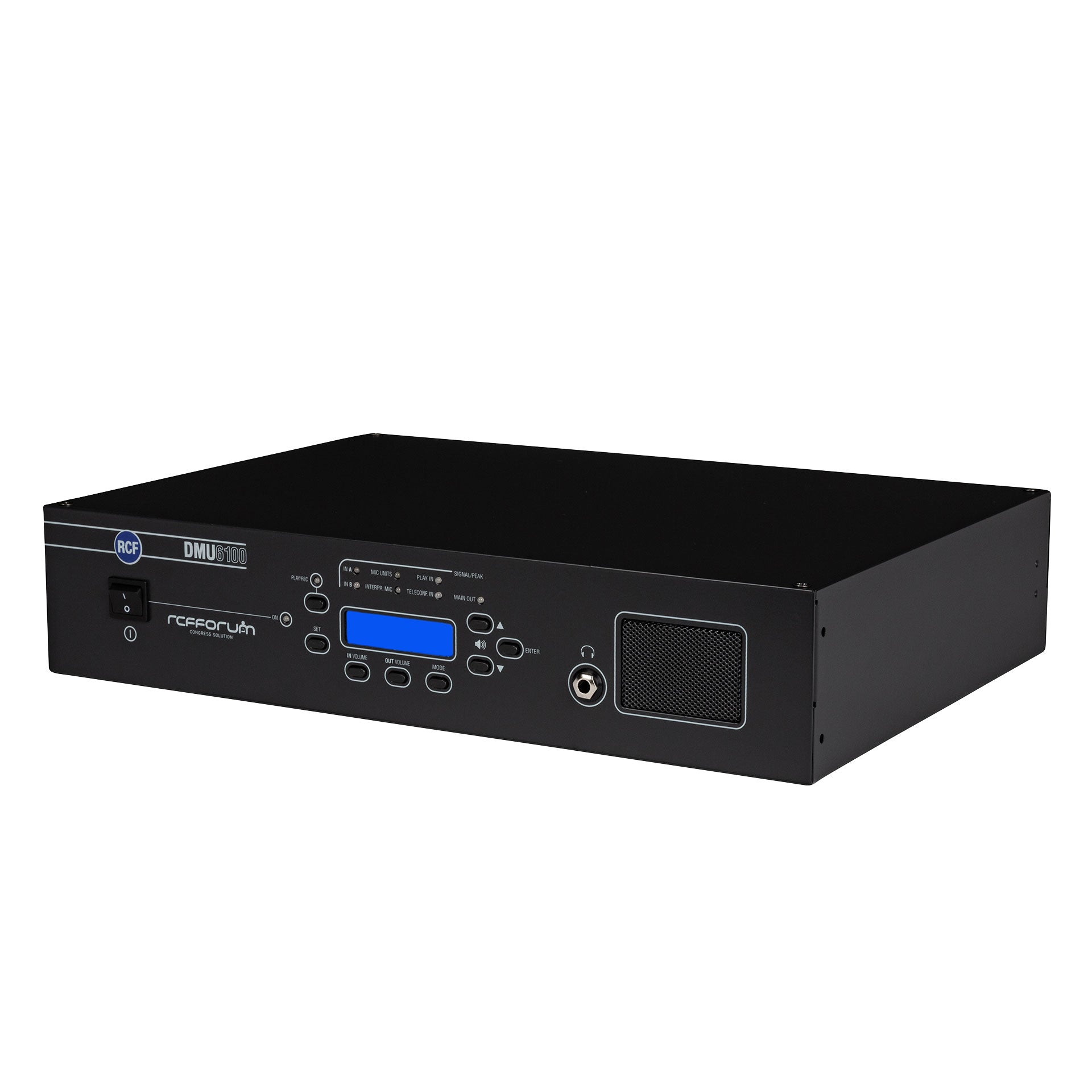

RCF DMU 6100

Key Specifications
Capacity & Routing	Max Consoles: 60 Console Buses: 2 Recording Facility: Yes

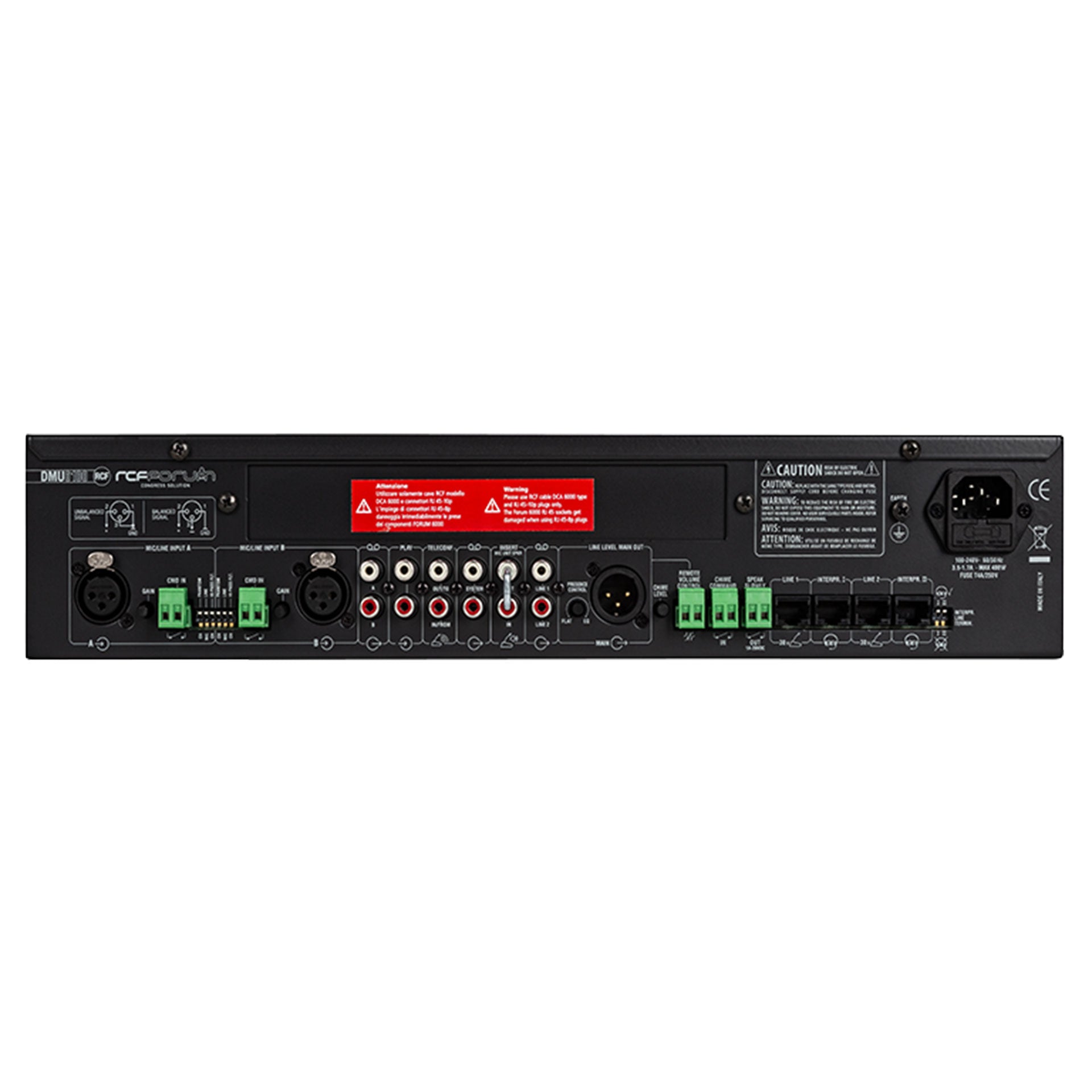

Input Section	Total Inputs: 11 (7 Balanced / 4 Unbalanced) Mic+Line: 2 (XLR) with 23V Phantom & VOX Line Inputs: 5 (RCA) Paging Inputs: 4 (RJ45) GPI: 4
Output Section	Signal Outputs: 7 (RCA, XLR) GPO: 1 Processing: High-pass filter (0 Hz)
Controls & Power	Configuration: Front panel / PC Software Chime Tone: Yes Operating Voltage: 90-240 V~ 50/60Hz Power Consumption: 400 W (Max)
Physical	Rack Mounting: 19", 2U (Metal Cabinet) Color: Black Dimensions: 16.93 x 3.46 x 12.2" / 430 x 88 x 310 mm Weight: 12.72 lb / 5.77 kg
Packaging Info	Package Weight: 17.22 lb / 7.81 kg Box Dimensions: 20.08 x 5.31 x 15.16"
Compliance	Safety Agency: CE compliant Cooling: Convection
